What Is Black Box Testing? Types, Techniques and Examples

Black box testing is a software testing method that validates functional requirements without any knowledge of the internal structure or implementation. The tester works from the specification, not the code.

It confirms that a system does what the customer asked for. Black box tests apply at integration testing and system testing levels, and at acceptance testing, wherever behavior can be judged from the outside.

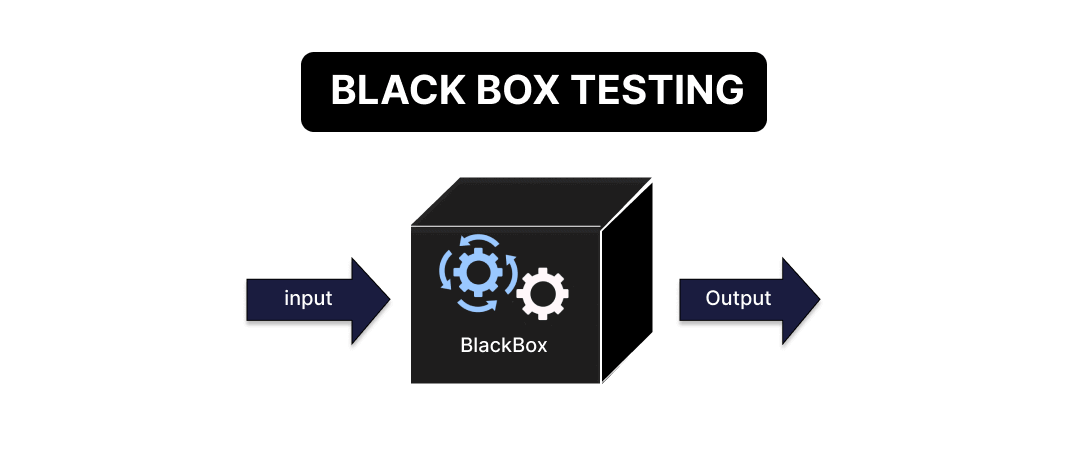

What Is Black Box Testing?

Black box testing examines software without knowledge of its internal structure. The NIST computer security glossary records the NIST SP 800-192 definition as a method of software testing that examines the functionality of an application without peering into its internal structures or workings, and adds that it can be applied at virtually every level of testing: unit, integration, system, and acceptance.

That last point settles a common argument. Black box is a method, not a test level. A unit test written only against a documented function signature is black box in style, even though most unit tests are written by developers who can see the code and are therefore white box.

The working loop is narrow and repeatable. A tester picks a requirement, supplies an input, observes the output, and compares it against what the specification promised. Agreement passes the test; a mismatch is a defect report against the requirement, not against a line of code.

The method is also called behavioral testing, because it judges the software by how it behaves rather than how it is built.

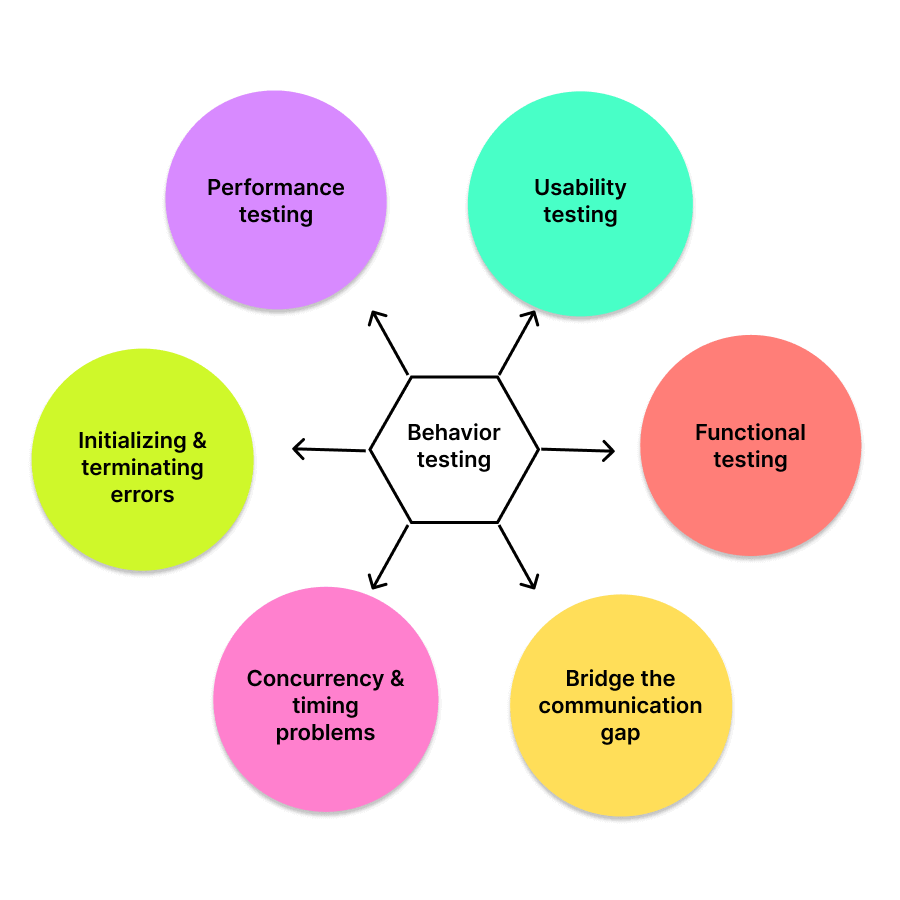

Why Black Box Testing Matters

Code-level testing can only verify the code that exists. It cannot report a requirement that was never implemented, because there is no code to inspect. Black box testing starts from the specification instead, so an unbuilt requirement shows up as a failing test.

Working from the outside also surfaces defect classes that unit tests structurally cannot reach:

• Missing or misread requirements, where each component is correct but the assembled feature is not what was asked for.
• Interface and integration faults that appear only when real components exchange real data.
• Usability problems, such as an error message that is technically accurate and useless to the person reading it.
• Performance and concurrency behavior under realistic load, timing, and session conditions.
• Rendering and compatibility differences across browsers, operating systems, and devices.
• Initialization and shutdown faults that only appear across a full start-to-finish run.

Types of Black Box Testing

Black box testing covers three broad types, which answer three different questions about a build.

Functional testing asks whether a feature does what the specification says. A login flow is exercised with valid credentials, then with wrong credentials, then with an empty field, and each result is checked against the documented behavior. Functional testing is where most black box effort is spent.

Non-functional testing asks how well the feature works rather than whether it works. Response time under load, behavior on a slow network, screen reader support, and rendering on an older browser are all non-functional testing concerns. It runs after functional testing, since measuring the speed of a broken feature tells you nothing.

Regression testing asks whether a change broke something that previously worked. After a fix or upgrade, regression testing re-runs established cases to confirm existing behavior survived, since a fix in one module can introduce a defect in another.

Black Box vs White Box Testing

The two methods fail in opposite directions. Black box testing can miss an untested code path; white box testing can miss a requirement that was never coded. Neither is a substitute for the other, and the table below is the practical basis for deciding which one answers the question in front of you.

Two decision rules follow from that table. Choose black box testing when the risk you are managing is "we built the wrong thing", when the testers cannot or should not read the code, or when the suite must survive a refactor. Choose white box testing when the risk is "the algorithm is wrong", when you need branch coverage evidence, or when a defect has been traced to a specific module and you need to pin it down.

Most teams weight the pyramid accordingly: white box unit tests at the base for fast feedback on logic, black box system and acceptance tests at the top for confidence that the assembled product matches the requirement. Code coverage and test coverage measure these two layers separately, which is why a suite can report high code coverage and still miss a feature entirely.

Where Grey Box Testing Fits

Grey box testing sits between the two. The tester drives the application from the outside, as in black box testing, but holds partial internal knowledge such as the database schema, API contracts, or server logs. That combination is useful when a defect is visible from the interface but only diagnosable from inside.

A worked example: submitting an order through the UI is black box, but checking that the order row landed in the database with the correct status makes the same test grey box. The extra visibility turns "the confirmation page looked right" into "the data is actually correct". Grey box testing covers the techniques and workflow in full.

Black Box Test Design Techniques

Exhaustive testing is impossible: a single unrestricted text field has more possible inputs than any team can run. Test design techniques exist to choose the small subset of inputs most likely to expose a defect. Pick by the shape of the input, not by habit.

Equivalence partitioning in practice: a subscription form charging one rate for members of two years or more and another for new members has two input classes. Every value inside a class should be handled identically, so one representative from each is enough. Running twenty values from the same class adds runtime, not coverage.

Boundary value analysis pairs with it directly, because defects cluster at the edges rather than the middle of a range. For a field accepting 1 to 100, the values worth running are 0, 1, 100, and 101, which catch the off-by-one and inclusive-versus-exclusive mistakes that partitioning alone walks past. Boundary value analysis works through the full method.

Pairwise testing earns its place on combinatorial screens. A page with ten independent binary options has 1,024 full combinations, but covering every pair of values takes a fraction of that. The premise is stated in NIST SP 800-142, Practical Combinatorial Testing: not every parameter contributes to every fault, and most faults are caused by interactions between a relatively small number of parameters.

Note: Black box suites only prove real user behavior when they run on the browsers and devices users actually have. TestMu AI runs your Selenium, Cypress, and Playwright tests across 3,000+ browser and OS combinations with video, network, and console logs captured on every session. Start testing free

Black Box Penetration Testing

Security assessment borrows the same vocabulary. In the NIST glossary, the CNSSI 4009-2015 entry defines black box testing as a test methodology that assumes no knowledge of the internal structure and implementation detail of the assessment object.

In penetration testing, that means the tester starts with what an outside attacker has: a domain name, a public IP range, and whatever the organization has exposed. The three styles trade realism against depth:

• Black box assessments model an unaided external attacker most closely, but reconnaissance eats time, so flaws behind authentication can go unreached.
• Grey box assessments supply limited context, such as a user account or an API specification, which reaches authenticated functionality sooner.
• White box assessments provide source code and architecture, giving the broadest coverage while departing furthest from an attacker's real view.

So a clean black box report is evidence about the external attack surface within the time allotted, not evidence that the application is free of vulnerabilities. Security testing covers where each fits in a wider program.

How to Perform Black Box Testing

The sequence below turns a requirement into an executed, reported result.

• Read the requirements and specifications, and record any that are ambiguous. An untestable requirement is a defect in the specification and worth raising before a line of test code is written.
• Choose a design technique per input from the table above, based on the shape of that input rather than a default.
• Derive the cases, pairing each valid input with the invalid and boundary inputs that share its class.
• State the expected result before running anything. A case written without a predicted outcome cannot fail, it can only be observed.
• Execute across the browser, OS, and device configurations your users actually run.
• Compare actual against expected, and log every mismatch with steps to reproduce, environment, and the observed output.
• Re-test after the fix, and add the case to the regression suite so the defect cannot return unnoticed.

Step five is where black box testing gets expensive locally. Because these tests judge the product exactly as a user experiences it, a pass on one browser says nothing about the others, and reproducing the full matrix in-house means buying and patching machines that sit idle between runs.

A cloud testing infrastructure removes that hardware problem. TestMu AI's automation cloud runs existing Selenium, Cypress, Playwright, and Puppeteer scripts across 3,000+ browser and OS combinations without a local grid to maintain, and captures network logs, console logs, video, and screenshots on every session automatically, which is what makes a black box failure reproducible after the fact. For apps that are not publicly reachable, LT Tunnel routes cloud browsers to a local or staging host over an encrypted connection. The run your first Selenium test guide covers the setup.

Mobile behavior is a separate matrix again. Where a black box suite has to prove a flow on real hardware rather than an emulator, TestMu AI's real device cloud provides 10,000+ real Android and iOS devices for manual and automated runs.

Related reading: Selenium testing and End-to-End (E2E) testing.

Black Box Testing Example

A login form shows the method clearly, because its contract is fully visible from the outside: two inputs, a submit control, and two documented outcomes. Nothing about the hashing algorithm or the session store is needed to test it.

Test case 1: valid credentials

• Open the login page.
• Enter a registered email address.
• Enter the matching password.
• Submit the form.

Expected result: the user is authenticated and redirected to the account dashboard. Result: PASS when the redirect occurs.

Test case 2: invalid credentials

• Open the login page.
• Enter an unregistered email address, for example usernotfound@example.com.
• Enter an incorrect password.
• Submit the form.

Expected result: access is denied and an error message is displayed. The message should not reveal which of the two fields was wrong, since confirming that an email exists is an account enumeration weakness.

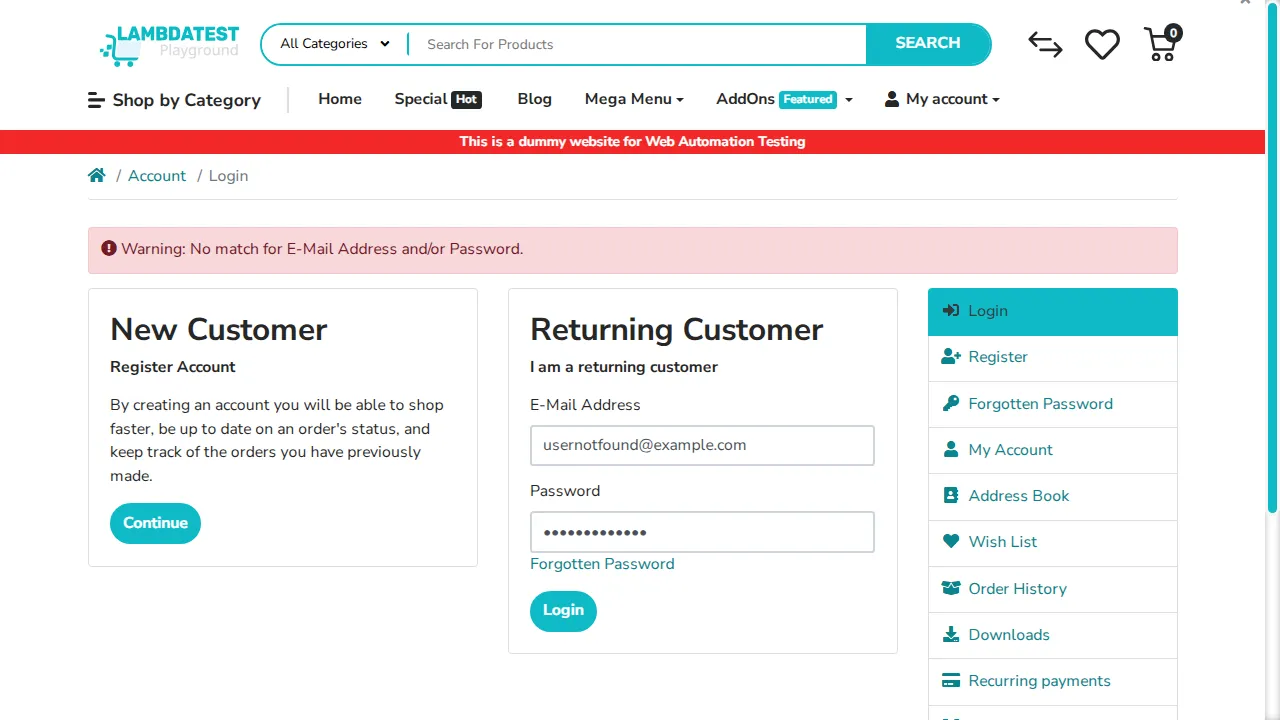

We ran test case 2 on the TestMu AI cloud against the Ecommerce Playground login page, on Chrome and Windows 11, under the build name Black Box Testing Hub Verification. The observed output was:

Warning: No match for E-Mail Address and/or Password.

The case passes on both counts. Access was denied, and the wording names neither field specifically, so it does not confirm whether the email address is registered. That second observation is the value of writing the expected result first: a tester checking only for "an error appeared" would have recorded a pass without ever examining the enumeration risk.

Tools and Frameworks

Black box tools drive an application through its public interface, so they group by the interface they target rather than by vendor.

• Selenium drives real browsers through the WebDriver protocol, with bindings for Java, Python, C#, JavaScript, Ruby, and PHP. It suits functional and regression suites on the web.
• Playwright and Cypress cover the same ground with modern APIs, built-in waiting, and tighter debugging, which usually means less flakiness on dynamic single-page applications.
• Appium extends the WebDriver model to mobile, automating native, hybrid, and mobile web apps on both Android and iOS from one script.
• Apache JMeter is open source software, a 100% pure Java application designed to load test functional behavior and measure performance.
• LoadRunner is a long-established commercial performance testing tool, now part of OpenText following its acquisition of Micro Focus in 2023.

Tool choice matters less than execution breadth. A Selenium suite that only ever runs on the tester's own Chrome build verifies one configuration, which is the narrowest possible reading of "works for users". The automation testing tools comparison goes deeper on selection.

Advantages of Black Box Testing

• Tests reflect the user's experience, so requirement gaps and specification mismatches surface as failures rather than being verified as correct code.
• Testers stay independent of the developer's assumptions, which removes the blind spot where the same misreading of a requirement shapes both the code and its tests.
• No programming knowledge is required, so domain experts, product owners, and support staff can contribute cases in the language of the business.
• Test cases can be written from the specification before the implementation exists, which lets test design run in parallel with development.
• Large and complex systems can be covered without a mental model of the whole codebase, so effort scales with the interface rather than the architecture.
• Cases survive internal refactoring untouched, because they bind to external behavior rather than internal structure.

Limitations of Black Box Testing

• Only a fraction of the possible input space can be exercised, so untested combinations remain a real risk and design techniques become mandatory rather than optional.
• Code paths are invisible, so a branch that no test happens to trigger stays unverified and unreported.
• Vague or missing specifications undermine the method at its root, since the expected result has to come from somewhere.
• Diagnosis is slower, because a failure reports a symptom at the interface rather than the line of code responsible.
• Duplicate effort is easy when testers unknowingly repeat scenarios the developers already covered in unit tests.
• Reproducing an environment-specific failure needs session artifacts, since "it failed on Safari" is not actionable on its own.

Best Practices for Black Box Testing

• Resolve ambiguous requirements before designing cases. A requirement no one can write an expected result for is a specification defect worth raising early.
• Write the expected result before execution, so the run confirms a prediction instead of describing whatever happened.
• Combine equivalence partitioning with boundary value analysis by default, since partitioning alone consistently walks past off-by-one defects.
• Give negative cases equal weight, because how a system rejects bad input is where security and usability defects concentrate.
• Keep test data separate from test logic, so the same case can be re-run against new datasets without an edit.
• Automate the stable, repetitive cases and keep exploratory time for the areas where human judgement finds what scripts cannot.
• Run the suite across the configurations your analytics show users on, rather than the ones the team happens to own.
• Attach environment, steps, and observed output to every defect report, so a failure is reproducible without a conversation.
• Add every fixed defect to the regression suite, which is how a bug stops being able to return unnoticed.

Conclusion

Start with your highest-risk requirement and write one test case for it using equivalence partitioning, then add the boundary values around each partition. That single pairing catches more defects per case written than any other technique combination, and it needs nothing but the specification.

Then decide where those cases run. Black box results are only as trustworthy as the configurations behind them, so once the suite is stable locally, move execution onto a grid that covers the browsers and devices your users actually have. The Selenium testing documentation walks through pointing an existing suite at the cloud, which is usually an endpoint change rather than a rewrite.
