What Is Integration Testing? Types, Examples, and Best Practices

A green test suite is not the same as a working application. Modules that each pass unit testing in isolation can still break the moment they are wired together, because nothing has yet checked the assumptions they make about each other.

A typical application has a login module, a payment module, and a notification module. Each passes on its own, then payment sends an amount in cents where notification expects rupees, and the customer gets an email for a hundred times what they paid. Integration testing is the level that catches exactly this class of defect.

Integration testing is the software testing level where individually tested modules are combined and verified as a group, confirming that the interfaces between them pass data correctly and behave as specified. It runs after unit testing and before system testing.

These defects live at the interface rather than inside any single module. A module can compute the correct result on its own and still fail once connected, because it sends a date as a string where the receiver expects an epoch, or assumes a field that the caller sometimes omits. Every module passes its own unit tests and the combined flow still breaks.

An integration test crosses a real boundary: a database, a message broker, an internal service, or a third-party API. Crossing that boundary is what makes these tests slower to run than unit tests, and what lets them catch the contract mismatches that mocks hide.

The two levels differ in what they hold constant: unit testing fixes the boundary and varies the logic, integration testing fixes the logic and varies the boundary. Our guide on unit testing vs integration testing covers the trade-off in depth, and module and API seams are where enterprise application testing concentrates its effort.

Where integration testing checks module pairs, system integration testing validates whole subsystems against each other, which is the level enterprise teams reach once several independently built systems have to interoperate.

Integration testing sits in the middle layer of the test pyramid, above unit tests and below end-to-end tests. Its role is to validate that modules which work in isolation also work correctly together.

By Louise J Gibbs

• Confirming connectivity between modules - integration testing checks the values modules exchange and how each one acts on them, against the interfaces agreed in the test plan.
• Validating third-party data exchange - the data an API accepts has to be correct for the response to match the requirement, so integration tests cover traffic in both directions between internal modules and external tools.
• Surfacing exception-handling gaps - finding the weak paths before the final build keeps unhandled exceptions out of production, where diagnosing them costs more than catching them in a test environment.

Every integration test names a seam, sends real data across it, and asserts on what comes back. The four examples below cover the seams most applications actually have, and each one names the specific defect it catches.

In a ride-sharing app, a single booking crosses four services: user authentication, location tracking, ride matching, and payment processing. Integration testing follows one ride through all four and checks the handoffs:

• When a user requests a ride, the app sends location data to the matching service in the coordinate format that service expects.
• The matching service assigns a driver and returns those details to the user interface.
• Once the ride ends, the calculated fare reaches the payment service as a single authoritative amount.
• Payment success triggers trip completion, receipt generation, and the ride history update, and a failure at this step rolls all three back rather than leaving a paid ride with no receipt.

Each handoff is a place where two teams agreed on a contract months apart. The test proves the contract still holds under real timing, rather than proving each service works alone.

This is the most common integration seam and the one most often faked with mocks. The test posts a new order through the API, then reads the row back from a real database rather than from the response body. Reading it back is the whole point, because the response only proves what the service intended to save.

Defects it catches that a mocked test cannot: a decimal column silently truncating a currency value, a timestamp stored without a timezone, a unique constraint that only fires on the second identical request, and a transaction that commits the order but not its line items. Pair this with database testing when the schema itself is under active change.

Here the seam is the JSON contract. The frontend renders a checkout summary from a payload the backend builds, and both sides were written against a schema document that has since drifted. The test drives the real UI against the real service and asserts on what the user sees, not on the payload.

Typical catches: a field renamed from totalAmount to total, a number arriving as a string so the UI concatenates instead of adding, and a null the frontend never guarded against rendering as the literal text "null" on the page. Because this example needs a browser, it is the one most teams run on a grid rather than locally, and it overlaps with API testing at the contract layer.

Third-party seams differ from internal ones because you cannot change the other side and it can change without telling you. Run these against the provider's sandbox, and cover the failure paths rather than only the successful charge: a declined card, a timeout after the charge succeeded, and a duplicate webhook for the same transaction.

The timeout case is the one that matters most and the one most suites skip. If the gateway charges the customer but the response never arrives, the order must not be left unpaid in your system, and a retry must not charge twice. That is an idempotency assertion, and it is only testable across the integration boundary.

Written up as formal test cases, the examples above look like this. The expected result names the observable outcome, so a reviewer can tell a pass from a fail without reading the code:

Integration testing catches defects at the module boundary, where assumptions made by two teams meet for the first time. The Capgemini World Quality Report 2024-25 reports more acknowledgment of the importance of quality but finds organizations still need to put their objectives to work, and a defined integration stage is one of the places that gap closes.

• Interface defects surface early, in data passing, API contracts, and module communication, rather than in production where reproducing them costs more.
• Third-party connections get validated in both directions, so modules calling external APIs, payment gateways, or notification services are checked against what those services actually return.
• Testing runs alongside development. Once a pair of modules passes its unit tests, that pair can be integrated and tested without waiting for the full system.
• Errors that unit tests structurally cannot see get caught: mistaken assumptions about method signatures, return types, and data formats between modules.
• Coverage extends to module combinations, exercising paths that no single-module test reaches.
• CI/CD pipelines gain a real quality gate, since integration tests block broken builds from reaching staging or production. See continuous testing for how this fits a wider pipeline.

While the ideal Test Pyramid suggests a 60-30-10 split (Unit/Integration/E2E), modern testing approaches are shifting toward a "Testing Honeycomb" structure. This is because in distributed systems, integration tests often become the largest layer as the most significant risks reside in the network boundaries and API contracts rather than isolated logic.

Murli Pawar, Vice President - Digital Engineering Division at SunTec India, with over 20 years of experience in software architecture and AI integration.

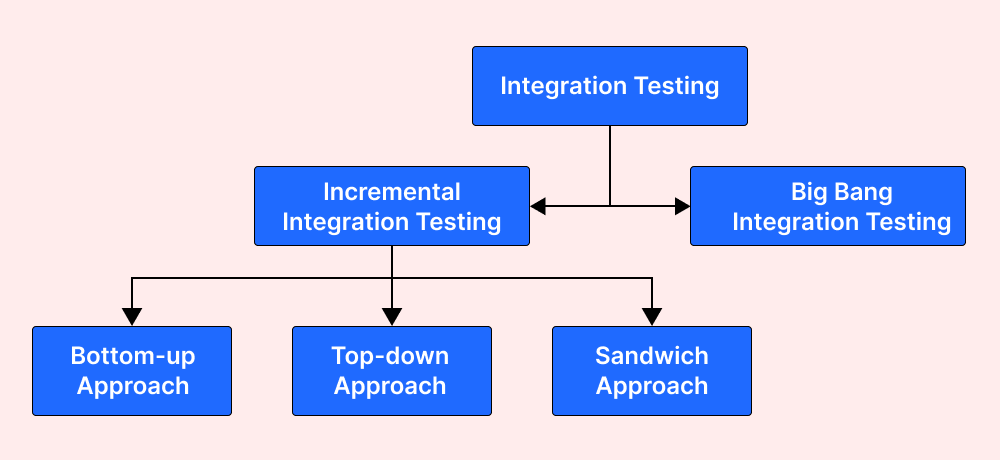

Integration testing types are grouped by how modules are brought together, either a few at a time or all at once:

• Incremental integration testing
• Non-incremental/Big bang integration testing

In the incremental testing approach, all logically related modules are integrated and tested to check proper functionality as per the requirement. After this, other related modules are integrated incrementally, and the process continues until all integrated, logically related modules are tested successfully.

The incremental approach is carried out by three different methods:

• Top Down Approach
• Bottom Up Approach
• Sandwich Approach

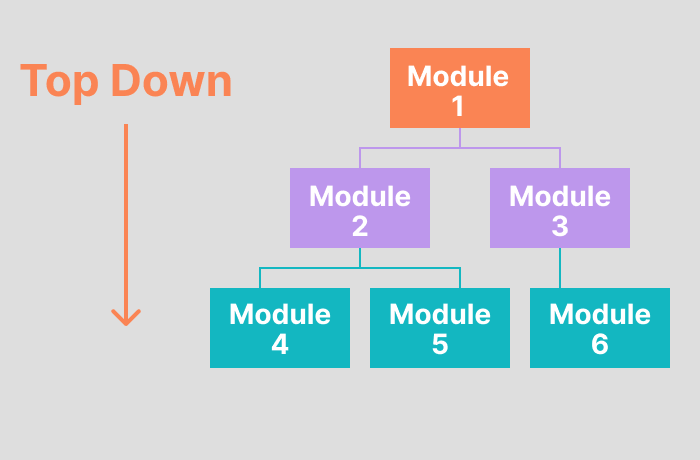

Top Down Approach

The top-down integration testing approach involves testing top-level units first, and lower-level units are tested step-by-step. Test Stubs are needed to simulate lower-level units that cannot be available during the initial phases.

Advantages

• Design faults in the top-level control logic surface first, when changing them is still cheap.
• A working skeleton of the system exists early, which gives stakeholders something to review before the lower layers are finished.
• Testing can start before the lower-level modules are written, because stubs stand in for them.

Disadvantages

• Every lower-level module needs a stub, and that is throwaway code which can carry bugs of its own.
• Low-level modules often hold the most intricate logic, and this approach exercises them last, so their defects surface late in the cycle.
• Fault localization gets complicated in large-scale systems, where many stubbed dependencies are in play at once.

For a step-by-step walkthrough of this approach, see the dedicated top down integration testing guide.

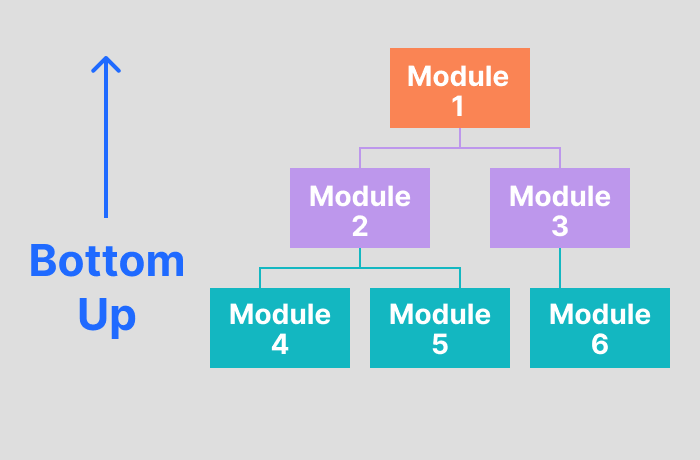

Bottom Up Approach

Bottom-up approach involves testing bottom-level units first, followed by upper-level units. In the bottom-up testing approach, test drivers are needed to simulate higher-level units, which may not be available during the initial phases.

Advantages

• Fault localization is much easier based on the application's control flow.
• This approach allows you to develop and test simultaneously to meet customer specifications efficiently.
• By the end of the testing cycle, you can quickly identify defects between interfaces.

Disadvantages

• All modules except the top control need to have test drivers.
• Modules that control the application flow are tested last and may contain defects.

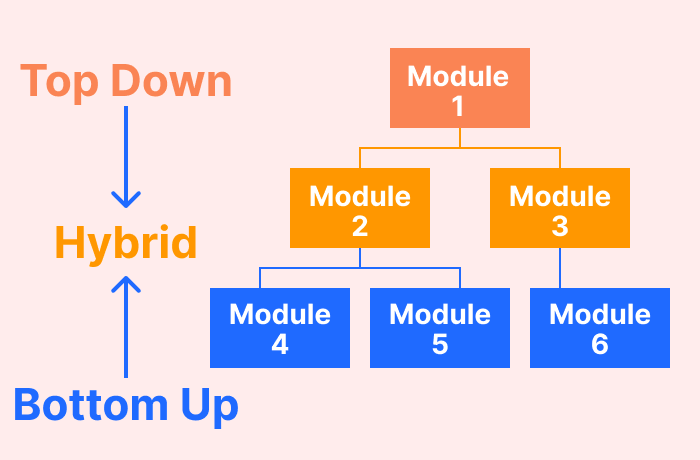

Sandwich Approach

The Sandwich testing approach is known as "hybrid testing" because it combines top-down and bottom-up testing approaches. In this strategy, the low modules are tested in conjunction with the higher-level modules and vice versa. This strategy uses both stubs and drivers.

Advantages

• Sandwich testing approach allows parallel performing of both top-down and bottom-up approaches.
• It is suitable for large-scale applications.

Disadvantages

• It is an expensive approach.
• Not suitable for small-sized applications.

Top-down and bottom-up approaches both need placeholder code to stand in for modules that are not ready yet. Stubs replace the modules below the one under test, drivers replace the ones above it.

In this non-incremental testing approach, all the developed modules are tested individually and then integrated and tested once again. This is also known as big bang integration testing.

This type of integration testing involves coupling most of the developed modules into a larger system, which is then tested as a whole. This method saves time on small projects. Test cases and their results must be recorded correctly so a failure can be traced back to the module that caused it.

Advantages

• Works well for small systems that can be assembled in a single step.
• Needs no stubs or drivers, so there is no scaffolding code to write and later discard.

Disadvantages

• Fault localization is hard, because a failure can originate in any of the modules combined in that single step.
• Testing cannot begin until every module is complete, which pushes integration defects to the end of the schedule where they are most expensive.

Testing whether modules deliver the behavior the requirements describe, rather than only that they connect, is covered separately in functional integration testing.

Note: Run integration tests across 10,000+ real devices and 3,000+ browser and OS combinations on TestMu AI, with no grid to maintain. Try TestMu AI free!

Once the units have passed their individual tests, they can be integrated and tested as a group in this sequence:

• Prepare an integration test plan and the required frameworks.
• Decide the type of integration testing approach: Bottom-Up, Top-Down, Sandwich testing, or Big Bang.
• Design test cases, scripts, and scenarios.
• Deploy the chosen components to run the integration testing.
• Track and record the testing results whether there are errors, bugs, or the test goes bug-free.
• Repeat the same process until the entire system is tested.

Entry Criteria

• The integration test plan document has been signed off and approved.
• Integration test cases have been prepared.
• Test data is created.
• Unit testing of each developed module or component is complete.
• All the high-priority and critical defects are closed.
• The test environment is set up for integration testing.

Exit Criteria

• All the integration test cases on different parameters have been successfully executed.
• All critical and priority P1 and P2 defects are closed.
• The test report has been prepared.

The tool you need depends on which boundary you are crossing: a browser-driving framework for UI-to-service flows, a Python runner for service-to-service tests, or a static-analysis suite for safety-critical embedded code. See our dedicated guide on integration testing tools for the full comparison.

TestMu AI (Formerly LambdaTest) is a cloud-native test execution platform for running integration suites at scale. Instead of maintaining a local Selenium Grid or device lab, teams execute integration tests across 10,000+ real devices and 3,000+ browser and OS combinations on TestMu AI's cloud. It supports Selenium, Playwright, Cypress, Pytest, Appium, Espresso, and WebdriverIO. Key capabilities include:

• Parallel test execution across browser and OS combinations to reduce total run time.
• Real-time test logs, screenshots, and video recordings for debugging failed integration tests.
• CI/CD integration with GitHub Actions, Jenkins, CircleCI, GitLab, and more.
• HyperExecute orchestration, which the platform documents as running suites up to 70% faster than a traditional grid setup.

Selenium drives a real browser, which makes Selenium the common choice when an integration test suite has to exercise the UI-to-backend path rather than call services directly. Key features include:

• Official language bindings for Java, Python, C#, Ruby, and JavaScript.
• Runs across Mac, Windows, and Linux environments.
• Works with all popular browsers including Firefox, Safari, Chrome, and Headless.
• W3C WebDriver standardization keeps the same script working across browser vendors.
• Allows running parallel tests with different hybrid test data.

Pytest is the usual runner for Python integration testing, where fixtures handle the setup and teardown that database and API tests need. That guide covers the fixture patterns and runnable examples in full. Key features:

• Fixtures with function, module, or session scope, so an expensive database or container starts once and is shared across tests.
• Automatic discovery of test files and functions that follow the naming convention, with no registration step.
• Parallel execution through the pytest-xdist plugin, which is installed separately rather than built in.

Safety-critical and embedded teams work under different constraints, where certification evidence matters as much as pass or fail. Tools built for that context, including VectorCAST and LDRA, combine static and dynamic analysis with requirements tracing, and IBM Rational Integration Tester targets service and message-layer integration. Our test tool overview covers how to evaluate them.

Note: Integration suites are the slow stage of most pipelines. TestMu AI's HyperExecute orchestrates them across parallel runners, with test execution up to 70% faster and CI/CD support built in.

• Environment complexity is the usual first obstacle, since databases, message queues, and external APIs all have to be coordinated at once. A misconfigured environment produces false failures that mask real defects.
• Legacy systems absorb effort out of proportion to the change, because integrating a new module means reconstructing undocumented interface behaviour before a test can be written against it.
• Modules built by different teams or vendors misalign on data formats and interface contracts, and those defects are only visible at the integration boundary.
• The number of integration paths grows combinatorially with the number of modules, so full coverage stops being practical and test prioritization becomes the deciding factor.

These five rules keep an integration suite maintainable as the number of modules grows:

• Isolate the data. Never run integration tests against a shared development database, because a row left behind by someone else turns a passing test red. Ephemeral containers give every run a clean state.
• Tag integration tests so they run separately from unit tests. They are slower by design, and they should not block a developer's local save-and-run loop.
• Make every test responsible for its own setup and teardown. If one test leaves a user record in the database, the next test should not fail because of it.
• Log the payload that crossed the wire. When an integration test fails, the exact JSON sent and received is what turns a two-hour investigation into a two-minute one.
• In microservices architectures, contract testing validates that service interfaces still meet the agreed contract, which is lighter than standing up the full system for every check.

Start by picking the approach that matches how your modules actually ship. Teams delivering top-down from a stable interface layer need stubs and can begin before the lower modules exist; teams building upward from shared services need drivers; a system already assembled and failing at the seams is a sandwich or big bang case. Write the entry criteria down before the first test, since an integration suite entered without completed unit tests reports module bugs as interface bugs.

To run that suite without maintaining a grid, use TestMu AI's cloud-based test automation platform for Selenium, Pytest, Playwright, and Cypress integration tests across 10,000+ real devices and 3,000+ browser and OS combinations. The HyperExecute getting started guide walks through the first pipeline, and end-to-end testing vs integration testing covers where each layer stops and the next begins.
