Cypress vs WebdriverIO: Which One To Choose

Cypress vs WebdriverIO: Key Differences

In this section of the Cypress vs WebdriverIO guide, we will touch upon the key differences between Cypress and WebdriverIO.

Cypress is a newer framework that has gained popularity due to its ease of use and powerful features. WebdriverIO is a more mature framework with a broader range of tooling and support. Both have pros and cons, but which is right for your web application? Let’s take a closer look at the key differences between Cypress vs WebdriverIO.

Architecture

Cypress and WebdriverIO are both popular testing frameworks used for web applications, but they have different architectures and approaches to testing.

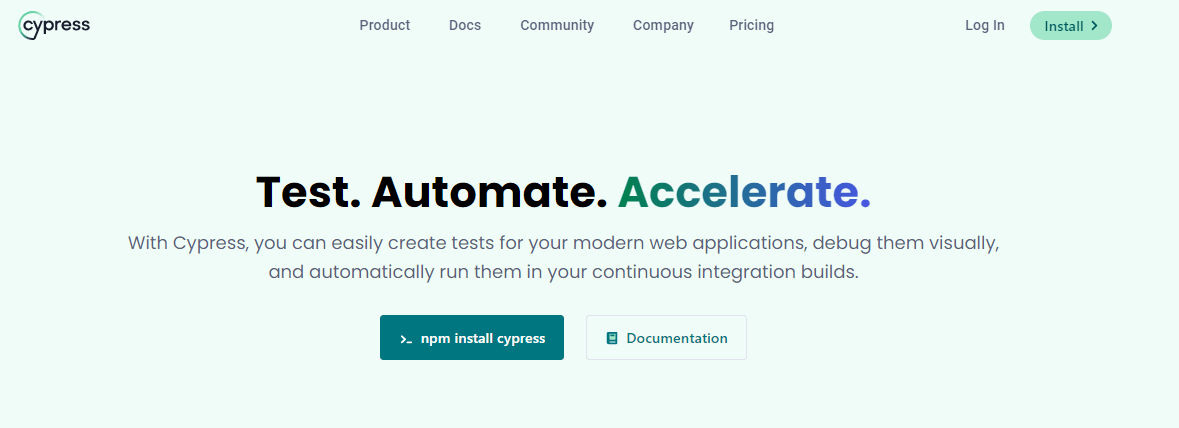

Cypress

Most testing frameworks run outside the browser and execute remote commands across the network. Cypress is the exact opposite. Cypress is executed in the same run loop as your application.

Cypress is, in essence, an Electron application that uses Node server processes. Cypress and the Node process constantly communicate, synchronize, and perform tasks on behalf of each other.

Having access to both components (front and back) gives you the ability to respond to the application’s events in real-time while at the same time working outside of the browser for tasks that require a higher privilege.

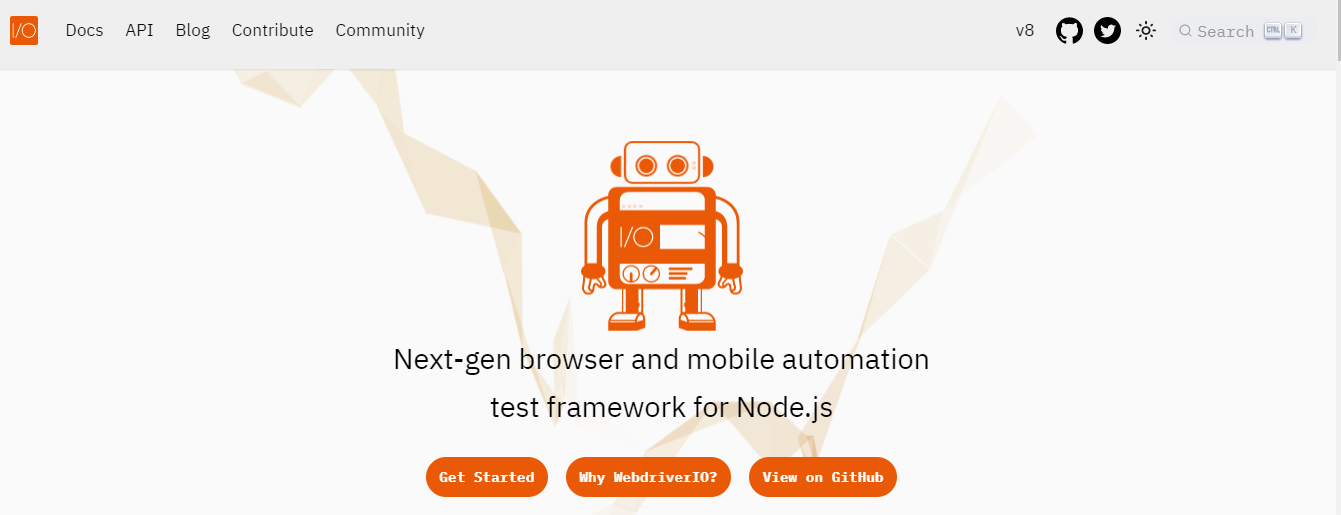

WebdriverIO

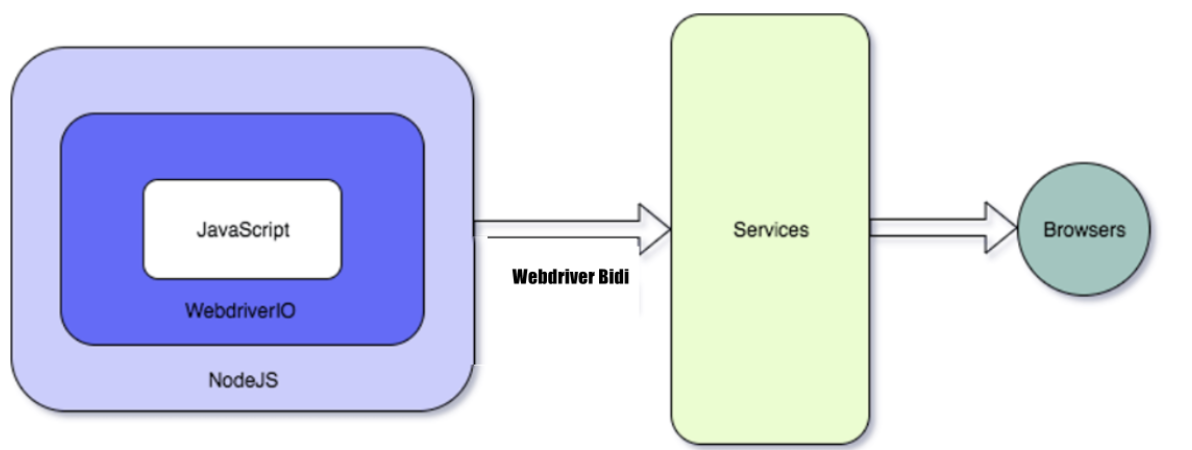

In the case of WebdriverIO, the WebDriver and WebDriver-BiDi protocols are used. These are developed and supported by all browser vendors and guarantee a true cross browser testing experience.

Furthermore, WebdriverIO also supports Chrome DevTools for debugging and introspection purposes. This allows users to seamlessly switch between conventional commands based on WebDriver and powerful browser interactions through Puppeteer.

Synchronization

One of the key differences between Cypress and WebdriverIO is how they handle synchronization. In this section of the Cypress vs WebdriverIO guide, we will look into Cypress and WebdriverIO approaches to synchronization in more detail.

Cypress

This is arguably one of the most crucial Cypress concepts you need to understand. How Cypress handles things asynchronously is often misunderstood and can lead to issues and confusion later on, especially when trying to debug your tests.

Cypress automatically waits for elements to appear on the page and for animations to avoid the need to add explicit or implicit waits completely.

Because of this, Cypress tests are less flaky than the ones from other frameworks like Selenium. You can refer to the blog on Explicit Waits in Selenium to get more information about the types of waits in Selenium.

WebdriverIO

When writing this guide on Cypress vs WebdriverIO, the WebdriverIO test runner can handle async and sync execution within the same test suite. Synchronous execution was popular in WebdriverIO because it removed the complexity of dealing with promises. Mainly if you have written tests in programming languages (apart from JavaScript) where this concept doesn’t exist this way, it can be confusing in the beginning.

However, the WebdriverIO team announced it would deprecate synchronous command execution by April 2023. Synchronization will be handled after that point in the form of async / await syntax.

According to their documentation, transitioning step-by-step is possible. In many cases, it only requires making the function that calls WebdriverIO commands async and adding an await keyword before every command.

For example:

export default (selector: Selector) => {
    $(selector).clearValue();
 };
 Will need to change to
 export default async (selector: Selector) => {
    await $(selector).clearValue();
 };

Debugging

When it comes to finding errors in your tests or finding out why a specific test has failed, being able to debug is key.

Cypress

Cypress seems to have the upper hand when it comes to debugging by using:

• Cypress takes snapshots as your tests run. You can hover over commands in the Command Log to see exactly what happened at each step.
• Cypress allows debugging directly with familiar tools like Developer Tools. Providing readable errors and easy-to-read stack traces. Refer to the blog to read more about Cypress Debugging.

Below is an example of how Time Travel works on the TestMu AI eCommerce Playground.

WebdriverIO

WebdriverIO allows you to use browser.debug() to pause your test and inspect the browser. However, to achieve more flexibility, it requires you to use external tools for debugging, like Visual Studio Code.

The browser.debug() lets you debug your integration tests. You can then jump into the running browser and check the state of your application. By transforming your terminal into a REPL interface, you can test out specific commands, find elements, and perform actions on them.

Assertions

One key aspect of writing effective tests is the ability to make assertions, which allow you to verify that the application behaves as expected. Both Cypress and WebdriverIO have powerful and flexible assertion capabilities that can help developers write reliable and effective automated tests for their web applications.

In this section of the Cypress vs WebdriverIO guide, we’ll explore the assertion capabilities of Cypress and WebdriverIO.

Cypress

Cypress assertions are built on top of the Chai assertion library and helpful extensions for Sinon and jQuery. Cypress provides a built-in set of commands for interacting with web elements, making writing tests that interact with the application easy. Besides these, it also supports building custom assertions over the existing ones that Chai provides.

describe( 'Ecommerce Playground', ( ) => {
    it ( 'should load the homepage', ( ) => {
      cy.visit('https://ecommerce-playground.lambdatest. to/index.php?route=common/home')
     cy.get('h1').contains( 'Welcome to our online store!')})
 })

WebdriverIO

WebdriverIO assertions are based on the Webdriver protocol and provide a similar syntax as Cypress but with a more “technical” way to interact with the application.

It also provides a built-in set of commands for interacting with web elements and supports multiple assertion libraries like chai-webdriver, expect.js, should.js, and assert.

describe( ('Ecommerce Playground’, ( ) {
    it( 'should load the homepage', ( ) => {
      browser url(‘ https://ecommerce-playground.lambdatest. io/index.php7route-common/home’)
      expect(browser. getText( 'h1')). .to. equal( ‘Welcome to our online store!')
    })

Both frameworks provide the ability to write automated tests that interact with the web application in a browser. However, Cypress has a more user-friendly approach, while WebdriverIO has a more technical approach.

Syntax

Cypress and WebdriverIO provide developers with a straightforward syntax for writing tests, making it easier to interact with web elements and write reliable automated tests for their web applications.

Cypress

The syntax for Cypress is based on a more modern and intuitive syntax, focusing on making the test authoring experience more enjoyable. Cypress tests are written using Mocha and Chai, and the syntax is similar to writing unit tests. It also provides its own set of commands (such as cy.visit() and cy.get()) for interacting with the web page. You can learn more about it, you can go through this blog on finding HTML elements using Cypress locators.

Shown below is an example of Cypress on the TestMu AI eCommerce Playground.

describe( 'Ecommerce Playground', () => {
    it( 'should load the homepage',() => {
      су.visit("https://ecommerce-playground.lambdatest.io/index. php?route-common/home")
      cy.get('h1').contains( 'Welcome to our online store!')
    })
    it( 'should add an item to the cart', ( ) =>{
     cy.get('.product-grid > :nth-child(1) > .caption > .button-group > .btn-cart').click()
     cy.get('.alert').contains('You have added MacBook to your shopping cart!')
    })
  })

WebdriverIO

WebdriverIO, on the other hand, uses the W3C WebDriver protocol. The syntax for WebdriverIO is based on the WebDriver protocol, and it uses the Selenium WebDriver API to interact with the browser. The syntax is more similar to writing functional tests.

Shown below is the same test on WebdriverIO.

describe( 'Ecommerce Playground', ( ) => {
    it( 'should load the homepage',( ) => {
      browser.url('https://ecommerce-playground.llambdatest.io/index.php7route-common/home')
      expect(browser.getText('h1')).to.equal( 'Welcome to our online store!')
    })
    it( 'should add an item to the cart',( )  => {
      browser.click('.product-grid > :nth-child(1) > .caption > .button-group > .btn-cart')
      expect(browser.getText('alert')).to.equal( 'Success: You have added MacBook to your shopping cart!')
    })
  })

In summary, Cypress has a more modern and intuitive syntax, focused on making the test authoring experience more enjoyable, while WebdriverIO’s syntax is based on the industry standard for web automation.

Speed

Cypress is known for its fast execution speed, while WebdriverIO can still provide fast and efficient test execution with proper optimization and use of its features. The choice of framework ultimately depends on the specific needs of the testing process and the application being tested.

Cypress

Cypress runs tests directly in the browser, eliminating the need for a separate browser automation tool like Selenium. This means that Cypress tests tend to run faster than WebdriverIO tests, as there is less overhead involved in running the tests.

To check the speed of Cypress, a small test was used on the TestMu AI eCommerce Playground. In the test, a new user was registered.

describe('Register', ( ) => {
    it( 'Register New User', ( ) => {
      су.visit("https://ecommerce-playground.lambdatest.to/index.php?route=account/register")
      су.get("#input-firstname").type('FirstNAme');
      су.get("#input-lastname").type('LastName');
      су.get("#input-email").type('[email protected]');
      су.get("#input-telephone").type('12345678');
      су.get("#input-password").type('12345');
      су.get("input-confirm").type('12345');
      су.get(".float-right > .custom-control > .custom-control-label").click();
      су.get("#input-agree").check();
      су.get(".float-right > .btn").click();
      су.get(".page-title").should('have. text','Your Account Has Been Created!');
      cy.get(".page-title").should('be. visible');
     })

The whole process, including assertion, ran in 12 seconds in Cypress.

WebdriverIO

WebdriverIO, on the other hand, uses Selenium as its browser automation tool, which can add some additional latency to the tests. We used WebdriverIO in the test and performed the same action.

describe("Register", () => {
    it("Register", async () => {
      await browser.setWindowSize(1520, 753)
      await browser.url("https://ecommerce-playground.lambdatest.io/index.php?route=account/register")
      await browser.$("#input-firstname").click()
      await browser.$("#input-firstname").setValue("FirstName")
      await browser.$("#input-lastname").click()
      await browser.$("#input-lastname").setValue("LastName")
      await browser.$("#input-email").click()
      await browser.$("#input-email").setValue("[email protected]")
      await browser.$("#input-telephone").click()
      await browser.$("#input-telephone").setValue("124214")
      await browser.$("#input-password").click()
      await browser.$("#input-password").setValue("1q1q1q1q1q")
      await browser.$("#input-confirm").click()
      await browser.$("#input-confirm").setValue("1q1q1q1q1q")
      await browser.$("//*[@id="content"]/form/div/div/div/label").click()
      await browser.$("//*[@id="content"]/form/div/div/input").click()
      await expect(browser).toHaveUrl("https://ecommerce-playground.lambdatest.io/index.php?route=account/success")
      await expect($('.page-title').toHaveText('Your Account Has Been Created!'))
      await expect($('.page-title').toBePresent())
    });
  });

The whole process, including assertion, ran in 11 seconds in WebdriverIO.

To keep the comparison as clean as possible, the code was not optimized, and no design patterns and variables were used. The above examples are just for testing.

Since the numbers were so close, we cannot say which one is faster. In conclusion, we could say that it depends on the code structure optimization, framework customizations, and system load.

Note: Execute WebdriverIO tests across 3000+ real browser environments. Try TestMu AI Now!

Community

Both Cypress and WebdriverIO communities are valuable resources for developers who use these frameworks, providing a supportive and collaborative environment for learning, sharing knowledge, and improving the quality of automated testing for web applications.

In this section of the Cypress vs WebdriverIO guide, let’s explore what Cypress and WebdriverIO communities have to offer.

Cypress

Cypress is newer compared to WebdriverIO, which has been around for longer and had a larger community at the time Cypress appeared on the market.

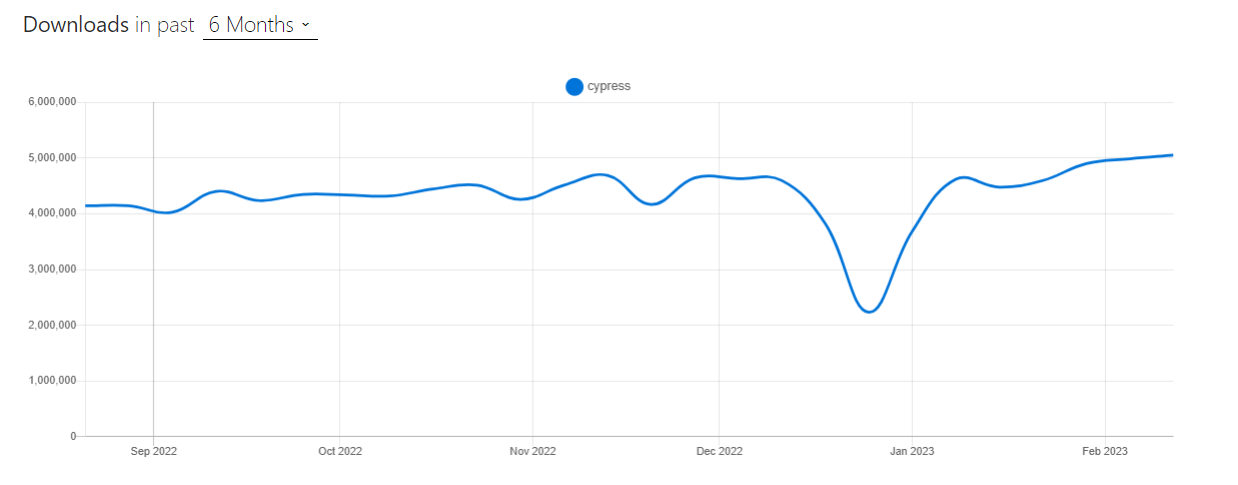

However, if we consider the information from the State of JavaScript 2022, Cypress has grown a lot in popularity in usage and community in the last few years. Its usage growth has constantly increased over time.

Source

WebdriverIO

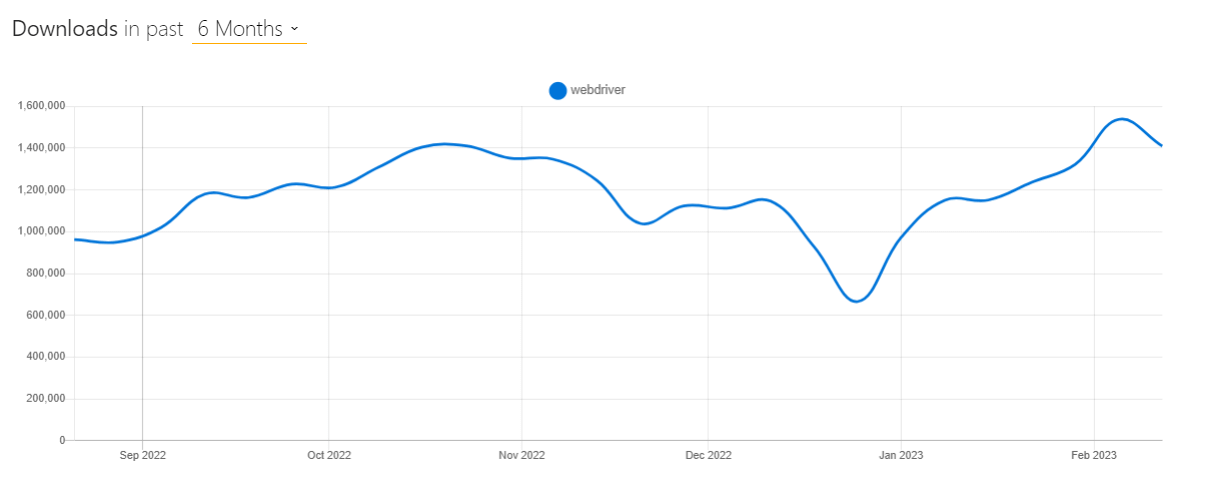

As per the above State of JavaScript 2022, the WebdriverIO community is still popular among developers and testers.

Reporting

Reporting is an inevitable factor in any test automation framework. Cypress and WebdriverIO offer reporting capabilities but differ in how they provide and display the reports.

Cypress

Cypress is bundled with Mocha. So, any test reports generated for Mocha can also be utilized with Cypress. Per default, Cypress will use its specs reporter and make a video and screenshots of the test runs.

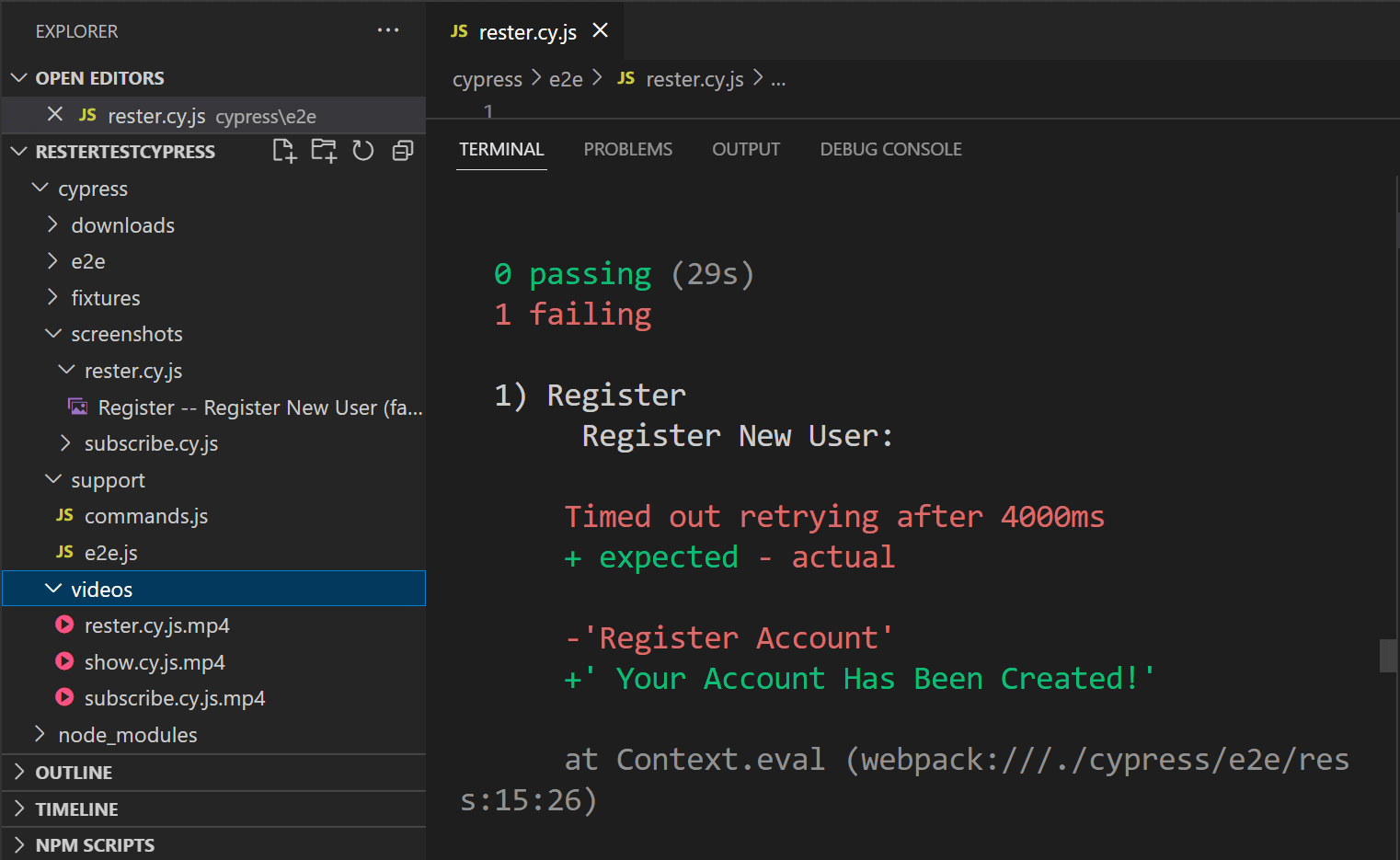

Shown below is the output of the same.

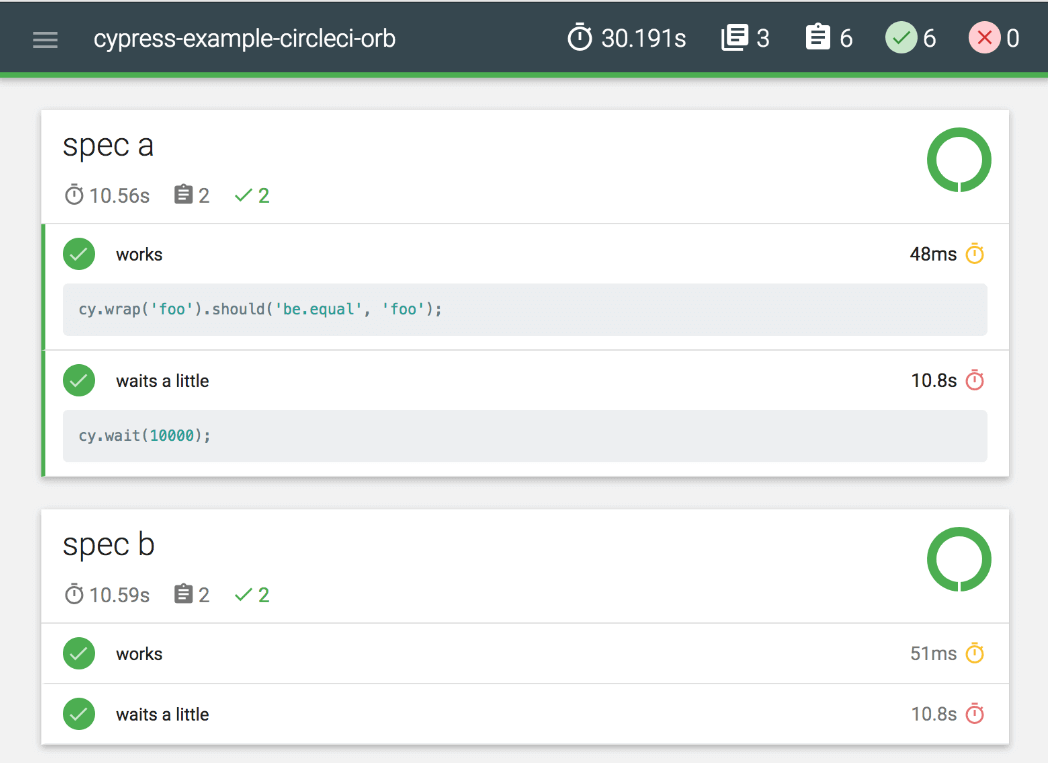

As stated above, you can install and configure custom reports generated for Mocha. Shown below is an example of the Mochawesome Report.

WebriverIO

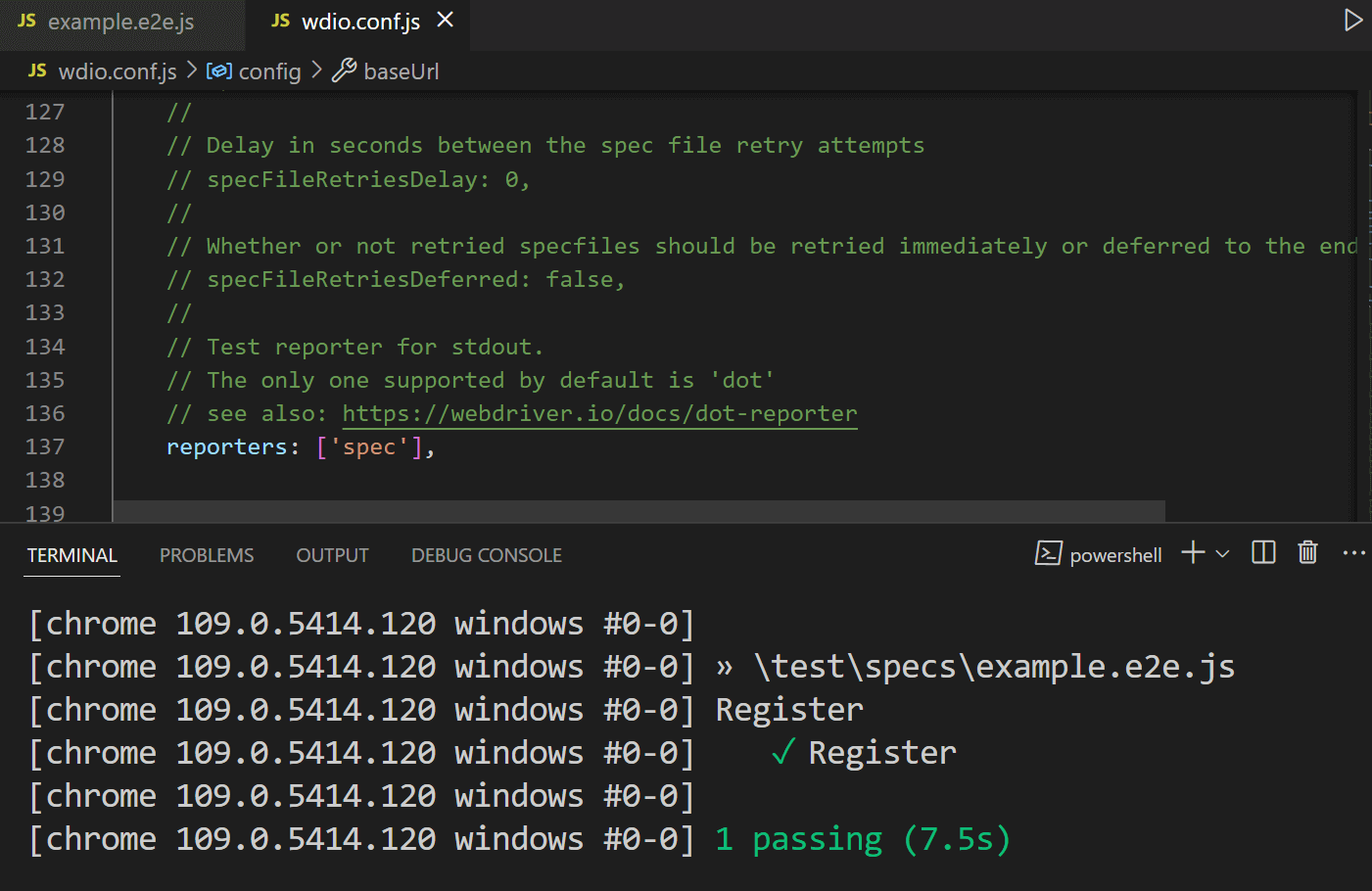

WebdriverIO supports a variety of reporting methods. Per default, it has a similar specs reporter as Cypress. However, without the default capabilities or video recording and screenshots.

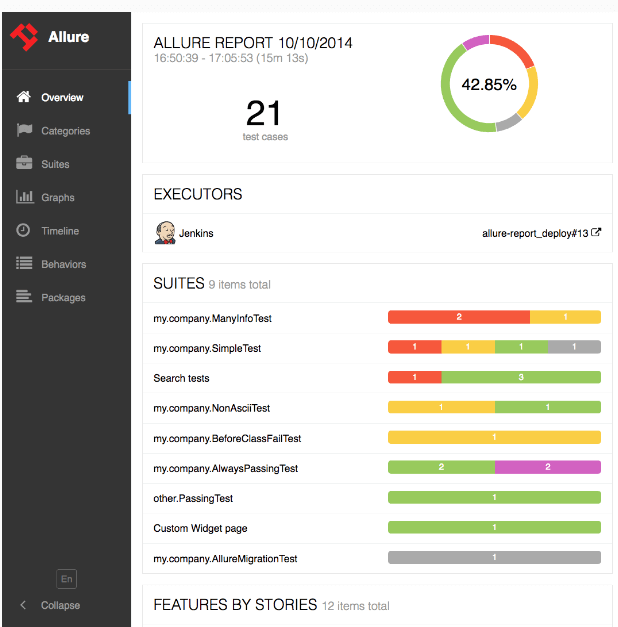

What the specs recorder lacks in functionality can easily be achieved in WebdriverIO using plugins. Like Cypress, you can also use the Mochawesome Report in WebdriverIO. One of the most well-known reports that WebdriverIO supports is Allure Reports.

The list of supported plugins can be seen in the following comparison table.
