Selenium 3 vs Selenium 4: Key Differences

What is Selenium ?

Selenium is a popular open-source framework that testers rely on to automate the testing of web applications across browsers. With Selenium, testers can write scripts in different languages like Java, Python, c#, Ruby, Javascript, etc. These scripts empower testers to interact with web elements, execute actions, and verify web application behavior.

Selenium suite has Selenium WebDriver, Selenium Grid, and Selenium IDE. Each of them has a distinct function, and together they offer a complete web automation testing solution. Additionally, Selenium is adaptable and available on several platforms thanks to its compatibility with multiple operating systems like Windows, macOS, and Linux.

If you are preparing for an interview you can learn more through selenium interview questions.

Features Of Selenium

Selenium offers many crucial features, making it a favorite among developers and testers for test automation. Let’s look at some of the features that make Selenium such an effective solution for automating web application testing.

• Cross-browser compatibility: Selenium is compatible with major online browsers such as Chrome, Firefox, Safari, and Microsoft Edge, allowing tests to be run reliably across several browser settings, thereby enabling comprehensive compatibility testing.
• Multi-language support: Selenium provides APIs in different programming languages, allowing testers to develop automation scripts in their favorite language. It gives flexibility and allows testers to leverage their preferred programming language and existing skills.
• Element locators: Selenium offers a variety of locators to locate and interact with web elements, including IDs, class names, CSS selectors, XPath expressions, and more.
• Test Automation Framework Integration: Selenium can work with different test automation frameworks, giving testers access to extra features and functionalities. By integrating with frameworks like TestNG and JUnit, testers can effectively organize their test suites, generate detailed test reports, and implement advanced automation practices.
• Parallel Test Execution: Selenium offers parallel testing through Selenium Grid, allowing testers to distribute tests over numerous PCs and browsers simultaneously. This functionality offers quicker test execution and increased test automation efficiency.

Selenium Versions

A tester/developer should always be aware of the previous versions and the latest releases of Selenium for automation testing.

• Selenium 3: Selenium 3 was an incremental update to WebDriver in 2016 without the Selenium RC Code, focusing on improving stability and bug fixes. It maintained compatibility with previous versions and introduced minor enhancements but did not introduce significant changes.
• Selenium 4: Selenium 4 is the latest major release, introduced in 2021. It brought several new features and enhancements to the Selenium framework, which we will discuss later in this blog. Selenium 4 aimed to address some of the limitations of previous versions and provide a more user-friendly and efficient testing experience.

As a result of the widespread usage and significance of Selenium 3 and Selenium 4, in this blog, we will delve deeper into only these two major versions to uncover their unique features and functionalities.

Selenium 3

Selenium 3 is the third major version of the Selenium test automation framework. It is a popular open-source framework that testers rely on to automate the testing of web applications across browsers and platforms.

The significant change in Selenium 3 is removing the original Selenium Core implementation and replacing it with one backed by WebDriver. The architecture for Selenium 3 includes the JSON Wire Protocol. We will learn about JSON Wire Protocol later in the blog.

In Selenium 3, the core functionality remains consistent; that is, it enables users to interact with web elements and automate web testing across different browsers.

Selenium 4

Selenium 4 is the successor to Selenium 3, the next major version of the Selenium framework.

Selenium 4 introduced the W3C WebDriver protocol, which replaced the previously used JSON wire protocol in Selenium 3. It has been a game changer and one of the key differentiating factors that set Selenium 4 apart from its predecessor, Selenium 3.

We will look into the W3C WebDriver protocol of Selenium 4 in detail while comparing the architectures of Selenium 3 vs Selenium 4 in the subsequent section.

Note: Automate your Selenium test scripts! Try TestMu AI Today!

The Architecture of Selenium 3 vs Selenium 4

When comparing the architecture of Selenium 3 vs Selenium 4, notable differences reflect the advancements and improvements made in Selenium 4. Let’s explore the architecture of both versions:

Selenium 3: Architecture

The architecture of Selenium 3 revolves around the Selenium WebDriver, Selenium Grid for parallel testing, and browser drivers for browser communication. This architecture enables testers to automate web application testing across different browsers and platforms.

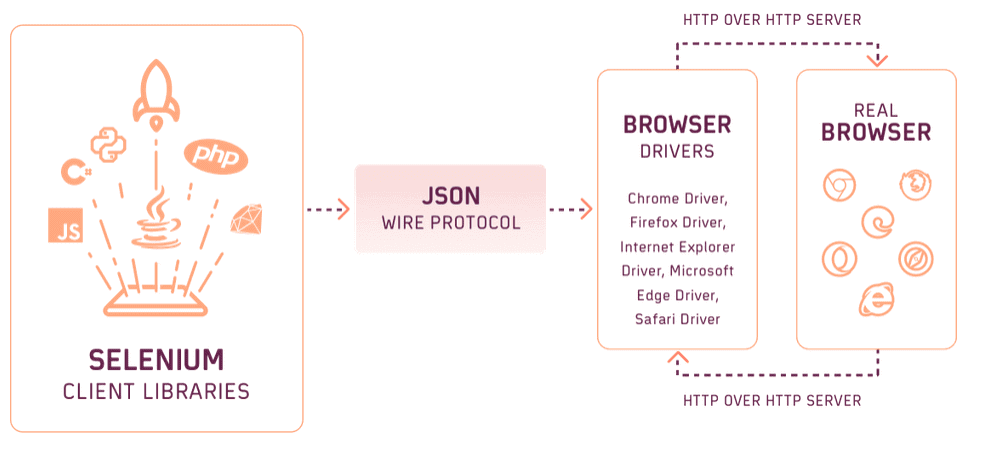

Selenium 3 follows a client-server architecture consisting of four major components:

• Selenium Client Library / Language Bindings
• JSON wire protocol over HTTP
• Browser Drivers

Selenium 3’s architecture is based on the JSON Wire Protocol. JSON stands for JavaScript Object Notation. JSON Wire Protocol simplifies information exchange between Client and Server using HTTP (Hypertext Transfer Protocol).

The JSON Wire Protocol is used to transmit data between the client and server through the Hypertext Transfer Protocol (HTTP). In simple terms, when a request is made from a Selenium client, it is sent over HTTP and received by the JSON Wire Protocol. The browser driver ensures the security of this request. Once the server processes the request, it generates a response, which is then sent back to the client for further processing.

Selenium 4: Architecture

Selenium 4 introduces architectural changes and enhancements compared to Selenium 3. The critical difference is the inclusion of the Selenium DevTools API as the W3C standard. This significantly impacts the architecture, resulting in a more unified and streamlined approach.

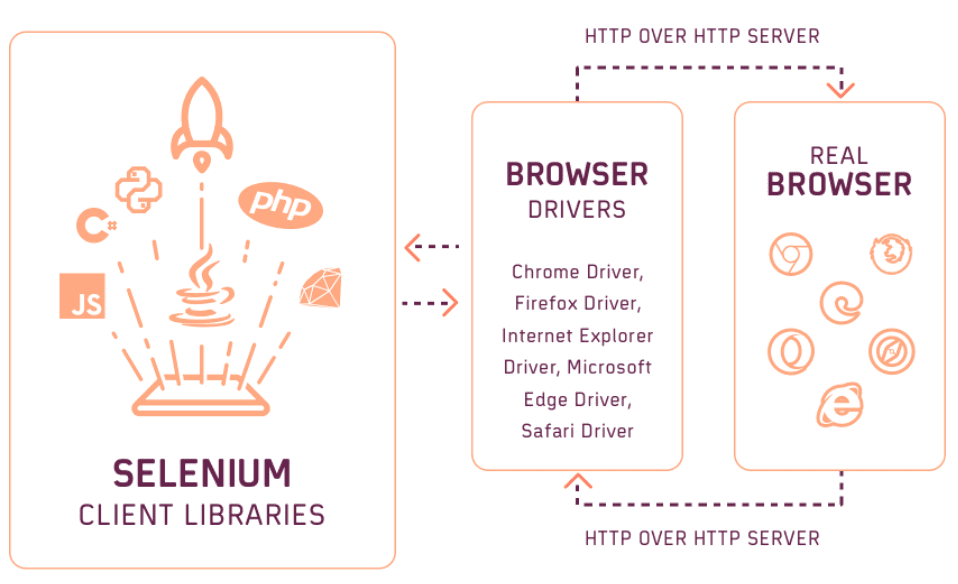

In Selenium 4, the Selenium WebDriver architecture consists of the following four major components:

• Selenium Client Libraries/ Language Bindings
• WebDriver W3C Protocol
• Browser Drivers

All the components in Selenium WebDriver 4 are similar to those in Selenium 3, except that the JSON Wire protocol is replaced with the new W3C WebDriver protocol. So, let’s discuss this in detail.

In Selenium 4, the communication between the client and the server is done using the W3C WebDriver protocol (For Eg. recent/modern versions of all major browsers (Internet Explorer, Firefox, and Chrome) are considered W3C-compliant). The client consists of two main parts: the Selenium Client and the WebDriver Language Bindings. On the other hand, the server is represented by the Browser Drivers.

Selenium Client sends out a request to perform a command. WebDriver Language Bindings is primarily intended for running operations. After an automated test script operates on the Web Browser, Browser Drivers receive the client’s request and send over a response.

The Selenium Client and WebDriver Language Bindings are critical architecture components, with each language having its bindings. Bindings indicate that the exact instructions may be used in many languages. For example, a command developed in Java has also been written in C#, Python, Ruby, and other languages.

New Features and Enhancements

Selenium 4 brings a host of exciting new features and enhancements that further elevate the capabilities of this popular test automation framework. With a focus on improving efficiency, scalability, and flexibility, Selenium 4 introduces several key features that aim to streamline the automation process and enhance the overall testing experience. Let us look at some of these new features and enhancements offered by Selenium 4 in brief::

• ChromeDriver: ChromeDriver is designed to facilitate communication and control between the WebDriver API, which is used for automating browser actions, and the Chrome browser itself. The newly updated ChromeDriver by the Chrome Team provides better compatibility and performance with the Chrome browser. It leverages the latest Chrome DevTools Protocol to enhance automation capabilities.
• Optimized Selenium Grid: Selenium 4 introduces an optimized Selenium Grid that offers improved scalability and parallel testing. It enables the efficient distribution of test cases across multiple nodes and provides enhanced resource utilization.
• Chrome DevTools Integration: Selenium 4 integrates seamlessly with Chrome DevTools, allowing testers to access advanced debugging and profiling features directly from their automation scripts. This integration enhances the ability to diagnose and troubleshoot issues during test execution.
• DesiredCapabilities: In Selenium 4, the DesiredCapabilities class has been deprecated, and the Options class has been introduced as a replacement for configuring and customizing the desired capabilities of browsers or browser drivers. The Options class in Selenium 4 enables testers to customize the desired capabilities of browsers to suit their specific requirements, providing control over browser behavior during testing. Testers can specify the browser, platform, version, and other configuration parameters easily, making it more convenient to manage test environments.
• Relative Locators: Relative Locators in Selenium 4 bring significant value by enabling testers to easily locate web elements based on their proximity and relationships with other elements. Testers can conveniently choose from a range of options to locate elements, including above, below, to the left, to the right, or close to a specific element.
• Selenium IDE: Selenium 4 includes an improved and revamped Selenium IDE. The Selenium IDE is a record and playback tool that enables testers to create and execute automation scripts without writing code quickly. With the new Selenium IDE, testers can enjoy an enhanced user interface, additional features, and improved extensibility options, making creating and maintaining automation scripts easier.
• Actions API: Selenium 4 introduces new methods and enhancements to the Action class, providing more robust and comprehensive support for performing advanced test execution. The Action API in Selenium 4 offers precise management over the capabilities of designated input devices. Selenium presents interfaces for three types of input sources: keyboard input for keyboard devices, pointer input for devices like mouse, pens, or touch devices, and wheel inputs for scroll wheel devices (introduced in Selenium 4.1.2).

We have a short video on our YouTube Channel running through the new key features introduced in Selenium 4.

ChromeDriver

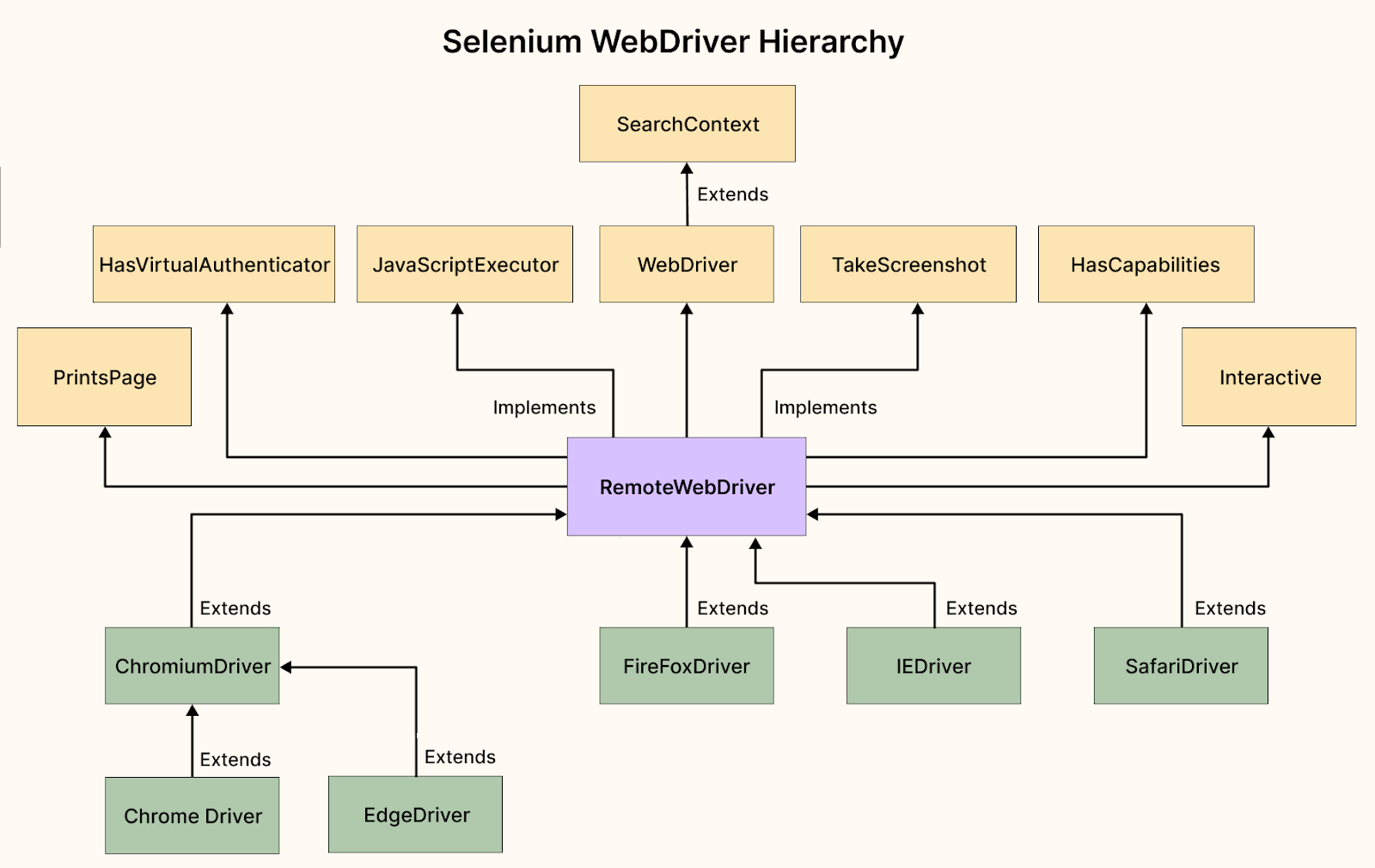

Let’s start with the Selenium 4 Webdriver hierarchy (see figure below) and then look at how ChromeDriver works.

ChromeDriver is a separate executable that acts as a bridge between Selenium WebDriver and the Chrome browser. ChromeDriver implements the WebDriver protocol, a standardized interface for automating web browsers. It is designed to facilitate communication and control between the WebDriver API, which is used for automating browser actions, and the Chrome browser itself.

Selenium 3 and Selenium 4 are based on the ChromeDriver extension. In Selenium 3, ChromeDriver extends Remote WebDriver. In Selenium 4, however, the ChromeDriver Class extends Chromium Driver. ChromeDriver is continually updated to align with the latest versions of the Chrome browser and to provide stability, compatibility, and enhanced automation capabilities.

Optimized Selenium Grid

In Selenium 4, Hub and Node jars are packaged together in a single jar file. Compared to Selenium 3, testers would no longer have to launch the Hub and Node jars each time they wanted to undertake automated testing.

The design of Selenium Grid 4 supports four processes:

• Session Map: The Session Map acts as a central repository for managing test sessions and tracking their status.
• Node: The Node process represents an individual test node or machine in the Selenium Grid.
• Router: The Router process acts as a traffic controller, receiving test requests from clients and routing them to the appropriate Node based on the requested capabilities.
• Distributor: The Distributor process plays a crucial role in load balancing and distributing test execution across multiple Nodes.

This new design of optimized Selenium Grid by Selenium 4 improves test distribution, resource management, and overall efficiency, making it an indispensable component for large-scale test automation projects.

Selenium 4’s Grid capability can be effectively and significantly leveraged with a cloud-based Selenium Grid. Cloud-based Selenium Grid solutions, such as TestMu AI, offer indispensable scalability, reliability, and security that are challenging to replicate with a local Selenium Grid. Leveraging Selenium testing on the cloud empowers teams to achieve enhanced browser coverage, test efficiency, and test comprehensiveness, as multiple tests can seamlessly run in parallel on the cloud-based Selenium Grid.

The All New Headless Mode

Headless is an execution mode for Firefox and Chromium-based browsers, enabling users to run automated scripts without displaying the browser window, making it invisible during execution. In older versions of Selenium, you could easily set this mode while configuring the browser options. But starting from Selenium 4.8.0, that method will be outdated, and you’ll have to set it using specific arguments when configuring the browser options.

Upgrades in Headless Mode: Chrome

Before the update, The old Headless was a separate implementation; therefore, it had its bugs and features that weren’t present in Headful Chrome. This created a confusing situation where any automated browser test might pass in headful mode but fail in Headless mode, or vice versa.

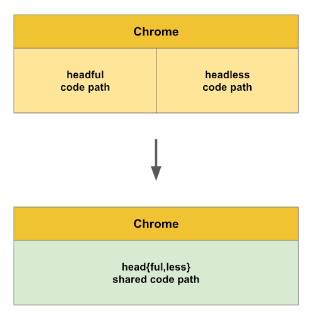

Therefore, the Chrome team set out to solve this problem and unify Headless and headful modes once and for all.

To try the new Headless mode, pass the –headless=new command-line flag:

chrome --headless=new

For now, the old Headless mode is still available via:

chrome --headless=old

How to use headless mode from now onwards?

Users can set the desired headless mode by adding arguments to the browser options. Let us understand both of them.

Before:

ChromeOptions options = new ChromeOptions();
options.setHeadless(true);


WebDriver driver = new ChromeDriver(options);
driver.get("https://www.lambdatest.com/selenium-playground/simple-form-demo");


driver.quit();

After:

ChromeOptions options = new ChromeOptions();
options.addArguments("--headless=new");


WebDriver driver = new ChromeDriver(options);
driver.get("https://www.lambdatest.com/selenium-playground/simple-form-demo");


driver.quit();

DesiredCapabilities

In Selenium 4, DesiredCapabilities class has been replaced by Options class. Now we need to pass the Options class object as a parameter to the driver constructor.

The Options class provides a more streamlined and specific approach for setting browser-specific options and preferences. Each browser has its own corresponding options class, such as ChromeOptions, FirefoxOptions, SafariOptions, etc. For example, with the Options class, testers can set browser-specific arguments to turn certain features or behaviors on or off. They can configure browser profiles to manage user preferences, cookies, and default download locations.

Here’s an example of how ChromeOptions and DesiredCapabilities can be used in Selenium 4 and Selenium 3:

In Selenium 4

import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;


public class SeleniumTest {
    public static void main(String[] args) {
        ChromeOptions options = new ChromeOptions();

        // addArguments parameter tells Chrome browser that it should be run without UI (Headless)
         options.addArguments("--headless=new")
        WebDriver driver = new ChromeDriver(options);


        driver.get("https://ecommerce-playground.lambdatest.io/");

        driver.quit();
    }
}

In Selenium 3

DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("browser", "Chrome");
capabilities.setCapability("version", "86");
capabilities.setCapability("platform", "MacOS Catalina");
capabilities.setCapability("headless",true);

Selenium IDE

Selenium 4 introduced an upgraded Selenium IDE that offers significant improvements over Selenium 3. It is available for Microsoft Edge, Firefox, and Chrome browser offering expanded functionality beyond simple recording and playback of tests. The SIDE Runner tool enables parallel execution of Selenium tests on both local and cloud-based Selenium Grids. The IDE also includes enhancements to its graphical user interface (GUI) to provide a more intuitive and user-friendly experience. These improvements enhance the overall usability and flexibility of the Selenium IDE for testers.

The new Selenium IDE has better features for recording and playing back tests, improved scripting capabilities, and enhanced support for managing test cases.

Code Export

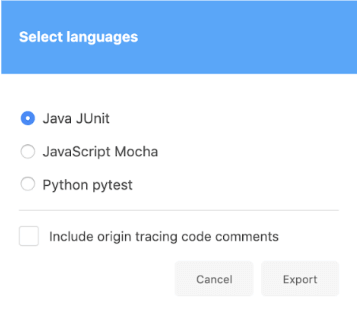

Testers have the option to export test or suite of tests to WebDriver and use it on Selenium Grid.

The steps for exporting the code include:

• Right-clicking a test or suite
• Selecting Export
• Picking a language/test framework
• Clicking the Export button

Currently, Selenium IDE supports the following languages and test frameworks:

• C# / NUnit
• C# / xUnit
• Java / JUnit
• JavaScript / Mocha
• Python / pytest
• Ruby / RSpec

This allows testers to choose the language binding that best fits their project requirements.

Relative Locators

In Selenium 4, Relative Locators – above, below, toRightof, and toLeftof were introduced to identify elements ‘relative’ to a specific element in DOM. In contrast to Selenium 3, we do not need to execute a sequence of findElement statements to find the surrounding elements.

Selenium utilizes the JavaScript method getBoundingClientRect() to detect the size and location of elements on the page. Then it uses this information to find the elements next to them.

Let’s see how Relative Locators function with a practical code example in Java:

We aim to find the “Get Checked Value” button beneath the “Enter Message” input field.

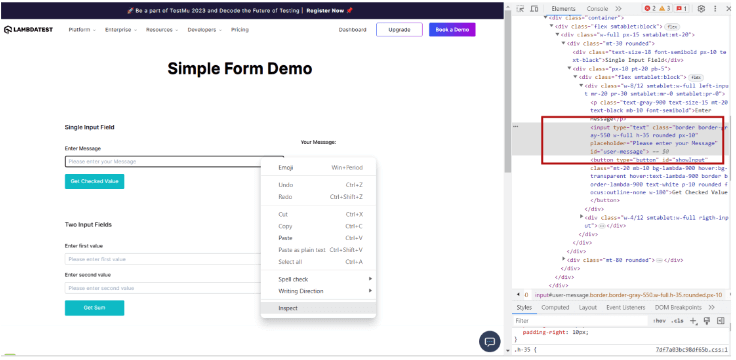

First, for better understanding, let’s look at this Form (I suggest you to open and play around with this form first).

In Selenium 4, we can employ the relativeTo() method to establish the connection between elements. Here, we will first get the ID for “Enter Message” input field and “Get Checked Value” button to find the Element via findElement().

Here’s how you can discover the “Get Checked Value” button in relation to the “Enter Message” input field.

import org.openqa.selenium.By;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.support.locators.RelativeLocator;


public class RelativeLocatorExample {
    public static void main(String[] args) {


        // Create an instance of Chrome Browser with latest version
  WebDriver driver = new ChromeDriver();



  // Navigate to the web page  driver.get("https://www.lambdatest.com/selenium-playground/simple-form-demo")


        // Locate the "Email" input field
        WebElement messageInput = driver.findElement(By.id("user-message"))


        // Locate the "Submit" button relative to the "Email" input field
        WebElement submitButton = driver.findElement(RelativeLocator.withTagName("button").below(messageInput))


        // Perform actions on the "Submit" button
        submitButton.click()


        // Close the browser
        driver.quit()
    }
}

In the above code, we first use a locator (in this case, By.id) to find the “Enter Message” input field. Then, using the below() function of the RelativeLocator class, we identify the “Get Checked Value” button located below the “Enter Message” input field. Therefore, this is how, testers and developers can adapt element locating strategies based on the visual relationships between elements, making your test automation scripts more robust and maintainable.

Chrome DevTools

In Selenium 4, the integration of Chrome DevTools provides a powerful set of tools and features to enhance testing capabilities. With Chrome DevTools, testers can directly access and utilize a wide range of functionalities the Chrome browser offers from within their automation scripts.

Selenium 4 supports the Chrome DevTools Protocol (CDP) through a DevTools interface. This integration allows for easy emulation of applications and provides a range of APIs to diagnose issues and make real-time edits to web pages. Additionally, these APIs enable testers to conduct Geolocation Testing by replicating different geographical locations and emulating various network conditions such as 2G, 3G, 4G, and more.

To demonstrate the usage of Chrome DevTools in Selenium 4, consider the following code example:

import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.devtools.DevTools;
import org.openqa.selenium.devtools.DevToolsException;
import io.github.bonigarcia.wdm.WebDriverManager;


public class SeleniumTest {
    public static void main(String[] args) {
        // Run Chrome in headless mode
        ChromeOptions options = new ChromeOptions();
         options.addArguments("--headless=new")


        WebDriver driver = new ChromeDriver(options);
        DevTools devTools = driver.getDevTools();


        try {
            // Enable the Network domain
            devTools.createSession();
            devTools.send("Network.enable", null);


            // Emulate network conditions: online, latency 100ms, download throughput 1024 KB/s
            devTools.send("Network.emulateNetworkConditions", Map.of("offline", false, "latency", 100, "downloadThroughput", 1024));


            // Perform interactions or assertions on the webpage
            driver.get("https://ecommerce-playground.lambdatest.io/");


            // Close the DevTools session
            devTools.close();
        } catch (DevToolsException e) {
            e.printStackTrace();
        } finally {
            driver.quit(); // Quit the browser
        }
    }
}

In this example, we first set up ChromeOptions. By adding the “–headless=new” argument, it runs Chrome in headless mode, meaning the browser operates without a visible graphical user interface.

Here, DevTools enable the Network domain and configure network conditions. It sends commands to the DevTools using devTools.send(). In the above example, it enables the network and emulates specific network conditions such as being online, with a latency of 100ms and a download throughput of 1024 KB/s.

This code example shows how Selenium 4 provides testers direct access to Chrome DevTools functionality, allowing them to use it for automation testing.

Action API

The Actions API in Selenium offers precise control over the capabilities of designated input devices. Selenium provides three interfaces for different types of input sources: one for keyboard devices, another for mouse, pen, or touch devices, and a third one for scroll wheel devices (introduced in Selenium 4.2).

These Actions are essential features that enable complex interactions with web components such as mouse and keyboard operations. These automates complicated user activities like dragging and dropping, lingering over components, double-clicking, etc.

Using Selenium, you can create individual action commands for each input type and link them together in a sequence. By calling the perform method associated with these actions, you can execute them all simultaneously in a synchronized manner. This level of control allows for fine-tuned interactions with web elements, making test scenarios more realistic and accurate.

Actions like clicking a button or entering a keyword in the search bar are prime examples of using a mouse or keyboard. Interactions usually done using a mouse and a keyboard can be automated using the Actions class in Selenium. As the name suggests, the Actions class contains a collection of actions that can be performed in a web application.

In Selenium 4, Actions has introduced new methods that provide additional capabilities for performing actions on web elements.

Let us understand some of these methods:

contextClick():

This method simulates a right-click action on an element.

doubleClick():

This method simulates a double-click action on an element.

import static org.testng.Assert.assertEquals;


import java.util.concurrent.TimeUnit;


import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.interactions.Actions;


public class clickDemo {
    public static void main(String[] args) {


      // instantiate the driver
    WebDriver driver = new ChromeDriver();
    //specify the URL of the website
    driver.get("https://ecommerce-playground.lambdatest.io/");

       //maximise the window
    driver.manage().window().maximize();


WebElement element = driver.findElement(By.id("entry_217825"));


   //For doubleClick()
    Actions action = new Actions(driver);
    action.doubleClick(element).build().perform();


    assertEquals(driver.getTitle(), "iPod Touch");
   //For contextClick()
    driver.manage().timeouts().pageLoadTimeout(10, TimeUnit.SECONDS);
    action.contextClick().build().perform();


    driver.quit();
    }
}

click():

This method performs a click action on an element.

import static org.testng.Assert.assertEquals;


import org.openqa.selenium.By;
import org.openqa.selenium.Keys;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.interactions.Actions;


public class click {


    public static void main(String[] args) {

        //instantiate the driver
        WebDriver driver = new ChromeDriver();

        //specify the URL of the webpage/form
        driver.get("https://www.lambdatest.com/selenium-playground/simple-form-demo");

        //maximise the window
        driver.manage().window().maximize();


        //create an object for the Actions class and pass the driver argument
        Actions action = new Actions(driver);

        //specify the locator of the search box in which the product has to be typed
        WebElement elementToType = driver.findElement(By.id("user-message"));

        //pass the value of the product/message
        action.sendKeys(elementToType, "Welcome To LambdaTest").build().perform();

        //specify the locator of the search button
        WebElement elementToClick = driver.findElement(By.className("showInput"));


        //perform a mouse click on the search button
        action.click(elementToClick).build().perform();

        //verify the title of the website after searching the product
        assertEquals(driver.getTitle(), "Your Message");

        driver.quit();
    }


}

dragAndDrop():

The dragAndDrop(WebElement source, WebElement target) method is used to drag an element from the source and drop it into the target location.

There are two ways to perform this with the help of the Actions class in Selenium-

• Use the dragAndDrop(WebElement source, WebElement target) method.
• Use the series of actions: clickAndHold(WebElement source), moveToElement(WebElement target), release .

This is the way we manually drag and drop a file or an image from a source to the destination:

import java.util.concurrent.TimeUnit;


import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.interactions.Actions;


public class ActionsTest {


    public static void main(String[] args) {


        WebDriver driver = new ChromeDriver();

        driver.get("https://ecommerce-playground.lambdatest.io/");
        driver.manage().timeouts().pageLoadTimeout(10, TimeUnit.SECONDS);
        driver.manage().window().maximize();

        Actions action = new Actions(driver);

 WebElement source = driver.findElement(By.id("TestId-1"));
 WebElement destination = driver.findElement(By.id(“testId-2”));



        action.clickAndHold(source).moveToElement(destination).release().build().perform();

        driver.quit();
    }


}
