REST API Automation: Strategies, Frameworks & Best Practices

Areas That Matter in Advanced REST API Testing

• Backward Compatibility: Older clients must keep working after you ship a change. Versioning your endpoints and testing previous contracts against the current build is what keeps a release from silently breaking consumers you cannot see.
• Adhering to the REST Architectural Style: REST APIs follow a specific architectural style, and complying with it - statelessness, caching, a uniform interface - is what makes an API predictable enough to automate against in the first place.
• Token Structure: Auth tokens carry claims your API trusts. Knowing how a JWT is built, and testing what happens when one is expired, unsigned, or tampered with, is a core part of API testing.
• Validation: Every response has a contract - status code, schema, field types, enum values. Asserting all of it, rather than just a 200, is what separates a real test from a smoke check.
• Stimulating External Services: Your API depends on services you do not control. Mocking them with tools like WireMock lets you test failure paths - timeouts, 500s, malformed payloads - that you could never trigger reliably against the real thing.
• Contract Testing: When services integrate, each side holds assumptions about the other. Contract tests pin those assumptions down so a provider change fails fast in CI instead of in production.
• Security Testing: Authentication, authorization, and input validation all need adversarial cases. Tools such as OWASP ZAP and Burp Suite probe the paths your functional tests assume are safe.

Implementing REST API Automation with REST Assured (Java)

REST Assured is an open source Java library that removes the HTTP client boilerplate from API tests. Instead of assembling a request, executing it, parsing the response body, and then asserting on it across twenty lines of code, you describe the whole interaction as a single readable chain. It runs inside TestNG or JUnit, so your API tests live in the same suite and the same CI pipeline as everything else.

Start by adding the dependency to your pom.xml. Pair it with a test runner - TestNG in this example - and the Hamcrest matchers that REST Assured uses for assertions.

<dependency>
    <groupId>io.rest-assured</groupId>
    <artifactId>rest-assured</artifactId>
    <version>5.5.0</version>
    <scope>test</scope>
</dependency>

Understanding given(), when(), and then()

REST Assured borrows the Given-When-Then structure from BDD, and each keyword owns one part of the request lifecycle:

• given() sets up the request - base URI, headers, authentication, query and path parameters, and the request body. Nothing has been sent at this point.
• when() fires the HTTP method: get(), post(), put(), patch(), or delete(). This is where the call actually leaves your machine.
• then() asserts on what came back - status code, response time, headers, and the body, addressed with GPath expressions such as data.id.

The example below covers both a GET and a POST against JSONPlaceholder, a free public test API, and asserts on the three things worth checking on almost every endpoint: the status code, the response time, and the shape of the JSON body.

import io.restassured.RestAssured;
import org.testng.annotations.BeforeClass;
import org.testng.annotations.Test;

import java.util.concurrent.TimeUnit;

import static io.restassured.RestAssured.given;
import static org.hamcrest.Matchers.equalTo;
import static org.hamcrest.Matchers.lessThan;
import static org.hamcrest.Matchers.notNullValue;

public class UsersApiTest {

    @BeforeClass
    public void setup() {
        RestAssured.baseURI = "https://jsonplaceholder.typicode.com";
    }

    @Test
    public void getSingleUserReturnsExpectedPayload() {
        given()
            .accept("application/json")
        .when()
            .get("/users/2")
        .then()
            .log().ifValidationFails()
            .statusCode(200)
            .time(lessThan(2L), TimeUnit.SECONDS)
            .body("id", equalTo(2))
            .body("email", notNullValue());
    }

    @Test
    public void createPostReturns201WithGeneratedId() {
        String payload = "{ \"title\": \"foo\", \"body\": \"bar\", \"userId\": 1 }";

        given()
            .contentType("application/json")
            .body(payload)
        .when()
            .post("/posts")
        .then()
            .statusCode(201)
            .body("title", equalTo("foo"))
            .body("userId", equalTo(1))
            .body("id", notNullValue());
    }
}

A few details in that snippet earn their place. .log().ifValidationFails() prints the full request and response only when an assertion fails, which keeps passing runs quiet but gives you everything you need to debug a red build. .time(lessThan(2L), TimeUnit.SECONDS) turns response time into a first-class assertion rather than something you notice later in a dashboard. And asserting email with notNullValue() instead of a hardcoded address is deliberate - pinning tests to fixture data that someone else can change is one of the most common sources of false failures.

Once these pass consistently, the natural next step is to extract the base URI and credentials into configuration, and to move repeated given() setup into a shared RequestSpecification so each test only expresses what makes it different.

Choosing the Right REST API Automation Framework by Language

REST Assured is the default answer for Java teams, but it is not the only sensible choice, and picking a framework in a language nobody on the team writes is a reliable way to end up with an unmaintained suite. The strongest signal is usually what your team already uses: the framework that matches your application’s stack is the one your developers will actually contribute tests to.

One question comes up often enough to answer directly: can you automate a REST API using Selenium? Not meaningfully. Selenium is a browser automation library - it drives the DOM and has no HTTP client for asserting status codes, headers, or JSON bodies. You can call an API from inside a Selenium test using REST Assured or Java’s HttpClient, and doing so is good practice: seed your test data over the API in seconds rather than clicking through a signup form, then let Selenium assert only the UI behaviour that genuinely needs a browser.

Best Practices for Parallel Automated API Testing

API tests are fast individually and slow in aggregate - a suite of 500 endpoints at 300ms each still costs you two and a half minutes of pure waiting, and most of that is network latency doing nothing. Parallel execution is the obvious fix, and it is also where stable suites go to die. The failure mode is almost never the runner configuration. It is that tests which passed in a fixed sequential order were quietly depending on that order.

Get the isolation right before you touch the thread count.

• Give every test its own data. Two tests updating the same user record will pass alone and fail together, intermittently, in a way that wastes an afternoon. Generate a unique identifier per test at runtime - a UUID in the email address or account name - so no two concurrent tests can collide.
• Hold no shared mutable state. Instance fields on a test class are shared across threads when TestNG runs methods in parallel. Anything stateful, such as an auth token or a correlation ID, belongs in a ThreadLocal so each thread gets its own copy.
• Break inter-dependent tests. If test B asserts on a record that test A created, the two cannot run concurrently and never will. Have B create its own precondition through an API setup call. Chained tests are a design problem that parallelism only exposes.
• Clean up per test, not per suite. A teardown that wipes a shared table will delete data another thread is still using. Each test should remove exactly what it created, and nothing else.
• Cap concurrency to what the API tolerates. Past a certain thread count you stop testing your API and start load testing it. A burst of 429 rate-limit responses looks exactly like a functional regression in the report. Find the ceiling and stay under it.

Once the suite is genuinely parallel-safe, the ceiling shifts from your test design to the single machine running it. TestMu AI's HyperExecute test orchestration cloud distributes a suite across just-in-time infrastructure and runs it up to 70% faster than a traditional grid, which matters most for the large data-driven API suites that saturate a local thread pool.

Configuring Thread-Safe Execution in TestNG

TestNG controls parallelism from testng.xml. The parallel attribute decides what gets its own thread - methods runs each @Test method concurrently, while classes keeps methods within a class sequential and parallelises across classes, which is the safer starting point if your tests share class-level setup.

<?xml version="1.0" encoding="UTF-8"?>
<suite name="api-suite" parallel="methods" thread-count="10">
    <test name="rest-api-tests">
        <classes>
            <class name="com.example.api.UsersApiTest"/>
        </classes>
    </test>
</suite>

This is also the answer to a question that gets asked a lot: how do you run 100 test cases in parallel in TestNG? Set parallel="methods" and thread-count="100". Worth understanding, though, is that thread-count is a ceiling on a reused thread pool, not a promise of 100 simultaneous connections - and 100 threads hammering one service is usually a worse idea than it sounds. If your cases come from a @DataProvider, mark it @DataProvider(parallel = true) and tune data-provider-thread-count, which TestNG caps separately from the suite thread count and which catches people out when their data-driven tests stubbornly refuse to speed up.

Configuring Thread-Safe Execution in JUnit 5

JUnit 5 keeps parallel execution switched off by default and reads its settings from junit-platform.properties on the test classpath.

junit.jupiter.execution.parallel.enabled = true
junit.jupiter.execution.parallel.mode.default = concurrent
junit.jupiter.execution.parallel.config.strategy = fixed
junit.jupiter.execution.parallel.config.fixed.parallelism = 10

When a specific class genuinely cannot run concurrently - it mutates a global setting or a shared account - annotate it with @Execution(ExecutionMode.SAME_THREAD) rather than turning parallelism off for the entire suite. Use @ResourceLock when several tests contend for one named resource and you want JUnit to serialise just those.

Best Practices for Testing AI Agents and LLM APIs

A growing share of the endpoints QA teams are handed now sit in front of a language model, and they break the assumption every traditional API test rests on: that the same request produces the same response. LLM endpoints are non-deterministic. Send an identical prompt twice and you get two differently worded answers, both correct. An equalTo() assertion against the response text will pass on Tuesday and fail on Wednesday, and the test will be deleted within a month for being flaky.

The way through is to separate what is still deterministic from what is not, and to test each with the right tool.

• Assert the contract strictly, the prose loosely. If the endpoint returns structured JSON, the schema is as deterministic as any other API: required fields, types, and enum values should all be asserted exactly. Reserve the fuzzy techniques for the free-text portions only.
• Use semantic validation instead of string matching. Compare the response to a reference answer using embedding cosine similarity and assert it clears a threshold. This tests whether the model said the right thing, not whether it chose the same words. Keep a golden dataset of prompt-to-acceptable-answer pairs under version control and treat it as a test fixture.
• Bring in an LLM-as-a-judge for the cases embeddings cannot score. A second model grades the response against a written rubric - is it accurate, on-topic, free of hallucinated detail, in the right tone? Judges are useful but not free of bias, so validate the judge against human-labelled examples before you trust its verdict in CI.
• Reduce variance where the provider allows it. Setting temperature to 0 and pinning a seed narrows the output distribution enough to make CI runs more stable. It does not make them deterministic, and a suite that only passes at temperature 0 is not testing what production actually does.
• Test prompt injection explicitly. Add adversarial cases that try to override the system prompt, extract it, or trigger a tool call the user is not authorised to make. Assert that the agent refuses and that nothing leaks. This is a functional requirement, not a security afterthought, and it belongs in the same suite as everything else.
• Budget latency and tokens as assertions. LLM calls are slow and metered. Assert a p95 latency ceiling and track tokens per request - a prompt change that quietly doubles token count is a real regression even when every output assertion passes, and you would rather find it in CI than on the invoice.
• Mock the tools when testing agent behaviour. To check that an agent selects the right tool with the right arguments, stub the tools themselves. The routing decision becomes cheap and repeatable to assert, and you avoid paying for a live call to test a decision the model already made.

The mental shift is from asserting equality to asserting acceptability within a tolerance - closer to how you would test a performance budget than a pure function.

Standing up this evaluation harness in-house is real work, which is why it is increasingly delivered as a product. TestMu AI's Agent Testing platform runs an agent under evaluation through 15+ specialized AI evaluators, including a hallucination detector, a bias detector, and a security researcher that probes prompt injection, then rolls their verdicts into a Green, Yellow, or Red production-readiness score. It is the same non-deterministic-output problem described above, handled as a managed evaluation rather than hand-rolled assertions. For the automation-framework side of the same shift, see AI API testing, which layers AI-driven test generation and self-healing checks that adapt when a schema or contract changes between releases.

Note: Test AI agents and LLM-backed APIs for hallucination, bias, and prompt injection with TestMu AI. Start testing free

Backward Compatibility

Backward compatibility means your APIs keep working with older versions of the software that consume them. It matters because you rarely control every client: a mobile app that users have not updated, a partner integration, or an internal service on an older release can all break the moment you change a response shape. Adding a field is usually safe. Renaming one, removing one, tightening a validation rule, or changing a status code is not. The practical safeguard is to version your endpoints and keep a suite of contract tests for each supported version running against every build, so a breaking change fails in CI rather than in a customer’s integration.

Final Words

REST API automation rewards teams that start concrete and then harden. Get a handful of REST Assured checks passing against a real endpoint, asserting the status code, the response time, and the shape of the body rather than just a 200. Pick the framework your team will actually maintain - REST Assured if you write Java, requests and pytest if you write Python, Playwright or SuperTest if you live in JavaScript, Postman and Newman CLI if collections are already how your team works.

From there, the work is mostly about isolation and honesty. Tests that generate their own data and share no mutable state are the ones that survive being run in parallel. Mocked dependencies are what let you test the timeouts and 500s that actually take systems down. And for LLM-backed endpoints, accepting that the output is non-deterministic - asserting the schema strictly and the prose semantically - is what keeps those tests from being deleted for flakiness within a month. Testing beyond the surface is critical for ensuring web applications’ functionality, reliability, and security.

To run these suites without maintaining grid infrastructure yourself, TestMu AI's test automation cloud runs Selenium, Cypress, and Playwright alongside your API checks in one pipeline, and the HyperExecute documentation walks through wiring a parallel run into CI.

About the Speaker

Julio de Lima is a seasoned software testing professional with more than a decade of experience in the industry. He serves as a principal engineer for Capco, where he plays a pivotal role in shaping robust and sustainable test strategies for financial institutions. Julio is also a speaker and trainer, sharing his expertise in conferences and workshops worldwide, and has trained thousands of testers through his Portuguese-language courses.

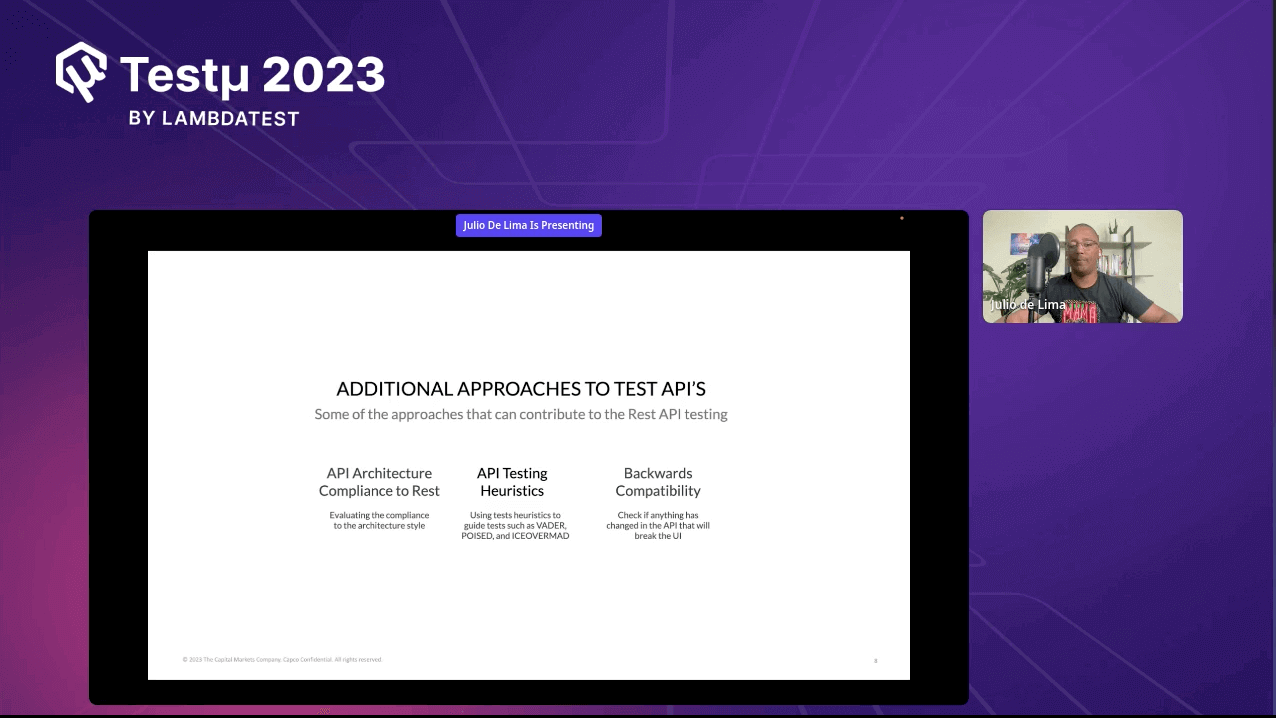

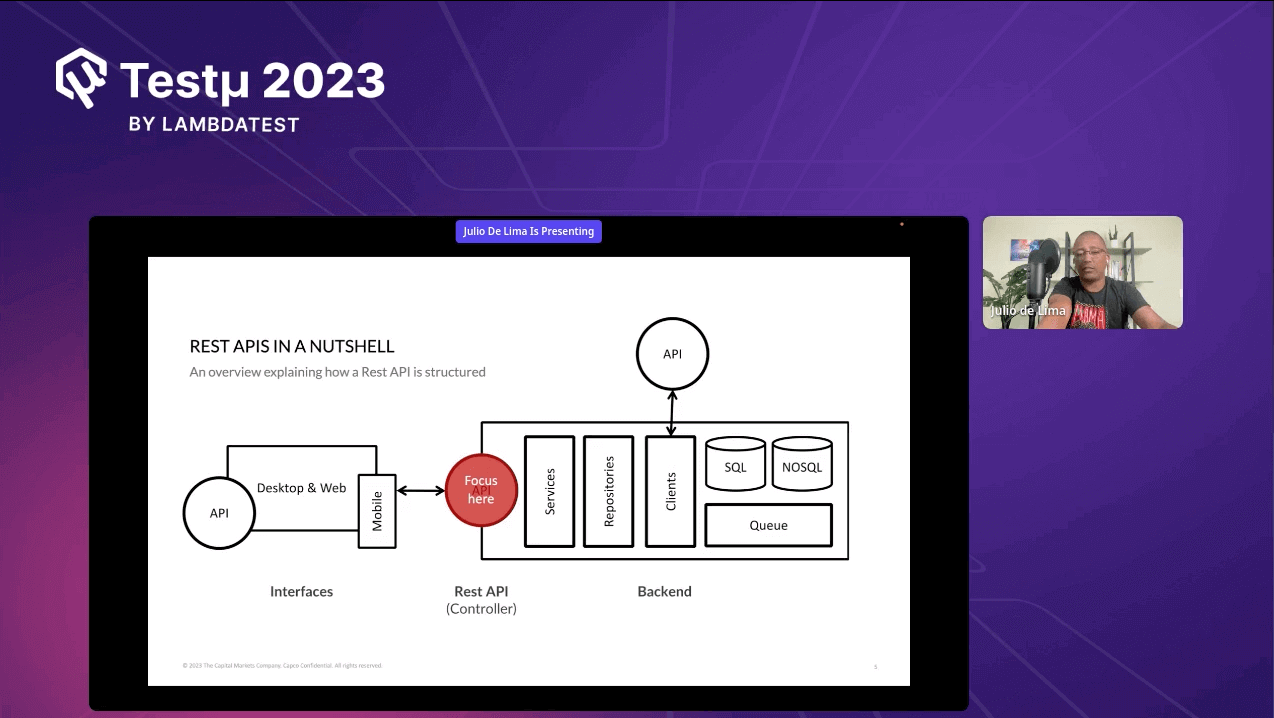

Watch the full TestMu AI session below, in which Julio walks through advanced REST API testing techniques including backward compatibility, token validation, and stimulating external services during testing.
