How To Use For Loop In Robot Framework: A Detailed Guide

Basics of Robot Framework

Robot Framework is a game-changer in acceptance testing and ATDD (Acceptance Test-Driven Development). This open-source automation framework, developed using Python, is not only user-friendly but also powerful in its capabilities.

Robot Framework’s syntax and test cases

For someone approaching this framework for the first time, the syntax stands out for its clarity. Each test case typically begins with a descriptive name, followed by the steps (or keywords) to execute and their respective arguments.

For instance,

*** Test Cases ***
Send Message to Application
    Open Browser    https://www.lambdatest.com/selenium-playground/simple-form-demo    Chrome
    Input Text    id=user-message    Mymessage
    Click Button    id=showInput

Keyword-driven approach and its advantages in test automation

Robot Framework uses a keyword-driven approach for test automation, which offers multiple benefits:

• Readability: Test cases read like plain English instructions, making them easy to understand even for non-developers.
• Reusability: Keywords can be used across multiple test cases, reducing redundancy.
• Modularity: Keywords are grouped into libraries, allowing easy updates to generate all relevant test cases automatically.
• Extensibility: Custom keywords can be created, making the framework adaptable to evolving applications.
• Collaboration: The approach encourages team collaboration and can serve as effective documentation.

Note: Validate your web and mobile application across various devices and browsers. Try TestMu AI Today!

The basic structure of Robot Framework’s scripts

A standard Robot Framework script consists of sections, each serving a unique purpose.

• Settings
  Imports libraries and sets up the test suite, including suite-level setups and teardowns.

*** Settings ***
Library           SeleniumLibrary
Suite Setup       Launch Application
Suite Teardown    Close Application

• Variables
  Defines variables for dynamic testing and easy script modification.

*** Variables ***
${URL}            https://www.lambdatest.com/selenium-playground/simple-form-demo
${BROWSER}        Chrome

• Test Cases
  Outlines individual tests using keywords.

*** Test Cases ***
Login to Application
    Open Browser    ${URL}    ${BROWSER}
    Input Text    id=user-message    Mymessage
    Click Button    id=showInput

• Keywords
  Creates custom keywords for reusable actions.

*** Keywords ***
Launch Application
    Open Browser    ${URL}    ${BROWSER}
    Maximize Window

• Teardown and setup
  Define pre and post-test actions at both suite and individual test case levels.

These sections form a modular, adaptable test script. Robot Framework’s keyword-driven approach and structured format make it a robust tool for test automation.

Understanding loops in general programming

Every programmer, irrespective of the language they work in or the applications they develop, automatically encounters a foundation concept: the loops.

At its most fundamental level, a loop allows for repeating a block of code multiple times based on a condition or a set of conditions. But why is this iterative capability so vital in programming?

Why are loops essential?

Loops play an instrumental role in reducing redundancy. Instead of writing the same piece of code repeatedly, a loop allows a programmer to define that specific action once and repeat it as needed.

It not only makes the code cleaner but also reduces potential errors. More importantly, loops provide a means to handle dynamic data. When the exact number of iterations needed isn’t known in advance or varies, loops offer the flexibility to adapt to different scenarios and datasets.

Common loops: for, while, and do-while (brief touch)

In this section, we will dive deep into each type of loop and briefly examine how they function.

• For Loop
  The most recognized loop structure, the For loop, is typically used when the number of iterations is known. The For loop in Python is primarily used to iterate over sequences (like lists, tuples, strings, or ranges). Its syntax differs from some languages that use initialization, condition, and iteration components.

For Example,

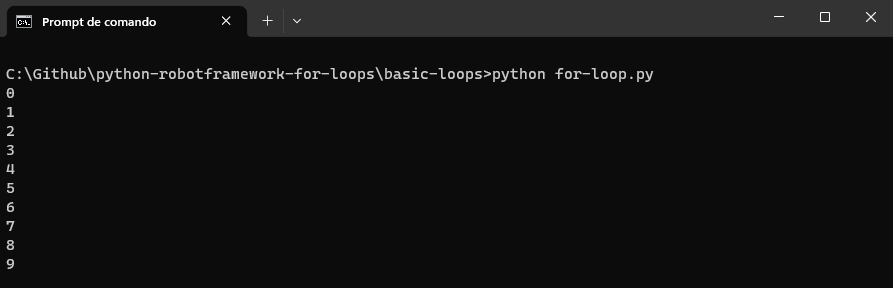

Using a For loop for printing the number ranging from 0-9

for i in range(10):
    print(i)

Result

• While Loop
  The while loop is a more flexible structure, perfect for situations where the number of iterations isn’t defined from the outset. The loop continues as long as the specified condition remains true. The while loop checks a condition before each iteration and will keep looping as long as the condition remains true.

For Example,

Using a while loop for printing the number ranging from 0-9

i = 0
while i < 10:
    print(i)
    i += 1

Result

• Do-While Loop
  A slight variation of the while loop, the do-while loop ensures that the code block within the loop executes at least once before checking the condition. It’s beneficial in scenarios where the initial run is mandatory. Python does not have a built-in do-while loop, but one can emulate its behavior using a while loop with a conditional break.

For Example,

Using a do-while loop to print the number ranging from 0-9.

i = 0
while True:
    print(i)
    i += 1
    if i >= 10:
        break

Again, this prints the numbers from 0 to 9. The loop will consistently execute the code block at least once and then continue looping until the condition in the if statement becomes true.

Result

While these are simple loop structures, you can use them cleverly to handle more complicated programming tasks.

Loops used with real-life examples

In programming, loops are similar to repeating tasks, and in this section of the blog on using For loop in Robot Framework, we’ll explore how loops can be applied in real-life examples.

• Data processing
  Consider an application that processes records in a database. There might be thousands, if not millions, of entries.

Using loops, you can iterate over each record, processing the data and updating or categorizing it. With loops, managing such vast datasets would be a challenging, if not impossible, task.

• User input validation
  In an online banking application, a loop can validate a user’s PIN or security answer during login. If the entered data is incorrect, the user is prompted to try again, up to a certain number of attempts. After reaching the limit, the account is temporarily locked for security reasons.

Using loops to check if the entered data is correct. If it’s incorrect, the loop allows the users to try again and keeps track of the number of attempts. If the maximum allowed attempts are reached, the loop exits, and the account is temporarily locked. Ensuring both security and a user-friendly login process.

• Automated testing
  In the context of software testing, loops play a pivotal role in scenarios where repetitive tasks or sequences need to be validated under different conditions or datasets, for example, testing login to many different valid and invalid usernames and passwords.

Using loops, you can automate the repetitive task of testing the login process with a different set of credentials. The loop will iterate via username and password, running the same validation steps each time. It saves time and ensures the login functionality is thoroughly tested with various conditions or datasets.

Loops are not just an essential part of programming. They’re fundamental to solving problems in software development. They provide an elegant way to handle repetition and are versatile for different scenarios. The main idea in programming is to automate tasks for efficiency, and loops, like the rhythmic For loop, vigilant while loop, or eager do-while loop, are essential tools for programmers.

Note: Leverage the real-life examples by performing automation tests with Robot Framework. Try TestMu AI Today!

Diving into the For loop in Robot Framework

Now that we understand how loops can help automate repetitive tasks, let’s take a closer look at the core concept of the For loop in Robot Framework.

Syntax and structure specific to Robot Framework

Mastering the For loop in Robot Framework is essential for effective test automation. It stands out for its unique, keyword-driven syntax, prioritizing readability and simplicity.

For instance,

In this simple loop, the numbers 1, 2, and 3 are logged to the console. The loop begins with the FOR keyword and ends with the END keyword, making it easy to understand.

*** Test Cases ***
Basic Loop
    FOR    ${item}    IN    1    2    3
        Log To Console    ${item}
    END

Result

Normal For loops

For more complex tasks that involve several steps or need extra logic, the regular or multi-line loop is the best option.

For instance,

This loop logs each test and then verifies if the length of the test name exceeds four characters.

*** Test Cases ***
Log Test Results
    FOR    ${test}    IN    Test1    Test2    Test3
        Log To Console   ${test}
        ${length}=    Get Length    ${test}
        Should Be True    ${length} > 4
    END

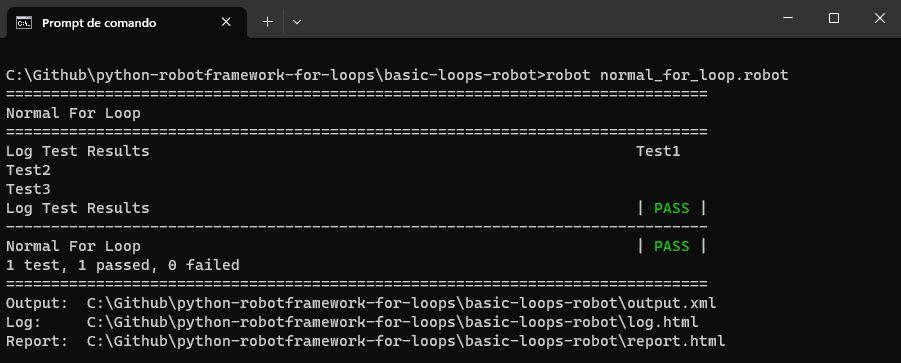

Result

Range, list, and dictionary iterations

The For loop in Robot Framework is highly adaptive when dealing with different data structures.

• Range iteration
  This technique uses a For loop in Robot Framework to iterate through numbers, much like Python’s range function. For instance, in a test case where you need to check pagination on a web application, you can use a For loop to click the “Next” button a specified number of times.

This loop would iterate through a numerical range, clicking the “Next” button and performing the validation at each iteration to ensure the new page of content loads as expected.

For instance,

The code below is a simple example of a For loop in Robot Framework. The code logs the messages to the console for three iterations.

*** Test Cases ***
Log Test Results
    FOR    ${number}    IN RANGE    3
        Log To Console   Test${number}
    END

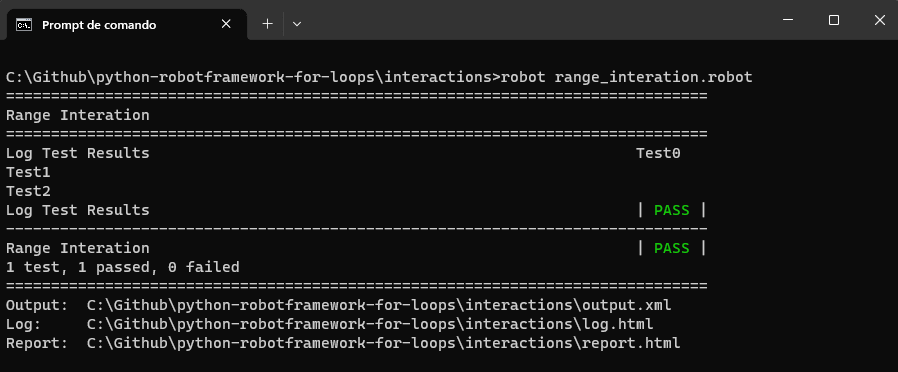

Result

Test0, Test1, Test2.

• List iteration
  Lists, also known as arrays in other programming languages, consist of ordered elements that Robot Framework can effortlessly iterate using a For loop.

For instance, consider a scenario where you need to test the checkout process of an eCommerce website. You might have a list of product IDs that you want to add to the shopping cart. In this case, you can use a For loop in Robot Framework to iteratively go through this list.

During each iteration of the loop, you can add a product to the cart. This For loop automation helps you efficiently perform a repetitive task and ensures that the shopping cart functionality functions correctly for various products.

For instance,

The code iterates via the list of test names and logs them to the console. This can be useful for testing multiple cases or scenarios in a sequence.

*** Test Cases ***
Log Test Results
    @{tests}=    Create List    TestA    TestB    TestC
    FOR    ${test}    IN    @{tests}
        Log To Console    ${test}
  pr  END

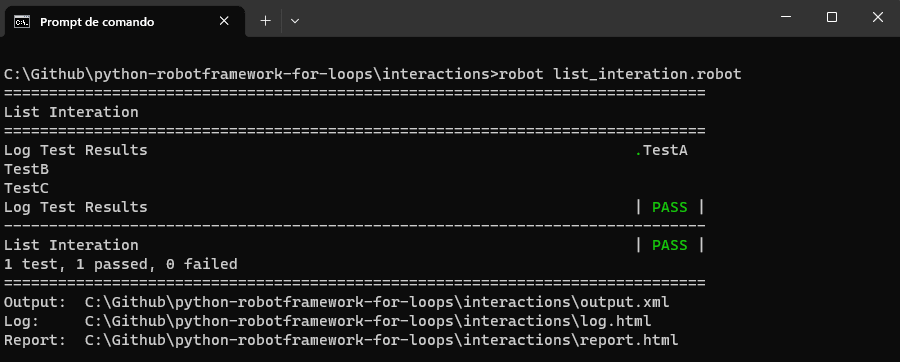

Result

• Dictionary iteration
  Dictionaries featuring key-value pairs can be easily traversed using the For loop in Robot Framework. For example, in automated testing of a user registration form, you might have a dictionary with usernames as keys and user details as values.

Using a For loop in Robot Framework, you can iterate through this dictionary, filling out the registration form for each user with their respective details, effectively testing the form’s handling of various input data.

For instance,

The code illustrates iterating through a dictionary of test results (test names and their corresponding outcomes) and logging them to the console. It is useful for reporting and reviewing test results for multiple tests in a structured manner.

*** Test Cases ***
Log Test Results
    &{test_results}=    Create Dictionary    TestA=Pass    TestB=Fail
    FOR    ${test}    ${result}    IN    &{test_results}
        Log To Console    ${test} result is ${result}
    END

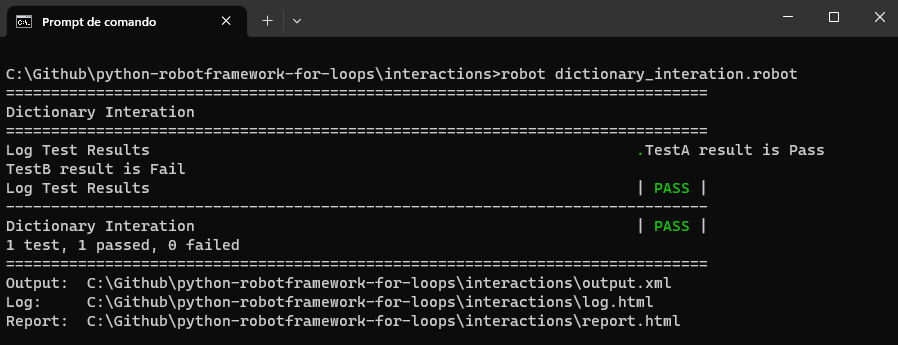

Result

TestA result is Pass, and TestB result is Fail.

The For loop in Robot Framework follows the same basic looping principles as other programming languages but stands out with its easy-to-understand syntax and structure. It gives testers a simple yet strong tool for making test cases work well and quickly grasp.

Alternatives to For loop

There are various alternatives to using a For Loop in test automation or programming in general. The choice largely depends on your specific use case and the programming language or framework you’re using. Here are some alternatives:

• Parallel Execution
  For independent and resource-intensive tasks, parallel execution can be a faster alternative to sequential looping. Libraries and frameworks for parallel computation can execute multiple iterations simultaneously.

You can also use Robot Framework to perform parallel execution, explore this blog on Robot Framework parallel test execution, and get valuable guidelines with demonstration.

• State Machines
  It offers an effective alternative to nested loops for handling complex logic, enhancing both readability and maintainability. A state machine consists of a finite set of states, transitions between those states, and actions performed during those transitions. In essence, a state machine simplifies complex logic by breaking it down into manageable states and transitions.

For example, consider the common scenario of web pagination. Suppose you are building a test to automatically navigate through a paginated list of items on an eCommerce website. You could have states such as “FirstPage,” “MiddlePage,” “LastPage,” and “End.” Transitions could be triggered by actions like “Click Next,” “Click Previous,” and “Reach End.”

• While Loop
  You can use a while loop to iterate based on a condition rather than a fixed range. This is useful for cases where you don’t know the exact number of iterations in advance.
• Library Methods
  Sometimes, the operation you need to perform is so common that there’s a library method that accomplishes it without requiring a loop. For instance, summing an array of numbers or finding the maximum value.
• Event-Driven Programming
  In some cases, particularly for UI or network operations, an event-driven approach can be more appropriate. Instead of looping, you set up event listeners and callbacks.
• Database Queries
  For data retrieval and manipulation tasks, it’s often more efficient to use a single database query rather than looping through records individually.

By understanding your specific use case, you can select the most appropriate alternative to a For loop.

Common pitfalls and troubleshooting

Using the For loop in Robot Framework can significantly enhance the power and flexibility of your test automation scripts. It’s common for testers, especially those new to Robot Framework or loops, to face certain pitfalls. Awareness of these can help you avoid them and ensure the smooth running of your test cases.

Let’s look into the common areas in which you might face issues and how you can overcome them.

Understanding the common errors

As a beginner, there can be some common errors that you might not give much attention to, but when it is time to debug, it consumes time to identify and fix them. In the upcoming section, we will cover some standard errors that we may face.

• Loop variable issues
  One common error is not initializing or using loop variables. Each iteration in a loop typically deals with a unique value and fails to capture. It can lead to unexpected results.

For instance,

In the code below, while the loop seems straightforward, using a global variable ${item} may have unexpected consequences if the variable is altered elsewhere.

*** Variables ***
${item}    NONE


*** Test Cases ***
Loop Issue
    FOR    ${item}    IN    1    2    3
        Log To Console    Processing ${item}
    END

Always ensure that the loop variable is localized and not affected by external factors.

• Incorrect indentation
  As with many scripting languages, Robot Framework relies on indentation to distinguish between loop declarations and their content. Incorrectly indented scripts can lead to misinterpretations.

For instance,

In the code below, the Log keyword isn’t indented correctly, which might cause the Robot Framework to misinterpret the loop’s structure.

*** Test Cases ***
Loop Issue
FOR    ${element}    IN    @{elements}
Log To Console    Processing ${element}
END

Proper indentation is crucial for clarity and proper script execution.

Tools and methodologies for debugging loops

Given that loops introduce repetition and potential complexity, debugging issues within them demands a systematic approach.

• Built-in logger
  Robot Framework has a robust built-in logging mechanism for insightful tracking and debugging. Using log statements strategically placed within your loops or other code structures can give you a clearer picture of the loop’s execution flow and assist in identifying problematic areas.

The framework supports different log levels to capture varying degrees of detail, such as.

• DEBUG: This provides general debugging information that is less detailed than TRACE. It is suitable for logging key points in a loop to understand the flow.
• INFO: Standard level for informational messages. It marks loop entry and exit points or significant state changes.
• WARN: Indicates potential issues that may not prevent your tests from running but are worth noting for future review.
• ERROR: Logs critical issues that have caused test failures or incorrect behavior.
• External debuggers
  Some Integrated Development Environments (IDEs) that support Robot Framework, like PyCharm or RED, offer debugging capabilities. You can set breakpoints, watch variables, and step through your loops to closely monitor their behavior. Additionally, you can leverage your debugging toolkit with TestMu AI LT Debug.
• TestMu AI LT Debug
  Debugging loops can be a difficult task, and repetitive issues can be hard to spot. Utilizing traditional methods might be time-consuming.

TestMu AI LT Debug can smoothly integrate with your testing environment, it provides detailed tracking and debugging. Like Robot Framework’s built-in logger, LT Debug allows you to place log statements strategically within loops or other code structures. This gives you a clear view of your loop’s execution flow and helps you identify or pinpoint problematic areas.

Practical Examples of For Loop in Robot Framework

When For loop in Robot Framework is used correctly, loops offer extensive capabilities ranging from processing multiple web elements to data-driven testing.

Let’s delve deeper into their applications, providing clear code examples and thorough explanations.

Iterating over a list of web elements

When automating web tests, it’s common to interact with a list of elements, like links in a navigation bar or items in a drop-down list.

For instance,

In the code below, we are trying to test the functionality of logging in to a web application by iterating through and verifying elements on the login page. Validating the product listings on an eCommerce website.

*** Settings ***
Library  SeleniumLibrary


*** Variables ***
${URL}    https://ecommerce-playground.lambdatest.io/index.php?route=account/register
${ELEMENT_CLASS}    css:.col-sm-2


*** Test Cases ***
Iterate Over Web Elements
    Open Browser    ${URL}    Chrome
    Maximize Browser Window
    @{items} =    Get WebElements    ${ELEMENT_CLASS}
    FOR    ${item}    IN    @{items}
        ${text} =    Get Text    ${item}
        Log To Console    ${text}
    END
    Close Browser

Let’s understand the code into points below

• Initialization
  The script begins by setting up the website URL and the CSS class used to identify web elements.
• Test case setup
  It starts a test case named “Iterate Over Web Elements.”
• Browser interaction
  The script opens a Chrome browser and navigates to the specified URL. It maximizes the browser window for a full view.
• Web element collection
  Using the defined CSS class, it collects all web elements on the page that match this class. These elements are stored in a list variable.
• Loop iteration
  For loop is initiated to go through each web element in the list.
• It extracts the text content of the element.
• Logs this text content to the console for visibility.
• Test case completion
  After processing all web elements in the list, the test case ends.

To summarize, the script sets up, opens a browser, identifies and captures web elements, and then iterates through these elements, logging their text content to the console.

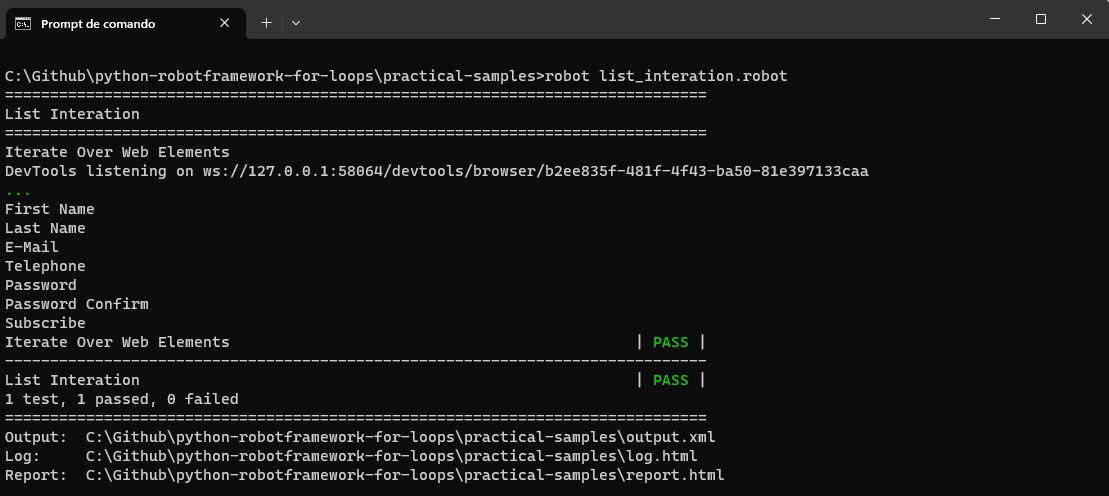

Result

Using loops for data-driven testing

The use of loops in data-driven testing serves to magnify both the efficiency and the effectiveness of your test suite. Data-driven testing involves re-running the same test scenario with varied input and validation data. Here are some in-depth reasons why loops are highly beneficial for data-driven testing.

• Efficiency: Eliminates code redundancy using the same test logic for different data sets.
• Consistency: Ensures uniform test conditions for all data points.
• Scalability: Easily accommodates new test scenarios or more data points.
• Maintainability: Simplifies debugging and updates since the core logic is in one place.
• Flexibility: Allows dynamic test execution, such as skipping data or stopping tests.
• Resource optimization: Helps in saving time and the computer’s resources by minimizing the need to start and stop tests repeatedly.

For instance,

A particle use case for data-driven testing is to validate a form’s ability to display different messages correctly.

*** Settings ***
Library    SeleniumLibrary


*** Variables ***
${URL}    https://www.lambdatest.com/selenium-playground/simple-form-demo


*** Keywords ***
Message Action
    [Arguments]    ${message}
    Input Text    id=user-message    ${message}
    Click Button    id=showInput
    ${text} =    Get Text    id=message
    Log To Console    ${text}


*** Test Cases ***
Test Multiple Form Messages
    @{messages} =    Create List    message1    message2    message3    message4    message5    message6    message7
    Open Browser    ${URL}    Chrome
    Maximize Browser Window
    FOR    ${message}    IN    @{messages}
        Message Action    ${message}
    END

Let’s understand the code into points below

• Browser interaction
  The test case begins by opening and maximizing the browser.
• Message list preparation
  It prepares a list of messages. This list likely contains different messages that must be tested on the web page.
• For Loop iteration
  The For loop in Robot Framework is initiated to iterate over the list of messages.
• Keyword execution
  For each message in the list, the “Message Action” keyword is called. This keyword performs a series of actions, such as filling the message, clicking a button, and retrieving and printing the message text.

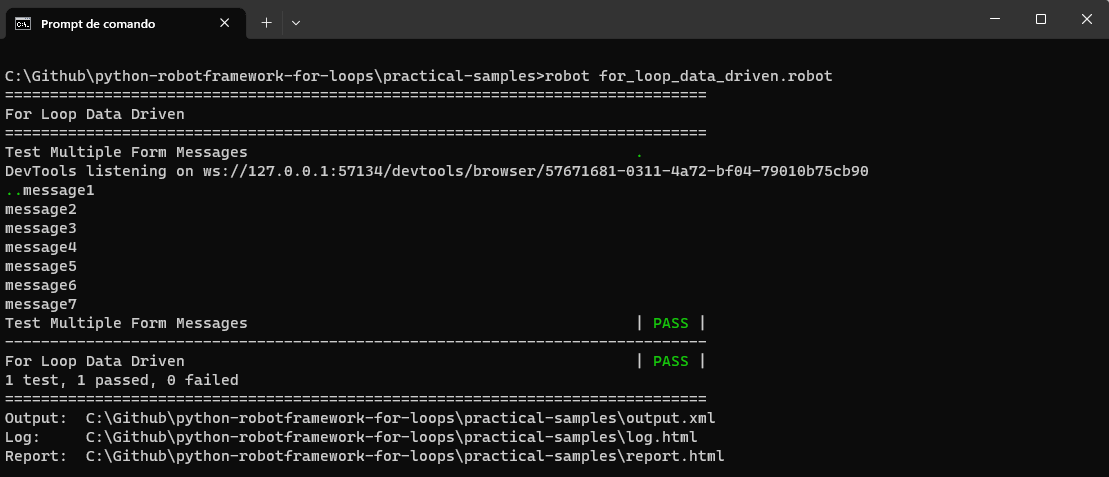

Result

Nested loops: loop within a loop scenario.

Nested loops in test automation are a useful tool for handling complex testing needs that involve multiple variables or aspects. While a single loop is adequate when dealing with just one factor, like various user credentials, real-world testing often involves considering several factors at once, and that’s where nested loops become valuable.

For example, if you have 3 browsers and 3 operating systems, a nested loop will ensure you test all 9 combinations. This is often referred to as combinatorial testing, and it’s crucial for identifying edge cases that might not appear when variables are tested in isolation.

For instance,

A practical use case for nested loops, getting two lists of browsers and versions, we open a page using these configurations, close the browser, and log these configurations to the console.

# Required Libraries for the automation script.
*** Settings ***
Library    SeleniumLibrary


# Configuration and Test Data variables.
*** Variables ***
# Base Test Configuration
${URL}    https://ecommerce-playground.lambdatest.io/index.php?route=account/register


*** Test Cases ***
Check Matrix Elements
    @{browsers} =    Create List    Chrome    Firefox    Edge
    @{versions} =    Create List    117    116


    FOR    ${browser}    IN    @{browsers}
        FOR    ${version}    IN    @{versions}
            Open Browser    ${URL}    ${browser}    ${version}
            Close Browser
            Log To Console    Executed on: ${browser} and ${version}
        END
    END

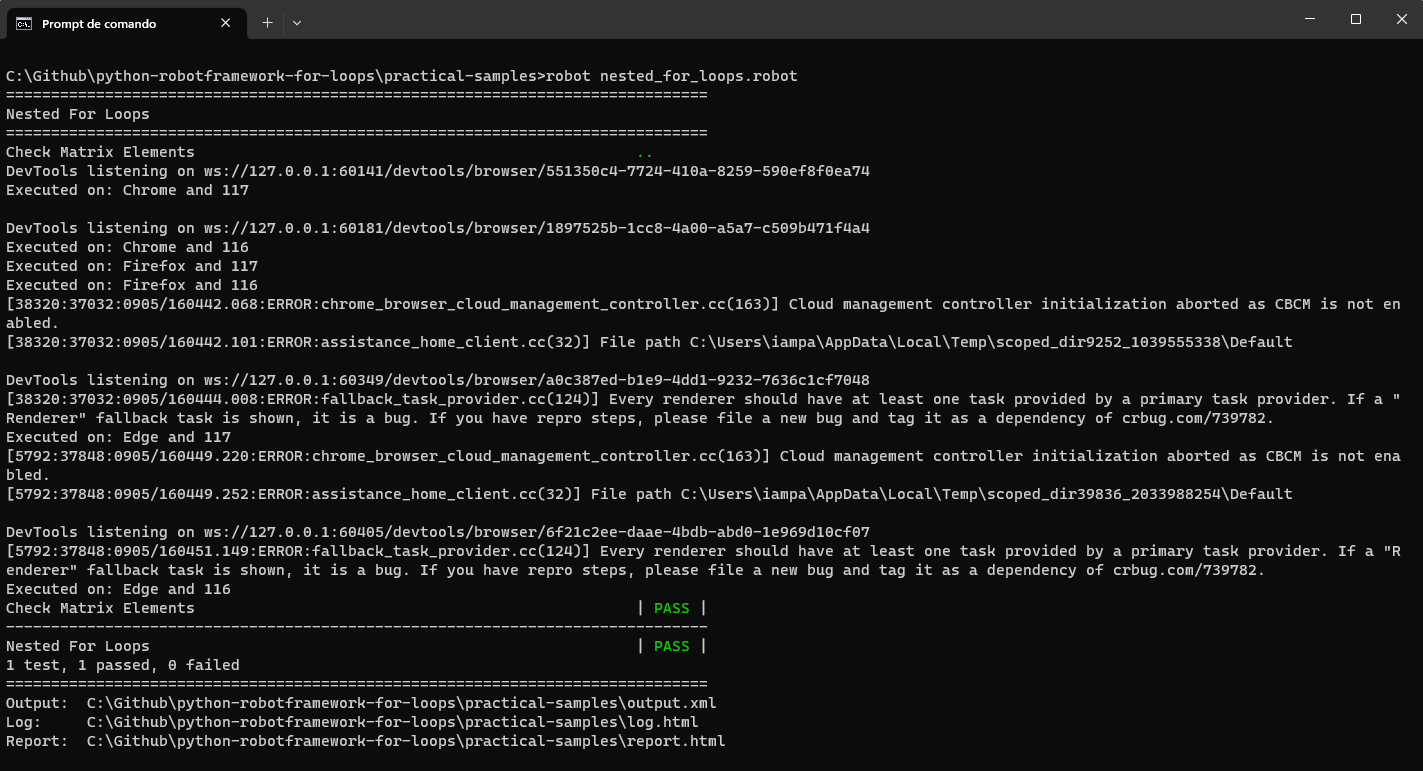

Result

Note: It is important to mention that using nested loops is not a good practice, so you can analyze if this is really needed or if you can use other alternatives.

Iterating over files and directories

Iterating over files and directories is a common necessity in automation tasks, particularly when you are dealing with bulk data, batch processing, or you need to apply a set of actions on multiple files or folders. This ability to traverse a filesystem can simplify many aspects of test automation.

For instance,

• Bulk data handling: Let’s say you have a folder containing hundreds of data files you need to read and validate. Manually checking each file would be time-consuming and cause errors. By using iteration over directories, you can automate this process, making it faster and more accurate.
• Dynamic test scenarios: When your test cases are driven by data stored in multiple files, iteration allows for a more dynamic approach to reading these files and executing corresponding test cases.
• File and directory management: In some test scenarios, you might need to clean up test directories by deleting temporary files or perhaps moving files to specific directories based on some criteria (e.g., archiving logs). Iteration over directories can automate these tasks.
• Enhanced validation: Imagine a scenario where you need to validate the contents of multiple files against certain criteria. Looping through files allows you to execute this in batch mode, making the validation process more efficient.
• Modular tests: With iteration, you can build more modular tests that are easier to maintain. Each file can represent a different module or feature to be tested, making it easier to manage your test suite.

For instance,

Let’s take a practical use case by creating a code that interacts with files and dictionaries. Below is the folder structure that we are going to use to demonstrate the iteration.

We can have the code to interact with the directory and files inside it.

*** Settings ***
Library    OperatingSystem


*** Test Cases ***
Process Files In Directory
    ${path} =    Set Variable    test-scripts-directory
    @{files} =    List Files In Directory    ${path}
    FOR    ${file}    IN    @{files}
        Log To Console    Processing file: ${file}
    END

After importing the necessary library, this code snippet specifies a directory path. It then lists all files in this directory and iterates over them, logging each file’s name. You can expand this to process or analyze file content.

When running the code, we could see that thorough comprehension of the For loop in Robot Framework can substantially elevate the quality and efficiency of your test automation processes. The given examples offer a mere glimpse of its vast capabilities. By understanding its intricacies and applications, testers can sculpt comprehensive, scalable, and effective test scripts.

Tips for efficient test automation using For loop

The For loop in Robot Framework has significantly improved the capabilities of automation scripts, making it easier for testers to handle repetitive tasks. Yet, their true power comes to light when combined with other testing strategies.

In this section, we explore advanced techniques that can be seamlessly integrated with the For loop in Robot Framework to enhance test automation efficiency and effectiveness.

Parallel loop execution for faster test runs

One of the prime ways to speed up the tests is to utilize loops by executing them in parallel. Especially in cases where loop iterations are independent of each other, parallel execution can reduce test run time accordingly.

How it works?

Parallel execution involves running multiple loop iterations simultaneously, leveraging the multi-core capabilities of modern processors.

Implementation Tip

While Robot Framework does not inherently support parallel loop iterations, there are external tools, such as Pabot, which can be integrated with Robot Framework to achieve parallel execution. The key is to ensure each iteration is isolated and doesn’t interfere with others.

Utilizing the For loops for setup and teardown in test suites

Setup and teardown phases are essential parts of a test suite, ensuring the testing environment is correctly initialized and eventually cleaned up. The For loop in Robot Framework can be instrumental in handling scenarios where multiple setups or teardown steps are needed.

Implementation Tip

By combining the For loop in Robot Framework with the suite’s setup and teardown, you can automate environment preparations and cleanup efficiently. This ensures that each test case runs in a consistent, controlled setting, improving the reliability of your test results.

Case Study

In this section, we will apply some of the knowledge of this blog about using the For loop in Robot Framework in a Selenium automation test.

Real-life application of For loop in Robot Framework

Imagine you are working on an eCommerce website with a huge product catalog list, and your task is to validate that the product details, price, and availability are correctly displayed on the website for all the various products, Manually testing each product page details can be time-consuming and nearly seems difficult to complete the task.

For such intensive use cases, you can use the For loop in Robot Framework to automate the testing process by iterating through the list of products and their details, making it possible to finish the task on time and with quality.

To advance the testing process more effectively, you can integrate Robot Framework with any of the cloud services in the market. In this case, we’ll use TestMu AI as our cloud service to illustrate these concepts.

TestMu AI is an AI-powered test orchestration and execution platform that lets you run manual and automated tests at scale with over 3000+ real devices, browsers, and OS combinations.

To perform Selenium Python testing on the TestMu AI cloud grid, you should use the capabilities to configure the environment, and we will run our test on the popular Chrome browser with the Windows 11 operating system.

In the further section, we will look deep into how to set capabilities to configure the environment and how to select the browser and operating system of our choice.

Let us look into the test scenario that we are going to work on.

Test Scenario 1

Steps:

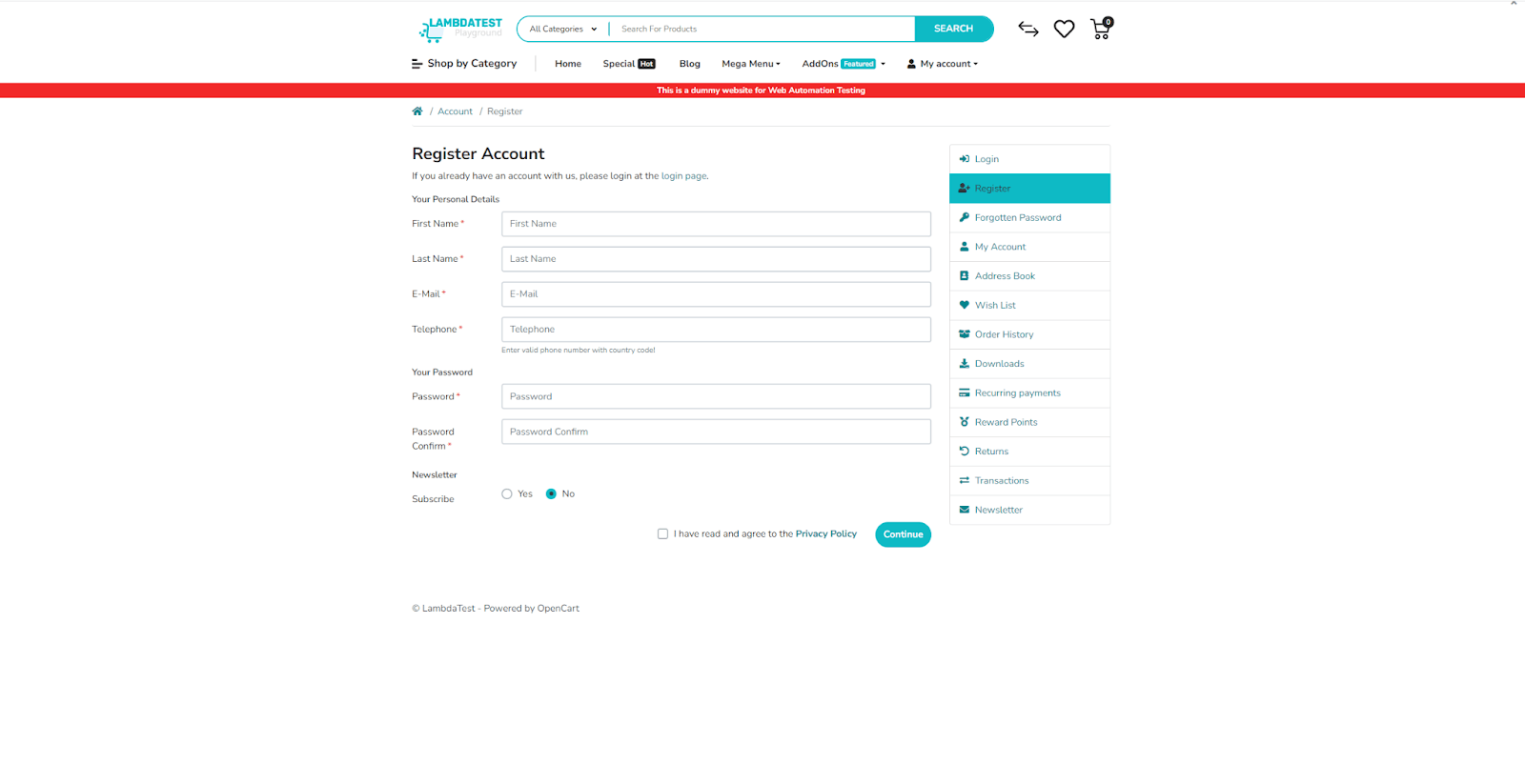

• Open the Register Account page in the TestMu AI eCommerce Playground.
• Fill in all the user-required fields.
• Accept Terms and Conditions.
• Click the Continue button.

Postconditions:

• New user makes a logout
• User should be redirected to the Register Account page again

Project setup

Before diving into testing, it’s essential to establish a robust testing environment. Properly configuring this environment is a crucial step that ensures a hassle-free coding experience and optimizes testing potential.

Now, let’s focus on the essential steps before starting the testing process. By following these key measures, you can ensure that your testing procedure is organized and efficient, leading to successful outcomes in your testing efforts.

Step 1: Download and install Python

Begin by installing Python, if not already installed, from the official Python website.

Step 2: Install Robot Framework and Robot Framework Selenium libraries

Once Python is installed, use the Python package manager, pip, to install Selenium and pytest just by running the following command.

pip install -r requirements.txt

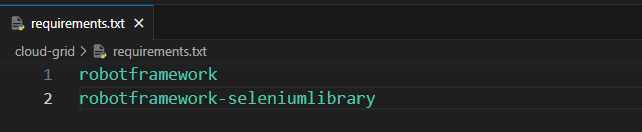

Step 3: Create a file

Create a file called requirements.txt that contains the dependencies that we would need to install.

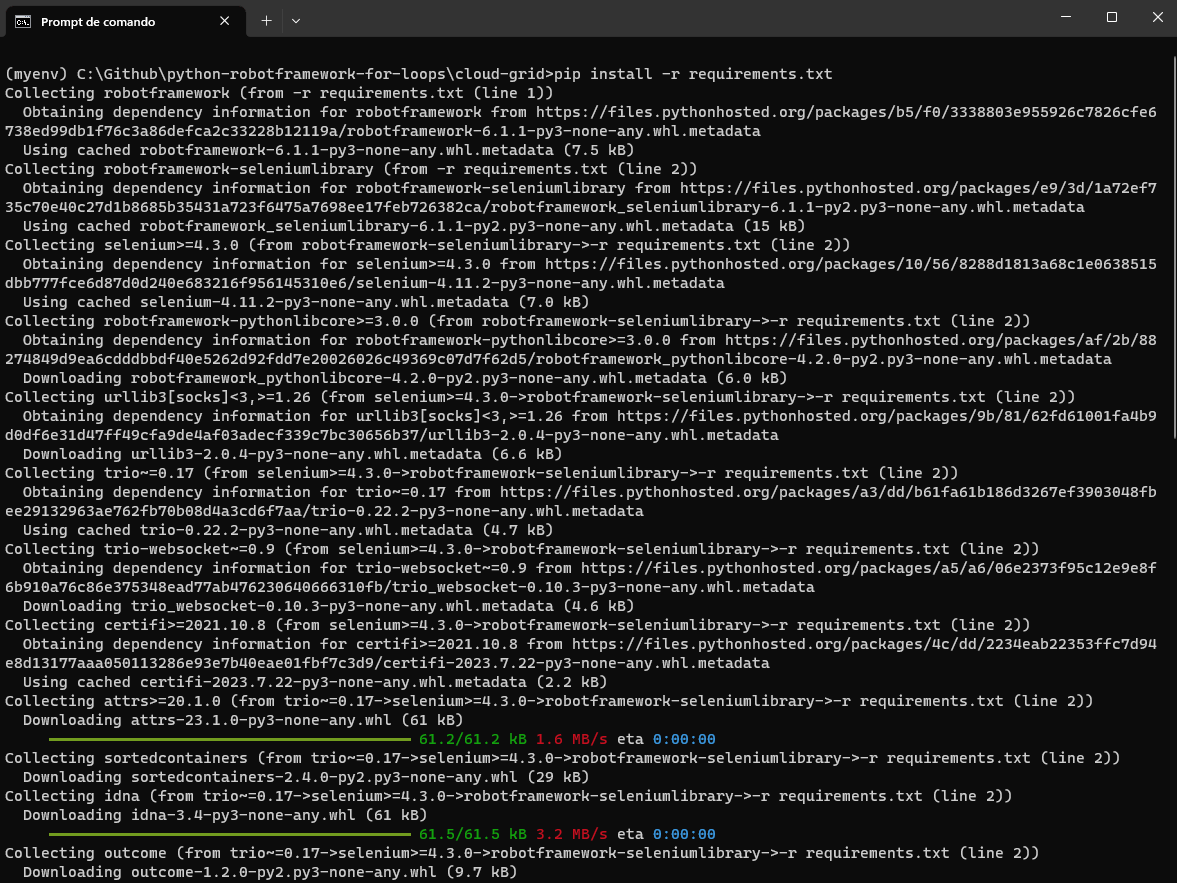

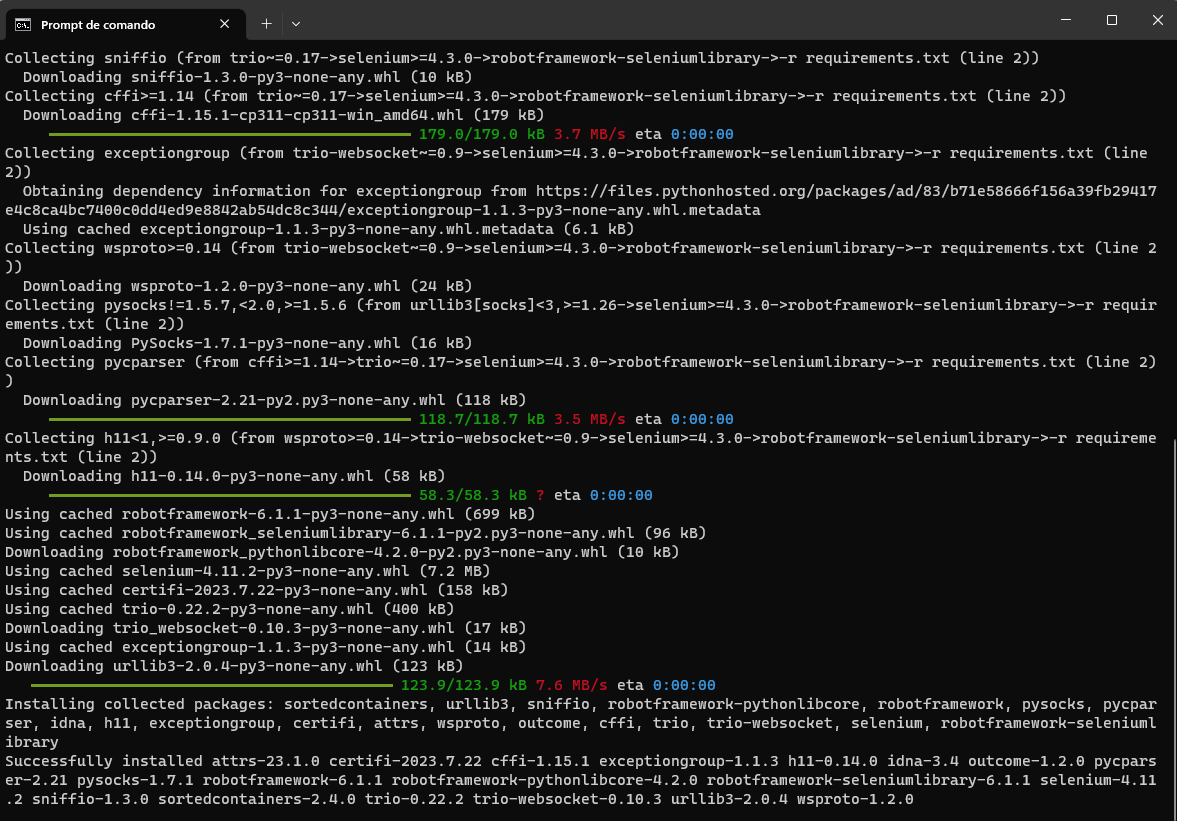

After running, you can see the below output

Step 4: Download and Install an IDE

In this case, we will be using VS Code as our IDE, and you are free to use any preferred IDE of your choice.

Step 5: Setting up pytest in Visual Studio Code

To configure pytest as your test runner in Visual Studio Code, follow these straightforward steps:

• Create a project folder: Make a folder for your project, and name it anything you want.
• Open the project folder in VS Code: Open this new project folder in Visual Studio Code.
• Access the command palette: You can reach the command palette by going to “View” in the menu and choosing “Command Palette.” Or simply press Ctrl+Shift+P (Cmd+Shift+P on macOS).
• Configure tests: In the command palette, type “Configure Tests” and select it from the options.
• Choose pytest as the test runner: When asked, pick pytest as your preferred test runner.
• Select the root directory: Go for the root directory option. It sets up a pytest for your entire project.

By following these simple steps, you’ll have pytest set up as your test runner in Visual Studio Code, making it easier to manage your tests right inside the editor.

If you’re using the pytest framework for running automation tests, you can explore our pytest tutorial. It allows you to run your test suites in parallel across multiple browsers and operating systems for comprehensive test coverage.

Subscribe to the TestMu AI YouTube channel for more videos on parallel testing and Selenium testing and to enhance your testing experience!

Now that our project setup is completed let’s get started setting up the capabilities from the TestMu AI platform.

Setting up Lambdatest

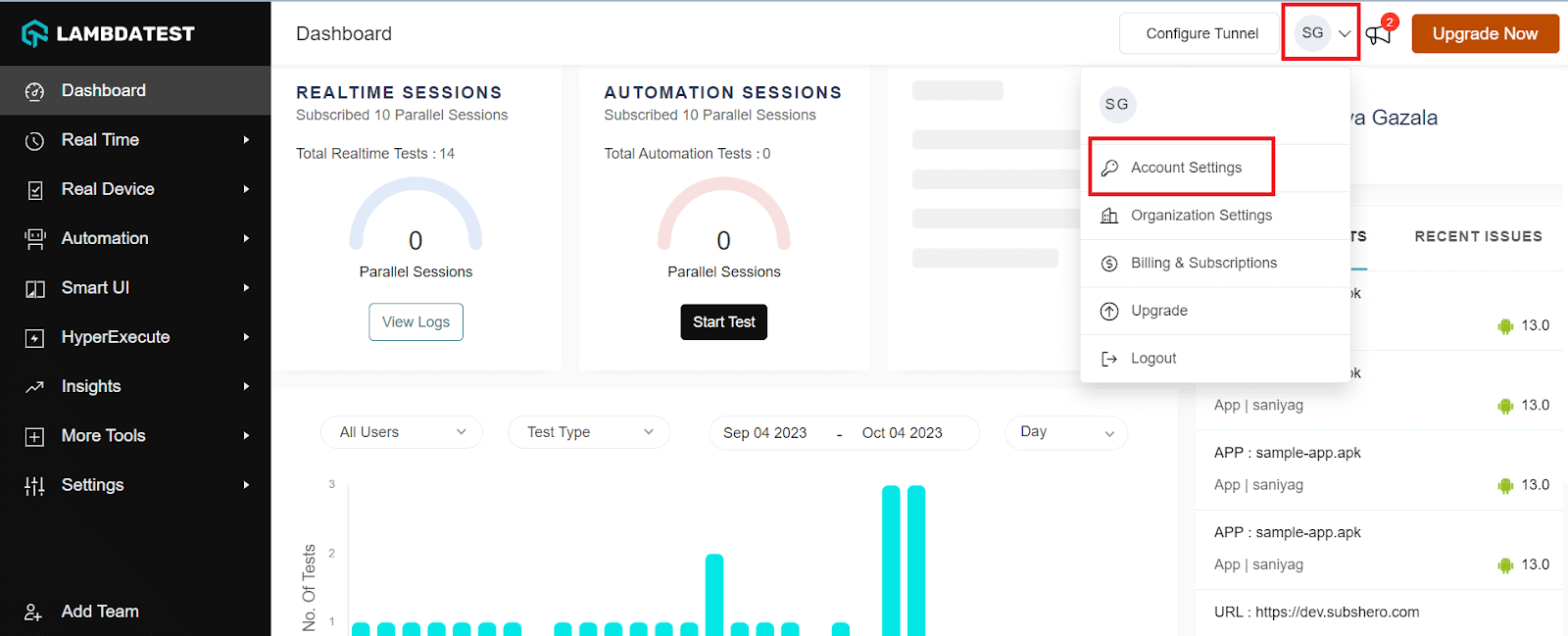

Step 1: Create a TestMu AI account.Step 2: Get your Username and Access Key by going to your Profile avatar from the TestMu AI dashboard and selecting Account Settings from the list of options.

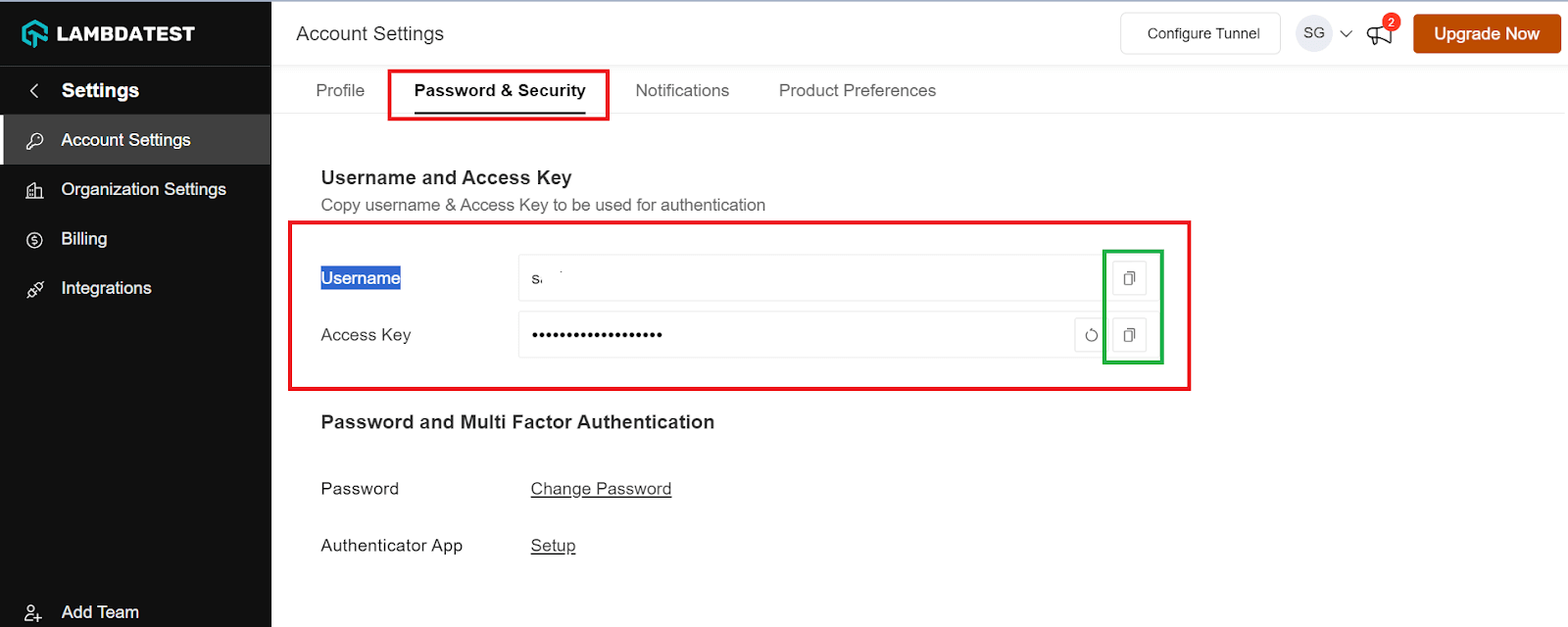

Step 3: Copy your Username and Access Key from the Password and Security tab.

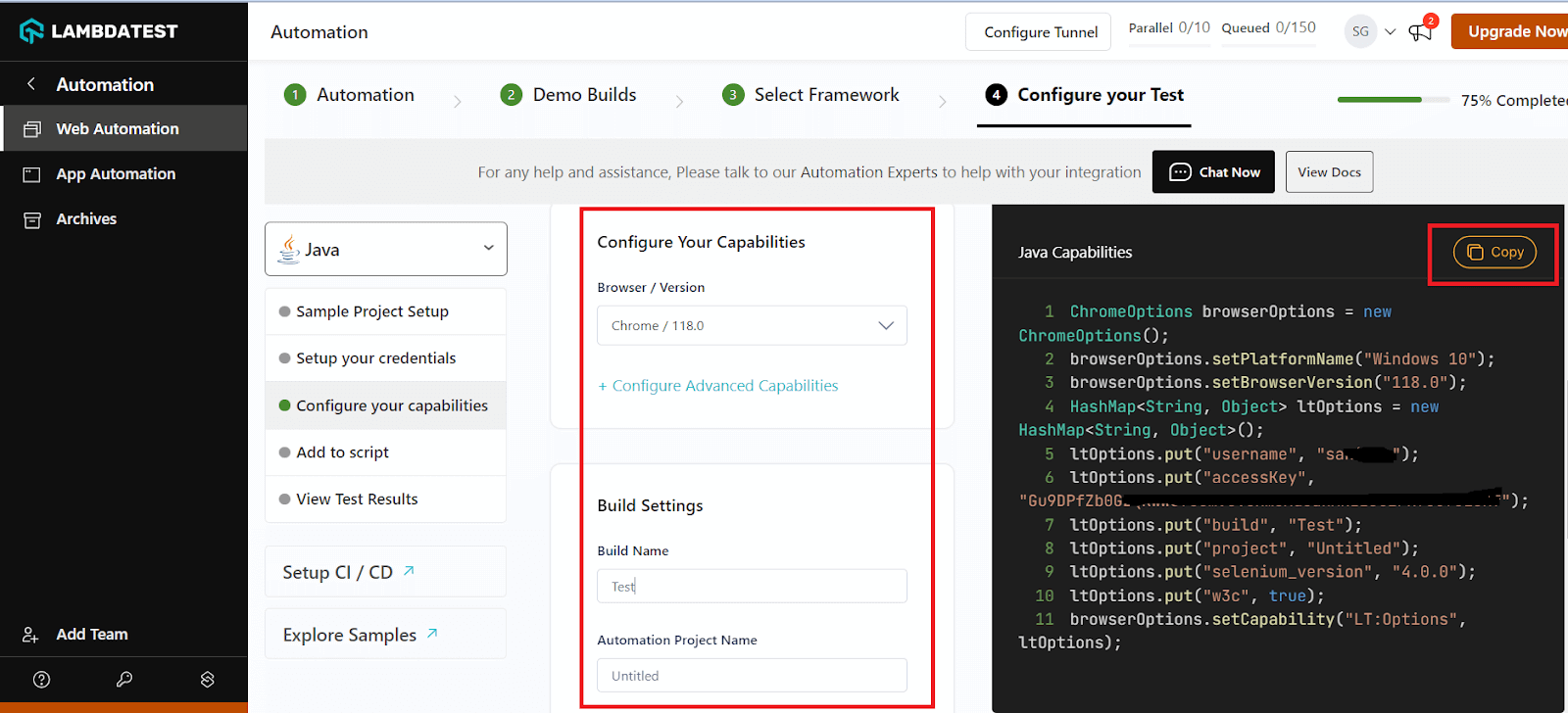

Step 4: Generate Capabilities, which contain details like your desired browser and its various operating systems. Generate your TestMu AI Capabilities Generator as per your requirement.

Step 5: Now that you have both the Username, Access key, and capabilities copied, all you need to do is paste it into your test script.

In the following section, we will look into the implementation part of the TestMu AI cloud platform.

Implementation

# Required Libraries for the automation script.
*** Settings ***
Library    SeleniumLibrary
Library    Collections
Library  String


# Configuration and Test Data variables.
*** Variables ***
# Base Test Configuration
${URL}    https://ecommerce-playground.lambdatest.io/index.php?route=account/register
${domain}    @gmail.com


# Data set for registration forms.
@{first_names} =    Paulo    Maria    John    Tatiane    Kim    Joana
@{last_names} =    Oliveira    Silva    Kennedy    Grey    Kardashian    Prado
@{telephones} =    999888777    888777666    777666555    666555444    555444333    444333222
@{passwords} =    123456    234567    345678    456789    567890    678901
&{users}   # empty dictionary to store users


# LambdaTest Cloud Grid configurations.
&{options}          browserName=Chrome     platform=Windows 11       version=latest      name=For Loop Test Case    buildName=For Loop Build Name        projectName=For Loop Project Name
&{CAPABILITIES}     LT:Options=&{options}
${REMOTE_URL}       http://%{LT_USERNAME}:%{LT_ACCESS_KEY}@hub.lambdatest.com/wd/hub


# Custom Keywords
*** Keywords ***
# Keyword to generate a random string of given length.
Generate Random String
    [Arguments]  ${length}=8
    ${random_string} =  Evaluate  ''.join(random.choices(string.ascii_letters + string.digits, k=${length}))  modules=random,string
    [Return]  ${random_string}


# Keyword to generate a user data set for the registration forms.
Prepare Test Data
    Log To Console    Preparing test data...
    ${len} =   Get Length   ${first_names}
    FOR    ${i}    IN RANGE    ${len}
        ${my_random_string} =  Generate Random String  10
        ${firstname} =     Get From List   ${first_names}   ${i}
        ${lastname} =     Get From List   ${last_names}   ${i}
        ${mail} =     Set Variable    ${my_random_string}${domain}
        ${phone} =     Get From List   ${telephones}   ${i}
        ${pwd} =     Get From List   ${passwords}   ${i}

        # Create an inner dictionary for each user
        &{user_info}=    Create Dictionary    firstname=${firstname}    lastname=${lastname}    email=${mail}    phone=${phone}    password=${pwd}

        # Store this user_info dict under the user's first name (or you can choose another key)
        Set To Dictionary    ${users}    ${firstname}    ${user_info}
    END
    Log To Console    Test data is now ready!


# Keyword to fill the registration form with provided user details.
Fill Form
    [Arguments]    ${firstname}    ${lastname}    ${email}    ${telephone}    ${password}
    Input Text    id=input-firstname    ${firstname}
    Input Text    id=input-lastname    ${lastname}
    Input Text    id=input-email    ${email}
    Input Text    id=input-telephone    ${telephone}
    Input Text    id=input-password    ${password}
    Input Text    id=input-confirm    ${password}
    Click Element    //label[@for='input-agree']
    Click Button    //input[@value='Continue']

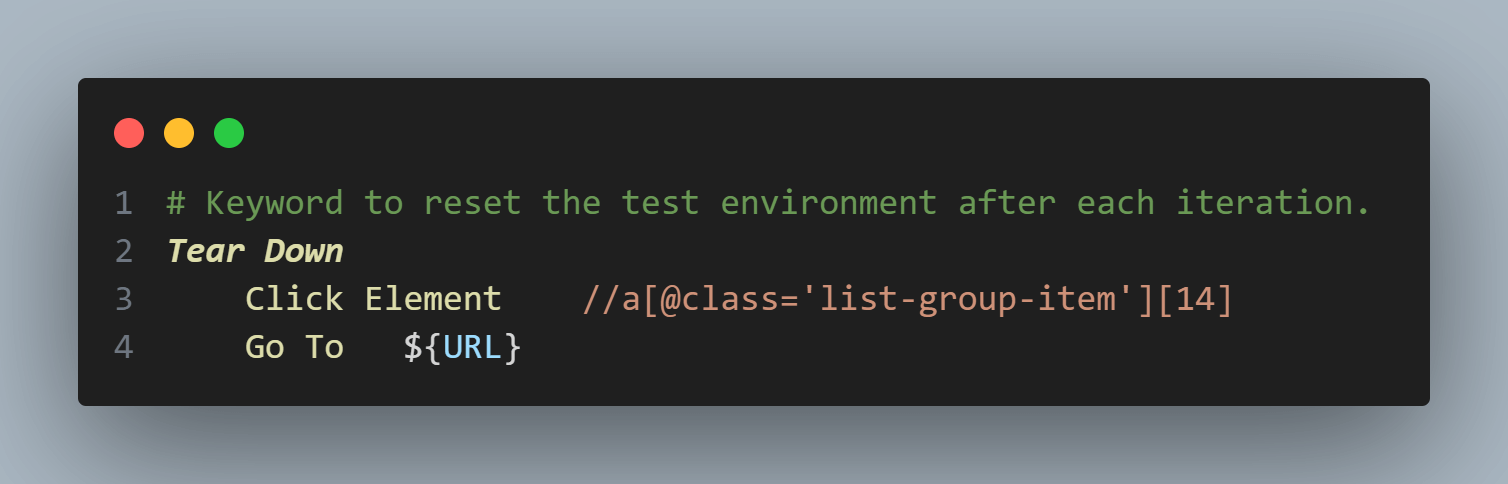

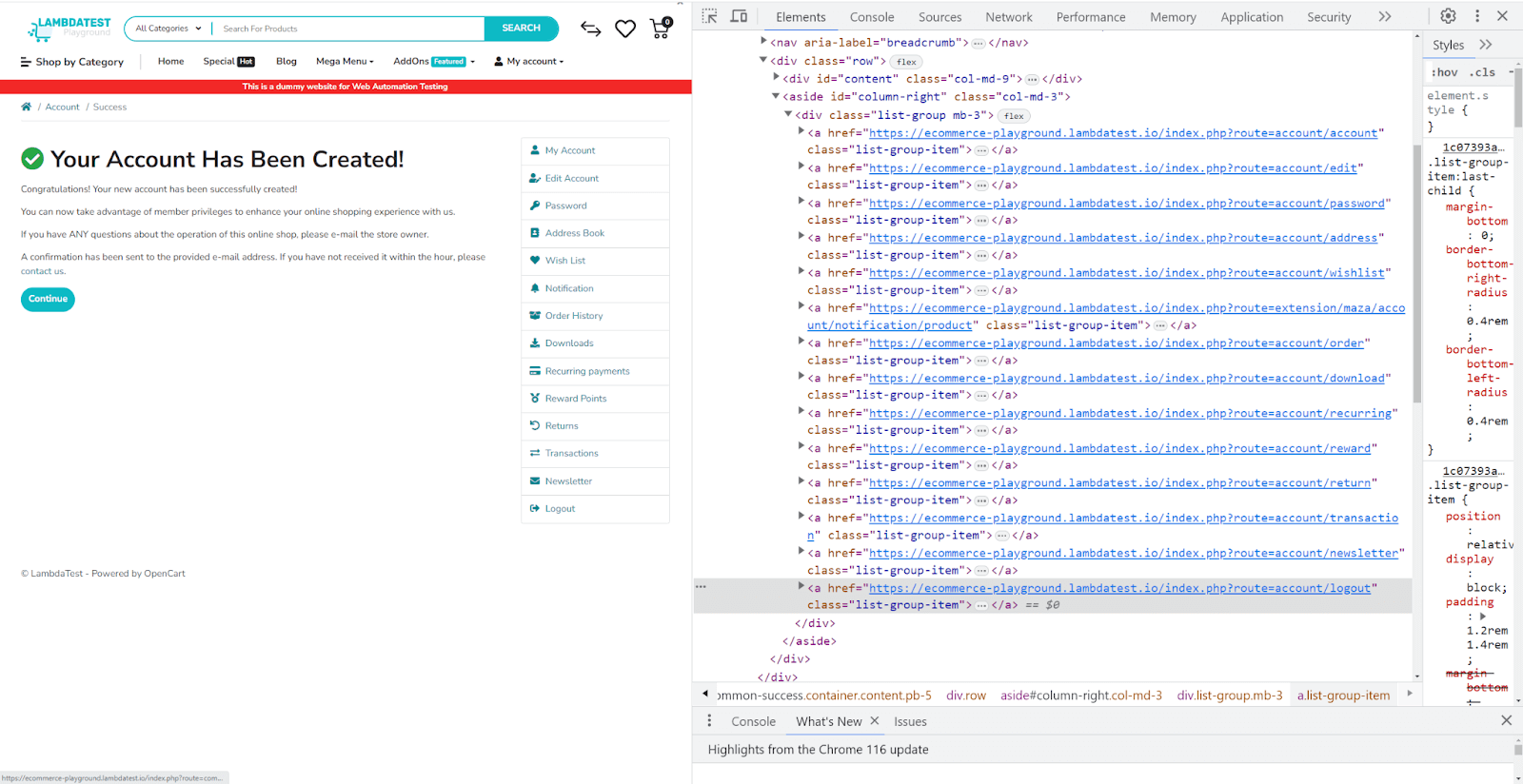

# Keyword to reset the test environment after each iteration.
Tear Down
    Click Element    //a[@class='list-group-item'][14]
    Go To   ${URL}

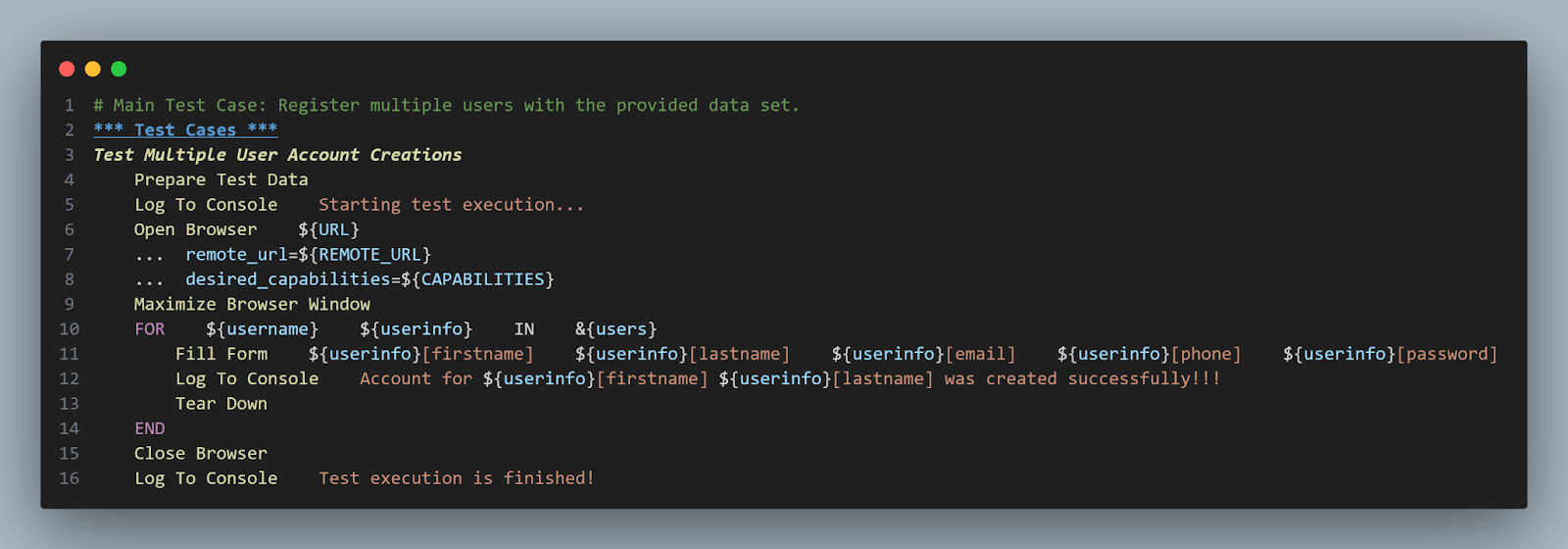

# Main Test Case: Register multiple users with the provided data set.
*** Test Cases ***
Test Multiple User Account Creations
    Prepare Test Data
    Log To Console    Starting test execution...
    Open Browser    ${URL}
    ...  remote_url=${REMOTE_URL}
    ...  desired_capabilities=${CAPABILITIES}
    Maximize Browser Window
    FOR    ${username}    ${userinfo}    IN    &{users}
        Fill Form    ${userinfo}[firstname]    ${userinfo}[lastname]    ${userinfo}[email]    ${userinfo}[phone]    ${userinfo}[password]
        Log To Console    Account for ${userinfo}[firstname] ${userinfo}[lastname] was created successfully!!!
        Tear Down
    END
    Close Browser
    Log To Console    Test execution is finished!

Before jumping to the outcomes, let’s understand what the code is trying to perform in a step-by-step procedure.

Code Walkthrough

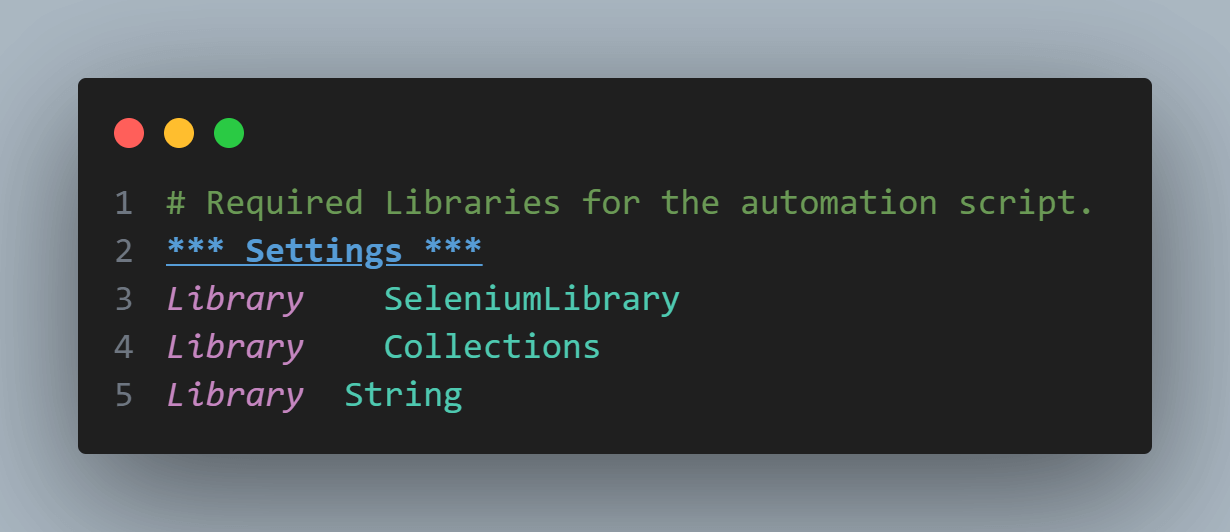

Step 1: Import statement

At the very beginning, the script imports three essential libraries in the Settings section of the script:

• SeleniumLibrary: Vital for web automation tasks.
• Collections: Enables us to manipulate lists and dictionaries.
• String: Provides functionalities for various string operations.

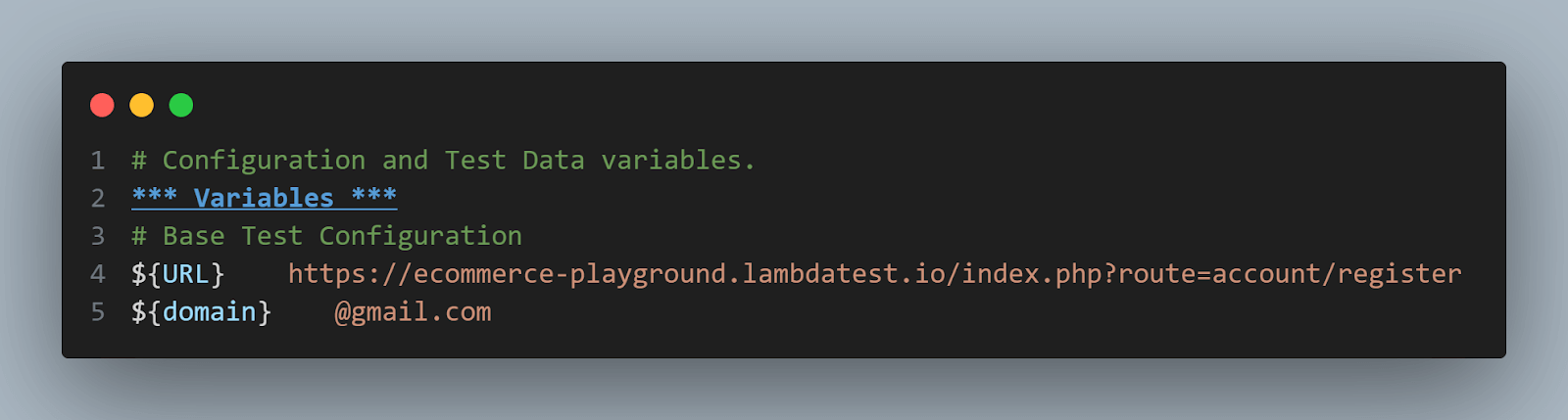

Step 2: Setting up initial variables

• Define the base URL to be tested (${URL).
• Set the domain for email addresses used during the test (${domain).

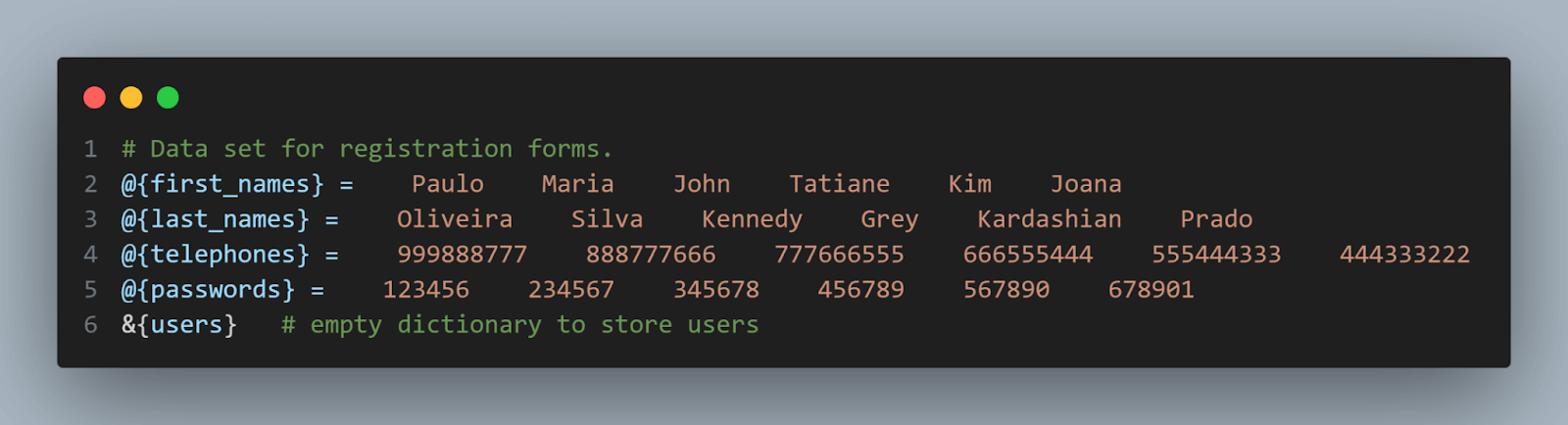

Step 3: Other related variables

• We will add some variables related to the test data that we will use to create the new user accounts. There are some lists to store 6 first names, last names, telephones, and passwords.
• Initial structure to an empty dictionary to store the users during the preparation data phase of the script.

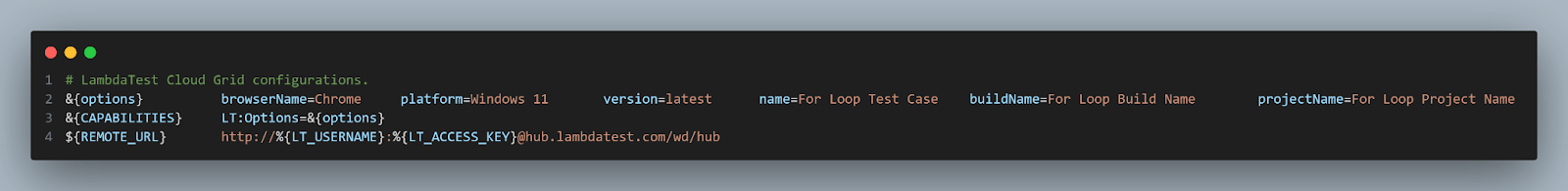

Step 4: Configuring TestMu AI cloud grid (variable section)

Define the configuration settings for TestMu AI cloud grid using &{options}, ${CAPABILITIES}, and ${REMOTE_URL}.

In Robot Framework, keywords are like building blocks for actions that can be reused to make scripts more efficient. In this case study, four specific keywords have been created to simplify the testing process.

Step 5: Creating custom keywords

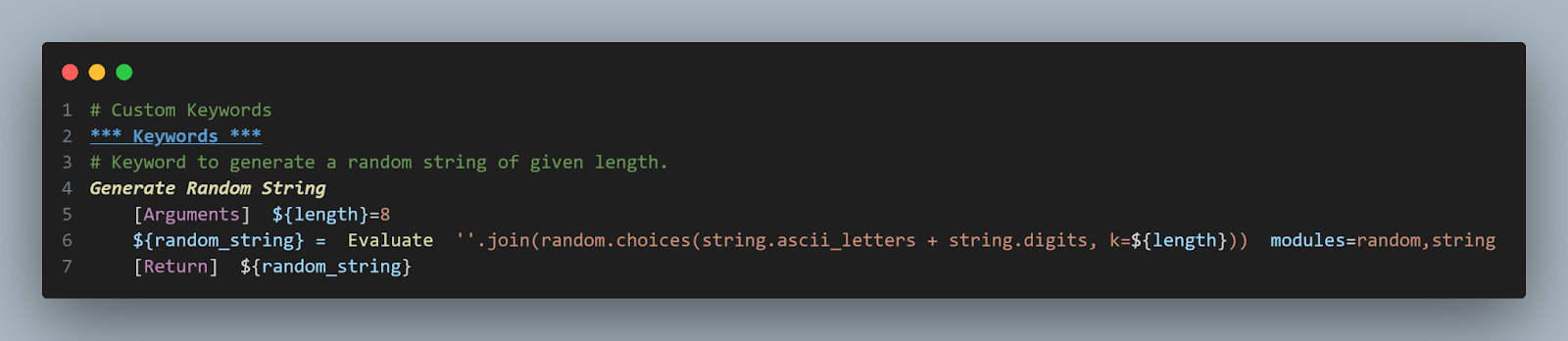

• Generate Random String: A custom keyword that, as its name suggests, produces a random alphanumeric string of a given length. We utilize this keyword to generate unique email addresses for the test case. This is necessary because the website restricts having multiple accounts with the same email, so we rely on random email strings.

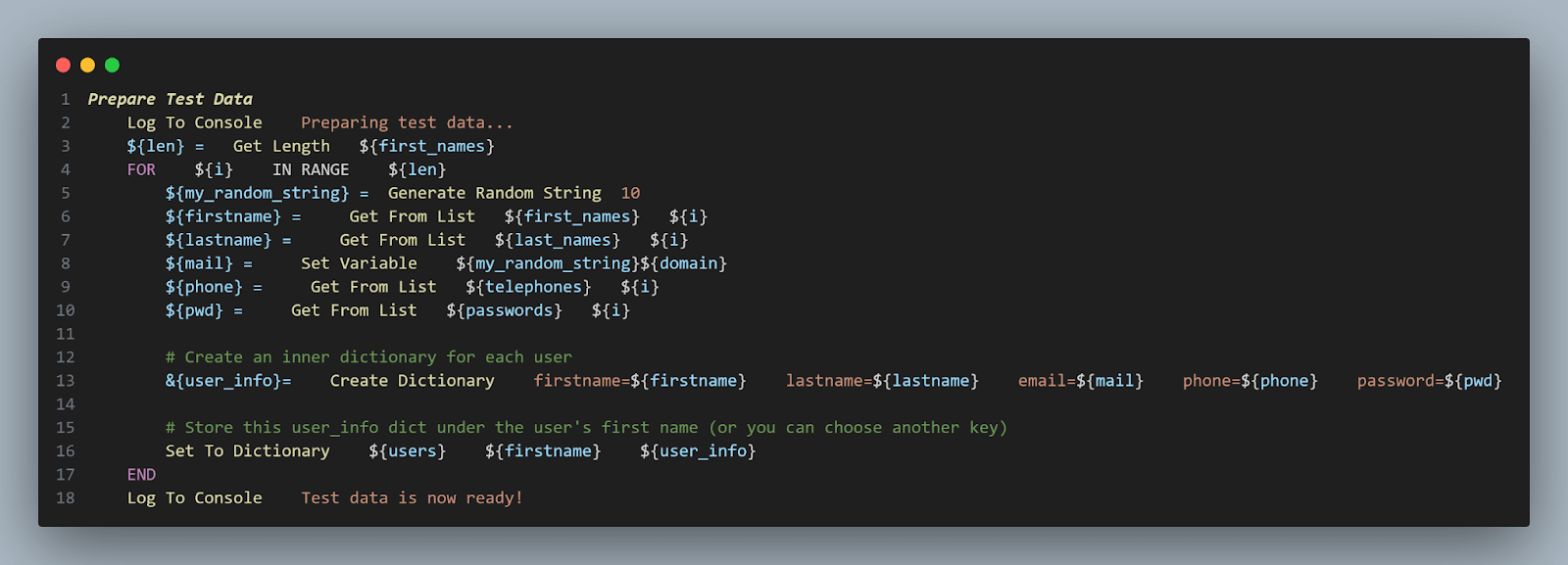

• Prepare Test Data: Before executing tests, this keyword prepares a set of user data. It combines the provided lists and creates a dictionary, &{<i>users</i>}, that holds individual user details. The advantage is that it offers structured data, easy retrievals, and ensures data consistency.

Step 6: Filling out the registration form

Focusing on the FOR loop in the above code, this is where the magic happens.

The FOR loop iterates based on the previously determined range, ${len}. For each iteration:

• A unique random string is generated with a fixed length of 10
• First and Last Name are fetched from their respective lists, with ${i} ensuring we fetch the right data for the current iteration
• The unique email for the user is created by appending ${domain} to the random string
• Phone and password details are similarly retrieved from their respective lists.

Every iteration creates a detailed user data set. This data is structured into a dictionary named &{user_info}.

Once the user’s data is structured, it’s stored in the master ${users} dictionary. The first name of the user acts as the key, ensuring quick retrieval.

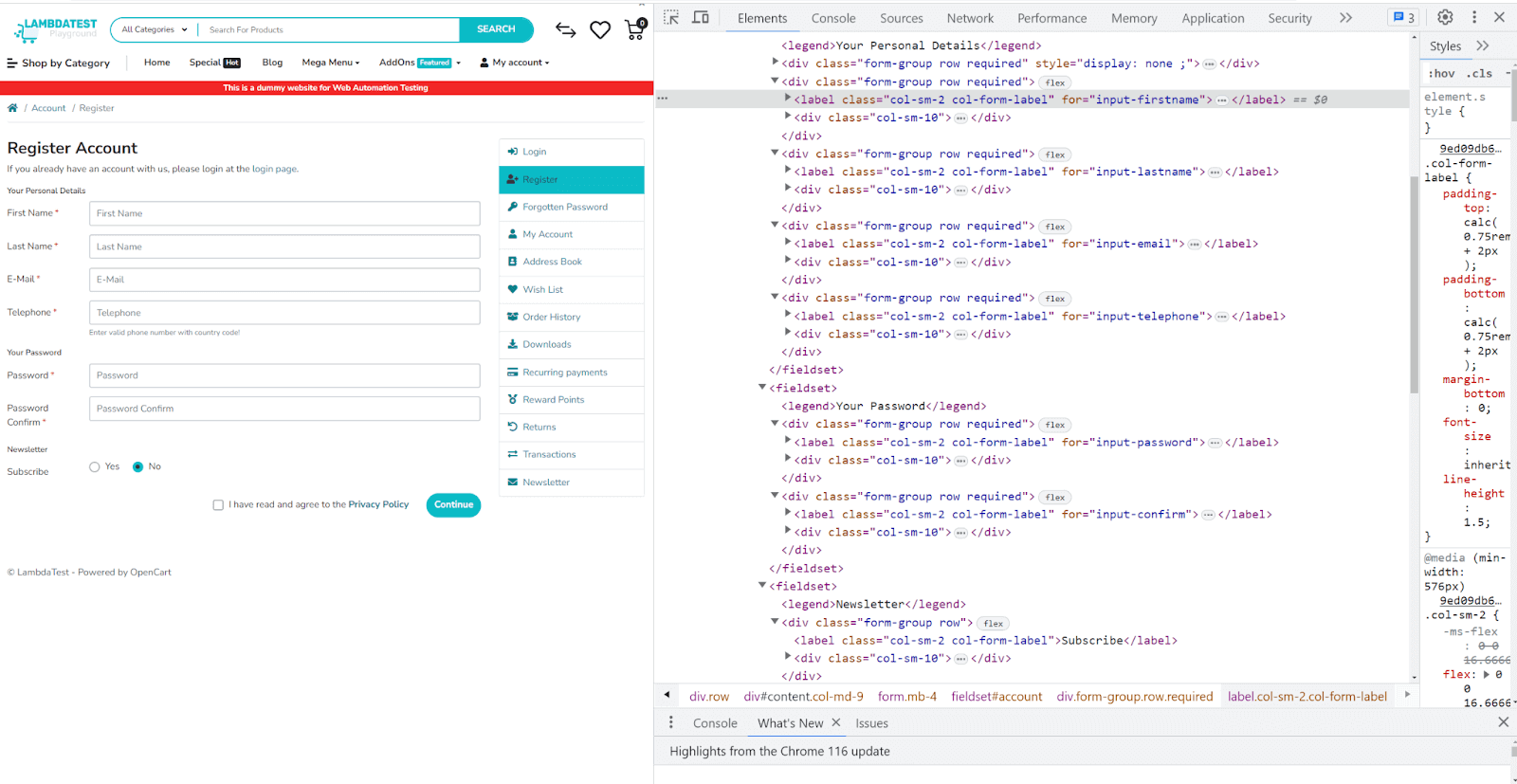

This keyword, Fill Form simulates the actual account creation process. It inputs the user’s data into specific fields on a form and submits it.

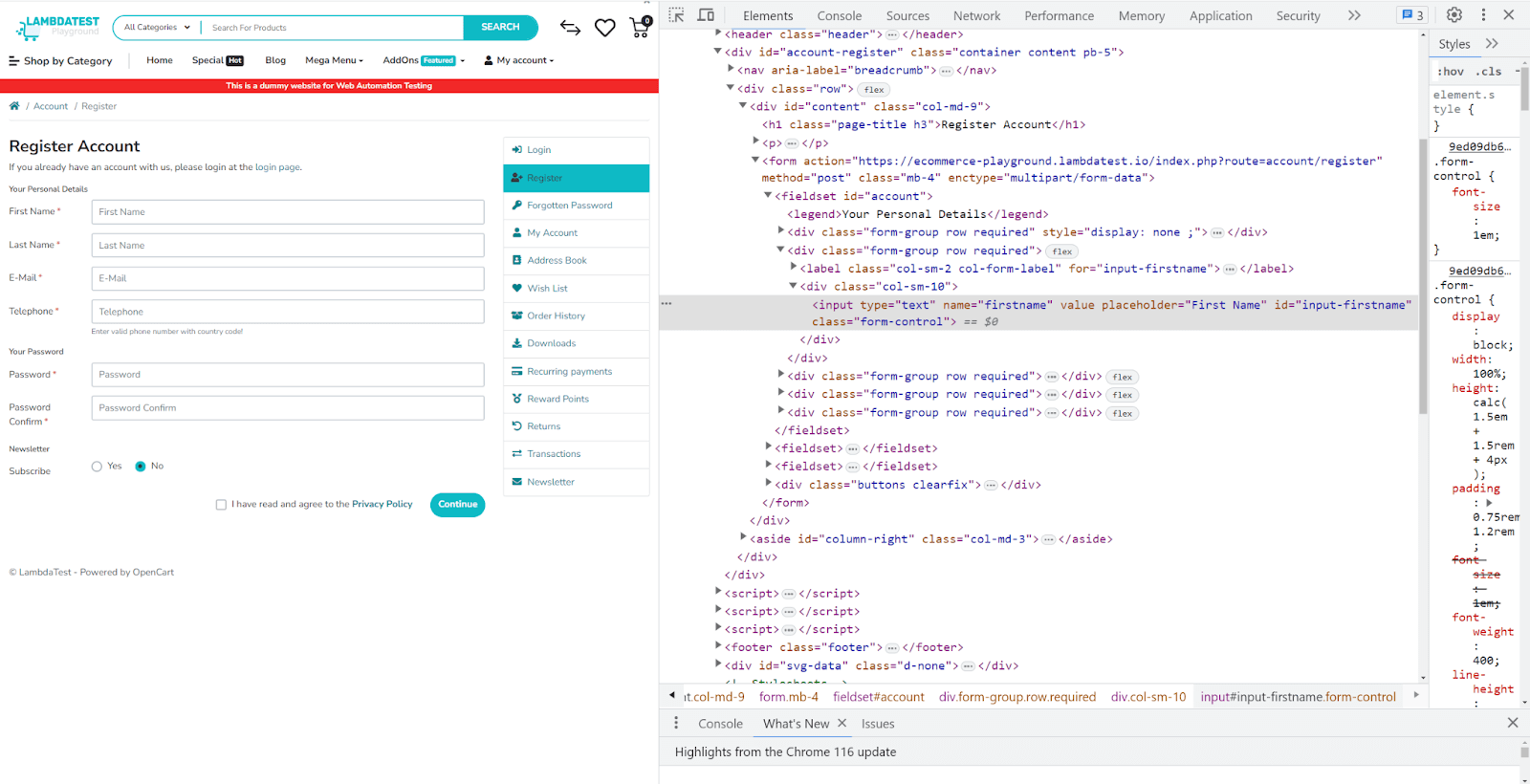

To locate each of these elements, you can check the IDs using the Inspect tool. For example, for the First Name input field.

For deeper insights on how to locate elements in Selenium, explore this blog on Selenium locators. This resource provides detailed information on locators like XPath, CSS selectors, and more. It also provides practical insights into identifying and interacting with web elements during the test automation.

Step 7: Resetting the environment (Tear Down Keyword)

The Tear Down keyword resets the environment, ensuring the web page is fresh for the next iteration. This consists of clicking on the Logout menu and redirecting to the main URL.

To locate the logout option on the page, you can get the CSS using the Inspect tool.

Step 8: Test multiple user account creations

The main test case. Here’s what it does, step by step.

• Preparation: Call the Prepare Test Data keyword to get the data ready.
• Initialization: Opens the browser with the specified TestMu AI configurations and maximizes the window.
• Looping through user Data: The script now loops through each user data set stored in the &{users} dictionary.
• Form Fill: For each user, the script fills in their details on the form and logs a success message.
• Environment reset: Post each user registration, the script calls Tear Down to reset the environment.
• Completion: After all iterations, the script closes the browser and logs the test completion message.

Run your tests using the following command.

robot form_interaction.robot

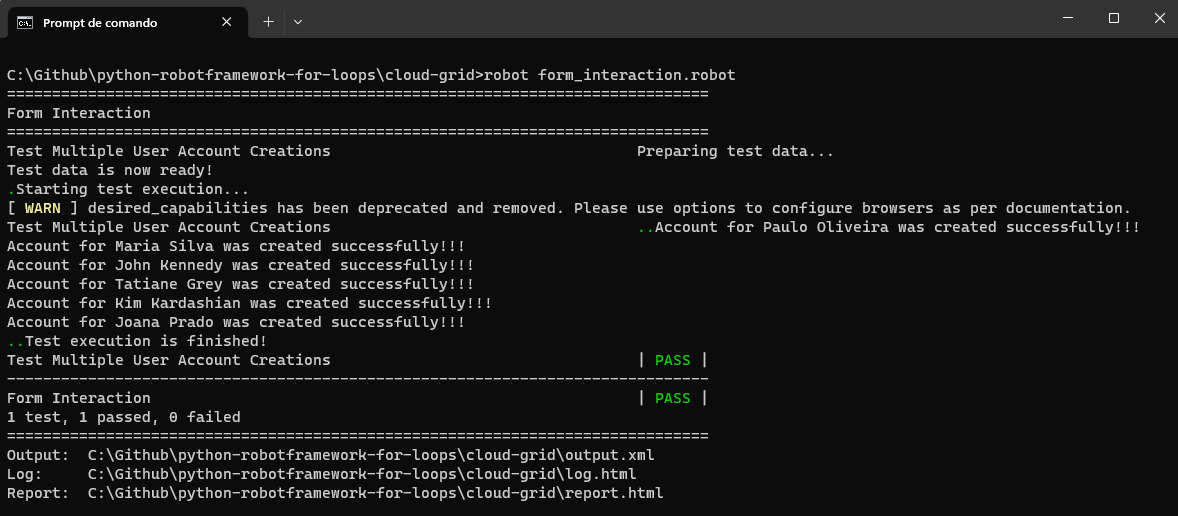

Result

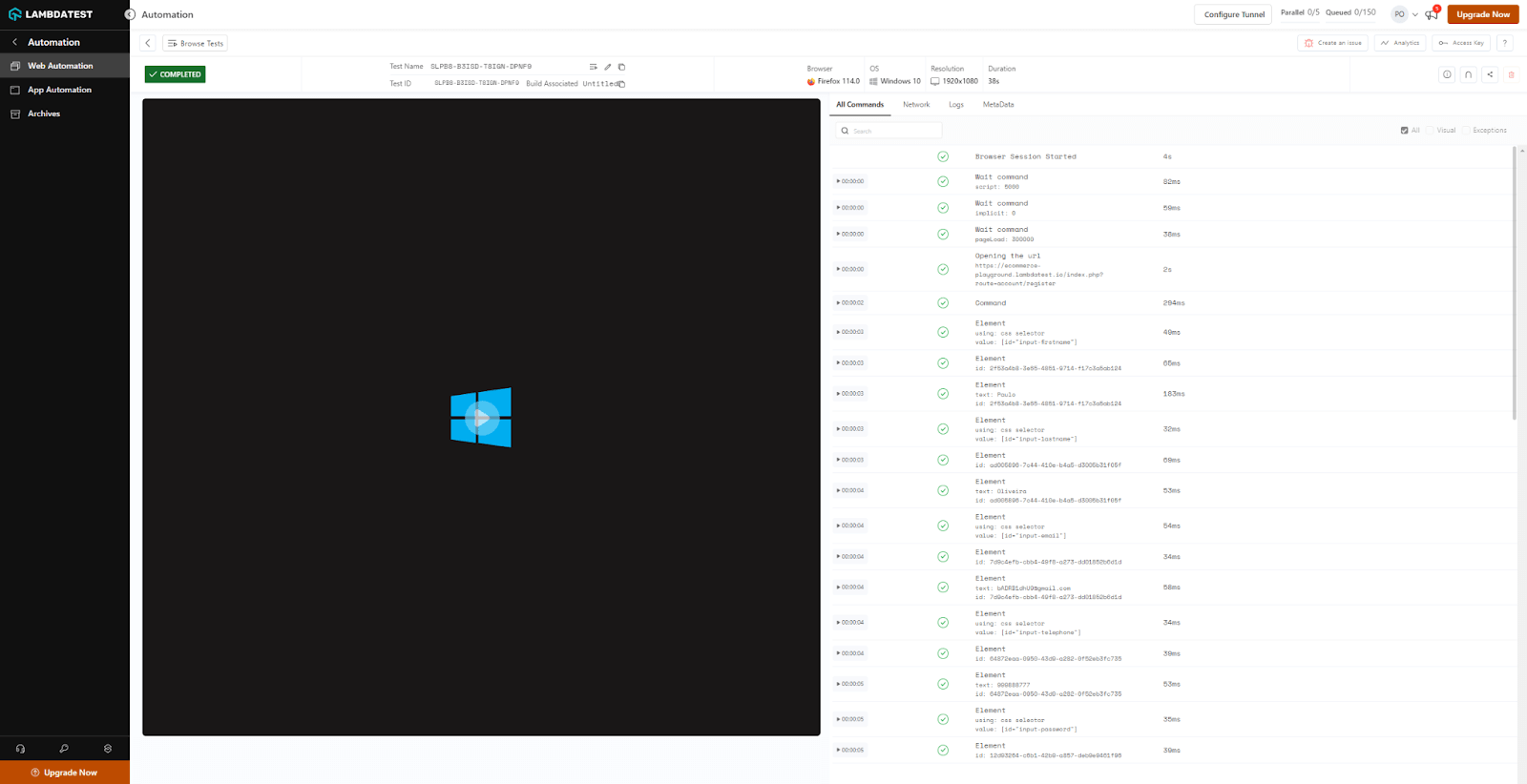

You can also check the test execution in the TestMu AI dashboard, as shown below

Best Practices for using the For loop

Leveraging the power of the For loop in Robot Framework promises enhanced functionality and coverage for your test automation. However, the proper use of loops demands a set of best practices to ensure optimal execution, maintainability, and readability. Let’s discuss some of these guidelines.

Keeping loops readable: The significance of whitespace and indentation

The first and foremost aspect of scripting, whether test automation or any programming task, is readability. A well-indented, spaced-out loop can immensely improve the script’s clarity.

Tip: Maintain clear indentation to distinguish the For loop declaration from its content, enhancing readability and understanding. This not only helps the author but also assists team members or future contributors in understanding the script’s flow quickly.

Limiting the loop count to ensure test efficiency

While loops provide the convenience of iteration, overextending their use can lead to lengthy test execution times. Always be careful of the number of iterations.

Tip: If your loop requires many iterations, perhaps consider if all of them are essential for your test. Can some be grouped together? Are there redundant checks? Organizing the iterations can significantly optimize the test runtime.

Avoiding infinite loops

Endless loops are a big problem for programmers, especially in test automation, where timing matters a lot.

Imagine this real-life example: You’re testing a website with multiple pages, clicking the ‘Next’ button to go to the next page. You might think it’s enough to keep clicking while the ‘Next’ button is there. But if the website has a bug where the ‘Next’ button keeps showing even on the last page, your test could get stuck in a never-ending loop.

Tips: Always ensure there’s a clear, reachable termination condition. For, the For loop in Robot Framework, which inherently has a defined set of iterations (like a list of elements), the risk is lower. However, when combining conditions with loops or modifying loop variables within the loop, exercise caution to ensure you’re not unintentionally creating an endless loop.

Properly handling loop breakouts and continuations

Sometimes, during loop execution, you might want to skip a particular iteration (continue) or halt the entire loop prematurely (break). Robot Framework provides Continue For Loop and Exit For Loop If keywords for these purposes.

*** Test Cases ***
Test Using Continue and Exit
    # Create the users list
    @{user_list}=    Create List    User1    User2    BlockedUser    User4    User5    User6    BlockedUser    User8    ThiefUser    User10


    # Iterate through the users list and perform the validation
    FOR    ${user}    IN    @{user_list}
        Continue For Loop If    '${user}' == 'BlockedUser'
        Exit For Loop If    '${user}' == 'ThiefUser'
        Log To Console    ${user} processed successfully.
    END


    Log To Console    Process finished successfully.

In the provided code, if a user from the list is BlockedUser, the loop will skip the remaining actions for that specific user and move to the next. If the status is ThiefUser, the loop breaks out entirely. If the user is different, the entire loop will be executed, and a message like User1 will be processed successfully. As displayed, always handle these breakouts carefully, ensuring no loose ends in your test logic.

Result
