What Are Virtual Machines And How Do They Work?

Understanding Virtual Machines

A virtual machine (VM) emulates or virtualizes an actual computer system. It provides all the functionalities of a physical computer but exists as a software-based emulation rather than a tangible object. In technical terms, the virtual machine is a computer system emulation that replaces the need for physical computing infrastructure or hardware, creating an environment for deploying software applications. In simpler terms, they are just like a computer present only in digital form. This computing resource utilizes software instead of a physical computer to run programs and deploy applications.

A virtual machine, also called a “guest,” is constructed on a physical computer known as a “host,” using resources like a computer’s CPU core and memory. A single server or host can host multiple VMs or guests simultaneously. Each VM operates independently, having its own operating system, memory, storage, CPU, and network interfaces, running autonomously from other VMs on the hardware host. For instance, a physical PC could run a macOS or Linux VM effortlessly without significant complications.

With VMs, you can run simultaneous operations of various operating systems on a single computer. Each operating system functions similarly to how it would on the host hardware, providing an end-user experience almost identical to using an operating system on a physical machine. Thus, each VM gives a better end-user experience, similar to the non-virtual machines or individual OS to specific physical machines.

However, a VM cannot directly interact with a physical computer; instead, it depends on a lightweight software layer called a hypervisor to coordinate communication between the VM and the underlying physical hardware. The hypervisor allocates physical computing resources, such as processors, memory, and storage, to each VM while maintaining their separation to prevent interference.

Understanding how virtual machines operate can also prepare you for common operating system interview questions about OS virtualization and resource management.

Need for Virtual Machines

The need for virtual machines can be illustrated through an example: software development and software testing for a cross-platform application.

Imagine developers and testers working on a software application that needs to be tested for functionality and performance on operating systems like Windows, macOS, and Linux.

Developers may prefer different development environments, such as Windows or macOS, during the coding stage. However, replicating these environments on a single physical machine can be challenging. VMs solve this issue by creating similar development environments that can be easily replicated across different machines. It ensures consistency and reduces the “it works on my machine” problem.

Additionally, software applications need to function across different platforms. Creating a physical system for each operating system is impractical. VMs allow the team to develop isolated environments with standardized Windows, macOS, and Linux configurations on a single physical system.

In this scenario, virtual machines streamline the software development and testing processes by providing a flexible, reproducible, and resource-efficient solution.

Features of Virtual Machines

Some of the key features of virtual machines include the following:

• It allows the generation of snapshots, representing instantaneous replicas of the current state of the VM.
• It supports live migration, meaning they can be moved from one host to another.
• Its essential component is a hypervisor that allows for better management and allocation of resources for virtual machines.
• It has features like Secure Boot and Virtual Trusted Platform Module (VTPM) to enhance the security of virtualized environments.
• It can be configured with virtual network interfaces and connect to virtual networks.

Advantages of Virtual Machines

Virtual machines offer remarkable versatility, serving various purposes for businesses and professionals. The key advantages of virtual machines include:

• Resource expansion: It enables the use of software incompatible with the host machine, expanding the capabilities of a single device.
• Efficiency: It saves money, physical space, and time by running macOS and Windows on a single device.
• Innovation: It allows developers to test software on different operating systems without concerns about malware or bugs affecting their physical computers.
• Enhanced security: It ensures more robust security; if one VM is attacked, it does not compromise other VMs on the same machine.
• Scalability: It facilitates the easier scaling of cloud computing workloads as organizations grow, providing a scalable way to manage and test operating systems, apps, and software updates in diverse hardware environments.
• Flexibility: It is faster and simpler than installing an OS on a physical server, as VMs can be cloned with the OS pre-installed. It allows for the creation of new environments on demand to address emerging tasks.
• Security measures: It enhances security compared to operating systems running directly on hardware. External programs can scan VMs for malicious software, and the ability to create snapshots enables the restoration of a VM to a previous, uninfected state if malware is detected, effectively rolling back the VM in time.

Limitations of Virtual Machines

The limitations of virtual machines vary based on your use case and workload, and they may only sometimes be applicable. Here are general considerations to keep in mind:

• Performance overheads: It depends on the host computer’s finite computing power and resources. Running multiple VMs on a single host can impact overall performance. Further, as VMs interact with the host system through a software layer, this may lead to latency issues, particularly with heavier workloads.
• Compatibility issues applications: It causes compatibility problems for applications dependent on specific hardware configurations, drivers, or dependencies. Software heavily reliant on graphics processing may not function optimally in virtualized environments, making VMs less suitable for activities like gaming.
• Licensing limitations: It results in some software vendors requiring separate licenses for each VM, as virtual machines function similarly to actual computers. Examples include Microsoft SQL Server, Adobe Creative Cloud, and virtualization software like VMware vSphere.
• Single point of failure: It poses a single failure risk by concentrating all virtual machines on one physical computer. Mitigating risks involves creating VM backups and alternative solutions to ensure operational continuity in case of a malfunctioning host machine. It is essential to be familiar with the term “virtualization” to better understand the workings of a virtual machine.

With the above-mentioned limitations, VMs offer numerous challenges over physical host machines. Some of the challenges are given below.

• Performance may be inferior to physical machines, depending on configurations and the number of VMs utilized on a single host.
• A malfunctioning physical host can negatively impact numerous VMs, leading to significant consequences when multiple VMs rely on the operation of a single server.
• Securing VMs can be intricate, demanding a high level of skill for effective management.
• Managing virtual disk consolidation involves merging VM disk files created after the system takes VM snapshots, which can be intricate and pose administration difficulties.

Note: Create and Manage VMs effortlessly to streamline your testing processes. Try TestMu AI Today!

Types of Virtual Machines

There are different types of virtual machines that developers can use for their specific software projects:

• Windows virtual machines: Most hypervisors support Windows OS as a guest, with Microsoft’s Hyper-V integral to the Windows operating system. Once installed, it establishes a parent partition containing both the hypervisor and the primary Windows OS, giving access to the hardware. Windows guests and other operating systems operate in child partitions, communicating with the hardware through the parent partition.
• Android virtual machines: Google’s open-source Android OS is primarily designed for mobile and connected home devices and typically runs on ARM architecture. However, Android gamers or developers may want to run it on PCs using virtualization technology.
• Mac virtual machines: Apple’s end-user license agreement restricts running macOS on non-Apple hardware. However, Type 2 hypervisors on Mac hardware allow the creation of VMs with a macOS guest.
• iOS virtual machines: Running iOS in a VM is currently not feasible due to Apple’s strict control over the iOS, limiting its use to iOS devices. The closest alternative is the iPhone simulator in the Xcode integrated development environment, which simulates the entire iPhone system in software for development and testing purposes.
• Java virtual machines: The Java platform utilizes the JVM, known for its “write once, run anywhere” capability. Java programs, written in bytecode, are compiled by the JVM into machine code compatible with the host computer’s processor. Unlike other virtual machines, the JVM doesn’t run an entire OS; instead, it translates application-level software for specific hardware.
• Python virtual machines: The Python VM facilitates executing programs written in Python on various CPUs. It translates Python programs into bytecode, which is stored for execution, and translates the bytecode into machine code for swift execution without relying on a hypervisor or containing a guest OS.
• Linux virtual machines: Linux is a familiar guest OS and host OS. It features a hypervisor called the kernel-based virtual machine (KVM). Integrated into the mainstream Linux kernel in 2007, KVM is now owned by Red Hat and widely used.
• VMware virtual machines: VMware is a leading provider of Type 1 and Type 2 hypervisors and VM software for enterprise customers.
• Ubuntu virtual machines: Ubuntu, a Linux distribution by Canonical, comes in desktop and server versions suitable for VM installation. Ubuntu can be a guest OS on Microsoft Hyper-V, offering optimized versions that integrate well with Hyper-V’s Enhanced Session Mode. These versions support features like clipboard integration, dynamic desktop resizing, shared folders, and seamless mouse movement between host and guest desktops.

Having understood the features and importance of virtual machines (VMs), let’s explore their diverse VM uses in the section below.

Use of Virtual Machines

The use of virtual machines is diverse and versatile. It enhances the computational capabilities of a single device, improving the capacity and adaptability of existing hardware. For example, if a Mac user needs access to Microsoft tools, you can use a Windows virtual machine instead of buying a new computer. Similarly, a PC developer wanting to preview their software application on a Mac can do so through a virtual machine. It allows users to run different operating systems on a Windows PC without needing additional hardware.

Virtual machines also help public cloud services more effectively meet the needs of multiple users. They enable organizations to develop robust Operational Security (OPSEC) strategies and continuity plans with minimal disruption to their IT infrastructure.

Another common use of virtual machines is creating “dummy” versions of software or operating systems that don’t affect host machines. This capability allows developers and security experts to test software and isolate corrupt files in a secure environment, reducing the risk of malware or bugs affecting other parts of their system or network.

In the next section, we will learn about the categories of virtual machines.

Common Applications of Virtual Machines

Now let us learn some of the typical applications of virtual machines:

• It is mainly used to consolidate multiple virtual machines on a single physical server, significantly reducing the need to distribute workloads across multiple servers—a costly and inefficient approach from an administrative and resource perspective.
• It allows a single physical machine to be virtualized to house multiple virtual machines that can handle increased demand when necessary.
• It can be quickly deleted, minimizing damage and the risk of exposure to other entities in the physical and virtual environment. It leverages its use to enhance cybersecurity, as restoring a VM to its most recent backup is less cumbersome and time-consuming.
• It allows different operating systems (e.g., guest or virtual operating systems) to be operated on multiple virtual machines on the same physical computer, unlike a physical computer with a single host operating system dictating software, tasks, and administration.

The applications mentioned above offer several benefits:

• Legacy system support:
• Operating system migration:

What Problems Can Virtual Machines Solve?

Virtual machines are versatile tools that address different types of issues. Here are some of the critical problems that virtual machines can solve:

• Underutilized servers: It aims to enhance server utilization by running multiple applications on a single server. Consolidating underutilized servers contributes to enhanced operational efficiency and cost reduction for organizations.
• High hardware costs and resource inefficiency: By consolidating multiple applications onto a single server, organizations can decrease hardware costs and significantly reduce space and power requirements. For example, an organization can place ten virtual machines on a single server instead of having ten applications running on a separate server with low utilization rates.
• Mobile apps and flexible work demand cost-effective solutions: It helps cost management for computing environments as organization deployments expand to meet the demands of dynamic mobile applications and flexible work arrangements.
• Downtime during maintenance or updates affecting multiple applications: It minimizes downtime by enabling the updating of a single application without impacting the entire server, thus ensuring continuous operation during maintenance or updates affecting various applications.
• Collateral damage from errors or breaches in one application: It isolates applications, mitigating errors or breaches without affecting other dependencies, thereby reducing collateral damage.
• Challenges in managing large-scale enterprise systems with numerous applications: It makes managing them more manageable by providing an efficient system for management, scaling, and responding to evolving business objectives.
• Difficulty optimizing resources in third-party cloud computing environments: It helps optimize resources in third-party cloud computing environments by offering advantages such as deployment flexibility and scalability. However, careful attention is required to deploy, resource sizing, and manage costs to prevent cost escalation.

Now that we have learned about the problems that VMs help resolve let’s explore the various available VM software options.

Virtual Machines Software

Here are some of the well-known virtual machine software that you can use for your software project:

• VMware Workstation Player: This software is a virtualization tool supporting various operating systems on a single machine, eliminating the need for a reboot. It allows for efficient data sharing between hosts and guests and is specifically designed for IT professionals.
• Parallels Desktop: This software enables hardware visualization, allowing Windows to operate on a Mac without rebooting. It is considered one of the most effective options for this purpose, recognized for its superior power, speed, and user-friendliness.
• Oracle VM VirtualBox: This software is an open-source virtualization application for home and enterprise users. It supports X86 and AMD64 architectures and features an intuitive layout and a guide for adding new virtual machines. It delivers high performance for enterprise users and extensive compatibility with most Windows versions.
• Citrix Hypervisor: This software streamlines operational administration, allowing users to perform resource-intensive tasks within a virtualized environment, which is particularly beneficial for Windows 10. Key features include support for enhanced graphic workloads and a secure environment for storing, accessing, and working on large files.

Now, let us deep dive into learning the workings of the virtual machine.

In the above section, we have highlighted the different virtual machine software. Now, let’s examine and understand these uses through use cases.

Use Cases of Virtual Machines

Virtual machines have various purposes for both enterprise IT administrators and users.

• Cloud computing: VMs have been the primary computing unit in the cloud, supporting a wide range of applications and workloads over the past decade or more. The cloud enables businesses to scale their computing resources dynamically, allowing for the efficient allocation of resources based on demand. This flexibility has revolutionized how organizations approach IT infrastructure, offering cost-effective solutions and enhancing overall operational efficiency.
• Supporting DevOps: VMs offer valuable support for enterprise developers by allowing them to configure VM templates with settings according to their software development and testing processes. Developers can create VMs for specific tasks, such as static software tests, seamlessly integrating these steps into automated development workflows. It helps streamline the DevOps toolchain.
• Testing a new operating system: VMs allow users to test a new one on their desktop without impacting their primary OS.
• Investigating malware: VMs are beneficial for testing malicious programs, as they frequently require fresh machines.
• Running incompatible software: VMs allow users to prefer one OS while needing a program available only on another. For instance, a desktop-focused hypervisor like VMware Fusion or Parallels will enable Windows to run in a VM on macOS, providing access to the desired software version.
• Browsing securely: VMs are used for browsing to ensure that sites are visited without concerns about being infected. Users can take a snapshot of their machine and revert to it after each browsing session. This setup can be done independently using a Type 2 desktop hypervisor or provided by an admin as a temporary virtual desktop on the server.

Virtual Machines Management

Managing VMs includes several tasks, such as starting and stopping them, adjusting their settings, and other similar tasks.

Once you have set up the virtual machine, you can manage it using the virtualization software’s interface. It includes creating, configuring, monitoring, and maintaining a virtualized environment. Proper management ensures stability, security, and system performance.

Here is a general guide that covers common aspects of virtual machine management.

• You should choose the best virtualization platforms that align with your requirements and test environment.
• You must install the hypervisor software on your chosen physical host machine. This software allows you to create and manage.
• You can create new VMs using the chosen virtualization platform’s management interface. In this interface, you specify details like the virtual machine’s name, OS, etc.
• You should always install the operating system on the virtual machine for better management. Eventually, the OS on a physical machine will be similar to that on a virtual machine.
• You also have to set up the network for your virtual machine. It can be done by assigning dynamic or static IP addresses, configuring DNS settings, and other methods.
• You can adjust settings like allocated RAM, CPU core, and disk space when configuring the virtual machine.
• You should take a snapshot of the virtual machine at critical points. It will help to save the current state of a virtual machine so that you can review any specific points in time if required.
• You can keep the documentation of your virtual machine configuration for effective management.

In the next section, we will learn about containers and VMs, exploring the differences in their structures.

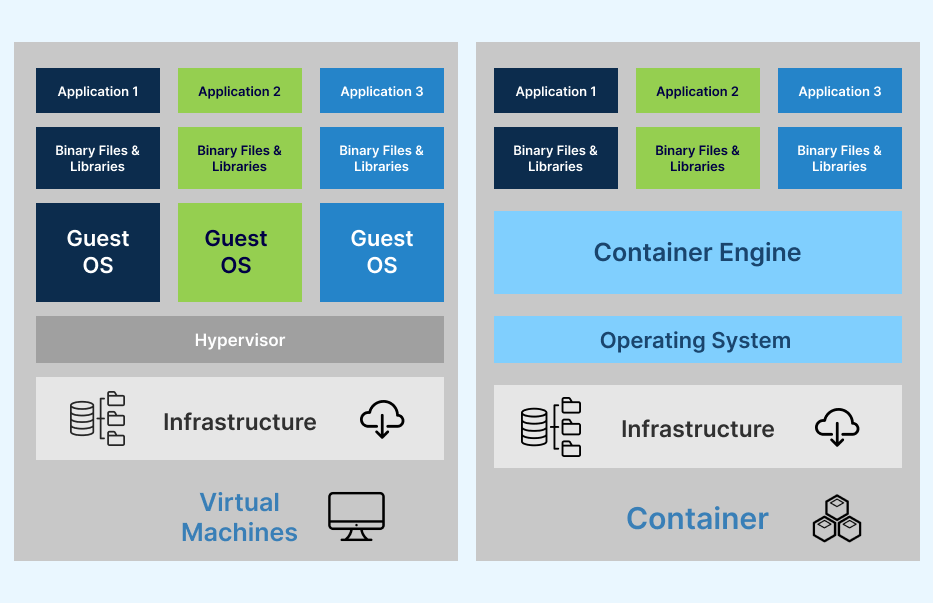

Containers and Virtual Machines

When learning about VMs, it’s essential to understand the main difference between containers and VMs. While both serve similar functions, their core workings differ. VM can emulate the entire computer system, including modeling the virtual hardware unit, whereas containers only virtualize software applications and their associated files.

Commercially available VMs like VMWare or Parallels utilize the physical resources of a host computer to create a virtualized computer with its operating system. In contrast, containers are designed to execute individual programs and lack the same virtual infrastructure level, sharing the OS kernel with their host.

Despite these differences, containers are lighter and faster than VMs, making them well-suited for supporting microservices, where distinct containers manage separate app components or services. Since multiple containers can operate within a VM, these two technologies are often used together.

The combination of containers and VMs offers several advantages. Although it introduces additional overhead, it provides an extra layer of security that containers alone lack. This combination also facilitates the deployment of infrastructure capable of supporting modern and traditional workloads.

While most Hyper-Converged Infrastructure (HCI) platforms rely on virtualization technologies, many have incorporated support for Kubernetes, which is implemented within the VM structure. As a result, all containerized workloads run within VMs, benefiting from the isolation offered by VMs while coexisting with traditional workloads.

Platforms Offering Virtual Machines on Cloud

The first step to setting up a virtual machine is gaining access to a physical server with a hypervisor installed. Here are the top five alternatives for configuring a Online Virtual Machines.

AWS

Amazon Web Services (AWS), Amazon’s cloud computing service, operates on a pay-as-you-go model, allowing users to pay only for the resources they utilize. Setting up a VM on AWS involves multiple steps, necessitating a detailed guide for configuring VMs with AWS.

Google Cloud Platform

Google Cloud Platform, Google’s clot After installation, provides a range of computing services accessible through the web-based GUI called the Google Cloud Console. Users can refer to Google Cloud’s guide for developing and launching a VM instance on Google Cloud.

Microsoft Azure

Azure, Microsoft’s cloud computing service, offers access to all cloud services through the web-based Azure portal.

VMware

It is well-known as one of the leading companies in cloud computing and virtualization techno. Itware was among the early successful commercializers of server virtualization. VMware provides a cloud infrastructure featuring its hypervisor, VMware ESXi, for creating and deploying VMs in a VMware workspace. The above section demonstrates that setting up virtual machines differs for diverse virtualization platforms. Hence, we should review the platform’s documentation form before deploying virtual machines.

Conclusion

In this tutorial, we have discussed virtual machines (VMs) and how they work. Let’s summarize the key points. A VM is the virtualization or emulation of a physical computer system, providing all the functionalities of a physical computer without being a physical object itself. VMs are created on a physical machine, typically a server with essential computer components such as CPU cores, a motherboard, RAM, storage disks, a GPU, and more. Depending on the hypervisor type, the server may have an operating system (OS) or operate with a bare-metal hypervisor that functions without an OS.

The key to virtualization is the hypervisor, the software responsible for creating, running, and managing VMs and the underlying shared physical resources. It enables a physical machine to support multiple virtual machines simultaneously.
