Using Page Object Model (POM) Pattern In Selenium JavaScript

What is Page Object Pattern

The Page Object Pattern is a design practice that is commonly adopted by testers when performing Selenium automation testing. The primary goal of this pattern is to avoid code duplication and enhance code reusability. This enhances the overall ease of test case maintenance and robustness of the test code, thereby making it more programmer-friendly.

To understand the objective of this pattern, first of all, let us try to understand precisely what we can achieve with it when performing web automation testing. Automation tests allow us to navigate to different web pages and perform relevant actions with the WebElements that are identified using the appropriate Selenium locators. The Page Object Pattern wraps all the elements, actions, and validations happening on a page in one single Page Object.

The creator of WebDriver, Simon Stewart, states-

The Page Object Pattern directs us to create an object that represents the UI of the page we want to test. As mentioned, this object will wrap all the HTML elements (locators) and encapsulates interactions with the UI (methods). For example, all the WebDriver calls will go inside these encapsulated methods. So, this is the only place that you need to modify when the UI changes, i.e. the element locators are centralized.

Frequent UI changes will only impact the files that are housing the locators, with minimal (or zero) changes in the test implementation.

This series of page objects are responsible for communicating with the web pages you are testing by cleanly separating the actual test code from the page-specific code.

By Louise J Gibbs

Keep the following best practices in mind when creating page objects:

• The page object can be created for a whole page/screen or even major fragments of it
• Avoid unnecessary complexity, which leads to hard-to-read spaghetti code
• Page objects should only exist if some behavior makes sense from the user’s perspective

Advantages of Page Object Pattern

The benefits of utilizing this pattern becomes apparent while testing complex, large-scale applications where you will need to manage a larger suite of regression tests.

As these applications are only expected to grow larger and more complex with every software release, adopting the Page Object Pattern makes sense as it can prove to be a huge time and cost saver for the project.

Major advantages of following the Page Object Pattern are:

• Ease of code maintenance
• Code Reusability across tests
• Enhanced script readability and reliability
• Decouples your test code and page-specific code, such as locators and interactions

Also Read – Page Object Model (POM) in Selenium Python

Page Object Pattern in JavaScript using WebdriverIO

WebdriverIO is one of the top JavaScript test automation frameworks in the market. It is very popular among testers as well as developers backed up by an active community to support.

According to the official WebdriverIO documentation, the latest versions of the framework were designed with Page Object Pattern in Selenium support in mind. To create Page Objects, no additional packages are required. All the necessary features are provided by the clean and modern classes such as:

• Inheritance between Page Objects
• Lazy loading of elements
• Encapsulation of methods and actions

The elements are treated as “first-class citizens.” Hence, using this pattern, the framework enables you to build up larger test suites. In the upcoming section of this Selenium JavaScript tutorial, we will demonstrate how to implement the Page Object Pattern in JavaScript using the WebdriverIO framework and write automation tests. But before that, let’s check the prerequisites.

Read – A Comprehensive Guide To JavaScript Design Patterns

Prerequisites for writing automation tests in JavaScript

Before proceeding to write Selenium automation tests, make sure that your system has met the following requirements:

1. Node.js and NPM

To check if Node.js is installed in your machine, just execute the following command in your terminal:

node -v

If installed, the installed Node.js version will be displayed. Else you can download the latest LTS version from the Node.js official website.

Similarly, you can check the installed NPM version using the following command:

npm -v

Note: NPM will be installed along with Node.js. There is no need for separate installation.

2. Any IDE of choice

For this Selenium JavaScript tutorial, we will be using Visual Studio Code as IDE. But feel free to pick any IDE of your preference.

You can refer to our blog titled automation testing with Selenium JavaScript in case you want to deep dive into the basics of Selenium JavaScript testing.

With these checked, let us move on to setting up the project workspace.

Step 1: Create a folder for the project in the desired location in your system. We will call this folder “PageObjectPattern.” Then, open the folder in IDE.

Step 2: Initialize the project with the package.json file. Then, type the following command in the terminal:

npm init -y

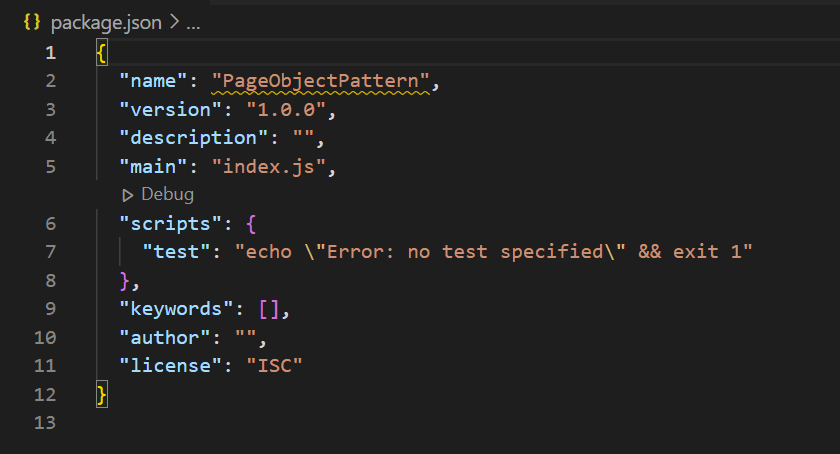

With this, we have successfully created the package.json file. The optional parameter -y allows you to skip all the configuration questions asking for “Yes” prompts and set up a default package.json setting for your project, as shown in the below screenshot.

Step 3: The next step would be the installation of the dependencies. Install the CLI tool for WebdriverIO by using the following command:

npm install --save-dev @wdio/cli

Step 4: Finally, set up the WebdriverIO configuration file using the following command:

npx wdio config

You will be prompted to choose the configurations for getting started. Select them as per your requirement.

Note: We will use Mocha as the framework and Chrome as the virtual browser for this Page Object Pattern in Selenium JavaScript tutorial.

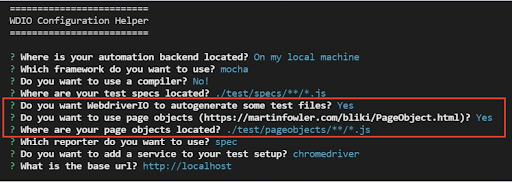

As mentioned earlier, the WebdriverIO framework natively supports Page Object Pattern. Therefore, by selecting the configuration highlighted below, you will be able to auto-generate the Page Object folder structure along with executable sample tests, as shown in the below screenshot.

You can also skip the configuration questions and opt for the default set-up by adding the -y flag to the command below.

npx wdio config -y

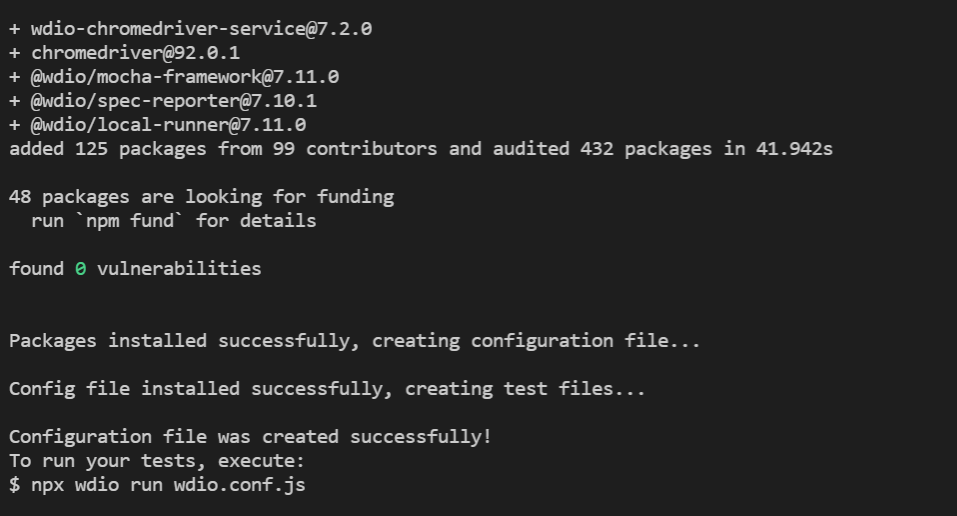

Using this command, the following packages are configured automatically, which of course, you can later change if you want to:

• @wdio/local-runner
• @wdio/mocha-framework
• @wdio/spec-reporter
• @wdio-chromedriver-service
• @wdio/sync – chromedriver

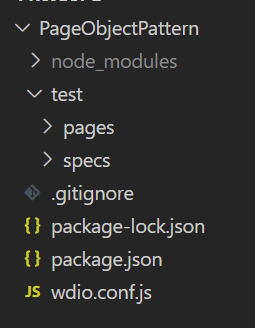

You will see that the wdio.conf.js file gets created under the project root. Therefore, the overall folder structure will look like this.

Note: In this tutorial on Page Object Pattern in JavaScript, we will set up our page object framework from scratch. So I have not opted for auto-generated tests.

That’s pretty much it with the installation and configuration part while working with Page Object Pattern in JavaScript. Now it’s time to get your hands dirty!

In the next section of this Selenium JavaScript tutorial, we will learn to write our first automated test case using the JavaScript Page Object Pattern.

There are certain steps that have to be considered before writing the first test script in JavaScript. We have discussed these steps in detail, including setting up an environment for writing Selenium tests with JavaScript bindings in our earlier Selenium JavaScript tutorial series.

However, no matter where you are in the Selenium JavaScript testing journey – planning how to start, looking for resources to improve, etc. – you can find helpful videos at TestMu AI YouTube channel.

Writing your first test case using Page Object Pattern in JavaScript

We will be writing a test case for simple login functionality, which contains the following steps:

• Launch the app (https://opensource-demo.orangehrmlive.com/).
• Enter the correct username and password.
• Click the Login button.
• Verify the navigation to the dashboard page on successful login.

Step 1: Let’s start with creating the folder structure. One of the primary goals of the Page Object Pattern in JavaScript is to provide abstraction between page information and actual tests. So it makes sense from the structural side to separate Page Objects and actual tests into different directories.

In the project root, create a folder named “test.” Inside the “test” folder, create two sub-folders and name them as below:

• “pages” – for storing Page Objects
• “specs” – for storing Selenium tests.

Step 2: Edit the baseUrl inside the wdio.conf.js file to that of our application under test.

baseUrl: 'https://opensource-demo.orangehrmlive.com/index.php/'

Step 3: Create the main page object.

Inside the “pages” folder, let us create the main Page Object page.js, containing all the general selectors and methods that all other page objects will inherit.

Inside the page.js file, let us create a “Page” class, which will contain some common functions that can be used across. Also, export it.

// page.js

    module.exports = class Page {

        //to go to a URL
        open (path) {
            return browser.url(path);
        }
    }

Step 4: Create specific page objects.

Since we have only two pages to deal with – the login page and dashboard (home) page, let us create two specific page objects. By convention, the page name should end with “.page.js,” as shown below.

These pages should contain:

• A class extending the main page – page.js.
• Page-specific element selectors using getter methods inside the class.
• Page-specific actions/interactions as methods inside the class.

Finally, export an instance of this class.

Let us see the code for:

• Login Page

//login.page.js

    const Page = require ('./page');

    class LoginPage extends Page{

         //page locators:
            get inputUsername() { return $('#txtUsername') }
            get inputPassword() { return $('#txtPassword') }
            get loginBtn() { return $('#btnLogin') }

          //page actions:
            //to open a URL
            async open () {
                await super.open('/')
            }
            //to enter username and password into login form and click login button
            async login (username,password) {
                await this.inputUsername.setValue(username);
                await this.inputPassword.setValue(password);
                await this.loginBtn.click();
            }
        }

    module.exports = new LoginPage();

• Home Page

//home.page.js

    const Page = require ('./page');

    class HomePage extends Page{

        //page locators:

            get dashboardHeader() { return $('div.head > h1') }

        //page actions:
           //to verify user is in dashboard page
            async isDashboardHeaderExist () {
              return await this.dashboardHeader.isDisplayed();
            }

        }
    module.exports = new HomePage();

Step 5: Write tests. After defining the necessary elements and methods for the page, you can start to write the test for it.

Inside the specs folder, create our first test file – “login.spec.js.” In this file, let us write the code for testing the login scenario. Then, to use the page objects, we need to import (or require).

//login.spec.js

    const assert = require('assert');
    const LoginPage = require ('../pages/login.page');
    const HomePage = require('../pages/home.page');

    describe('My Login application', () => {

        it('I should open the main URL and verify the title', async () => {

          await browser.url('');
          const title = await browser.getTitle();
          await assert.strictEqual(title , 'OrangeHRM');

        });

        it('I enter valid username and password and login successfully' , async () => {
          await LoginPage.open();
          await LoginPage.login('Admin','admin123');
          await assert.equal(true ,await HomePage.isDashboardHeaderExist());

        });

    });

Step 6: Run the tests.

Let us execute the tests by giving the following command:

npx wdio wdio.conf.js

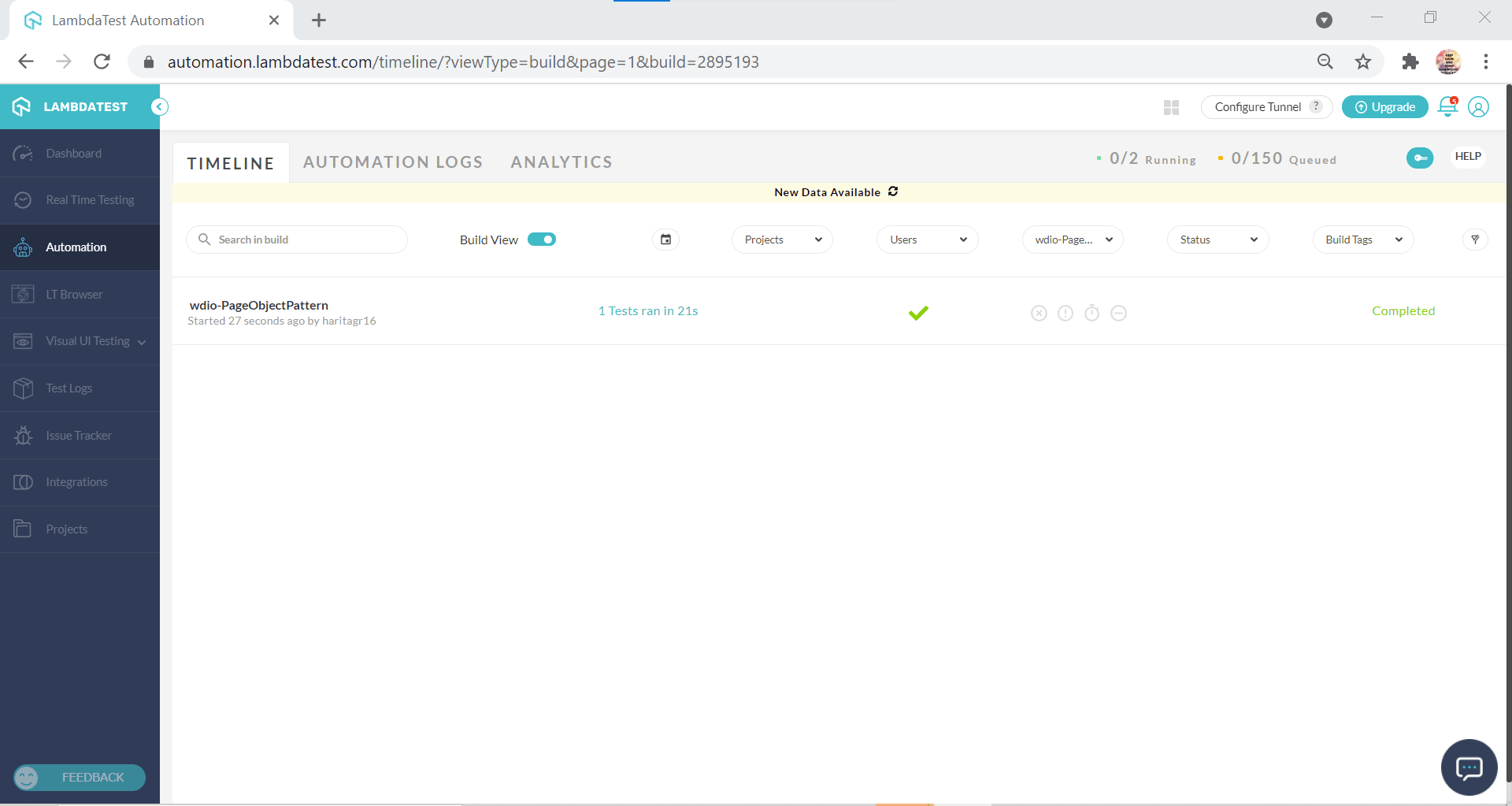

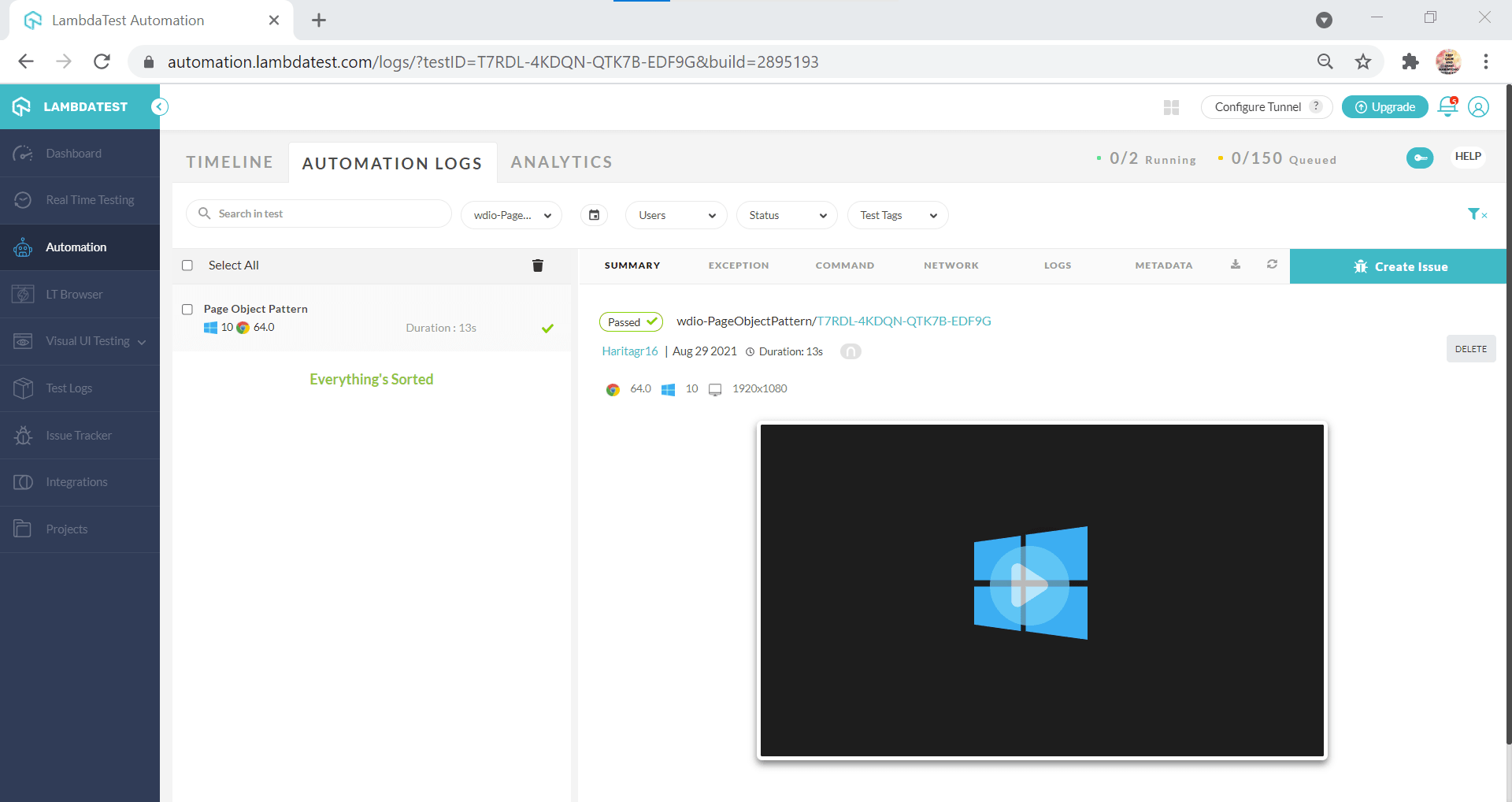

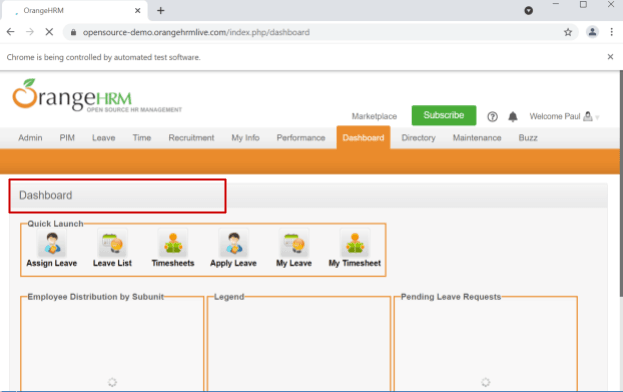

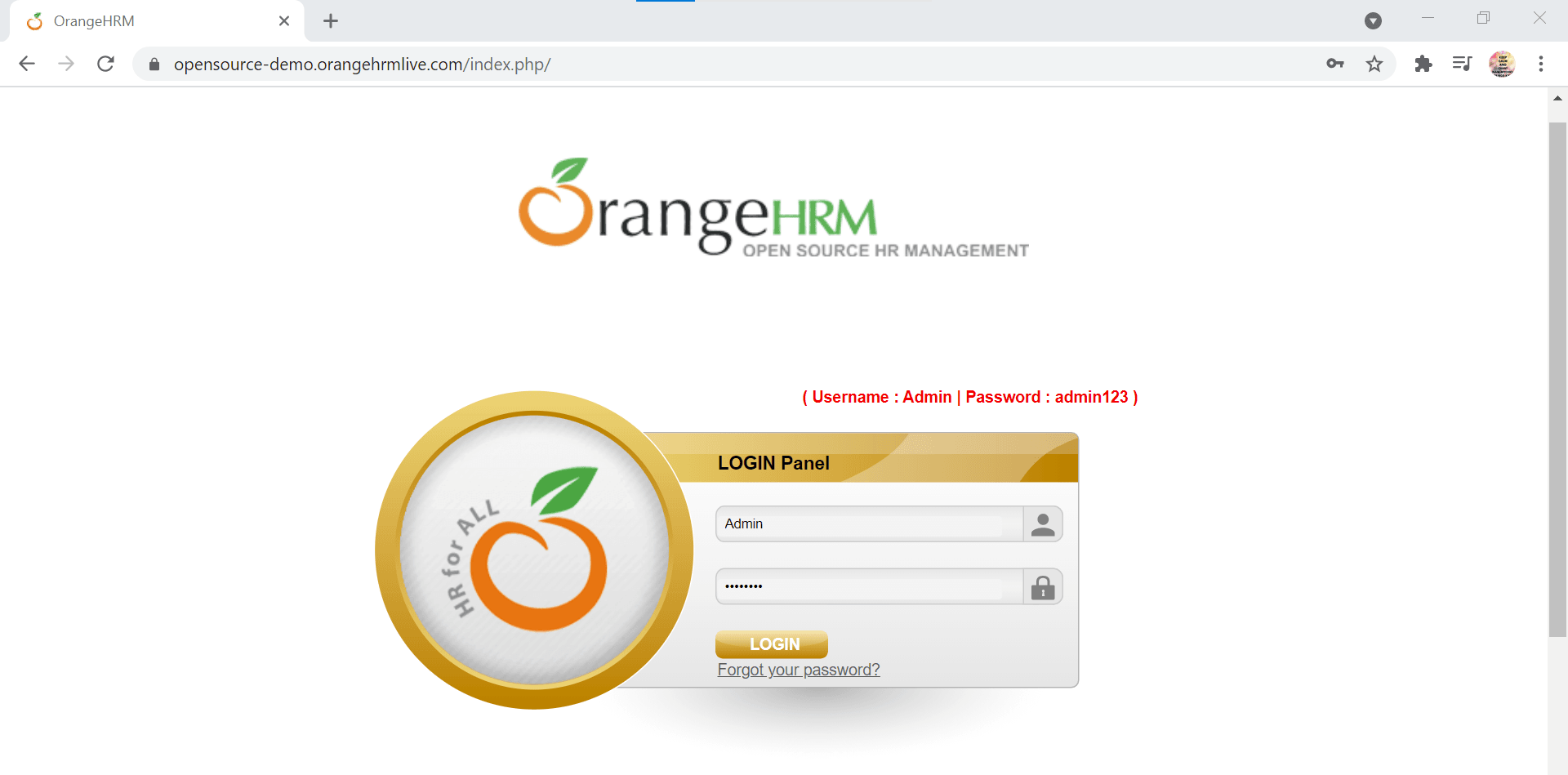

The test starts running. The browser gets launched, and the code gets executed successfully, as shown in the below screenshots.
