How To Handle Authentication PopUps in Selenium WebDriver

Types of Alerts/Popups

There are several different types of alerts/popups, like simple, confirmation, prompt, and authentication alerts, one might encounter on a website or web application. These are used for different purposes, and their handling might vary slightly on the implementation basis.

Before we move forward and learn how to handle authentication popups in Selenium WebDriver, let us quickly look at the different types.

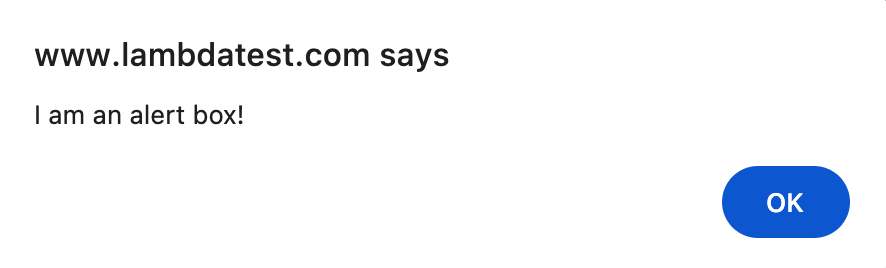

Simple Alerts/Popups

These are used to display simple messages to the user, which can be any information, error, or warning. This type has only the message and a Cancel or an OK button.

Some real-time examples are reminder messages, invalid credentials error messages, device memory/battery low warning notifications, etc.

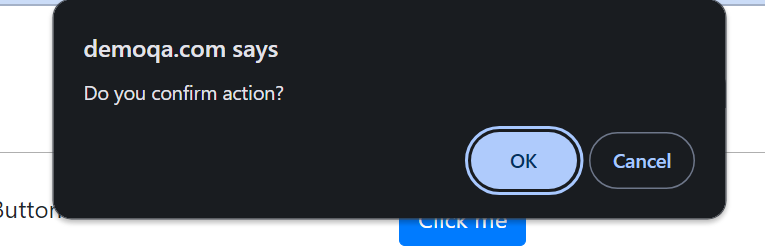

Confirmation Alerts/Popups

As the name suggests, these are used to take user confirmation on any action. These popups have two buttons, one to accept/provide confirmation and the other to cancel/deny.

Examples of this type include asking for cookie permission on a website, an alert for location/microphone access, a confirmation alert when you try to close it with active audio/video in play, etc.

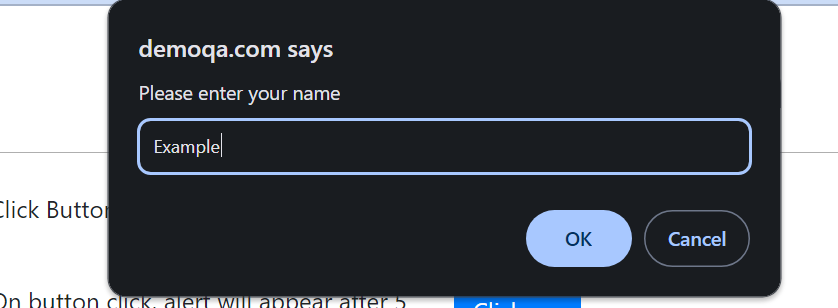

Prompt Alerts/Popups

These types of alert popups notify users of the input or ask them to enter some data. These tend to have a message, some input fields, and OK/Cancel buttons, depending on the use case.

Some examples include a prompt to enter a password or name, an alert to enter valid/mandatory data, a prompt to enter details of the wireless network, etc.

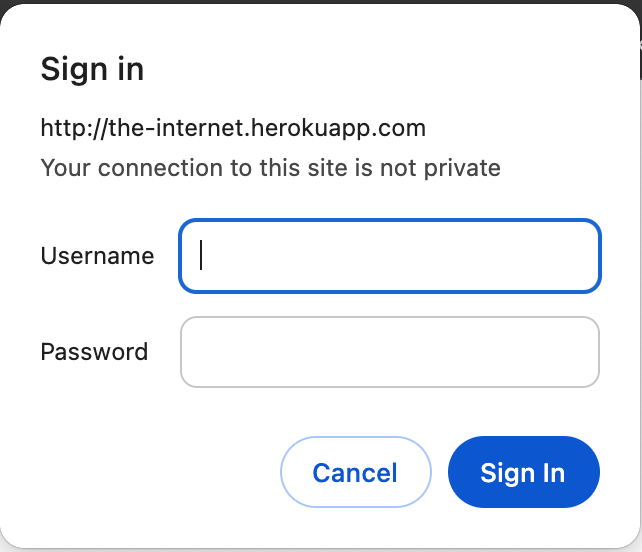

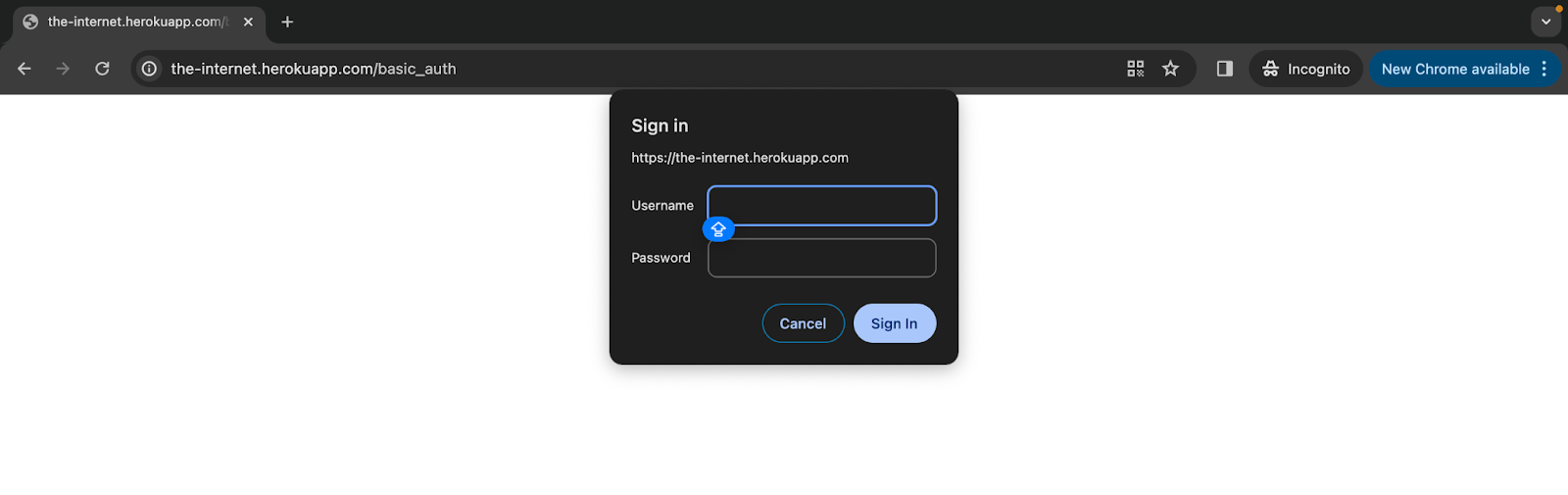

Authentication Alerts/Popups

This popup asks for user credentials to perform authentication or login to web applications to interact on the same.

Some real-world authentication popup examples would be an alert/popup asking for a username and password to access some protected API, to login to a VPN or your net banking, etc.

Understanding the basic authentication mechanism for handling authentication popups in Selenium WebDriver is crucial for ensuring the security of your web application.

Handling Authentication Popups in Selenium WebDriver

Having understood the basics of HTTP authentication, let us move forward to learn how to handle authentication popups in Selenium WebDriver.

Selenium WebDriver is one of the key components of the Selenium suite, which is used to automate web browsers for web applications’ automated testing. It supports cross-browser testing by providing a programming interface to interact with various real browsers like Chrome, Firefox, etc., using browser drivers like ChromeDriver, GeckoDriver, and more.

To handle authentication popups in Selenium WebDriver, we will use this demo test website: Herokuapp Basic Auth. Navigating this gives us an alert/popup like the one below.

We will learn how to handle authentication popups in Selenium WebDriver using the following approaches:

• Passing the Username and Password in the URL
• Using AutoIT
• Using Selenium 4 and Chrome DevTools

To learn more about handling authentication popups in Selenium WebDriver, watch the following video tutorial and get practical insights.

Subscribe to the TestMu AI YouTube Channel and stay updated on other automation frameworks like Playwright, Cypress, Appium, and more.

Handling Authentication Popups by Passing the Username and Password in the URL

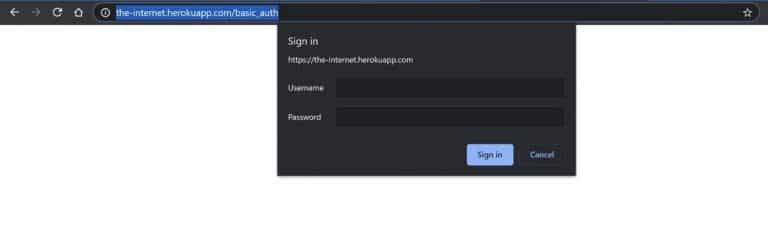

The basic authentication popup is similar to the alert that pops up when the browser is navigated to a specific web page. To handle the basic authentication popup, you can pass the username and password along with the web page’s URL.

The syntax for handling this authentication popup is:

https://username:password@URL

You enter the username as “admin” and the password as “admin”, followed by the URL, and then log in. Thus, the user would be successfully logged into the website without providing any login credentials for authentication.

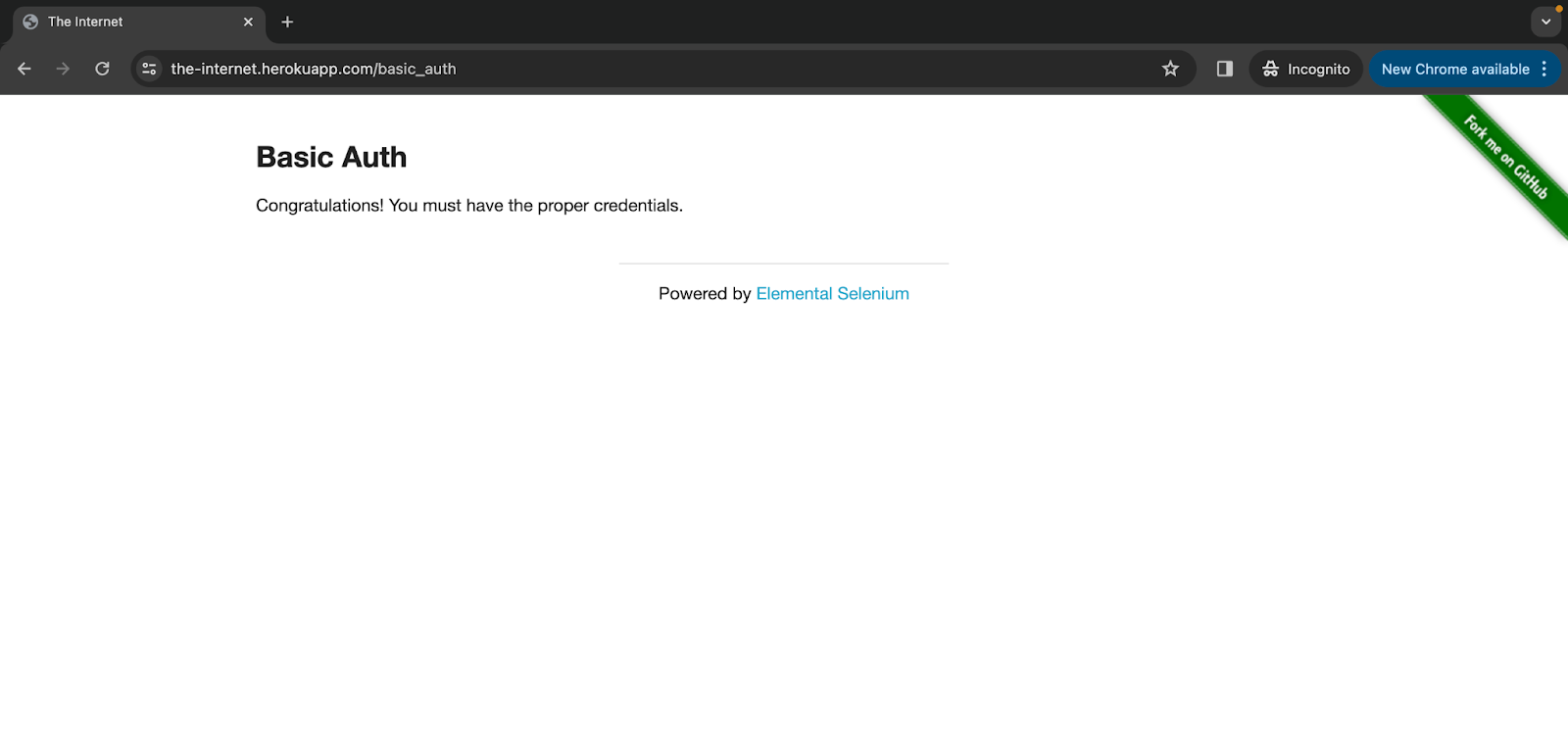

Once the credentials are passed correctly, the user will be authenticated successfully, and a proper message will be displayed on the website.

Let us set up the project before moving to the code for this method of handling authentication popups in Selenium WebDriver.

Before setting up the project, we will first define the prerequisites. For demonstration purposes, we will use Eclipse IDE, Selenium with Java, and TestNG as the testing framework for running the tests.

Project Setup:

First, create a Maven project named HandlingLoginPopup using Eclipse IDE and then update the pom.xml file with the latest version of Selenium and TestNG.

Once you update the pom.xml file, it will look as shown below.

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <groupId>HandlingLoginPopup</groupId>
 <artifactId>HandlingLoginPopup</artifactId>
 <version>0.0.1-SNAPSHOT</version>
 <name>HandlingLoginPopup</name>
 <dependencies>
       <dependency>
           <groupId>org.seleniumhq.selenium</groupId>
           <artifactId>selenium-java</artifactId>
           <version>4.18.1</version>
       </dependency>
       <dependency>
           <groupId>org.testng</groupId>
           <artifactId>testng</artifactId>
           <version>7.8.0</version>
           <scope>test</scope>
       </dependency>
   </dependencies>
</project>

Next, create a Java class file and name it BaseTest.java. This file will have the common code to launch and close the WebDriver instance before/after the test execution. All the following test case files will extend this base file and its entities.

The Java class file will look as shown below.

package LocalGrid;


import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.testng.annotations.*;


public class BaseTest {


   public static WebDriver driver;

   String username = "admin";
   String password = "admin";


   @BeforeClass
   public void setDriver() {
       driver = new ChromeDriver();
   }


   @AfterClass
   public void tearDown() {
       driver.quit();
   }
}

Before writing test scripts, we will understand the code in the BaseTest.java file below.

Code Walkthrough:

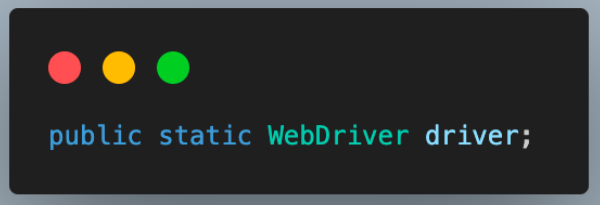

• Create an instance of WebDriver, which will be used to perform browser interactions.

• Define the username and password of the user to authenticate the user on the test website.

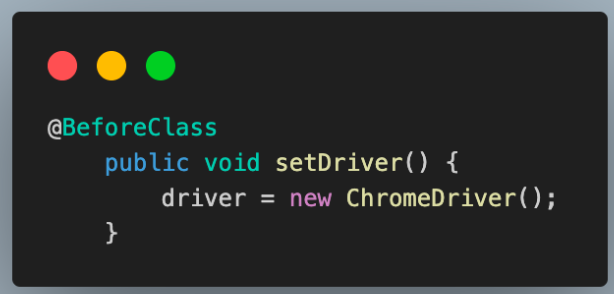

• Add the first method as setDriver(). This will be used to instantiate the driver session. Annotate this with @BeforeClass annotation to execute it before each test case.

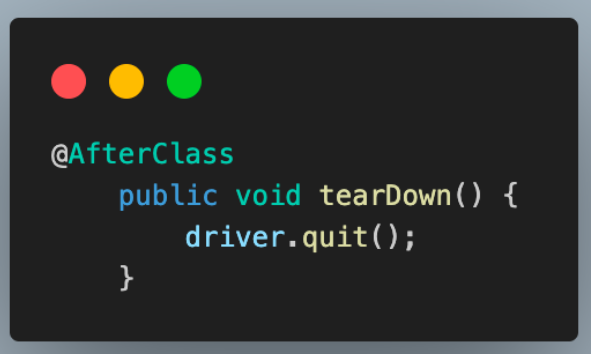

• Add tearDown() as another method and annotate it with @AfterClass to close the browser and end the WebDriver session after each execution.

To learn about other annotations offered by TestNG, follow this guide on TestNG annotations. It will help you understand how to prioritize and run your tests from most to least important.

Now that we have set up the project with all the required prerequisites, we will begin to write code for the first method of passing the username and password in the web page URL.

To begin, create a Java class file named TestHandlingLoginPopUpUsingCredentials. This file will contain the code that enters the username and password into the web page URL and retrieves the text once successfully logged in.

package LocalGrid;


import org.openqa.selenium.By;
import org.testng.annotations.Test;


public class TestHandlingLoginPopUpUsingCredentials extends BaseTest {


   @Test
   public void testHandlingLoginPopUpUsingCredentials() {
       String URL = "https://" + username + ":" + password + "@the-internet.herokuapp.com/basic_auth";
       driver.get(URL);


       String title = driver.getTitle();
       System.out.println("The page title is : " + title);


       String text = driver.findElement(By.tagName("p")).getText();
       System.out.println("The text present in page is : " + text);
   }
}

Let us understand the code given in the TestHandlingLoginPopUpUsingCredentials file in detail below.

Code Walkthrough:

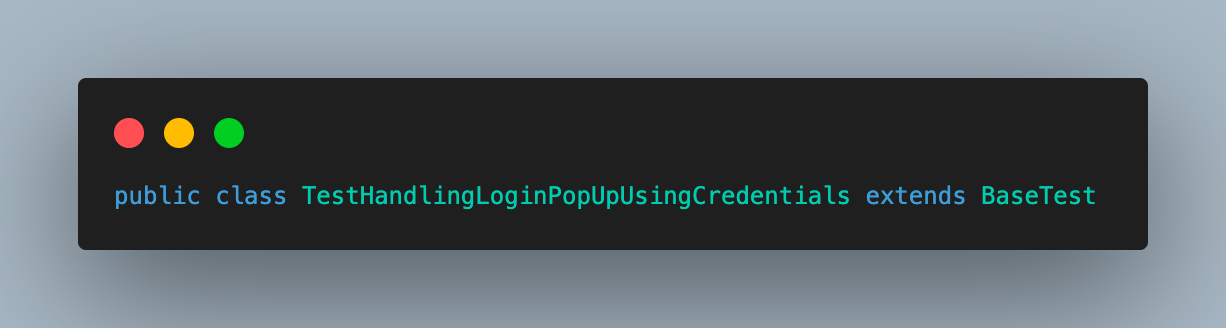

• Start by extending BaseTest in this test case file. This will help to inherit the driver and user credentials, which will be used further.

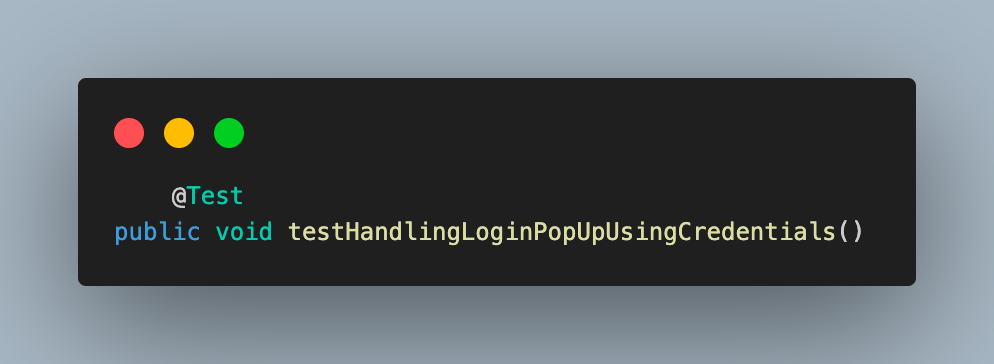

• Add the test case as testHandlingLoginPopUpUsingCredentials() and annotate it with @Test, as we are using the TestNG for test execution.

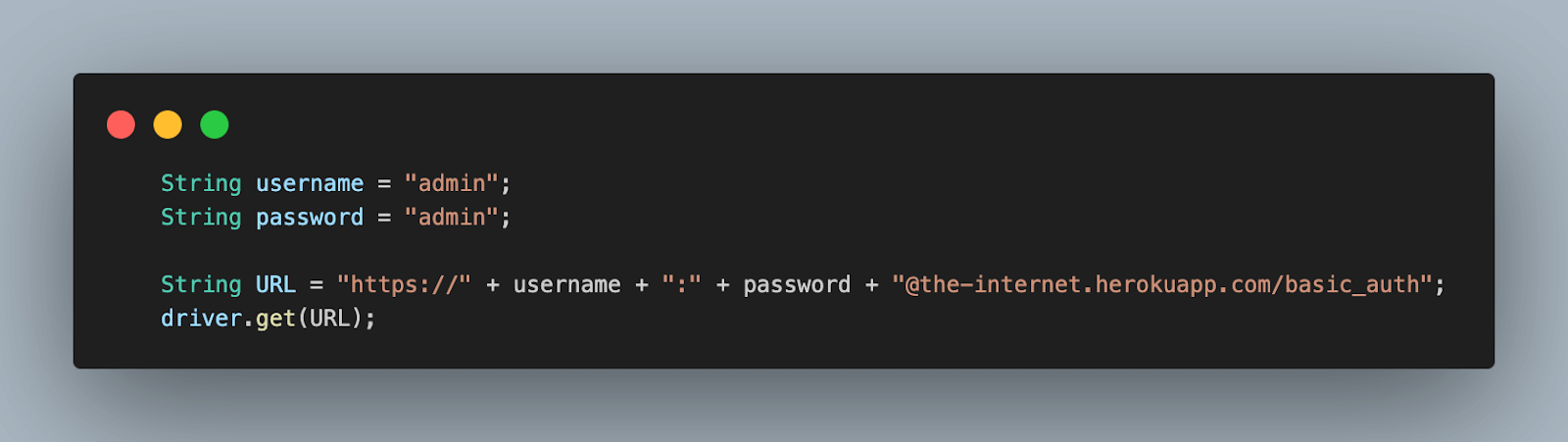

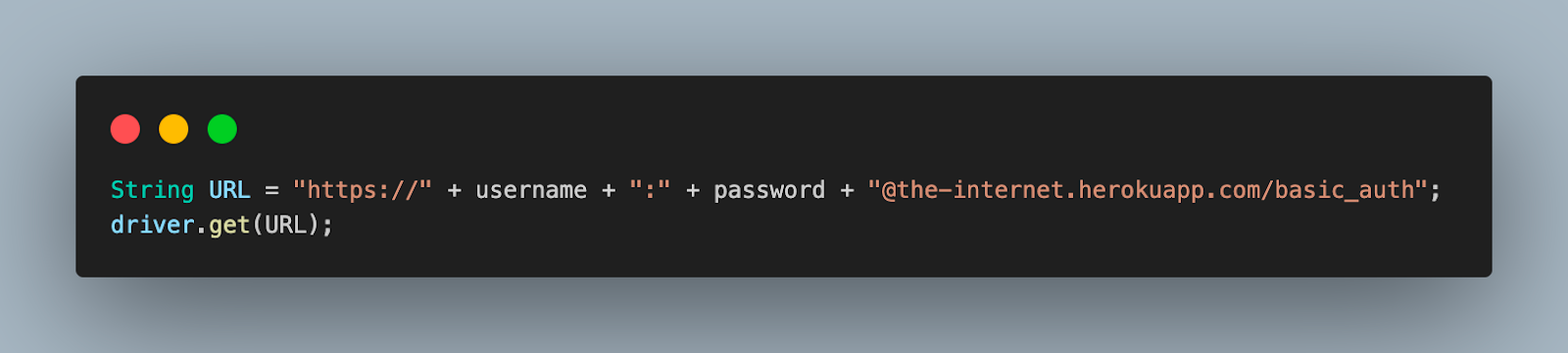

• Create the web page URL using username and password in the given format and navigate to the same using the get() function of Selenium WebDriver.

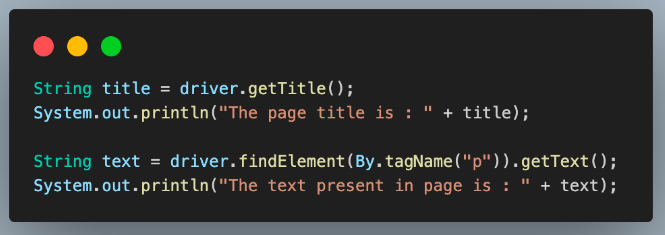

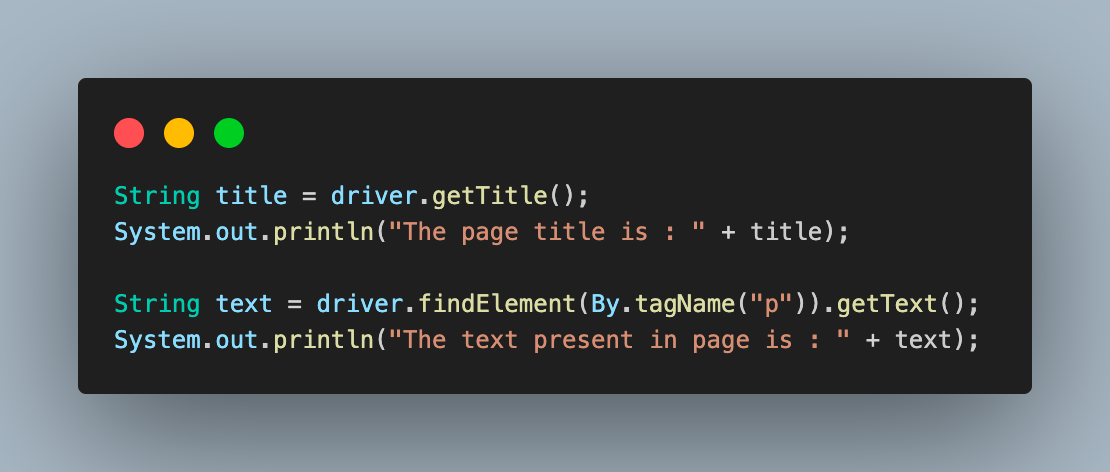

• Fetch and print the page title and successful authentication message on the console.

Output:

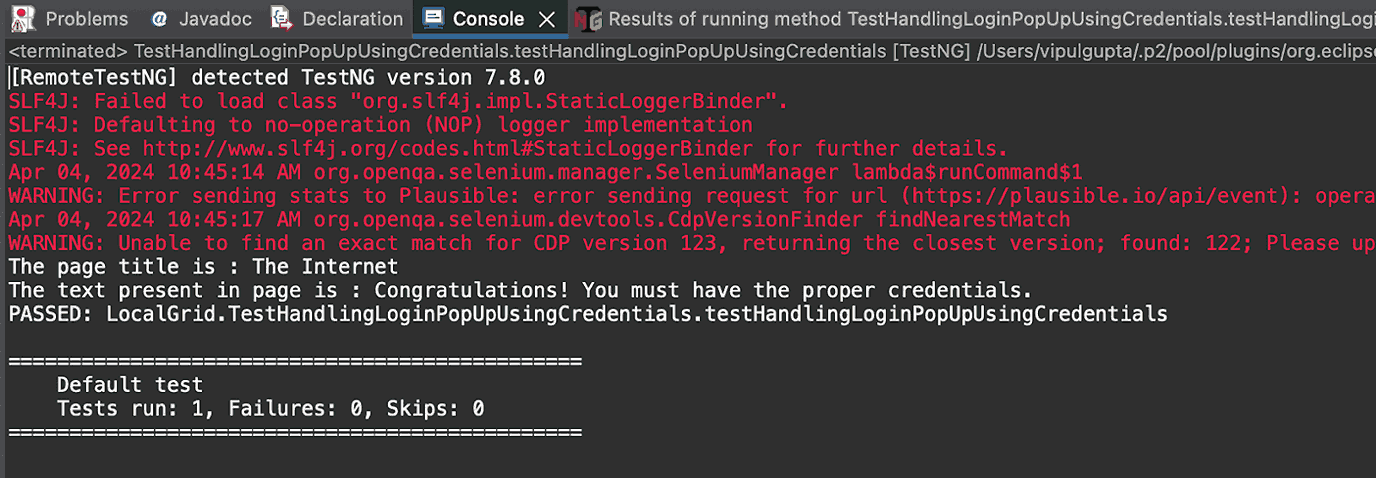

When executing the test case with TestNG, the test will handle the authentication popup and prevent it from displaying, resulting in an output similar to the one below.

Result:

Having learned the first method of handling authentication popups in Selenium WebDriver by passing the username and password in the URL, we will now learn the second approach using AutoIT with a code demonstration.

Handling Authentication Popups by Using AutoIT

AutoIT is a common scripting language for automating GUI programs and tasks involving keyboard and mouse interactions. It is frequently used to automate processes such as handling authentication popups and downloading and uploading files.

Let’s start by setting up AutoIT and see how it can handle the authentication popup on the web page.

• Download AutoIT from the official website or use the AutoIT download link.
• Navigate to the installed folder and open the AutoIT editor.
• Enter the below code in the editor to send the username and password to handle the authentication popup in Selenium WebDriver on the web page.

Send("admin")
Send("(TAB)")
Send("admin")
Send("(ENTER)")

• Save the file with the extension as Login.au3.
• Convert the script to an executable file by right-clicking on the saved file and clicking Compile Script. You will see an executable file created with the name Login.exe.
• Move to your IDE and add the test case file to write the test to handle the authentication popup in Selenium WebDriver using the AutoIT executable file you just created.

package LocalGrid;
import java.io.IOException;
import java.util.concurrent.TimeUnit;

import org.openqa.selenium.By;
import org.testng.annotations.Test;

public class TestHandlingLoginPopUpUsingAutoIT extends BaseTest {

   @Test
   public void testHandlingLoginPopUpUsingAutoIT() throws InterruptedException, IOException {


       String url = "http://the-internet.herokuapp.com/basic_auth";
        System.out.println("Navigating to the url");
       driver.get(url);

       driver.manage().timeouts().pageLoadTimeout(10, TimeUnit.SECONDS);

      System.out.println("Running Login.exe executable file");
Runtime.getRuntime().exec("<path_to_executable_in_AutoIT_folder>//Login.exe");

       Thread.sleep(2000);

       String title = driver.getTitle();
       System.out.println("The page title is : " + title);

       String text = driver.findElement(By.tagName("p")).getText();
       System.out.println("The text present in page is : " + text);
   }
}

To understand how the code works in the TestHandlingLoginPopUpUsingAutoIT file, we will go through a code walkthrough below.

Code Walkthrough:

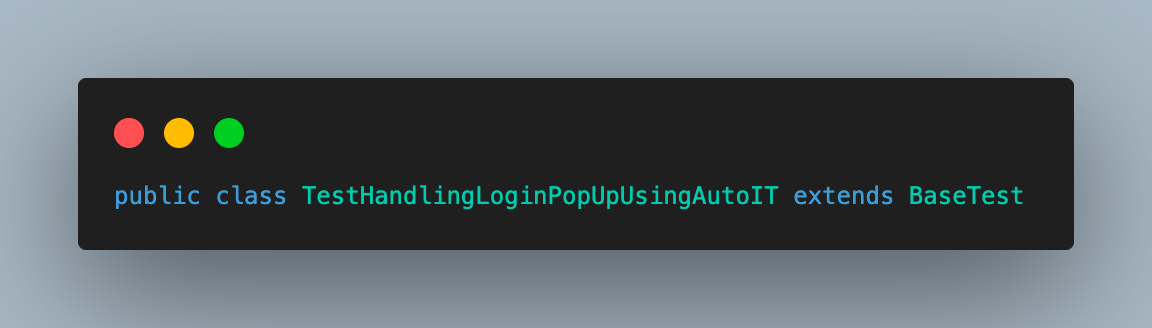

• Add a test class as TestHandlingLoginPopUpUsingAutoIT and extend BaseTest in it.

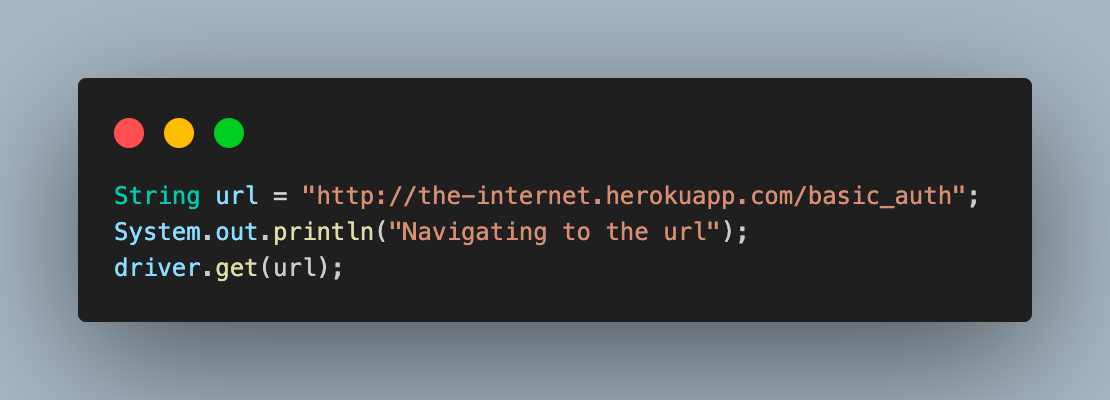

• Inside the test case, we start by defining the test URL and navigating to it.

• Define a timeout of 10 seconds to allow the page to load and the authentication popup to be visible.

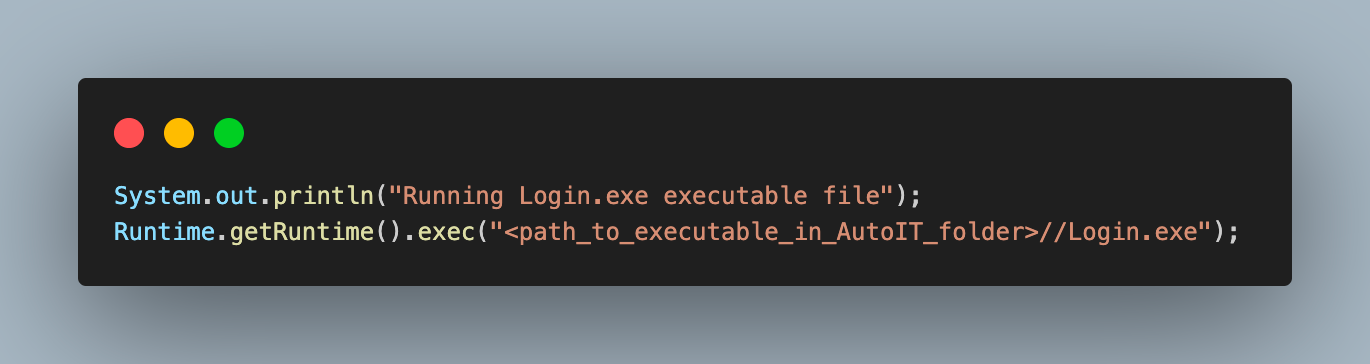

• Use the exec() function of the Runtime class to execute the Login.exe you created using AutoIt in previous steps. Remember to define the path of the .exe file properly for execution.

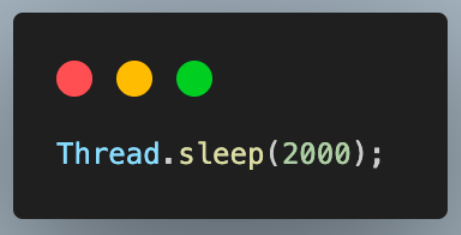

• Add a Thread.sleep() for the script execution to complete and the authentication popup in Selenium WebDriver to disappear.


It is advisable to use Selenium Waits, such as implicit, explicit, and fluent methods offered by Selenium rather than Thread.sleep(), as it has drawbacks.

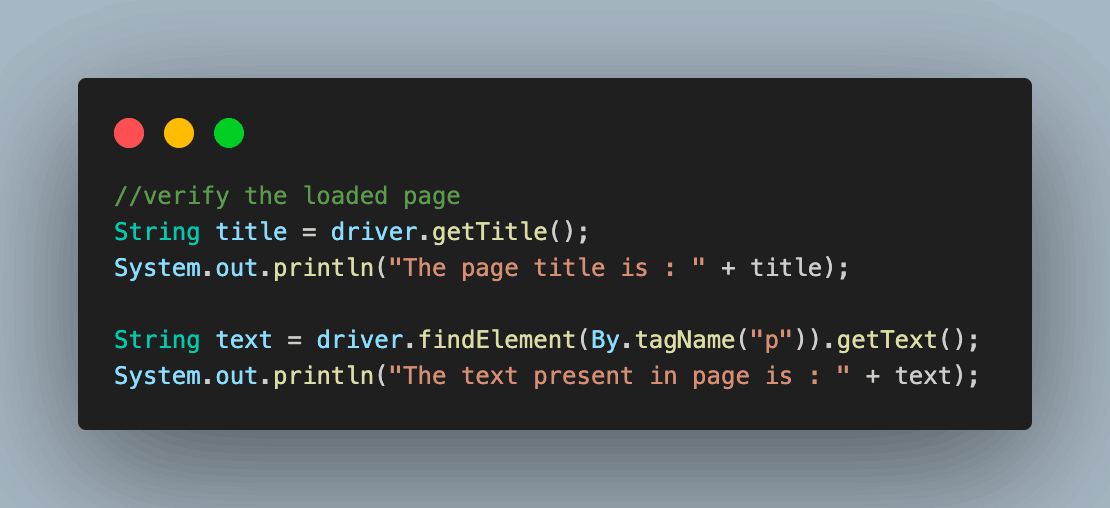

• Fetch and print the page title and successful authentication message on the console to confirm that the authentication popup in Selenium WebDriver was handled successfully.

Output:

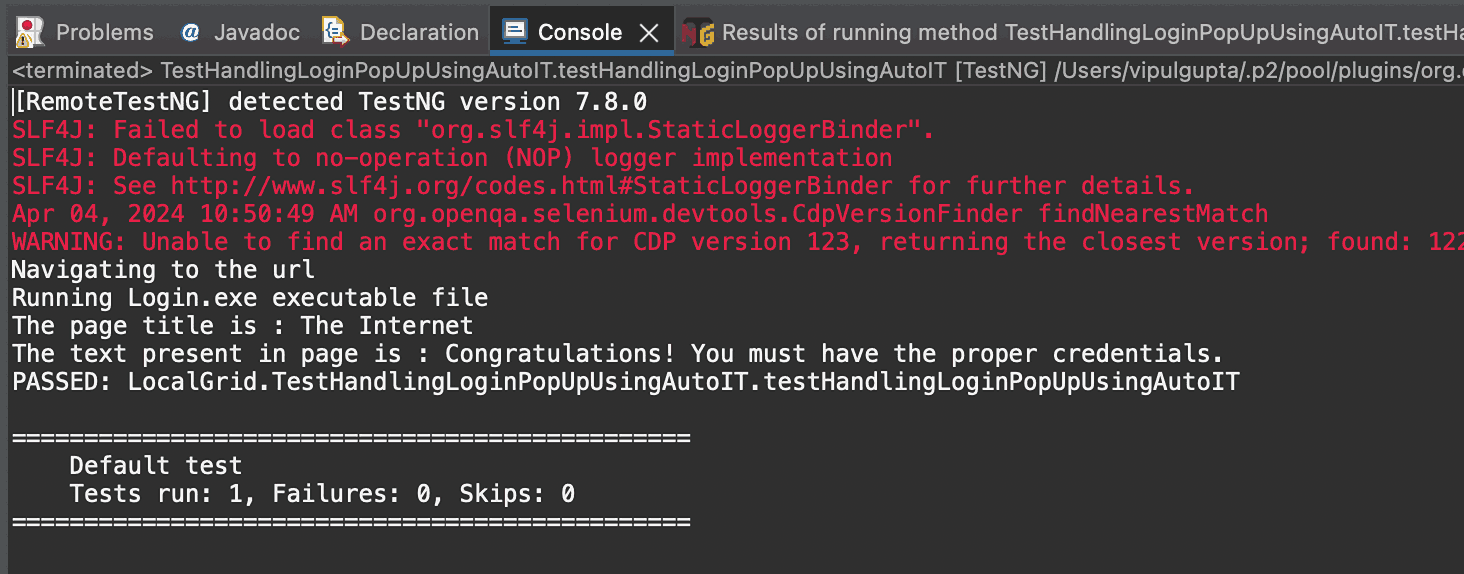

Executing the above script will give an output like the one below.

Both the approaches to handling authentication popups in Selenium WebDriver you have learned so far are older and do not have much Selenium usage. To get to an advanced level, let us learn how to handle authentication popups in Selenium 4 and Chrome DevTools.

Handling Authentication Popups in Selenium 4 and Chrome Dev Tools

Selenium 4 introduced the ChromiumDriver class, which has two methods, namely getDevTools() and executeCdpCommand(), to access the Chrome DevTools.

The getDevTools() method returns the new DevTools object, which allows the user to send the built-in Selenium commands.

In previous versions of Selenium, we used the technique of passing the credentials in the URL of the web page to handle the basic authentication popup on the web page. Now, in Selenium 4, we can easily set the basic authentication by sending extra HTTP headers; thus, handling the login authentication popups in Selenium becomes easy.

Below is the final test case file with Selenium 4 and DevTools usage to handle authentication popups in Selenium WebDriver.

package LocalGrid;


import org.openqa.selenium.devtools.DevTools;
import org.openqa.selenium.devtools.v85.network.Network;
import org.openqa.selenium.devtools.v85.network.model.Headers;
import org.testng.annotations.Test;
import org.openqa.selenium.By;
import org.openqa.selenium.chrome.ChromeDriver;


import java.util.*;


public class TestHandlingLoginPopUpUsingDevTools{


   @Test
   public void testHandlingLoginPopUpUsingDevTools()
   {
       ChromeDriver driver = new ChromeDriver();

       // Get the devtools from the running driver and create a session
       System.out.println("Creating Chrome DevTools session");
       DevTools devTools = driver.getDevTools();
       devTools.createSession();


       // Enable the Network domain of devtools
       devTools.send(Network.enable(Optional.<Integer>empty(), Optional.<Integer>empty(), Optional.<Integer>empty()));


       // Encoding the username and password using Base64
       String auth = "admin:admin";
       String encodeToString = Base64.getEncoder().encodeToString(auth.getBytes());
       System.out.println("Encoded String: " + encodeToString);


       // Pass the network header as Authorization : Basic <encoded String>
       Map<String, Object> headers = new HashMap<String, Object>();
       headers.put("Authorization", "Basic " + encodeToString);
       devTools.send(Network.setExtraHTTPHeaders(new Headers(headers)));

       //Navigate to the website
       driver.get("https://the-internet.herokuapp.com/basic_auth");

       //verify the loaded page
       String title = driver.getTitle();
       System.out.println("The page title is : " + title);


       String text = driver.findElement(By.tagName("p")).getText();
       System.out.println("The text present in page is : " + text);

       driver.quit();
   }
}

To understand the code given in the TestHandlingLoginPopUpUsingDevTools.java file, let’s look into the code walkthrough below.

Code Walkthrough:

• Add a new test case as testHandlingLoginPopUpUsingDevTools() and annotate it with @Test annotation.

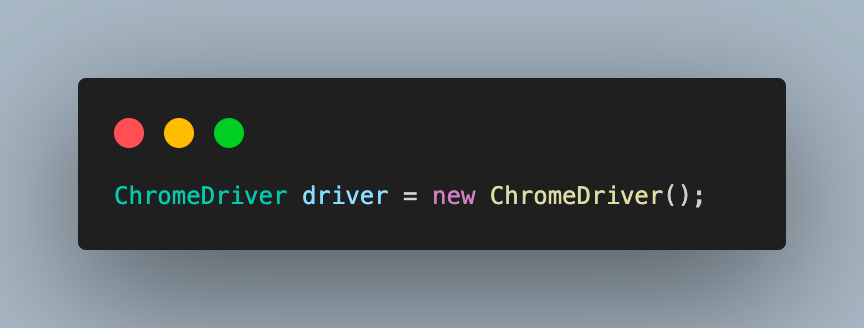

• Create a driver instance of the ChromeDriver class. This is because ChromeDevTools works only for Chromium-based browsers like Google Chrome. Another browser driver is EdgeDriver, also available if you want to use the Edge browser.

• Get the DevTools and create a new session to be used.

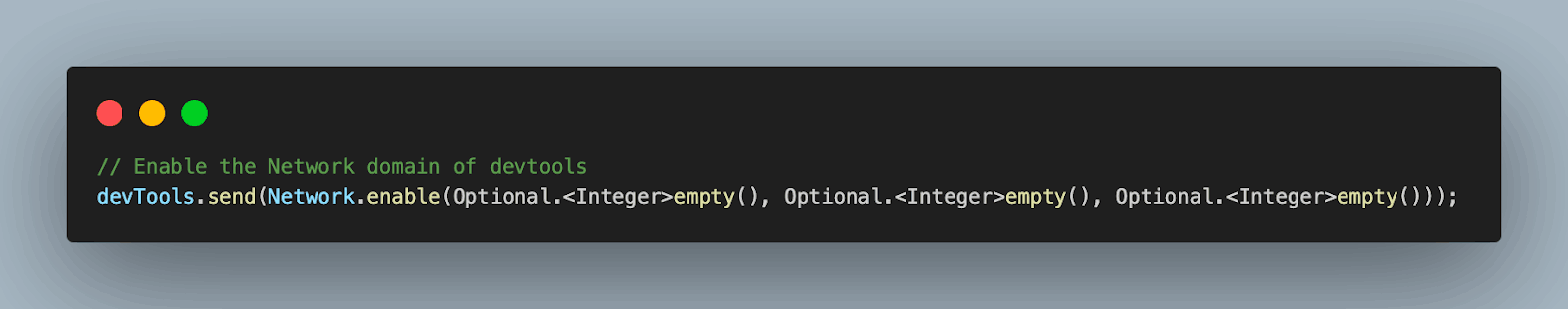

• Enable the network domain of DevTools. We don’t want to specify any network, so we have used the empty() method.

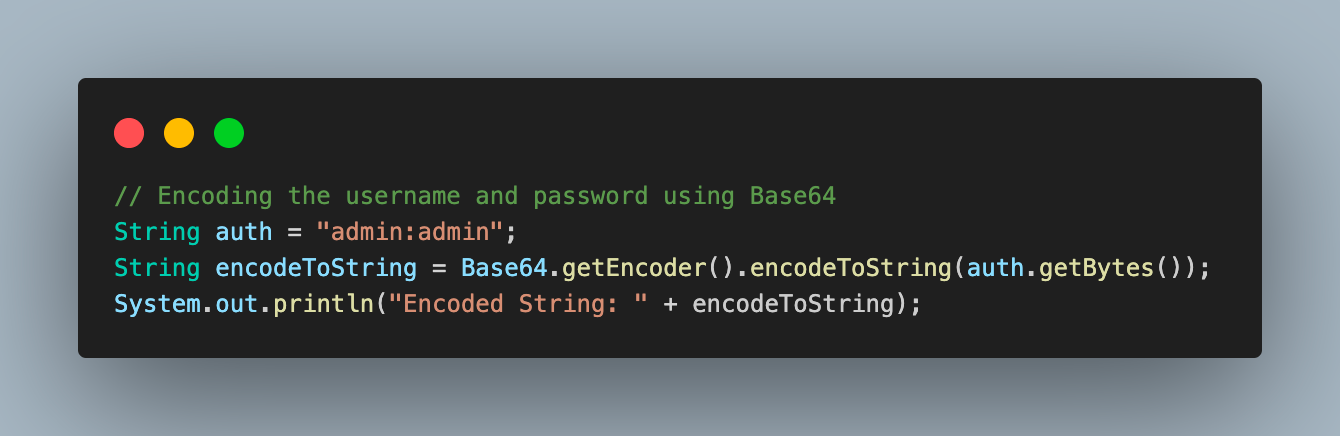

• Assign the username and password concatenated by a colon (:) to a String variable. Encode this value to get an encoded Base64 credentials string.

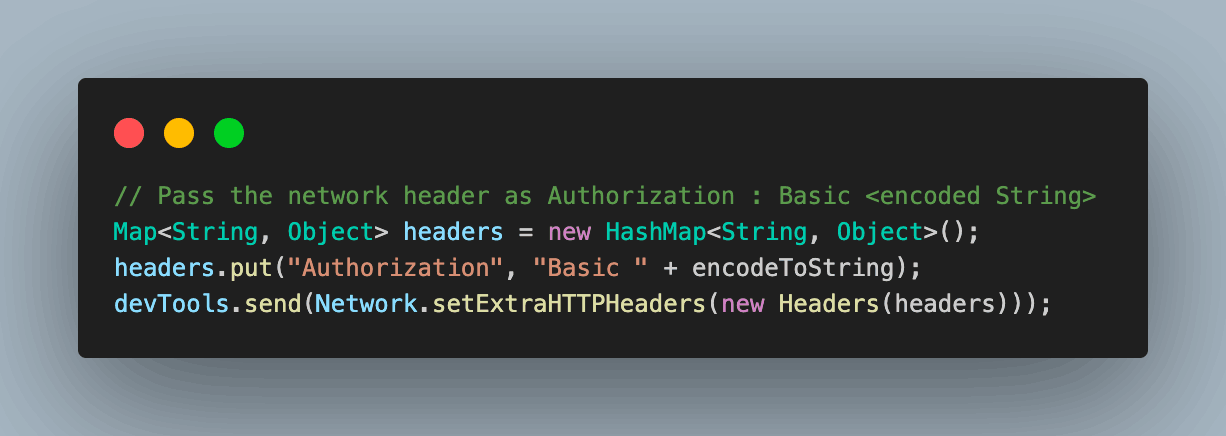

• Finally, pass the encoded credentials as basic authorization network header to the DevTools by creating headers in a HashMap.

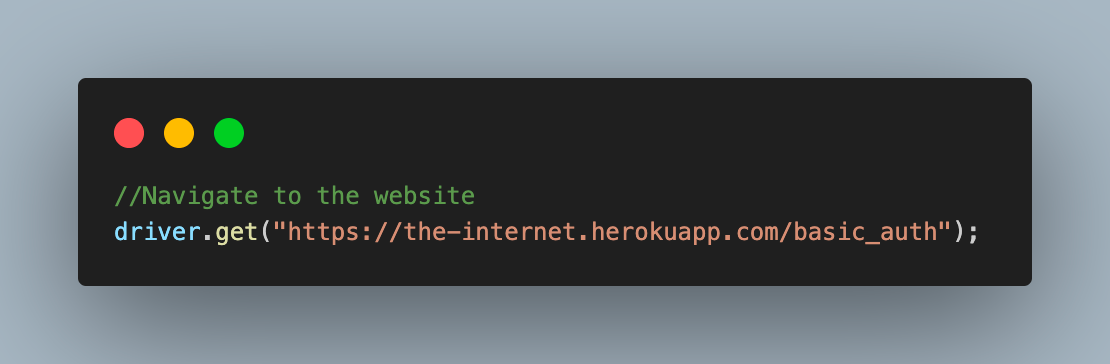

• Now that the entire code for handling the authentication popup in Selenium WebDriver and navigating to the website.

• You can see there is no authentication popup now, as credentials have already been passed in the headers. Verify the same by fetching and printing the page title and successful authentication message from the webpage body.

Output:

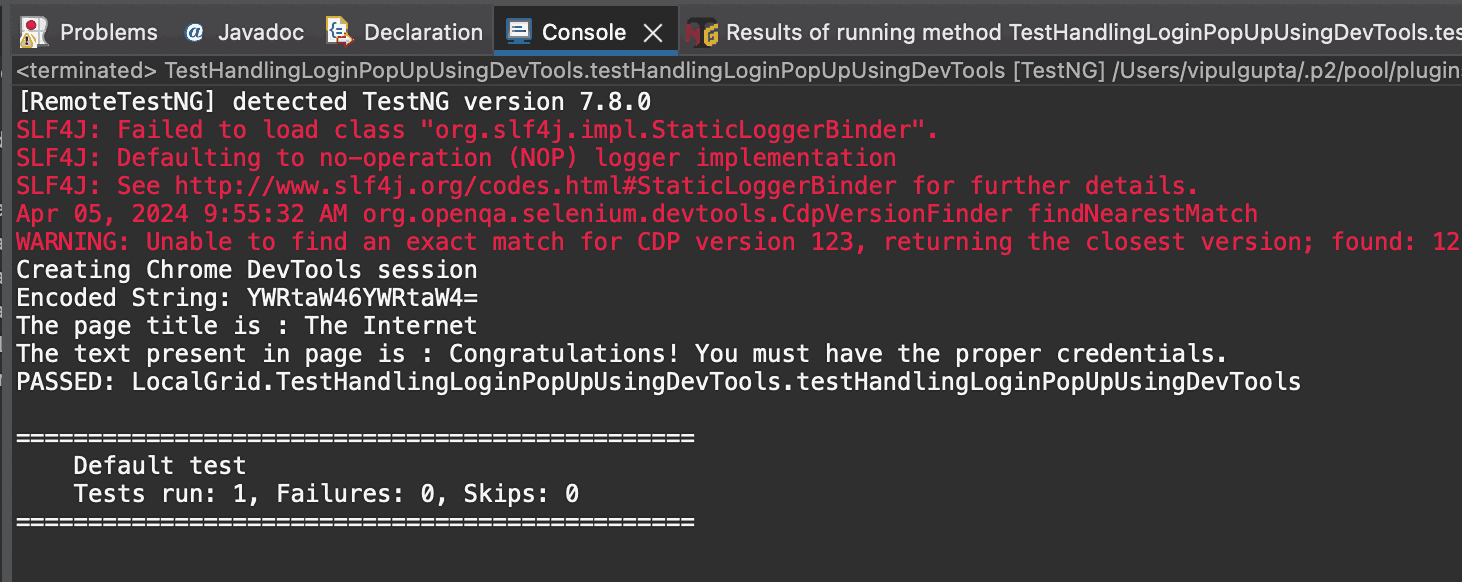

When executing the above code to handle authentication popups in Selenium 4 and Chrome DevTools, you will get an output like the one below.

With this, we have seen different ways to handle authentication popups in Selenium WebDriver with Java. All the methods we learned use local execution.
