How to implement Drag and Drop in JavaScript?

We can automate the Drag and Drop operation by leveraging the Actions class in Selenium provided by the Selenium WebDriver API. The actions class supports two methods, using which we can drag and drop an element. They are

• dragAndDrop method
• dragAndDropBy method

In addition to these two methods, we can also make use of the following Actions class method to achieve drag and drop automation. They are:

• moveByOffset method
• moveToElement method

Before we get deeper into how to implement drag and drop in JavaScript, let us understand more about the Actions class itself.

What is the Actions class in Selenium?

The WebElement commands need no introduction, and they help us identify a WebElement and perform various actions on it. Most basic user interactions like clicking on a button or entering text to an input field can be achieved using the WebElement commands.

Some popular commands are:

• WebElement.click() – to click on a web element
• WebElement.sendKeys() – to enter text to a field
• WebElement.submit() – to submit a form etc.

However, if you need to perform complex interactions like Drag and Drop, Double-click, or Click and Hold an element, they cannot be achieved using simple WebElement commands alone. And this is where the Actions class comes into the picture.

The official documentation describes the Actions class as:

“The user-facing API for emulating complex user gestures. Use this class rather than using the Keyboard or Mouse directly.”

In short, to automate advanced keyboard-based or mouse-based actions in Selenium, you need to utilize the Actions class in Selenium. The methods within the Actions class can be divided into two main categories:

• Keyboard Events – keyDown(), keyUp(),sendKeys(), etc.
• Mouse Events – dragAndDrop(), dragAndDropBy(), moveByOffset(), moveToElement() etc.

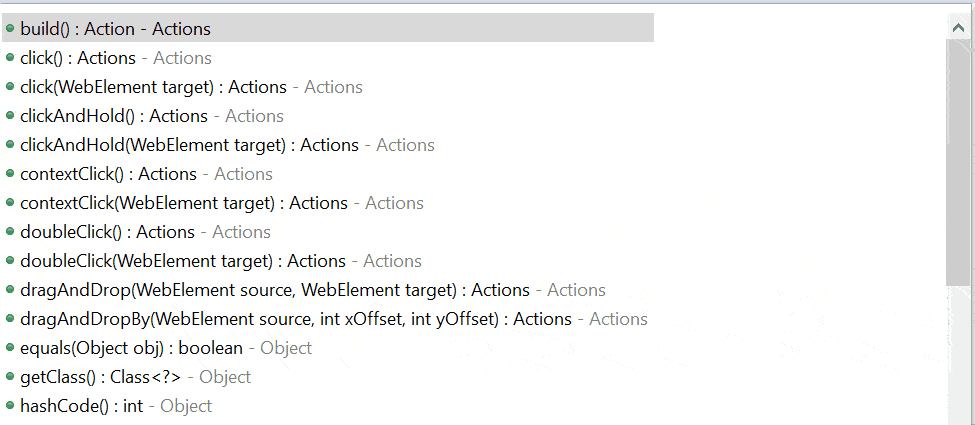

The various actions supported by the actions class are:

This certification will certify your competence as someone who has in-depth knowledge and experience with the use of JavaScript to create automated browser tests.

Here’s a short glimpse of the Selenium JavaScript 101 certification from TestMu AI:

Watch this video to learn what the Actions Class is in Selenium and how to use it.

Syntax for Drag and Drop in Selenium

At the beginning of this section on JavaScript drag and drop, we learned that the Actions class supports two methods that enable the automation of the drag and drop action. Now, let us study them in detail, along with the syntax required to perform the action.

dragAndDrop method

This method is used to perform a Drag and Drop operation where you need to left-click on an element, hold it and drag it to the desired target location and drop it.

Syntax:

Actions.dragAndDrop(WebElement source, WebElement target)

This method accepts two parameters:

• source – the web element which we need to click and start the drag
• target – the web element on which we need to drop the source element

To find the source and target element, we can use any locator strategy.

driver.findElement(Any By strategy & locator)

dragAndDropBy method

This method is used to perform Drag and Drop operations in Selenium using x and y offsets. The source element will be dragged and dropped at the location specified via the x-axis and y-axis offsets in pixels.

Syntax:

Actions.dragAndDropBy(WebElement source, int xOffset, int yOffset)

This method accepts three parameters:

• source – the element which we need to click and start the drag
• xOffset – x-axis pixel value which defines the horizontal movement of the source element
• yOffset – y-axis pixel value which defines the vertical movement of the source element

Again, to find the source element, we can use any locator strategy.

The dragAndDropBy() works similar to the dragAndDropBy(), but the only difference is that dragAndDropBy() moves the source element to the offsets and not to any target element.

Finally, once the dragAndDrop() or dragAndDropBy() method is defined with parameters, the perform() method needs to be invoked for performing the action.

Actions.dragAndDrop(WebElement source, WebElement target).perform();

Actions.dragAndDropBy(WebElement source, int xOffset, int yOffset).perform();

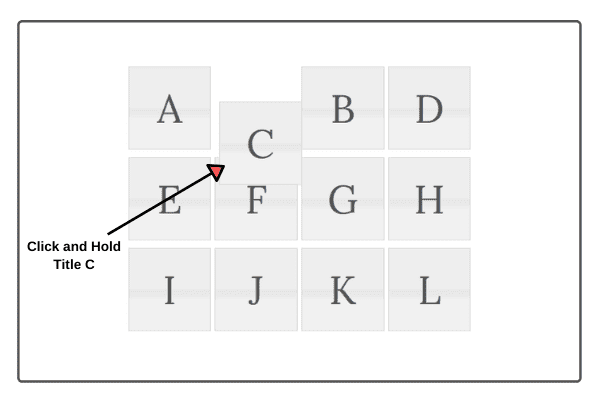

Alternatively, we can also achieve drag and drop automation by clicking and holding an element, moving it to the target position, and then releasing it. To execute this operation sequence, we will be making use of the following methods from the Actions class.

• clicking and holding a web element via clickAndHold()
• moving to the target location via moveToElement() or moveByOffset()
• release mouse button at target position via release()

Let us check out them in detail, along with the syntax below.

moveToElement method

This method is used to move the mouse to a specified web element. We can also move a draggable web element using this method.

Syntax:

Actions.clickAndHold(WebElement source).moveToElement(WebElement target).release().perform();

• The web element which we desire to click and hold is passed to the clickAndHold()
• Then, we move the mouse pointer to the target web element specified within in moveToElement()
• Then, we release the element from the mouse button hold using release().
• Finally, we invoke the perform() for performing this chain of actions currently built.

moveByOffset method

This method is used to move the mouse to the specified offset of the last known mouse coordinates. On initial page load, the mouse coordinates will be (0,0). We can also move a draggable web element using this method.

Syntax:

Actions.clickAndHold(WebElement source).moveByOffset(int xOffset,int yOffset).release().perform();

• The web element which we need to click and hold is passed to the clickAndHold()
• Then, we move the mouse pointer to the target location by passing the X and Y offsets within in moveByOffset()
• Then, we release the element from the mouse button hold using release().
• Finally, we invoke the perform() for performing this chain of actions currently built.

dragAndDrop method

This method is used to perform a Drag and Drop operation where you need to left-click on an element, hold it and drag it to the desired target location and drop it.

Syntax:

This method accepts two parameters:

• source – the web element which we need to click and start the drag
• target – the web element on which we need to drop the source element

To find the source and target element, we can use any locator strategy.

dragAndDropBy method

This method is used to perform Drag and Drop operations in Selenium using x and y offsets. The source element will be dragged and dropped at the location specified via the x-axis and y-axis offsets in pixels.

Syntax:

This method accepts three parameters:

• source – the element which we need to click and start the drag
• xOffset – x-axis pixel value which defines the horizontal movement of the source element
• yOffset – y-axis pixel value which defines the vertical movement of the source element

Again, to find the source element, we can use any locator strategy.

The dragAndDropBy() works similar to the dragAndDropBy(), but the only difference is that dragAndDropBy() moves the source element to the offsets and not to any target element.

Finally, once the dragAndDrop() or dragAndDropBy() method is defined with parameters, the perform() method needs to be invoked for performing the action.

OR

Alternatively, we can also achieve drag and drop automation by clicking and holding an element, moving it to the target position, and then releasing it. To execute this operation sequence, we will be making use of the following methods from the Actions class.

• clicking and holding a web element via clickAndHold()
• moving to the target location via moveToElement() or moveByOffset()
• release mouse button at target position via release()

Let us check out them in detail, along with the syntax below.

Source

moveToElement method

This method is used to move the mouse to a specified web element. We can also move a draggable web element using this method.

Syntax:

• The web element which we desire to click and hold is passed to the clickAndHold()
• Then, we move the mouse pointer to the target web element specified within in moveToElement()
• Then, we release the element from the mouse button hold using release().
• Finally, we invoke the perform() for performing this chain of actions currently built.

moveByOffset method

This method is used to move the mouse to the specified offset of the last known mouse coordinates. On initial page load, the mouse coordinates will be (0,0). We can also move a draggable web element using this method.

Syntax:

• The web element which we need to click and hold is passed to the clickAndHold()
• Then, we move the mouse pointer to the target location by passing the X and Y offsets within in moveByOffset()
• Then, we release the element from the mouse button hold using release().
• Finally, we invoke the perform() for performing this chain of actions currently built.

Note: Try #1 Selenium box alternative to test on cloud Try HyperExecute Now!

Syntax for Drag and Drop in JavaScript using Selenium

To work with Selenium using JavaScript drag and drop, we will be making the selenium-webdriver library. Here, the syntax for calling Actions class and the available methods are slightly different. To use the JavaScript drag and drop feature in Selenium automation testing, we will be utilizing the dragAndDrop method.

dragAndDrop method

This method helps us to configure drag and drop action by passing either the target web element or X and Y offsets.

Syntax:

this.dragAndDrop(WebElement from, WebElement|{x: number, y: number} to ).perform();

The function accepts two parameters:

• from – the web element which we need to click and start the drag
• to – either a web element or offset (in pixel) to mark the target location where the element needs to be dropped

dragAndDrop method

This method helps us to configure drag and drop action by passing either the target web element or X and Y offsets.

Syntax:

The function accepts two parameters:

• from – the web element which we need to click and start the drag
• to – either a web element or offset (in pixel) to mark the target location where the element needs to be dropped

To learn more about the Actions Class and the completed list of instance methods in Selenium JavaScript testing, check out the official Selenium documentation.

In the next section of this article on how to implement drag and drop in JavaScript, we will demonstrate writing a test case to automate Drag and Drop in JavaScript using Selenium.

Also read: How To Handle Frames & iFrames In Selenium JavaScript [Tutorial]

How to write a test case to automate Drag and Drop in JavaScript using Selenium

So far, we have discussed the Actions class and various methods to automate the Drag and Drop feature. Finally, it’s time to get your hands dirty!

In this section of how to implement drag and drop in JavaScript, you will be learning how to drag and drop using JavaScript while performing Selenium test automation.

Start your journey with Selenium JavaScript Testing on TestMu AI’s online cloud.

Prerequisites

I am assuming that the following prerequisites are installed in your system.

• Node.js and NPM
• Visual Studio Code or any IDE of choice

Test Scenario

For this demo, I will be writing the test case for the following simple and straightforward scenario.

• Launch the browser.
• Go to the Selenium Playground website.
• Perform Drag and Drop by selecting the first element and dragging and dropping it on the second element.
• Close the browser.

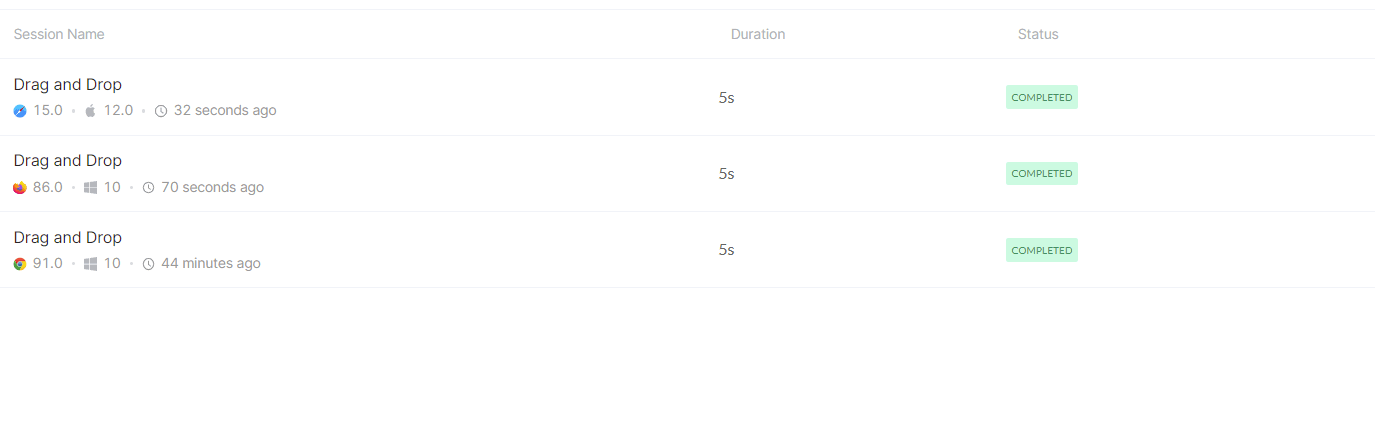

I will be executing the test case on three different browsers – Firefox, Chrome, and Safari – using the online Selenium Grid provided by the TestMu AI cross browser testing platform. Automation testing tools like TestMu AI gives you access to an online device farm of 3000+ browser, device, and OS configurations helping you to achieve test coverage on the maximum number of browser and OS combinations. On top of that, TestMu AI also supports web testing in the latest Selenium 4.

Selenium 4 is the first version to bring out native W3C compliant WebDriver APIs. This means that Selenium is now a Web Standard. The addition of W3C compliance will fundamentally change the way tests are written, making them less flaky and more stable when run on different browsers. The new W3C-compliant APIs also make Selenium a safer tool for large enterprises and governments that are subject to security standards.

To learn more about Selenium 4, you can go through the following video on what is new in Selenium 4?

You can also Subscribe to the TestMu AI YouTube Channel and stay updated with the latest tutorials around Selenium testing, Cypress testing, CI/CD, and more.

Steps for Writing the Drag and Drop test case

Now, it’s time to write tests in Selenium WebDriver for automation testing. From project set-up to test execution, I will be walking you through the whole process step by step.

Using dragAndDrop() by passing source and target web elements

Step 1: Create a new folder for your project. Open the folder location via your IDE (Visual Studio Code) and initialize the project by giving the following command in the terminal.

npm init -y

The project is now initialized, and the package.json file is created in the root folder.

Step 2: Install dependencies

npm install selenium-webdriver

Step 3: Create a folder named “tests” within your project root folder. We will be storing all our test cases here. Inside this folder, create your first test case file, “test.js.”

Step 4: Inside the test.js file, add required imports and configurations to run the test on a cloud grid hosted by TestMu AI.

• Create a free account in LambaTest and fetch your unique username and access key.
• Define the username and access key in your test.js file. Also, define the grid host.
• Make the required imports.

Step 5: Define the test method. Create a function example(), which will be containing your test script. Feel free to provide any function name of your choice.

async function example() {
}

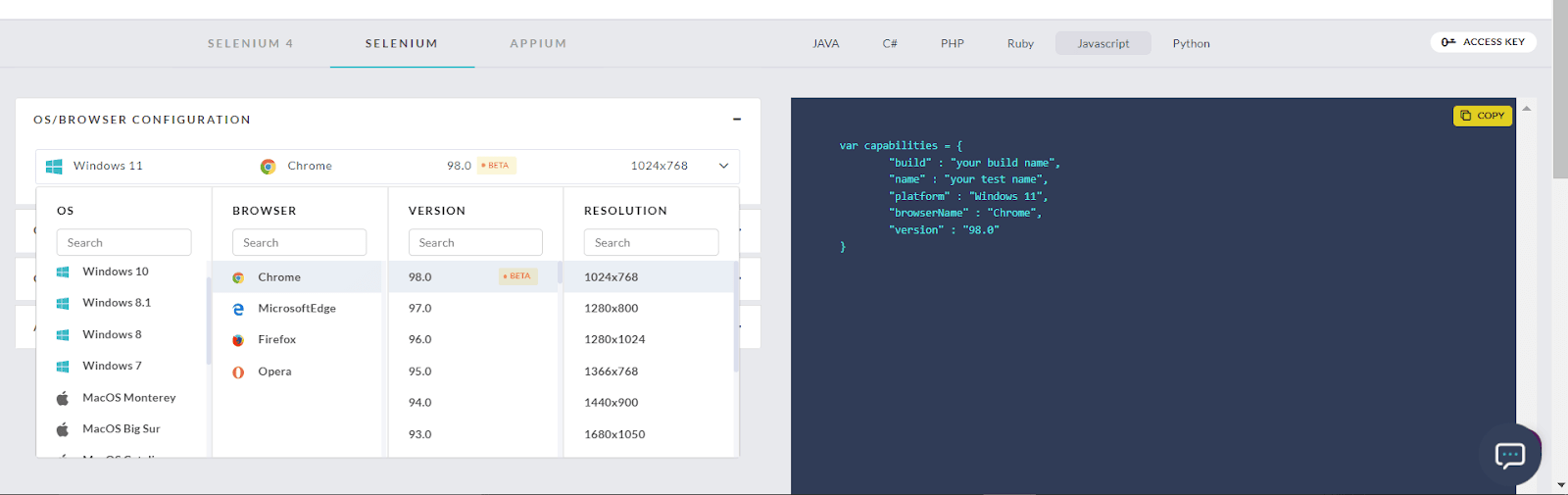

At the beginning of this test method, let us define the required capabilities. To generate your custom desired capability to meet your browser and OS version requirement, make use of the TestMu AI Capabilities Generator.

Here I have set the capability to run my test case in Chrome browser version 91.0 in the windows 10 platform using Selenium 4.

var capabilities = {
      build: "Drag and Drop",
      name: "Drag and Drop",
      platform: "Windows 10",
      browserName: "Chrome",
      version: "91.0",
      selenium_version: "4.0.0",
      chrome.driver: "91.0",
    };

Step 6: Now, let us write our test script inside our test method using Selenium and JavaScript. I am making use of the dragAndDrop() and passing source and target web elements to achieve the drag and drop action here.

//To wait for browser to build and launch properly
    var driver = await new Builder()
      .usingServer(gridUrl)
      .withCapabilities(capabilities)
      .build();

    //To launch the website
    await driver.get(
      "https://www.lambdatest.com/selenium-playground/drag-and-drop-demo"
    );

    //To locate the source and target elements
    let draggable = driver.findElement(By.id("draggable"));
    let droppable = driver.findElement(By.id("droppable"));

    //To perform drag and drop operation
    await driver.actions().dragAndDrop(draggable, droppable).perform();

    //To verify drop success/fail by validating the text inside target element
    let targetText = await droppable.getText();
    if (targetText === "Dropped!") {
      console.log("PASS: Source is dropped at location");
    } else {
      console.log("FAIL: Source is not dropped at location");
    }


    //It is always a safe practice to quit the browser after execution
    await driver.quit();

Our final code looks like this.

const USERNAME = "YOUR_USERNAME"; //replace with your username
const KEY = "YOUR_ACCESSKEY"; //replace with your access key

const GRID_HOST = "hub.lambdatest.com/wd/hub";
const gridUrl = "https://" + USERNAME + ":" + KEY + "@" + GRID_HOST;

const { Builder, Key, By } = require("selenium-webdriver");

async function example() {
  try {
    var capabilities = {
      build: "Drag and Drop",
      name: "Drag and Drop",
      platform: "Windows 10",
      browserName: "Chrome",
      version: "91.0",
      selenium_version: "4.0.0",
      chrome.driver: "91.0",
    };

    //To wait for browser to build and launch properly
    var driver = await new Builder()
      .usingServer(gridUrl)
      .withCapabilities(capabilities)
      .build();

    //To launch the website
    await driver.get(
      "https://www.lambdatest.com/selenium-playground/drag-and-drop-demo"
    );

    //To locate the source and target elements
    let draggable = driver.findElement(By.id("draggable"));
    let droppable = driver.findElement(By.id("droppable"));

    //To perform drag and drop operation
    await driver.actions().dragAndDrop(draggable, droppable).perform();

    //To verify drop success/fail by validating the text inside target element
    let targetText = await droppable.getText();
    if (targetText === "Dropped!") {
      console.log("PASS: Source is dropped at location");
    } else {
      console.log("FAIL: Source is not dropped at location");
    }

    //It is always a safe practice to quit the browser after execution
    await driver.quit();

  } catch (err) {
    handleFailure(err, driver);
  }
}

example();

function handleFailure(err, driver) {
  console.error("Something went wrong!
", err.stack, "
");
  driver.quit();
}

Additionally, I have added a try-catch block for error handling. Also have provided the function call to execute the method on run command.

Step 7: Execute the test. Make sure you are in the right folder and give the following command in the terminal.

node test.js

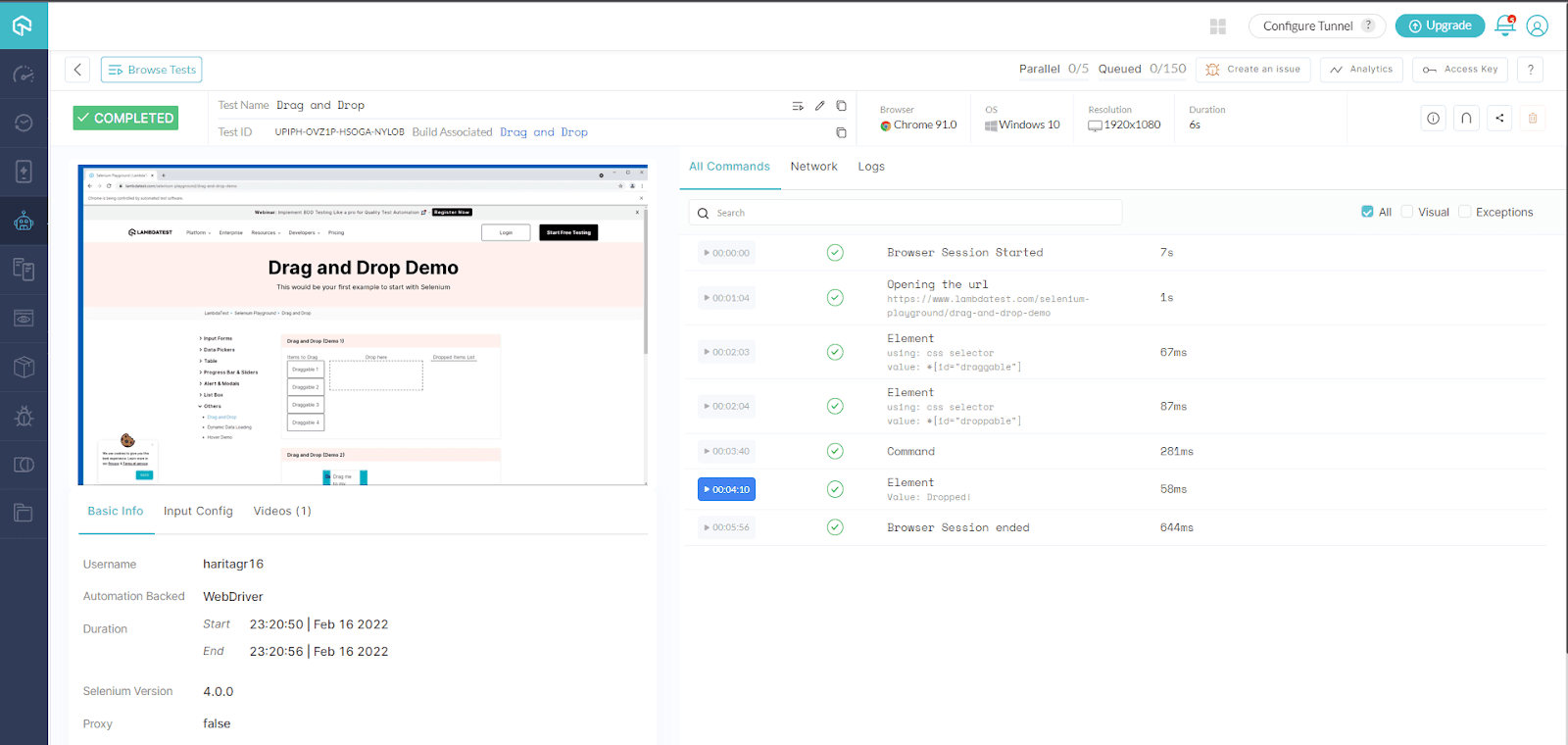

The test.js file starts executing, and you can observe your live test running status on your TestMu AI Dashboard along with a detailed report containing video and logs.

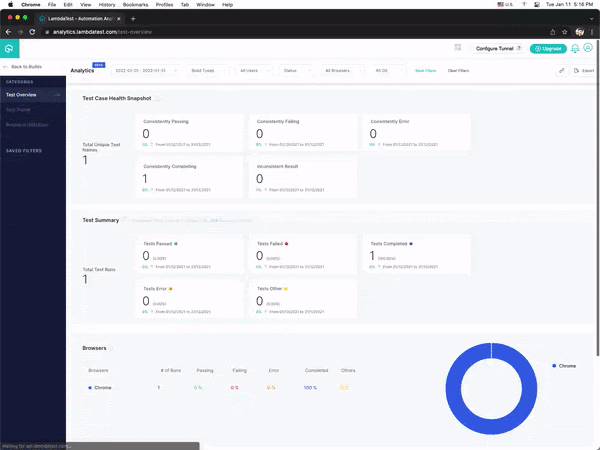

TestMu AI helps you track the state of your automated tests by showing a clear view of the tests that have passed, failed, and are still in progress. You can go through TestMu AI Analytics to help you gain insight into your automated testing efforts.

Similarly, you can run your test case in multiple browsers by defining the appropriate capabilities in your test file.

• Firefox browser
• Safari browser

Using dragAndDrop() by passing X and Y offsets

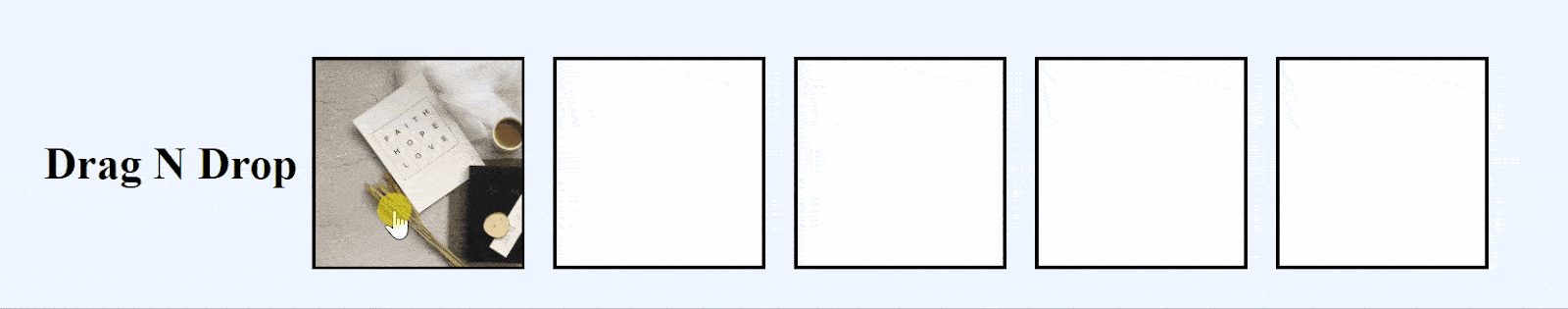

In the above section of this article on how to implement drag and drop in JavaScript, we passed the source and target elements to drag and drop. Now, let us see the code to automate drag and drop by passing x and y offset values.

The updated code for the test method is as below:

var driver = await new Builder()
      .usingServer(gridUrl)
      .withCapabilities(capabilities)
      .build();

    //To launch the website
    await driver.get(
      "https://www.lambdatest.com/selenium-playground/drag-and-drop-demo"
    );

    //To locate the source elements
    let draggable = driver.findElement(By.id("draggable"));

    //To perform drag and drop by offset
    await driver.actions().dragAndDrop(draggable, { x: 50, y: 50 }).perform();

    await driver.quit();

Using dragAndDrop() by passing source and target web elements

Step 1: Create a new folder for your project. Open the folder location via your IDE (Visual Studio Code) and initialize the project by giving the following command in the terminal.

The project is now initialized, and the package.json file is created in the root folder.

Step 2: Install dependencies

Step 3: Create a folder named “tests” within your project root folder. We will be storing all our test cases here. Inside this folder, create your first test case file, “test.js.”

Step 4: Inside the test.js file, add required imports and configurations to run the test on a cloud grid hosted by TestMu AI.

• Create a free account in LambaTest and fetch your unique username and access key.
• Define the username and access key in your test.js file. Also, define the grid host.

const USERNAME = "YOUR_USERNAME"; //replace with your username
const KEY = "YOUR_ACCESSKEY"; //replace with your access key

const GRID_HOST = "hub.lambdatest.com/wd/hub";
const gridUrl = "https://" + USERNAME + ":" + KEY + "@" + GRID_HOST;

• Make the required imports.

const { Builder, Key, By } = require("selenium-webdriver");

Step 5: Define the test method. Create a function example(), which will be containing your test script. Feel free to provide any function name of your choice.

At the beginning of this test method, let us define the required capabilities. To generate your custom desired capability to meet your browser and OS version requirement, make use of the TestMu AI Capabilities Generator.

Here I have set the capability to run my test case in Chrome browser version 91.0 in the windows 10 platform using Selenium 4.

Step 6: Now, let us write our test script inside our test method using Selenium and JavaScript. I am making use of the dragAndDrop() and passing source and target web elements to achieve the drag and drop action here.

Our final code looks like this.

Additionally, I have added a try-catch block for error handling. Also have provided the function call to execute the method on run command.

Step 7: Execute the test. Make sure you are in the right folder and give the following command in the terminal.

The test.js file starts executing, and you can observe your live test running status on your TestMu AI Dashboard along with a detailed report containing video and logs.

TestMu AI helps you track the state of your automated tests by showing a clear view of the tests that have passed, failed, and are still in progress. You can go through TestMu AI Analytics to help you gain insight into your automated testing efforts.

Similarly, you can run your test case in multiple browsers by defining the appropriate capabilities in your test file.

• Firefox browser

var capabilities = {
      build: "Drag and Drop",
      name: "Drag and Drop",
      platform : "Windows 10",
      browserName : "Firefox",
      version : "86.0",
      selenium_version : "4.1.0",
      driver_version : "v0.36.0"
    };

• Safari browser

var capabilities = {
      build: "Drag and Drop",
      name: "Drag and Drop",
      platform: "MacOS Monterey",
      browserName: "Safari",
      version: "15.0",
      selenium_version: "4.0.0",
      driver_version: "v0.36.0",
    };

Using dragAndDrop() by passing X and Y offsets

In the above section of this article on how to implement drag and drop in JavaScript, we passed the source and target elements to drag and drop. Now, let us see the code to automate drag and drop by passing x and y offset values.

The updated code for the test method is as below:

You can also go through the Selenium JavaScript Tutorial to dive deep into how Selenium WebDriver with JavaScript can be used for automated testing of web applications.
