How To Handle Frames & iFrames In Selenium JavaScript [Tutorial]

How to handle Frames in Selenium WebDriver with JavaScript

To start interacting with frames using Selenium WebDriver with JavaScript, you need to use the switchTo method. In this Selenium JavaScript tutorial, I will be explaining the two key switchTo commands ‘frame’ and ‘defaultContent’. Let’s go

Using switchTo().frame()

The switchTo.frame() method allows us to navigate to a frame or iFrame in Selenium. Once you have switched to the frame, you can access the elements located inside that particular frame (or iFrame). To locate the frame with the switchTo method, you can specify either the frame id, frame name, or web element locator. Details of the same are mentioned below:

//switch to frame using id
await driver.switchTo().frame('frame-id');

//switch to frame using name
await driver.switchTo().frame('frame-name');

//switch to frame using web element
await driver.switchTo().frame(driver.findElement(By.webLocator('frame-web-locator-property')));

Using switchTo().defaultContent()

The switchTo().defaultContent() method will switch focus to the first frame on the page. In the case of iFrames, the context is switched back to the main (or Parent) document.

//switching back to first frame or main document
await driver.switchTo().defaultContent()

You can also refer to the below video tutorial on how to handle Windows and Frames in selenium.

Handling Nested Frames in Selenium WebDriver using JavaScript

A Frame that contains another frame or frame inside a frameset is termed a Nested Frame. To access a frame inside another frame, you first need to access the parent frame. The parent can be thought of like the house in our previous example, where each room in a house represents a frame. You must first be able to enter the house before you can go into any of the rooms 🙂

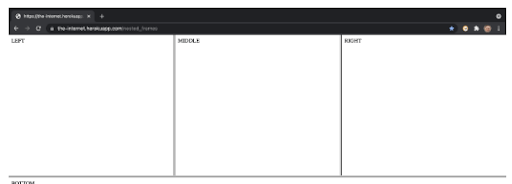

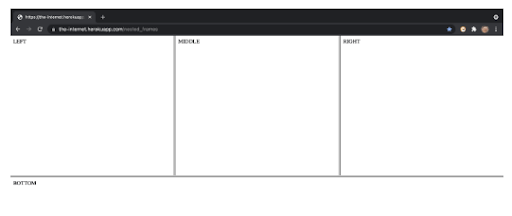

Let’s look once again at the webpage we saw earlier. You can access it here: https://the-internet.herokuapp.com/nested_frames.

We’ve identified that each of these sections (Left, Middle, Right & Bottom) are all frames, but we can see from the web page alone that the top row of frames all sit inside an additional frame.

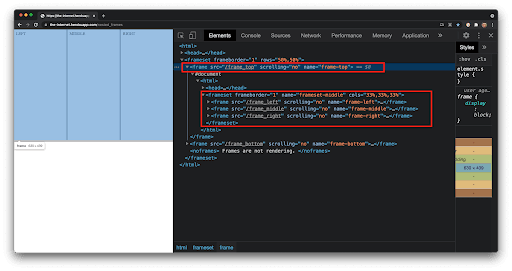

When we look at the DOM, we can see that the three visible frames – frame-left, frame-middle, and frame-right sit inside a frame with the name frame-top. Hence, we need to switch to the frame-top before we can access the frames inside it. So let’s do that now:

We are running the tests on TestMu AI, a cloud-based cross browser testing platform. Once you sign-up on the platform, you need to make a note of the username and access key that is available in the TestMu AI Profile Section. There are umpteen benefits of Selenium testing on the cloud; the major ones are reducing investment related to in-house infrastructure and maximizing the benefits of parallel testing in Selenium.

The test is run on Chrome 92.0 + Windows 10 combination:

onst { Builder, By, Key, JavascriptExecutor } = require("selenium-webdriver");

async function frames() {
  // username: Username can be found at automation dashboard
  const USERNAME = "xxxxxxxxxxx";

  // Accesskey:  Accesskey can be generated from automation dashboard or profile section
  const KEY = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx";

  // gridUrl: gridUrl can be found at automation dashboard
  const GRID_HOST = "hub.lambdatest.com/wd/hub";

    // Setup Input capabilities - this is used to run our test on chrome browser via LambdaTest
    const capabilities = {
      platform: "Windows 10",
      browserName: "Chrome",
      version: "92.0",
      resolution: "1024x768",
      network: true,
      visual: true,
      console: true,
      video: true,
      name: "Test 1", // name of the test
      build: "NodeJS build", // name of the build
    };

    //creating the grid url to point to LambdaTest
    const gridUrl = "https://" + USERNAME + ":" + KEY + "@" + GRID_HOST;

    //build the driver instance
    const driver = new Builder()
      .usingServer(gridUrl)
      .withCapabilities(capabilities)
      .build();

    //navigate to our application
    await driver.get("https://the-internet.herokuapp.com/nested_frames");

    //navigate to top frame
    await driver.switchTo().frame(driver.findElement(By.name("frame-top")));

    //Navigate to left Frame
    await driver.switchTo().frame(driver.findElement(By.name("frame-left")));

    //return name of current frame
    let currentFrame = await driver.executeScript("return self.name");

    //output name of current frame
    console.log("This is the name of the frame we've accessed " + currentFrame);

    //close the browser
    await driver.quit();
  };

frames();

The SeleniumWebDriver test gets the name of the frame we are currently accessing. We extract the frame’s name (i.e., frame-name) once we switch to the frame frame-left.

Firstly we’re setting up our capabilities and building our grid URL to run our test on the TestMu AI platform.

// username: Username can be found at automation dashboard
  const USERNAME = "xxxxxxxxxxx";

  // Accesskey:  Accesskey can be generated from automation dashboard or profile section
  const KEY = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx";

  // gridUrl: gridUrl can be found at automation dashboard
  const GRID_HOST = "hub.lambdatest.com/wd/hub";

    // Setup Input capabilities - this is used to run our test on chrome browser via LambdaTest
    const capabilities = {
      platform: "Windows 10",
      browserName: "Chrome",
      version: "92.0",
      resolution: "1024x768",
      network: true,
      visual: true,
      console: true,
      video: true,
      name: "Test 1", // name of the test
      build: "NodeJS build", // name of the build
    };

    //creating the grid url to point to LambdaTest
    const gridUrl = "https://" + USERNAME + ":" + KEY + "@" + GRID_HOST;

Next, in this Selenium JavaScript tutorial, I have built the driver instance using the capabilities specified in the last steps.

//build the driver instance
    const driver = new Builder()
      .usingServer(gridUrl)
      .withCapabilities(capabilities)
      .build();

Once you’ve built the driver, we can navigate to our application.

//navigate to our application
await driver.get("https://the-internet.herokuapp.com/nested_frames");

From here, you can first navigate to the top frame on the page using switchTo() method. We use By.name to locate the element. You can also check out our detailed blog on how to use the Name locator in Selenium Scripts.

//navigate to top frame
    await driver.switchTo().frame(driver.findElement(By.name("frame-top")));

Once you have accessed this frame, you can access frame-left using the same method.

//Navigate to left Frame
    await driver.switchTo().frame(driver.findElement(By.name("frame-left")));

To verify that you have accessed frame-left, use the executeScript method to return the frame’s name and log in to the console.

//return name of current frame
    let currentFrame = await driver.executeScript("return self.name");

    //output name of current frame
    console.log("This is the name of the frame we've accessed " + currentFrame);

Shown below is the execution output:

Read – How To Use JavaScriptExecutor in Selenium WebDriver

If you had tried to access the left-frame before navigating to the top-frame first, then you would have got this error.

NoSuchElementError: Unable to locate element: *[name="frame-left"]

We can use the same approach to find frame-middle and frame-right frames. Once you are in a nested frame, you can’t just navigate back to the tree structure. Instead, you can go straight from frame-left to frame-top.

To do this, you have first to use switchTo().defaultContent() method to move to the top of the tree. From there, you can again navigate to the frame-top. This is how you can switch to frame-top frame on the page:

const { Builder, By, Key, JavascriptExecutor } = require("selenium-webdriver");

async function defaultContent(){

// username: Username can be found at automation dashboard
  const USERNAME = "xxxxxxxxxxx";

  // Accesskey:  Accesskey can be generated from automation dashboard or profile section
  const KEY = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx";

  // gridUrl: gridUrl can be found at automation dashboard
  const GRID_HOST = "hub.lambdatest.com/wd/hub";

    // Setup Input capabilities - this is used to run our test on chrome browser via LambdaTest
    const capabilities = {
      platform: "Windows 10",
      browserName: "Chrome",
      version: "92.0",
      resolution: "1024x768",
      network: true,
      visual: true,
      console: true,
      video: true,
      name: "Test 1", // name of the test
      build: "NodeJS build", // name of the build
    };

    //creating the grid url to point to LambdaTest
    const gridUrl = "https://" + USERNAME + ":" + KEY + "@" + GRID_HOST;

    const driver = new Builder()
      .usingServer(gridUrl)
      .withCapabilities(capabilities)
      .build();

    //navigate to our application
    await driver.get("https://the-internet.herokuapp.com/nested_frames");

    //Navigate to top frame
    await driver.switchTo().frame(driver.findElement(By.name('frame-top')))

    //Navigate to left Frame
    await driver.switchTo().frame(driver.findElement(By.name('frame-left')))

    //Use default content to navigate to top of tree structure
    await driver.switchTo().defaultContent()

    //Navigate to top frame
    await driver.switchTo().frame(driver.findElement(By.name('frame-top')))

    //return name of current frame
    let currentFrame = await driver.executeScript("return self.name");

    //output name of current frame
    console.log("This is the name of the frame we've accessed: " + currentFrame);

    //close the browser
    await driver.quit();
}
defaultContent()

In this script, we once again navigate to frame-left

//navigate to our application
    await driver.get("https://the-internet.herokuapp.com/nested_frames");

    //Navigate to top frame
    await driver.switchTo().frame(driver.findElement(By.name('frame-top')))

    //Navigate to left Frame
    await driver.switchTo().frame(driver.findElement(By.name('frame-left')))

To switch back to the top of the document, you can use the defaultContent() method.

await driver.switchTo().defaultContent()

Once you have switched to default content, you can navigate back to the frame named ‘frame-top.’

//Navigate to top frame
    await driver.switchTo().frame(driver.findElement(By.name('frame-top')))

    //return name of current frame
    let currentFrame = await driver.executeScript("return self.name");

    //output name of current frame
    console.log("This is the name of the frame we've accessed: " + currentFrame);

Like the last example, you could then use the executeScript method to return the frame’s name that we are trying to access.

//return name of current frame
    let currentFrame = await driver.executeScript("return self.name");

    //output name of current frame
    console.log("This is the name of the frame we've accessed: " + currentFrame);

Shown below is the execution snapshot, which indicates that we can read the frame name:

Frame-bottom is separate from the other frames and does not sit inside frame-top, so we can access it without first navigating to frame-top, like so

//navigate to our application
    await driver.get("https://the-internet.herokuapp.com/nested_frames");

    //Navigate to left Frame
    await driver.switchTo().frame(driver.findElement(By.name('frame-bottom')))

    //return name of current frame
    let currentFrame = await driver.executeScript("return self.name");

    //output name of current frame
    console.log("This is the name of the frame we've accessed: " + currentFrame);

So we have now looked at handling frames in Selenium with JavaScript, now let’s take a quick look at iFrames in Selenium.
