Most Complete MSTest Framework Tutorial Using .Net Core

Setting up MSTest framework for Visual Studio

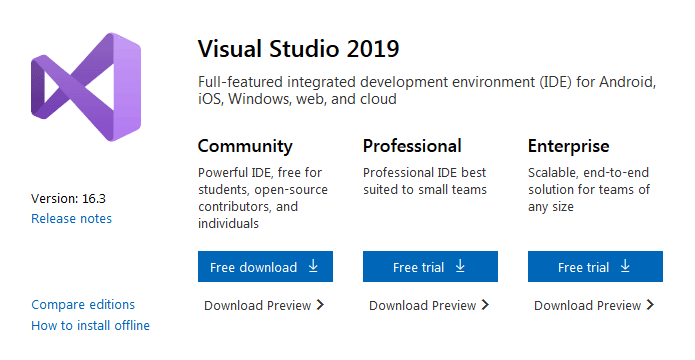

For development, we are making use of the Community Edition of Visual Studio 2019; the same can be downloaded from the official download site of Visual Studio. You also have the option to choose from the Professional or Enterprise edition, though the choice should solely depend upon your project requirements.

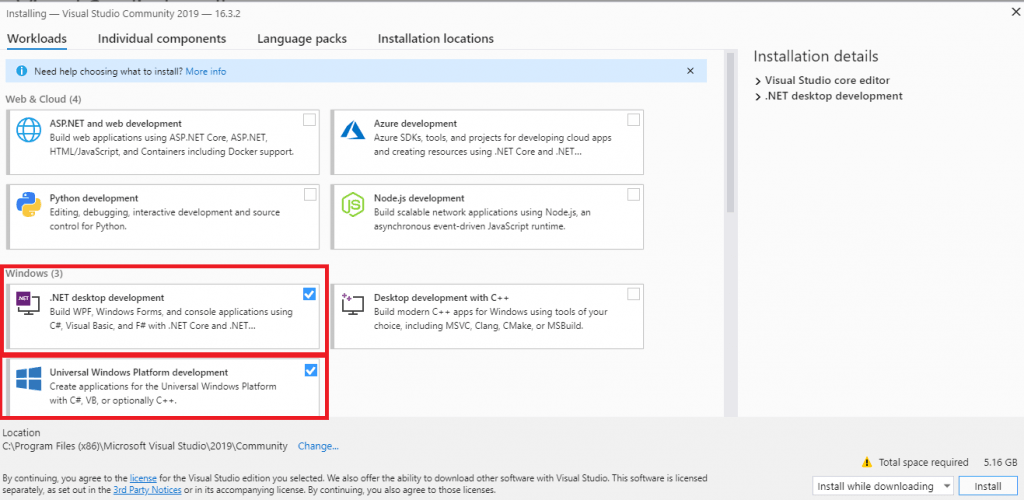

The necessary packages are selected for the installation since the packages occupy a good amount of disk space after installation.

Once the installation is complete, we have to install the required packages for executing the tests based on the MSTest framework.

Installation of MSTest Framework & MSTest Adapter

Every test framework requires the corresponding Test Adapter to be installed, as the test adapter is an enabler for executing the test code. As this Selenium C# tutorial is focused on the MSTest framework, you have to install MSTest Adapter to run MSTests.

In order to install the required packages, perform the following steps:

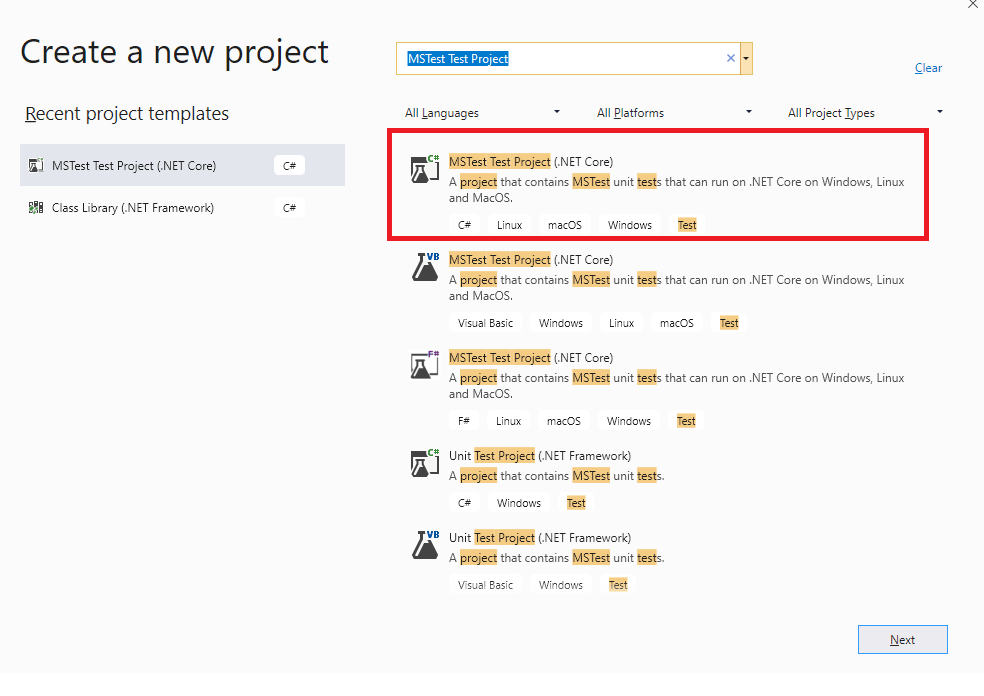

• Create a new project of the type ‘MSTest Test Project (.Net Core)’ in Visual Studio.

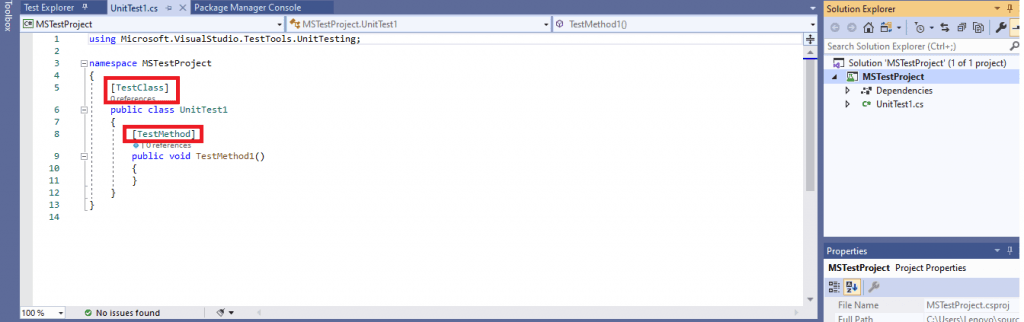

• As it is a project based on the MSTest framework, the default C# file that comes along with the project has a couple of attributes, i.e., [TestMethod] and [TestClass].

In case you have not created an MSTest Test Project, you can still install the MSTest framework using the ‘NuGet Package Manager Console commands’ or using the NuGet GUI.

At the time of this blog, the latest version of the MSTest framework and MSTest Adapter was 2.2.1, respectively.

You can download and install the MSTest framework by either of the two methods, as shown below:

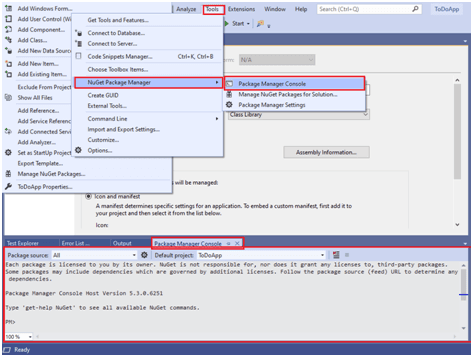

a. PM (Package Manager) commands from the ‘‘NuGet Package Manager Console” – For executing commands from the NuGet PM console, go to ‘Tools’ -> ‘NuGet Package Manager’ -> ‘Package Manager Console.’

To install the packages, we make use of the Install-Package command with the required as the argument to the command.

Install-Package MSTest.TestAdapter
Install-Package MSTest.TestFramework
Install-Package Microsoft.NET.Test.Sdk

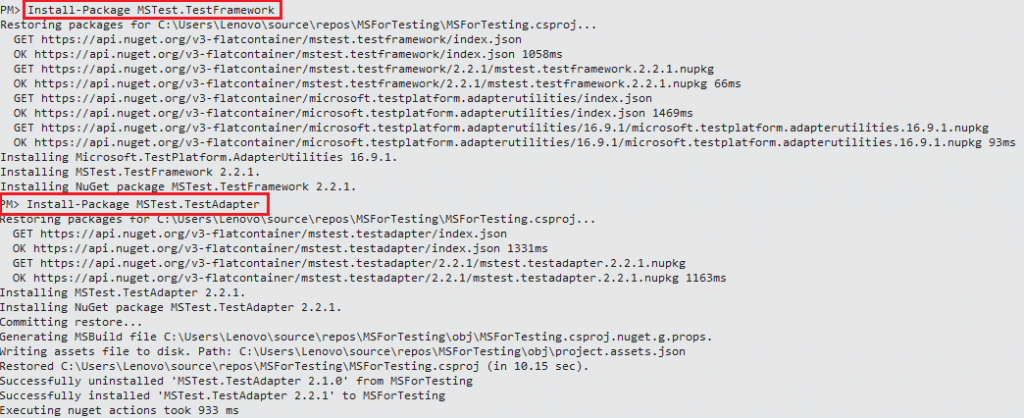

The installation screenshots are shown below:

You can confirm whether the packages are installed or not by executing the command Get-Package on the Package Manager Console. Shown below is the command execution output:

PM> Get-Package

Id                                  Versions
--                                  --------
MSTest.TestFramework                {2.2.1}
MSTest.TestAdapter                  {2.2.1}
coverlet.collector                  {1.2.0}
Microsoft.NET.Test.Sdk              {16.5.0}

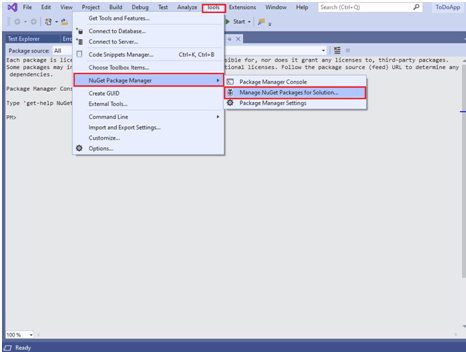

b. NuGet Package Manager – To open the NuGet Package Manager, go to ‘Tools’ -> ‘NuGet Package Manager’ -> ‘Manage NuGet Packages for Solution.’

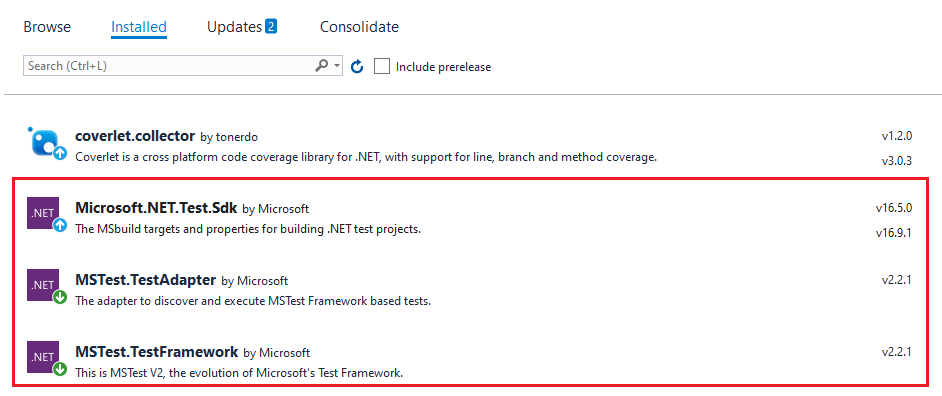

In the Browse section, search for the following packages and click Install:

• MSTest.TestAdapter
• MSTest.TestFramework
• Microsoft.NET.Test.Sdk

In this MSTest tutorial, any reference to the MSTest framework refers to MSTest v2, i.e., version 2.2.1.

To know about the installation and setup of the MSTest framework in detail, you can refer to our blog: MSTest Tutorial On: Environment Setup For Selenium Testing.

Austin Siewert

CEO, Vercel

Discovered @TestMu AI yesterday. Best browser testing tool I've found for my use case. Great pricing model for the limited testing I do 👏

2M+ Devs and QAs rely on TestMu AI

Deliver immersive digital experiences with Next-Generation Mobile Apps and Cross Browser Testing Cloud

Sign up with googleSign up with Email

Take this certification to master the fundamentals of Selenium automation testing with C# and prove your credibility as a tester.

Here’s a short glimpse of the Selenium C# 101 certification from TestMu AI:

Salient Features of MSTest V2

The M2Test V2 framework was introduced a couple of years back with powerful features that are ideal for using the MSTest framework for cross browser testing. Some of the striking features of MSTest V2 are below:

• Open-Source – MSTest V2 is open-source, and the project is hosted on GitHub. The public repositories of the MSTest V2 are Microsoft/testfx and Microsoft/testfx-docs. Since the project is open-source, it allows contributions from the community.
• Cross-Platform support – V2 version of the MSTest framework is a cross-platform implementation of the framework using which developers can write tests targeting .NET Framework, .NET Core, and ASP.NET Core on platforms like Linux, Mac, and Windows. Begin your free ASP.NET testing.
• Extensible – Like other test frameworks, the MSTest framework can now be extended with custom test attributes & custom asserts.
• Data-driven testing -The framework allows the users to define their tests’ behavior by providing the facility to data drive the tests. By making the tests data-driven, one method can be executed multiple times by providing different input arguments.
• Annotations – Similar to other test frameworks like NUnit that support annotations, the V2 version of MSTest framework allows customizing the execution of the test execution lifecycle via annotations e.g. [TestClass], [TestMethod], [TestInitialize], [TestCleanup], etc.
• Parallel Test execution – Using MSTest V2, tests can be executed in parallel, reducing the test execution time. Parallel test execution can be achieved using In-Assembly Parallel (via Annotations or RunSettings).

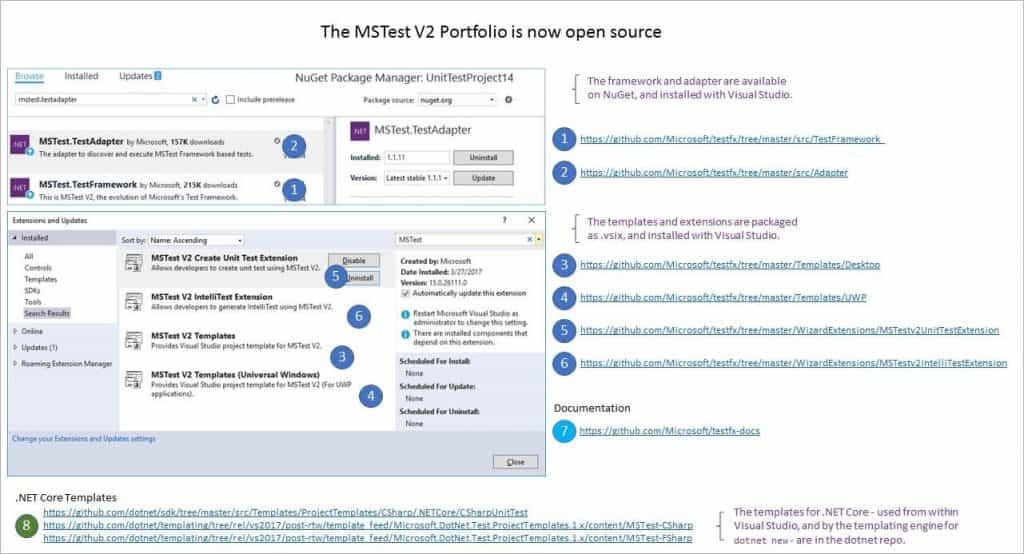

The MSTest V2 portfolio comprises the framework, adapter, templates, etc.

Due to the implementation of these features, MSTest V2 is preferred by developers who are performing automated browser testing using Selenium C#.

Migration from MSTest V1 to MSTest V2

We highly recommend using the latest version of Visual Studio, i.e., VS 2019, but in case you are using an old version that comes with MSTest V1, you can migrate to MSTest V2 by following these simple steps:

• Remove the reference to Microsoft.VisualStudio.QualityTools.UnitTestFramework.
• Add a reference to MSTest V2 nuget package – MSTest.TestFramework.
• Add reference to MSTest V2 nuget package – MSTest.TestAdapter.

This MSTest Tutorial for beginners and professionals will help you learn how to use MSTest framework with Selenium C# for performing Selenium automation testing.

Automated browser testing with MSTest Framework & Selenium

During the process of web product development, you would have encountered situations where some functionalities do not work as expected on certain browsers (or browser versions) or devices or operating systems. Hence, it is necessary to test the product functionalities on different browsers, particularly on those browsers which your customers will use to access your website/web application. From a development standpoint, you have to ensure that changes for browser compatibility do not hamper the design aspects of the product, i.e., the UI and UX. MSTest can be used with the Selenium framework to perform cross browser testing and ensure that the behavior of the product is uniform across different browsers and devices, you can also read what is Selenium to understand better.

Running MSTest on Local Selenium Environment

Cross browser testing can be performed by installing the Selenium WebDriver of the browser on which you want to do the testing. Selenium WebDriver for popular web browsers like Chrome, Firefox, Internet Explorer, Microsoft Edge, etc. can be downloaded from the locations mentioned below:

If the WebDriver executable is present in the location where the web browser executable is present, you need not specify the path when the WebDriver instance is created in the source code.To demonstrate the MSTest framework usage with local Selenium WebDriver, we will take the example of a simple To-Do app.

The test scenario for the Sample ToDo app will be:

• Navigate to the to-do app https://lambdatest.github.io/sample-todo-app/ using the Firefox WebDriver.
• Mark the first two items as Done, i.e., Check those two items.
• Add a new item – Adding item to the list.
• Click the Add button to add that new item to the list.

Implementation

Create a new project of the type MSTest Test Project (.Net Core). The default test framework for this project is MSTest. Hence you need not perform the package installation for the MSTest framework again. As we will be using the Selenium framework, you have to install the Selenium WebDriver.

To install the Selenium WebDriver packages for Visual Studio, you have to execute the following commands on the Package Manager Console:

Install-Package Selenium.WebDriver
Install-Package Selenium.Firefox.WebDriver
Install-Package Selenium.WebDriver.ChromeDriver

In case you require in-depth information about Selenium WebDrivers and web element locators, we recommend you to check out the Locators In Selenium WebDriver tutorial.

FileName – src/Test/Utilities/Browser.cs

namespace OpenQA.Selenium
{
    public enum BrowserType
    {
        NotSet,
        Chrome,
        Firefox,
        Edge,
    }
}

To make the code more modular, we have separated the task of creating Selenium WebDrivers for different web browsers in a separate file, i.e., WebDriverInfra.cs. All it has is the implementation for the creation of WebDriver instances of Chrome, Firefox, Edge, etc.

FileName – src/Test/Utilities/WebDriverInfra.cs

using System;
using OpenQA.Selenium.Chrome;
using OpenQA.Selenium.Edge;
using OpenQA.Selenium.Firefox;
using OpenQA.Selenium.IE;

namespace OpenQA.Selenium
{
    internal static class WebDriverInfra
    {
        public static IWebDriver Create_Browser(BrowserType browserType)
        {
            switch (browserType)
            {
                case BrowserType.Chrome:
                    return new ChromeDriver();
                case BrowserType.Firefox:
                    return new FirefoxDriver();
                case BrowserType.Edge:
                    return new EdgeDriver();
                default:
                    throw new ArgumentOutOfRangeException(nameof(browserType), browserType, null);
            }
        }
    }
}

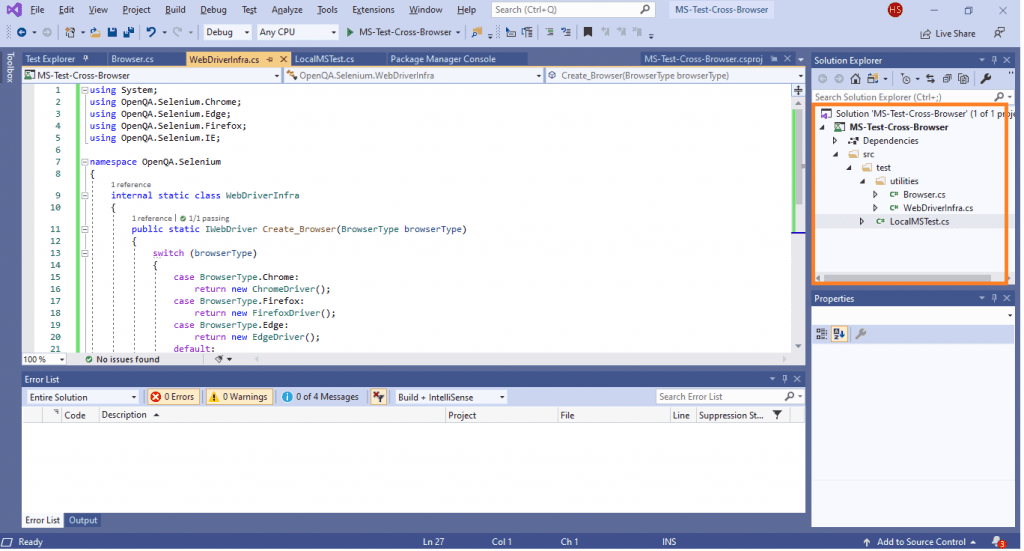

The code structure is as shown below:

FileName – src/Test/LocalMsTest.cs

using Microsoft.VisualStudio.TestTools.UnitTesting;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using OpenQA.Selenium;
using OpenQA.Selenium.Chrome;
using OpenQA.Selenium.Firefox;
using System.Threading.Tasks;
using System.Text.RegularExpressions;
using OpenQA.Selenium.Support.UI;
using OpenQA.Selenium.Interactions;
/* For using Remote Selenium WebDriver */
using OpenQA.Selenium.Remote;

[assembly: Parallelize(Workers = 0, Scope = ExecutionScope.ClassLevel)]

namespace MS_Test_Cross_Browser
{
    [TestClass]
    public class UnitTest
    {
        String test_url = "https://lambdatest.github.io/sample-todo-app/";
        String itemName = "Yey, Let's add it to list";

        [TestMethod]
        [DataRow(BrowserType.Chrome)]
        [DataRow(BrowserType.Firefox)]
        public void NavigateToDoApp(BrowserType browserType)
        {
            using (var driver = WebDriverInfra.Create_Browser(browserType))
            {
                driver.Navigate().GoToUrl(test_url);

                driver.Manage().Window.Maximize();

                Assert.AreEqual("Sample page - lambdatest.com", driver.Title);
                // Click on First Check box
                IWebElement firstCheckBox = driver.FindElement(By.Name("li1"));
                firstCheckBox.Click();

                // Click on Second Check box
                IWebElement secondCheckBox = driver.FindElement(By.Name("li2"));
                secondCheckBox.Click();

                // Enter Item name
                IWebElement textfield = driver.FindElement(By.Id("sampletodotext"));
                textfield.SendKeys(itemName);

                // Click on Add button
                IWebElement addButton = driver.FindElement(By.Id("addbutton"));
                addButton.Click();

                // Verified Added Item name
                IWebElement itemtext = driver.FindElement(By.XPath("/html/body/div/div/div/ul/li[6]/span"));
                String getText = itemtext.Text;
                Assert.IsTrue(itemName.Contains(getText));

                /* Perform wait to check the output */
                //System.Threading.Thread.Sleep(4000);

                Console.WriteLine("LT_ToDo_Test Passed");

                driver.Quit();
            }
        }
    }
}

Code Walkthrough

Step 1 – To start with, the entire Test Code is added under an [TestClass] annotation.

using OpenQA.Selenium.Support.UI;
using OpenQA.Selenium.Interactions;
/* For using Remote Selenium WebDriver */
using OpenQA.Selenium.Remote;

namespace MS_Test_Cross_Browser
{
    [TestClass]
    ...................
    ....................
}

Step 2 – The ‘TestMu AI ToDo app’ is executed against two web-browsers, i.e., Firefox and Chrome. Hence, the [DataRow] attribute is used to set the values of the parameters (Firefox and Chrome) of the test.

namespace MS_Test_Cross_Browser
{
    [TestClass]
    public class UnitTest
    {
        ..............................
        ..............................

        [TestMethod]
        [DataRow(BrowserType.Chrome)]
        [DataRow(BrowserType.Firefox)]
        ..............................
        ..............................
    }
    ..............................
}

Step 3 – The method, i.e., NavigateToDoApp, which contains the actual test implementation, is added under the [TestMethod] annotation.

The test method is iteratively called for each browser type, i.e., Chrome and Firefox, and once the browser instance is created, the required test operations are performed.

[TestClass]
    public class UnitTest
    {
        String test_url = "https://lambdatest.github.io/sample-todo-app/";
        String itemName = "Yey, Let's add it to list";

        [TestMethod]
        [DataRow(BrowserType.Chrome)]
        [DataRow(BrowserType.Firefox)]
        public void NavigateToDoApp(BrowserType browserType)
        {
            using (var driver = WebDriverInfra.Create_Browser(browserType))
            {
                driver.Navigate().GoToUrl(test_url);

                driver.Manage().Window.Maximize();
                ..................................
                ..................................
            }
        }
    }

The first two items on https://lambdatest.github.io/sample-todo-app/ are checked and a new item with the text ‘Yey, Let’s add it to list’ is added to the list. The required web elements on the page are located using the Inspect Tool functionality of the respective browser.

public void NavigateToDoApp(BrowserType browserType)
{
     using (var driver = WebDriverInfra.Create_Browser(browserType))
     {
	driver.Navigate().GoToUrl(test_url);

             driver.Manage().Window.Maximize();

             Assert.AreEqual("Sample page - lambdatest.com", driver.Title);
              // Click on First Check box
             IWebElement firstCheckBox = driver.FindElement(By.Name("li1"));
             firstCheckBox.Click();
              .............................................
              .............................................

	  // Verified Added Item name
                IWebElement itemtext = driver.FindElement(By.XPath("/html/body/div/div/div/ul/li[6]/span"));
                String getText = itemtext.Text;
                Assert.IsTrue(itemName.Contains(getText));

                /* Perform wait to check the output */
                //System.Threading.Thread.Sleep(4000);

                Console.WriteLine("LT_ToDo_Test Passed");

                driver.Quit();
                .............................................
  .............................................

Below is the execution snapshot on the Firefox browser and a screenshot from Test Explorer on Visual Studio.

Parallel Testing using MSTest Framework

Parallelism in the MSTest framework can be achieved by using the In-assembly Parallel feature of MSTest V2. Below are the two ways in which it can be implemented:

• Using Annotations

Parallelism is possible at the Class level or the Method level.

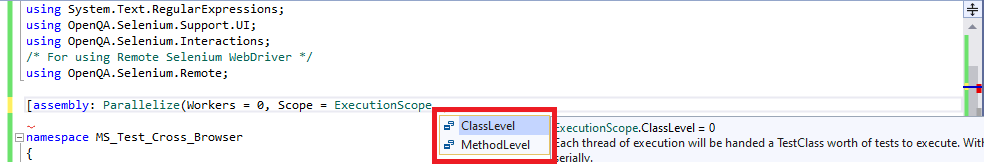

The syntax is as shown below:

[assembly: Parallelize(Workers = 0, Scope = ExecutionScope.MethodLevel)]
[assembly: Parallelize(Workers = 0, Scope = ExecutionScope.ClassLevel)]

In the above syntax:

• Workers – Indicate the number of threads to run the tests. Set it to ‘0’ in case you do want serial execution.
• Scope – Indicates if the runner should parallelize threads at the Method Level or Class Level. If the Scope is set to MethodLevel, all the tests are executed in parallel. If the Scope is set to ClassLevel, tests in the class are executed serially, whereas the test classes will be executed in parallel. If there are scenarios where there is inter-dependency between the tests, you should use parallel execution at ClassLevel.
• Using RunSettings

In case your project has multiple test assemblies which you want to parallelize, you can achieve parallelism by creating a file named .runsettings at the root of the solution.

<?xml version="1.0" encoding="utf-8"?>
<RunSettings>
  <MSTest>
    <Parallelize>
      <Workers>4</Workers>
      <Scope>MethodLevel</Scope>
    </Parallelize>
  </MSTest>
</RunSettings>

The example demonstrated as a part of Local Testing can be converted to Parallel Test by simply adding the following line in src/Test/LocalMsTest.cs

[assembly: Parallelize(Workers = 2, Scope = ExecutionScope.MethodLevel)]

Cross Browser Testing using MSTest Framework on the Cloud

Parallel testing on local infrastructure can hit a roadblock if you want to test your website/web application across ‘N’ different browsers, browser versions, operating systems, and devices. You obviously cannot invest endlessly in setting up the test infrastructure since it is neither scalable nor economical. Not performing thorough cross browser testing might result in a buggy experience if the customer accesses your product from an untested web browser. It reduces the overall test coverage as well.

A feasible solution is to use a cloud based cross browser testing platform like the TestMu AI, where tests are executed on a Remote Selenium Grid. Using TestMu AI, cross browser tests can be executed on 3000+ different combinations of browsers, operating systems, and devices.

Porting the existing implementation to remote Selenium Grid requires changes in the infrastructure-related code. Once you create an account on TestMu AI, you should make a note of the user-name & access-key from Profile Section as that combination is used for accessing the remote Selenium Grid on TestMu AI. The Automation Dashboard can be used to view all your text logs, screenshots, and video recording for your entire Selenium test.

The desired browser and platform capabilities are generated using TestMu AI capabilities Generator. For example, below are the capabilities for Safari on the macOS Mojave platform:

DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.SetCapability("user","Your Lambda Username")
capabilities.SetCapability("accessKey","Your Lambda Access Key")
capabilities.SetCapability("build", "your build name");
capabilities.SetCapability("name", "your test name");
capabilities.SetCapability("platform", "MacOS Mojave");
capabilities.SetCapability("browserName", "Safari");
capabilities.SetCapability("version","12.0");

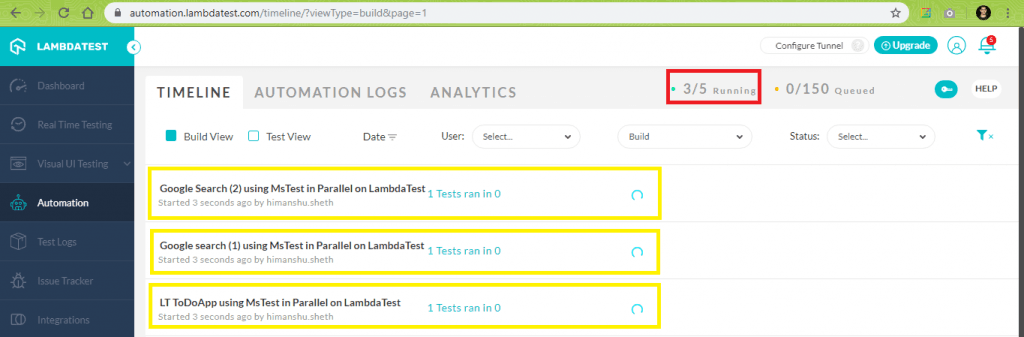

For demonstrating the usage of TestMu AI and the effectiveness of Parallel test execution on a Remote Selenium Grid, we will implement the below three test cases:

Test Case 1 – LamdaTest Sample To-Do App.

• Navigate to the to-do app https://lambdatest.github.io/sample-todo-app/.
• Mark the first two items as Done, i.e., Check those two items.
• Add a new item – Adding item to the list.
• Click the Add button to add that new item to the list.

Browsers on which cross-browser testing is performed are:

Test Case 2 & 3 – Google Search for TestMu AI.

• Navigate to Google.com
• Search for TestMu AI
• Quit the browser window

Both the test cases are the same, but the execution will be performed on different web browsers.

Implementation

FileName – 2_LT_Parallel_Test.cs

using Microsoft.VisualStudio.TestTools.UnitTesting;
using OpenQA.Selenium;
/* For using Remote Selenium WebDriver */
using OpenQA.Selenium.Remote;
using System;
using System.Threading;

[assembly: Parallelize(Workers = 5, Scope = ExecutionScope.MethodLevel)]

namespace ParallelLTSelenium
{
    [TestClass]
    public class ParallelLTTests
    {
        //ThreadLocal<IWebDriver> driver0 = new ThreadLocal<IWebDriver>();
        //ThreadLocal<IWebDriver> driver1 = new ThreadLocal<IWebDriver>();
        IWebDriver driver;

        String username = "user-name";
        String accesskey = "access-key";
        String gridURL = "@hub.lambdatest.com/wd/hub";

        DesiredCapabilities capabilities;

        [TestInitialize]
        public void setupInit()
        {
            capabilities = new DesiredCapabilities();

            capabilities.SetCapability("user", username);
            capabilities.SetCapability("accessKey", accesskey);
        }

        [DataTestMethod]
        [DataRow("chrome", "72.0", "Windows 10")]
        [DataRow("MicrosoftEdge", "18.0", "Windows 10")]
        [DataRow("Firefox", "70.0", "macOS High Sierra")]
        [DataRow("Safari", "12.0", "macOS Mojave")]

        [TestMethod]
        public void LT_ToDo_Test(String browser, String version, String os)
        {
            String itemName = "Yey, Let's add it to list";

            capabilities.SetCapability("browserName", browser);
            capabilities.SetCapability("version", version);
            capabilities.SetCapability("platform", os);
            capabilities.SetCapability("build", "LT ToDoApp using MsTest in Parallel on LambdaTest");
            capabilities.SetCapability("name", "LT ToDoApp using MsTest in Parallel on LambdaTest");

            driver = new RemoteWebDriver(new Uri("https://" + username + ":" + accesskey + gridURL), capabilities, TimeSpan.FromSeconds(2000));

            driver.Url = "https://lambdatest.github.io/sample-todo-app/";

            Assert.AreEqual("Sample page - lambdatest.com", driver.Title);
            // Click on First Check box
            IWebElement firstCheckBox = driver.FindElement(By.Name("li1"));
            firstCheckBox.Click();

            // Click on Second Check box
            IWebElement secondCheckBox = driver.FindElement(By.Name("li2"));
            secondCheckBox.Click();

            // Enter Item name
            IWebElement textfield = driver.FindElement(By.Id("sampletodotext"));
            textfield.SendKeys(itemName);

            // Click on Add button
            IWebElement addButton = driver.FindElement(By.Id("addbutton"));
            addButton.Click();

            // Verified Added Item name
            IWebElement itemtext = driver.FindElement(By.XPath("/html/body/div/div/div/ul/li[6]/span"));
            String getText = itemtext.Text;
            Assert.IsTrue(itemName.Contains(getText));

            /* Perform wait to check the output */
            System.Threading.Thread.Sleep(2000);

            Console.WriteLine("LT_ToDo_Test Passed");
        }

        [DataTestMethod]
        [DataRow("chrome", "72.0", "Windows 10")]
        [DataRow("MicrosoftEdge", "18.0", "Windows 10")]
        [DataRow("Firefox", "70.0", "macOS High Sierra")]

        [TestMethod]
        public void Google_Test_1(String browser, String version, String os)
        {
            capabilities.SetCapability("browserName", browser);
            capabilities.SetCapability("version", version);
            capabilities.SetCapability("platform", os);
            capabilities.SetCapability("build", "Google search (1) using MsTest in Parallel on LambdaTest");
            capabilities.SetCapability("name", "Google search (1) using MsTest in Parallel on LambdaTest");

            driver = new RemoteWebDriver(new Uri("https://" + username + ":" + accesskey + gridURL), capabilities, TimeSpan.FromSeconds(2000));

            //System.Threading.Thread.Sleep(2000);

            driver.Url = "https://www.google.com";

            IWebElement element = driver.FindElement(By.XPath("//*[@id='tsf']/div[2]/div[1]/div[1]/div/div[2]/input"));

            element.SendKeys("LambdaTest");

            /* Submit the Search */
            element.Submit();

            /* Perform wait to check the output */
            System.Threading.Thread.Sleep(2000);

            Console.WriteLine("Google_Test Passed");

        }

        [DataTestMethod]
        [DataRow("chrome", "72.0", "Windows 10")]
        [DataRow("MicrosoftEdge", "18.0", "Windows 10")]
        [DataRow("Firefox", "70.0", "macOS High Sierra")]
        [DataRow("Safari", "12.0", "macOS Mojave")]

        [TestMethod]
        public void Google_Test_2(String browser, String version, String os)
        {
            capabilities.SetCapability("browserName", browser);
            capabilities.SetCapability("version", version);
            capabilities.SetCapability("platform", os);
            capabilities.SetCapability("build", "Google Search (2) using MsTest in Parallel on LambdaTest");
            capabilities.SetCapability("name", "Google Search (2) using MsTest in Parallel on LambdaTest");

            driver = new RemoteWebDriver(new Uri("https://" + username + ":" + accesskey + gridURL), capabilities, TimeSpan.FromSeconds(2000));

            //System.Threading.Thread.Sleep(2000);

            driver.Url = "https://www.google.com";

            IWebElement element = driver.FindElement(By.XPath("//*[@id='tsf']/div[2]/div[1]/div[1]/div/div[2]/input"));

            element.SendKeys("LambdaTest");

            /* Submit the Search */
            element.Submit();

            /* Perform wait to check the output */
            System.Threading.Thread.Sleep(2000);

            Console.WriteLine("Google_Test Passed");

        }

        [TestCleanup]
        public void Cleanup()
        {
            if (driver != null)
                driver.Quit();
        }
    }
}

Code Walkthrough

Step 1 – OpenQA.Selenium.Remote package/namespace is imported as RemoteWebDriver class is defined in it.

/* For using Remote Selenium WebDriver */
using OpenQA.Selenium.Remote;

Step 2 – The TestMu AI credentials are passed for accessing the remote Selenium Grid. Refer to our documentation on TestMu AI Authentication Credentials to learn how to integrate TestMu AI in your test scripts.

String username = "user-name";
String accesskey = "access-key";
String gridURL = "@hub.lambdatest.com/wd/hub";
.......................................................................

Step 3 – Browser & Device capabilities are generated using the TestMu AI capabilities generator, and the same is passed to the Remote WebDriver API.

DesiredCapabilities capabilities = new DesiredCapabilities();

capabilities.SetCapability("user", user-name);
capabilities.SetCapability("accessKey", access-key);
capabilities.SetCapability("build", "Google Search (2) using MsTest in Parallel on LambdaTest");
capabilities.SetCapability("name", "Google Search (2) using MsTest in Parallel on LambdaTest");
capabilities.SetCapability("platform", "Windows 10");
capabilities.SetCapability("browserName", "Firefox");
capabilities.SetCapability("version", "62.0");

.................................................................................
.................................................................................
.................................................................................

driver = new RemoteWebDriver(new Uri("https://user-name:[email protected]/wd/hub"), capabilities, TimeSpan.FromSeconds(600));

Step 4 – The current plan on TestMu AI defines how many tests can be executed in parallel on the Remote Selenium Grid. For demo purposes, we have used 5 Parallel tests. Therefore, we have set the scope of Parallelism to MethodLevel with Workers to 5, i.e., five threads/tests.

[assembly: Parallelize(Workers = 5, Scope = ExecutionScope.MethodLevel)]

Step 5 – The initialization code is implemented as a part of the [TestInitialize] attribute. It will be called only once during the initialization of the tests.

[TestInitialize]
public void setupInit()
{
	capabilities = new DesiredCapabilities();

	capabilities.SetCapability("user", username);
	capabilities.SetCapability("accessKey", accesskey);
}

Step 6 – As the browser capabilities on TestMu AI accept input parameters as browser-name, browser-version, platform-name, the combination is passed via [DataRow] attribute. These are passed as the input parameters to each test-case.

Each test is executed iteratively till all the test combinations as a part of [DataRow] are exhausted. The remote web-driver is created as a part of the test-case as it uses these three parameters to create a browser instance on the target platform.

[DataTestMethod]
[DataRow("chrome", "72.0", "Windows 10")]
[DataRow("MicrosoftEdge", "18.0", "Windows 10")]
[DataRow("Firefox", "70.0", "macOS High Sierra")]
[DataRow("Safari", "12.0", "macOS Mojave")]

[TestMethod]
public void LT_ToDo_Test(String browser, String version, String os)
{
	String itemName = "Yey, Let's add it to list";

	capabilities.SetCapability("browserName", browser);
      capabilities.SetCapability("version", version);
      capabilities.SetCapability("platform", os);
      capabilities.SetCapability("build", "LT ToDoApp using MsTest in Parallel on LambdaTest");
      capabilities.SetCapability("name", "LT ToDoApp using MsTest in Parallel on LambdaTest");

      driver = new RemoteWebDriver(new Uri("https://" + username + ":" + accesskey + gridURL), capabilities, TimeSpan.FromSeconds(2000));

      driver.Url = "https://lambdatest.github.io/sample-todo-app/";
	...................................................
      ...................................................
      ...................................................

The rest of the implementation is specific to what needs to be achieved as a part of the test case, i.e., Operations on TestMu AI ToDo app or Google Search for ‘TestMu AI’ on specific browser/OS combinations.

As seen in the execution snapshot procured from Visual Studio, the test case is performed for 4 different browser/OS combinations, which were passed in the [DataRow] attribute.

Results

1)  LT_ToDo_Test
    Duration: 1 min

2)  LT_ToDo_Test (chrome,72.0,Windows 10)
    Duration: 24 sec

3)  LT_ToDo_Test (MicrosoftEdge,18.0,Windows 10)
    Duration: 27 sec

    Open additional output for this result

4)  LT_ToDo_Test (Firefox,70.0,macOS High Sierra)
    Duration: 37 sec

    Open additional output for this result

5)  LT_ToDo_Test (Safari,12.0,macOS Mojave)
    Duration: 28 sec

You can visit https://automation.lambdatest.com/logs/?testID=&build= to check the execution status of the test. As seen in the screenshot from TestMu AI automation, three tests were executed in Parallel.

Below is the snapshot of successful test execution from Test Explorer on Visual Studio and Automation Tab (Test Status = Completed) on TestMu AI.
