Mastering CSS Units: A Complete Guide

Introduction to Absolute Units

Absolute CSS units are fixed measurements that do not change based on external factors like screen or browser sizes. These units stay consistent and the same across all device sizes. This means that an element, when set to an absolute value, will remain the same on large desktops and handheld devices.

Here are some common absolute units in CSS.

Pixel Unit (px)

Pixels or px are the most common absolute length units used in CSS. 1 pixel stands for 1 single dot on the screen. However, don’t confuse the CSS pixel with actual pixels. A CSS pixel is not necessarily equal to one physical screen pixel.

1 pixel is defined as 1/96 of an inch. But this was defined when the computer monitors had a resolution of 1024×768 px and a DPI( Dots/Pixels per inch) of 96.

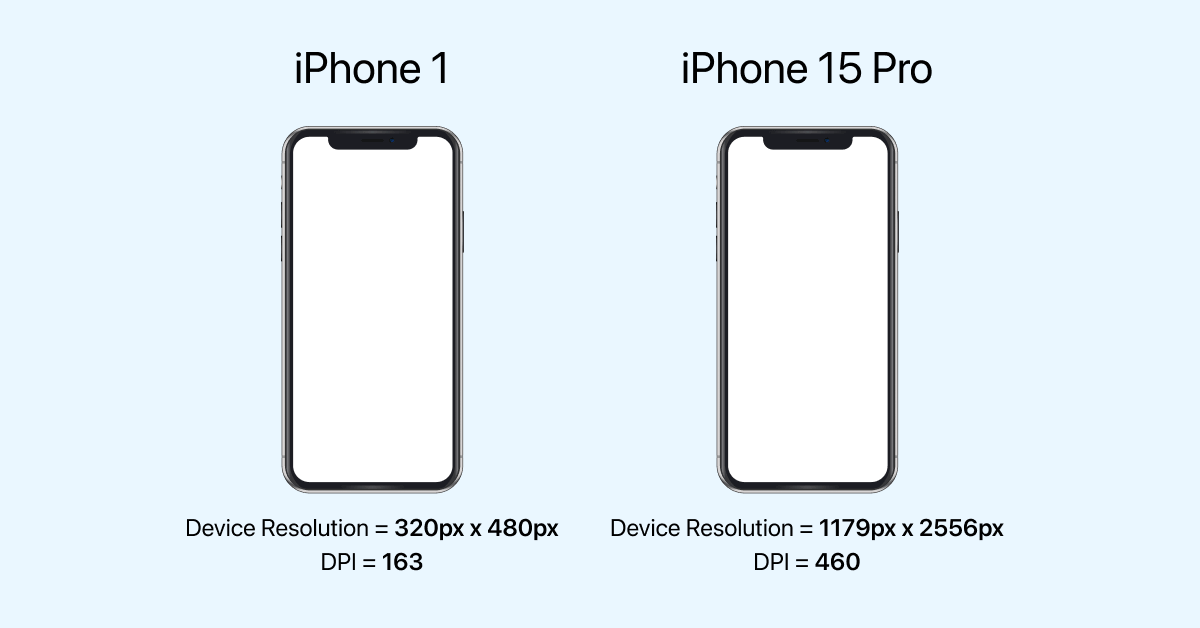

Today, modern computer monitors with the latest high-density screens have a DPI of almost 3 times the old monitors. The same thing applies to mobile phones or any screen-related device. The image below shows a comparison between the 1st generation of iPhone and the latest model (i.e., iPhone 15 Pro) in terms of resolution.

As you can see, the screens have become denser; hence, 1 pixel of a CSS unit is no longer equal to 1 physical pixel.

To summarize, CSS pixels are logical pixels used to define values for CSS properties, and device pixels are the physical screen pixels. So hereafter, whenever we discuss pixels, we refer to CSS pixels (not physical screen pixels).

In the below example, we have three texts in < p > tags with font sizes of 16px, 20px and 24px respectively.

<div>
<p style="font-size: 16px;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 20px;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 24px;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

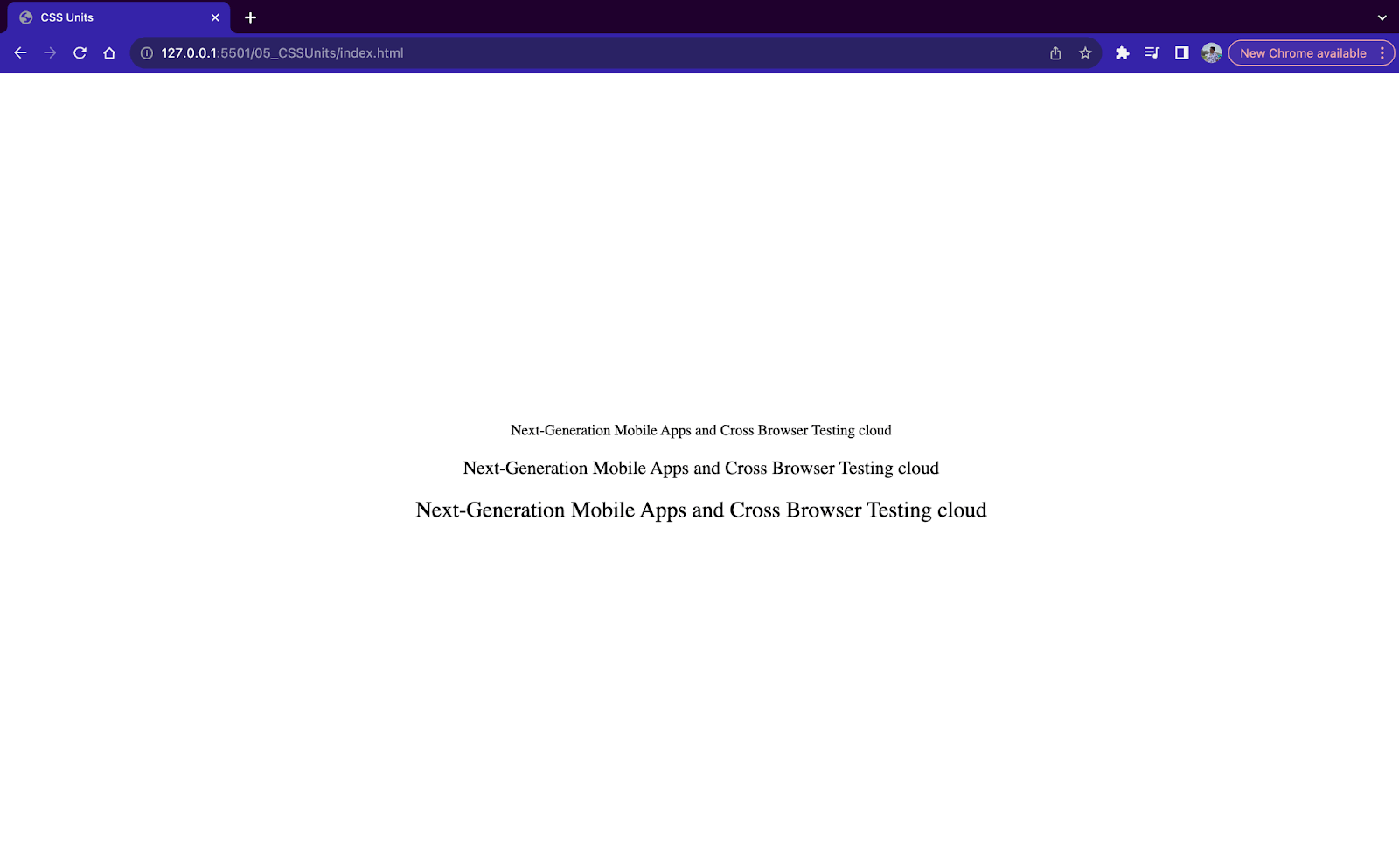

Pixel unit example 1

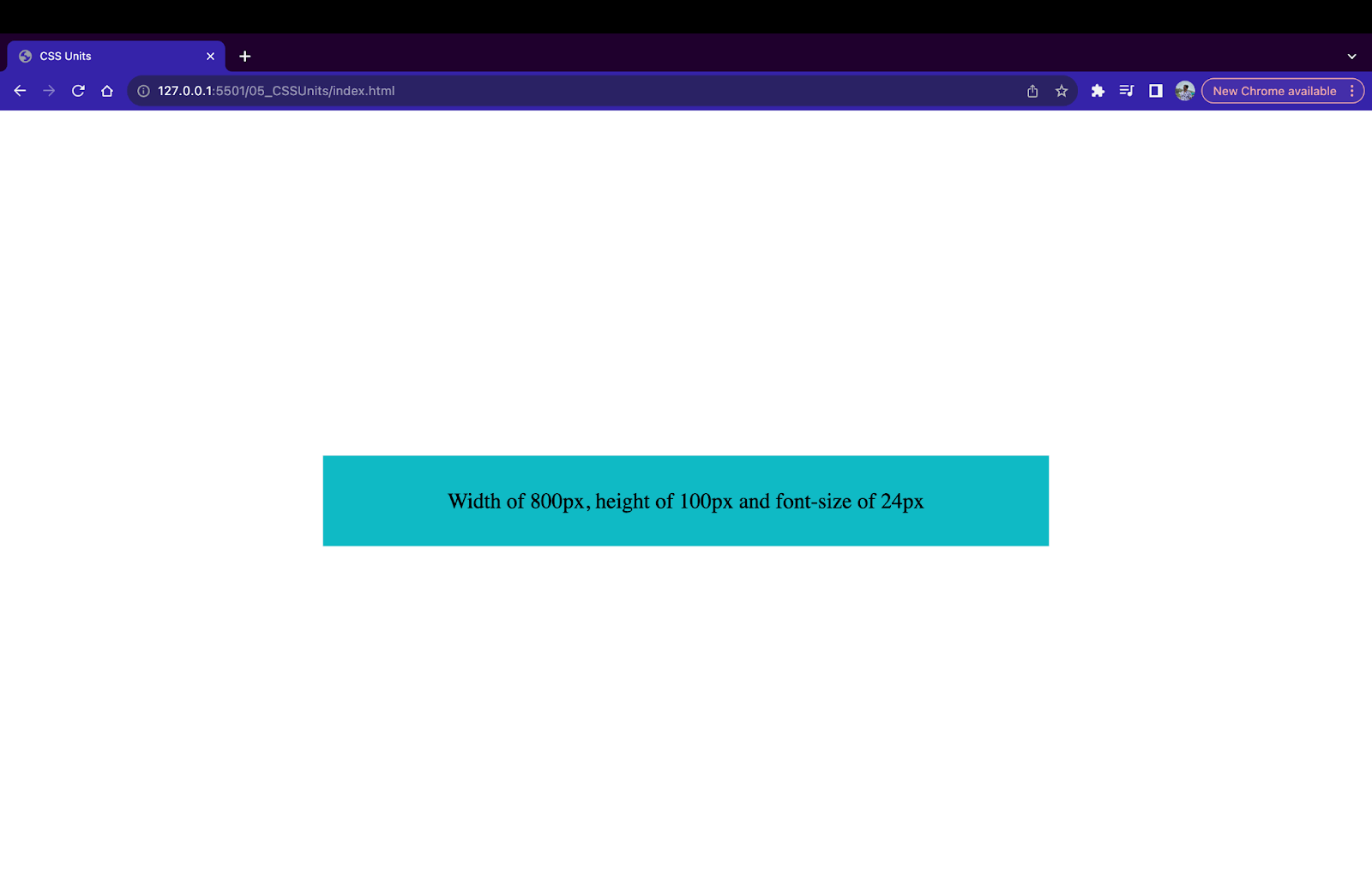

Although the pixel unit is mostly used in font-related properties, we can also use it for specifying widths, heights, margins, paddings, etc. In the example below, we provide a width of 800px and a height of 100px for a < div > element.

<div style="width: 800px;
            height: 100px;
            background-color: #0ebac5;
            font-size: 24px;">
     Width of 800px, height of 100px and font-size of 24px
</div>

Pixel unit example 2

Pixels (px) are the most popular and go-to unit while providing measurements in CSS. However, pixel units can present challenges during responsive behavior due to their fixed-size nature. If the provided value exceeds the screen size, the browser will add a scroll bar to fit the content on the page.

<div style="width: 2800px;
            height: 100px;
            background-color: #0ebac5;
            font-size: 24px;">
     Width of 2800px, height of 100px and font-size of 24px
</div>

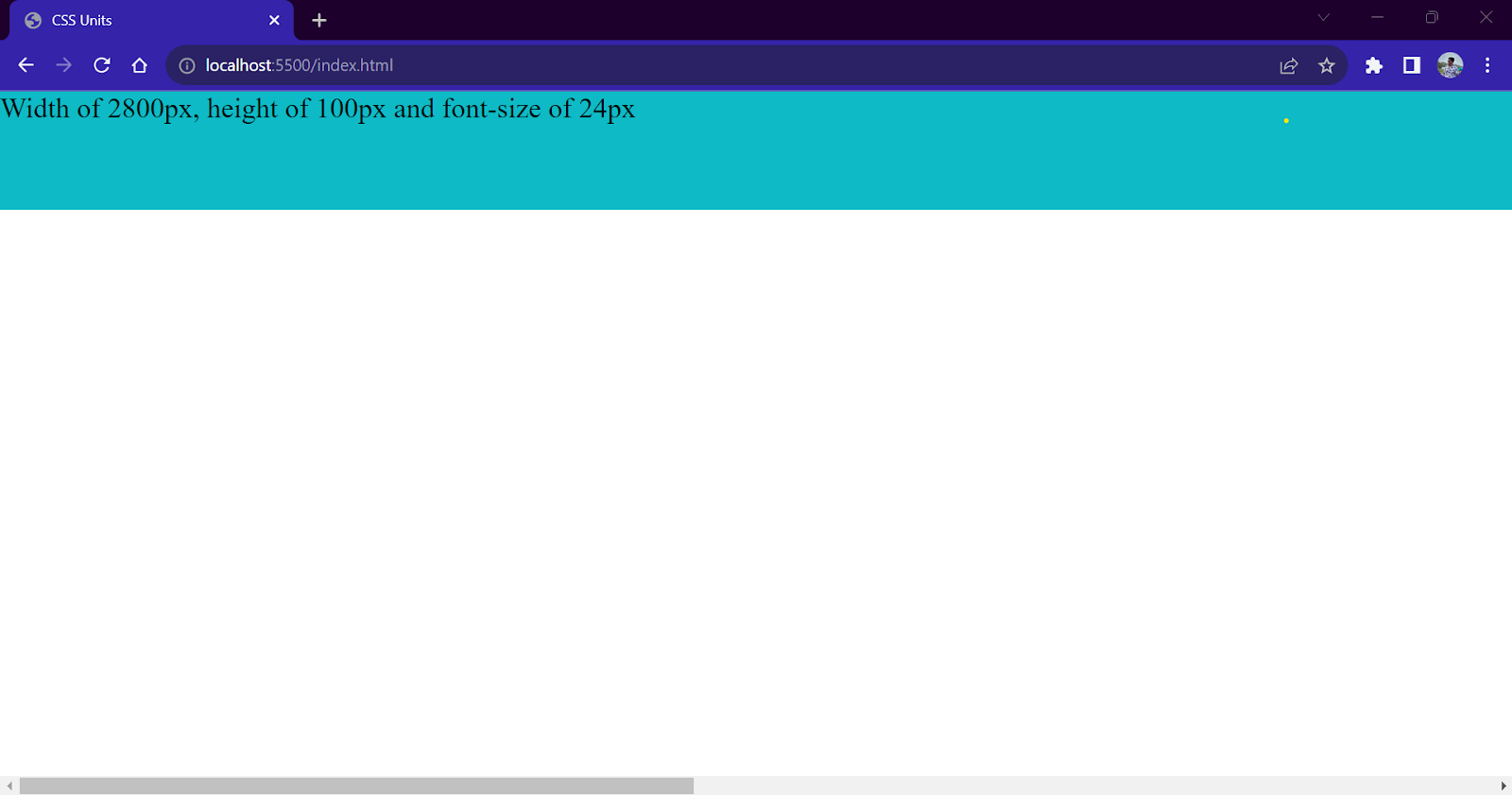

Scrollbar at the bottom due to absolute units

Inches Unit (in)

In CSS, the inch unit is equivalent to 96px, i.e., 1in = 96px. Similar to pixels, 1 inch in CSS is not equal to 1 physical inch.

<div>
<p style="font-size: 0.25in;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 0.5in;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 1in;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

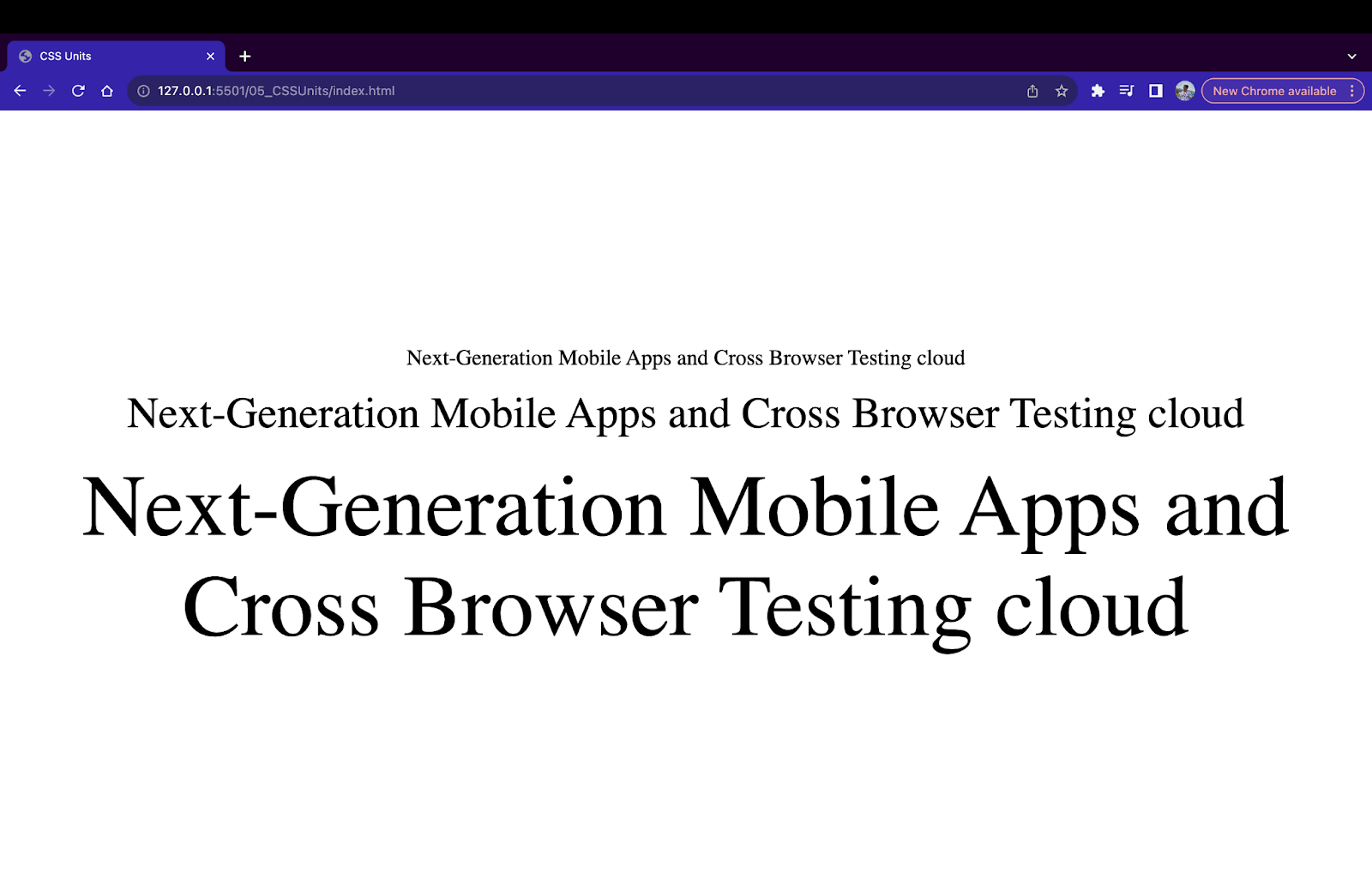

Inches unit example

Centimeter Unit (cm)

In CSS, a 1-centimeter unit or 1cm equals 25.2/64 inches or 37.8px. The cm unit is used to specify length values in centimeters. Similar to pixels, 1cm in CSS is not equal to 1cm in real life.

<div>
<p style="font-size: 1cm;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 2cm;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 3cm;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

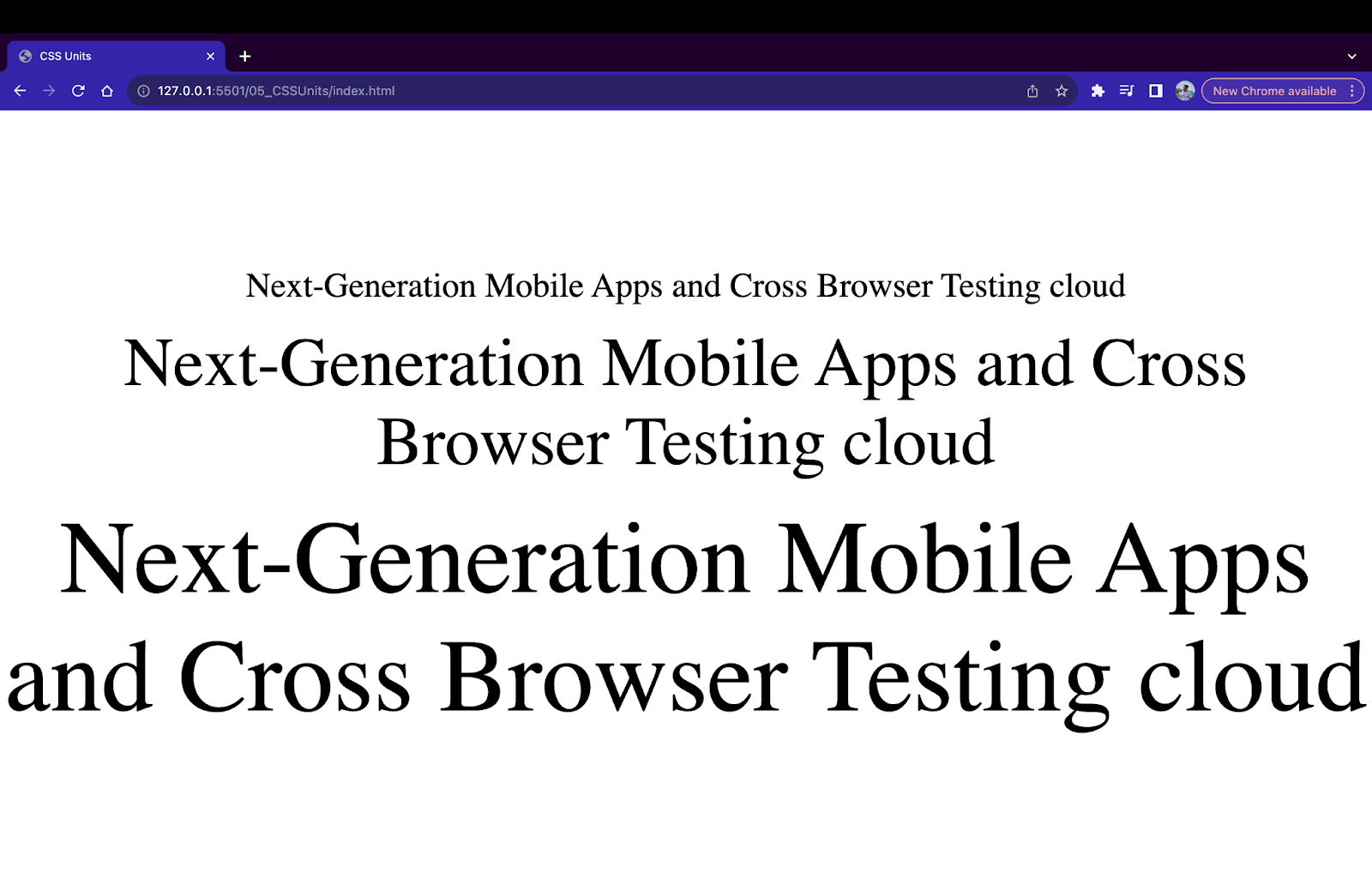

Centimeter unit example

Millimeter Unit (mm)

The millimeter unit or 1mm is an absolute CSS unit where 1mm equals 3.78px or 1/10 of 1 cm. Generally, the centimeter (cm) and millimeter (mm) units are rarely used and have minimal use cases.

<div>
<p style="font-size: 5mm;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 10mm;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 15mm;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

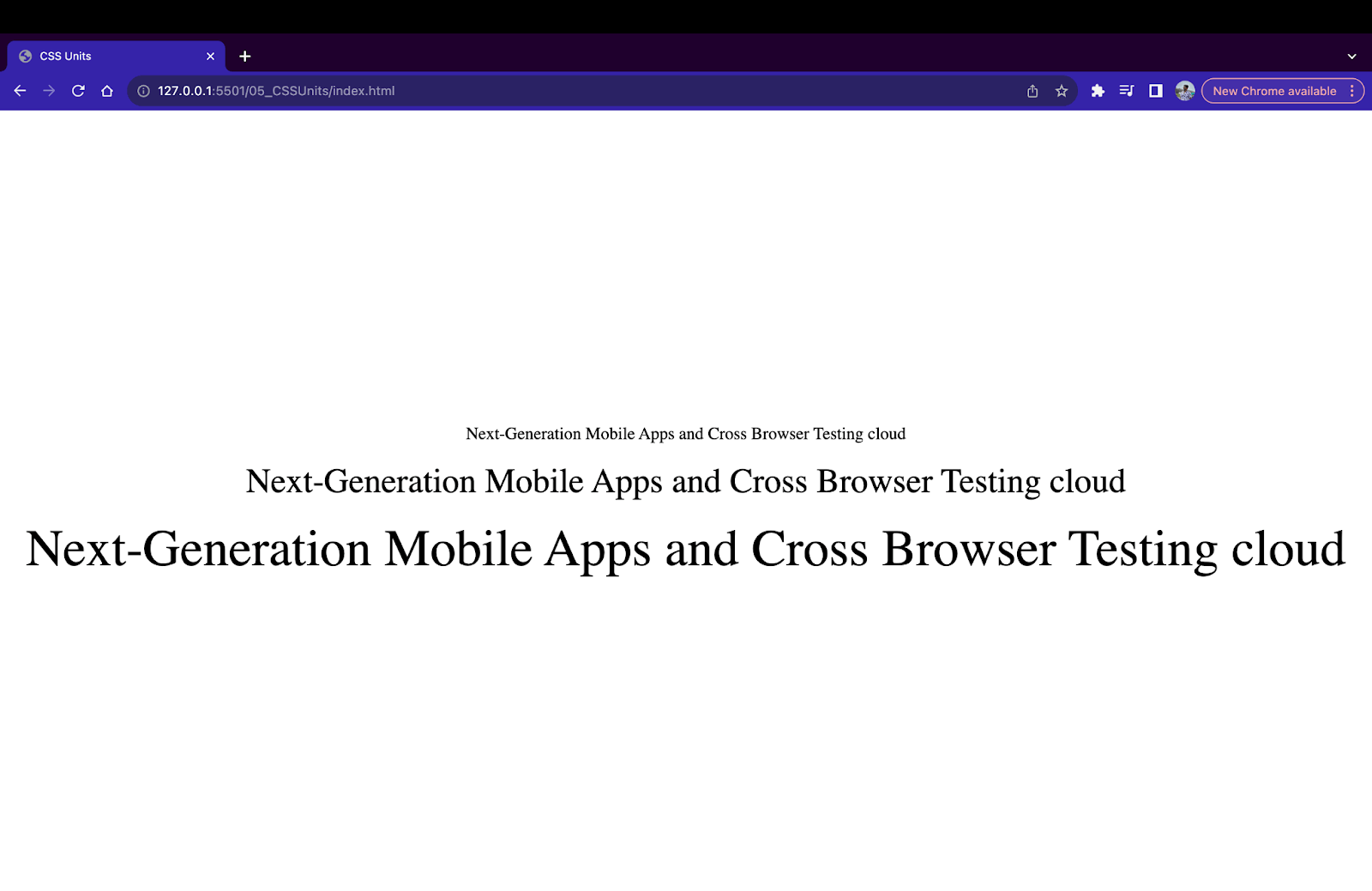

Millimeter unit example

Quarter Millimeter Unit (q)

A quarter millimeter unit or 1q roughly equals 0.944px or 1/4 of 1mm unit. This is one of the smallest measurements available in CSS and is only used in cases where minute adjustments of spacing (or lengths) are required.

<div>
<p style="font-size: 10q;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 25q;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 50q;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

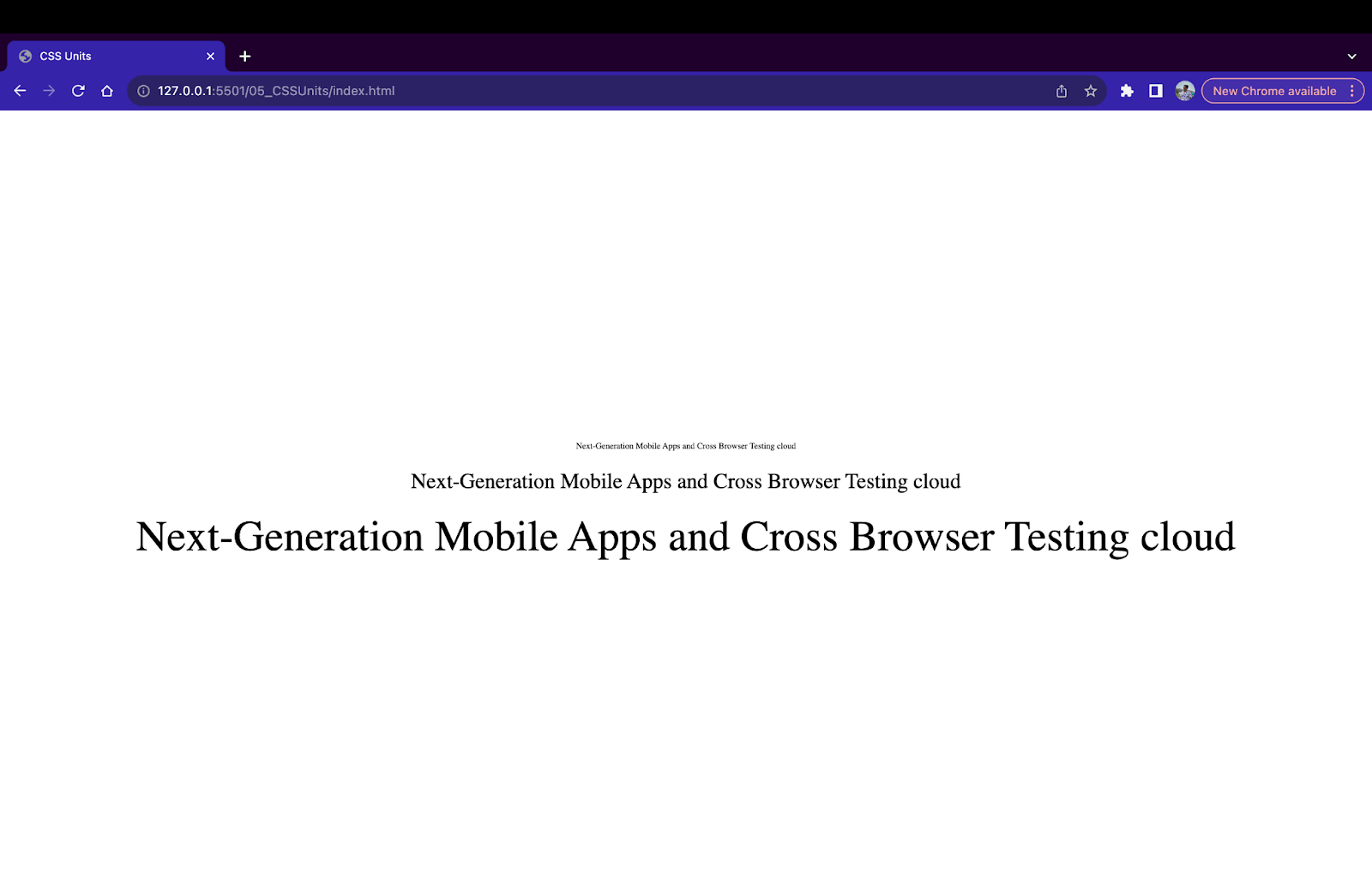

Quarter millimeter unit example

Points Unit (pt) and Picas Unit (pc)

Points (pt) and Picas (pc) units are two additional units that are used alongside the pixel unit. In CSS, 1 point unit or 1pt is equivalent to 1.33px or 1/72 inch, and 1 picas or 1pc is equivalent to 16px or 1/6 inch. These units are used when precise control over sizing and layout is required.

<div>
<p style="font-size: 10pt;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 20pt;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 30pt;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

Points unit example

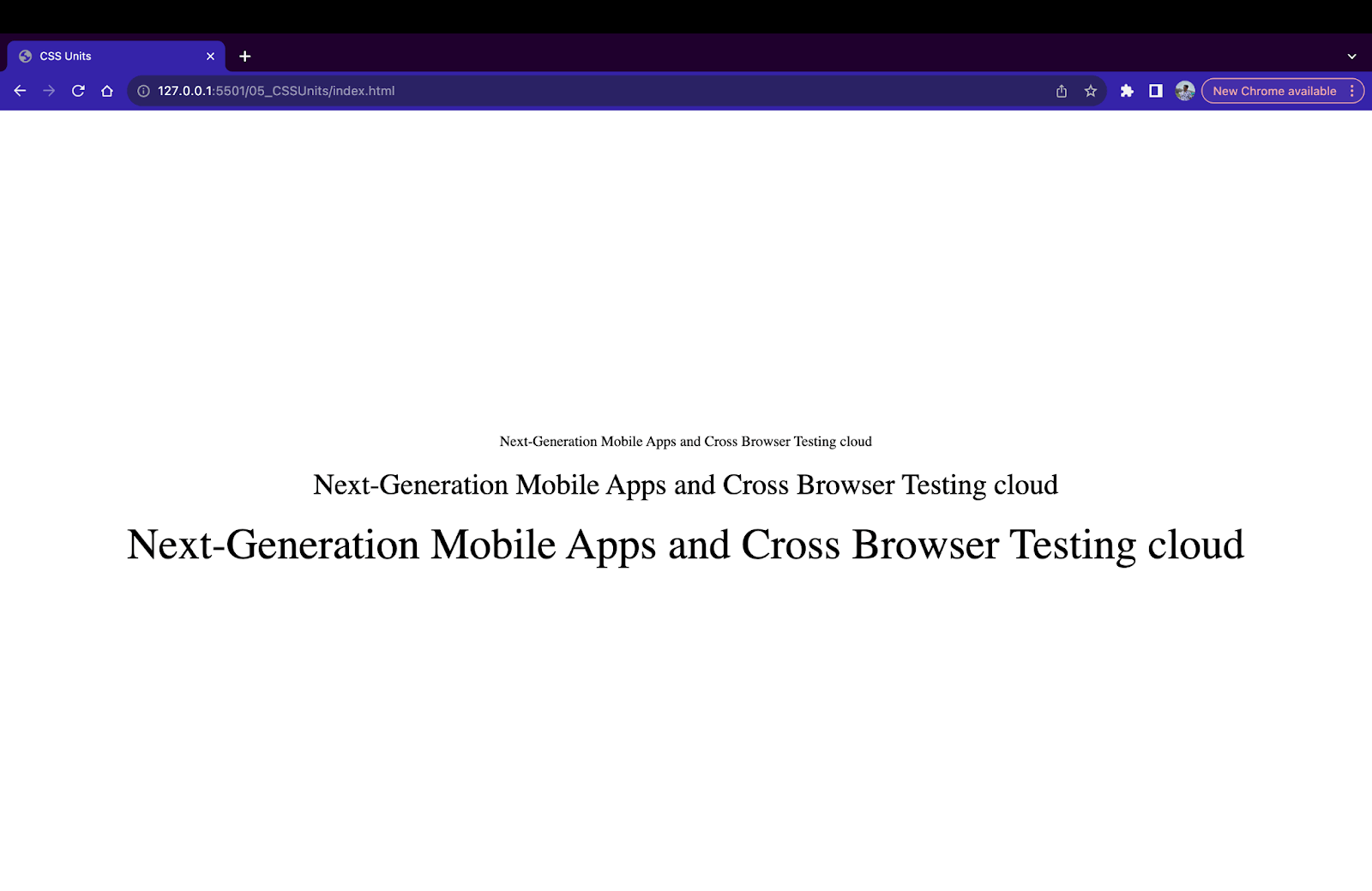

<div>
<p style="font-size: 1pc;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 2pc;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 3pc;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

Picas unit example

To summarize,

When to Use Absolute Units?

Absolute CSS units should be considered in cases where an HTML element should carry a fixed size regardless of factors like screen size, orientation, or parent element size. Generally, absolute units are used to denote small fixed values. Here are some use cases where you can consider using absolute units.

Printing Stylesheets

CSS has a special rule allowing you to define styles for printing a web page. This rule is a part of the CSS media queries rule that conditionally applies or modifies styles when the webpage is printed on paper.

@media print {
/* Styles will only be added while printing a web page*/
body {
font-size: 20px;
}
.container{
width: 1000px;
}
}

During the printing process, it is necessary to attain pixel-perfect measurements so that the printed output matches the dimensions of the paper used for printing. Using absolute CSS units like pixels or inches, we can attain maximum accuracy since these units are closest to physical measurements. Hence, as a standard practice, using absolute CSS units while writing styles for web page printing is always recommended.

Attaining Pixel Perfect Design

Developers follow a UI design while creating a webpage. These designs are crafted with utmost precision and fixed measurements, which all the developers must follow. Absolute units are ideal for achieving pixel-perfect designs since they specify fixed measurements that don’t change based on external factors.

Absolute CSS units can also be considered in cases where maintaining responsive design is not a requirement. For example, while building desktop apps that only run on a single device with fixed dimensions that cannot be resized. Since the app does not change dimensions, we can use absolute units to define the size of elements to attain a pixel-perfect design.

Sizing of Images and Icons

Along with textual content, the webpage comprises multimedia items like images, SVGs, icons, etc. In most cases, these assets don’t scale the same way as other elements. These assets have a fixed set of measurements that must be followed per the screen size. In such cases, using absolute CSS units, we can specify a fixed sizing and position of icons or images so that they don’t stretch or compress when the webpage is resized.

In the below example, we have styled a logo using absolute units. We have placed it at the top left and provided sizing using pixel measurements.

<body>
<nav
style="background-color: #dfdfdf;
position: relative;
height: 150px;">
<img
style="position: fixed;
width: 200px;
height: 50px;
top: 50px;
left: 50px;"
src="https://www.lambdatest.com/resources/images/logos/logo.svg"
>

</nav>

</body>

Styling logo using absolute CSS units

Specifying Small Spacing and Lengths

One of the most useful use cases of absolute units is to provide specific CSS spacing while providing margins and paddings. Margins and padding properties in CSS require exact values to keep the entire design consistent.

Also, absolute CSS units make fine-tuning spacing easier since we get a wide range of units to make even the smallest adjustments.

div{
margin: 1px 0.5px;
padding: 1.5px;
border: 1cm solid red;
}

Introduction to Relative Units

The relative units are measured in relation to external criteria such as parent element size, viewports, browser default size, etc. Relative units are calculated units that are calculated values that are calculated during the layout operation of the website. The browser uses inheritance and cascading rules to arrive at the final value. Relative units fluctuate as external factors such as viewport size and parent element change.

Here are some common relative CSS units:

EM Unit (em)

The em unit is a popular relative unit used mainly for specifying lengths for font-related properties in CSS. em units are calculated based on the font size of the parent element. The em unit inherits the value of the parent element. Let’s understand this with the help of the example below.

<div style="font-size: 16px;">
<p style="font-size: 1em;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 2em;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

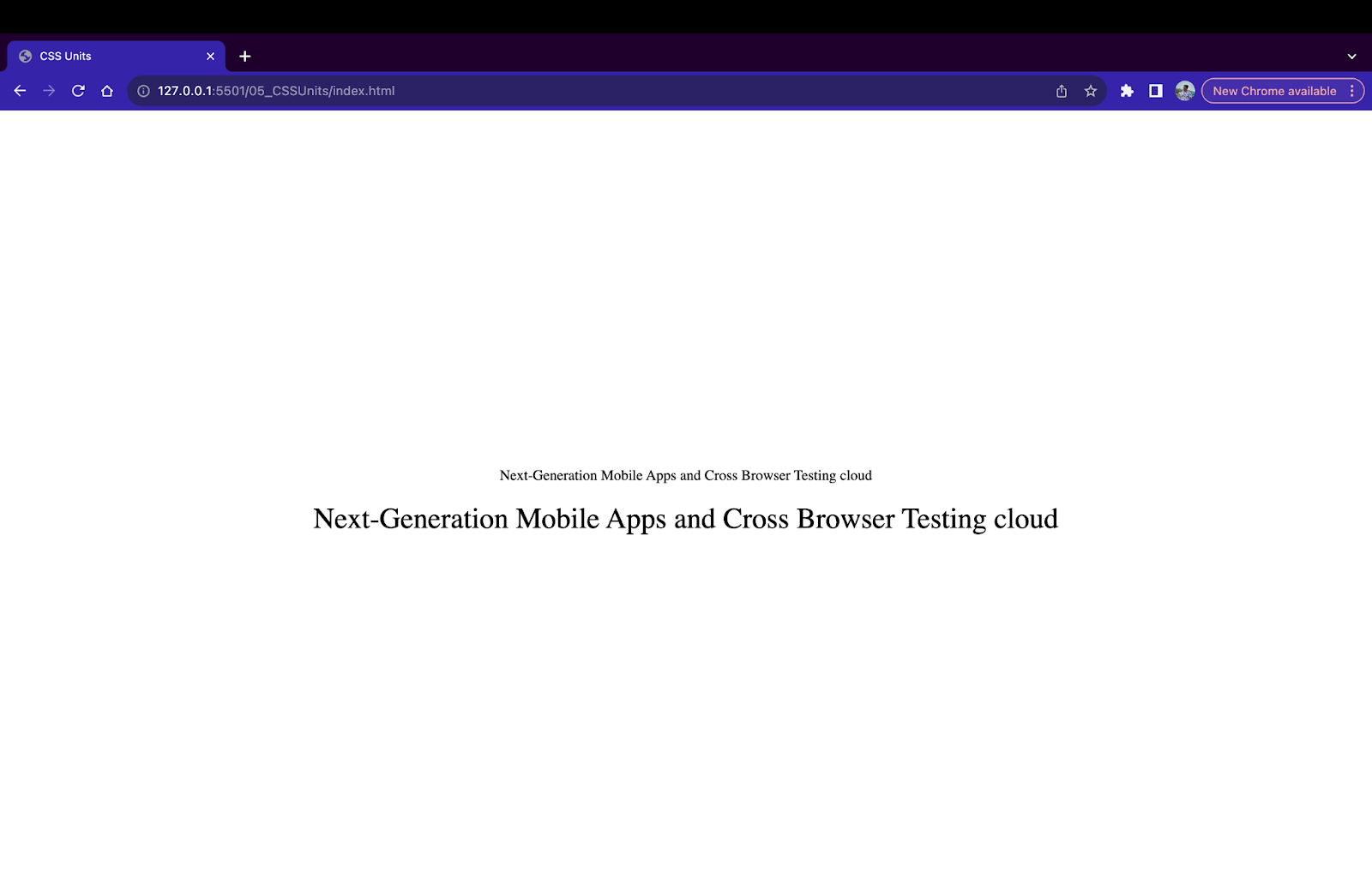

In the above example, the parent div element has a font size of 16rem, and two children < p > elements have a font size of 1em and 2em respectively. Hence, the computed value for these child < p > tags will be

1em = 1 X font-size of parent = 1 X 16px = 16px

2em = 2 X font-size of parent = 2 X 16px = 32px

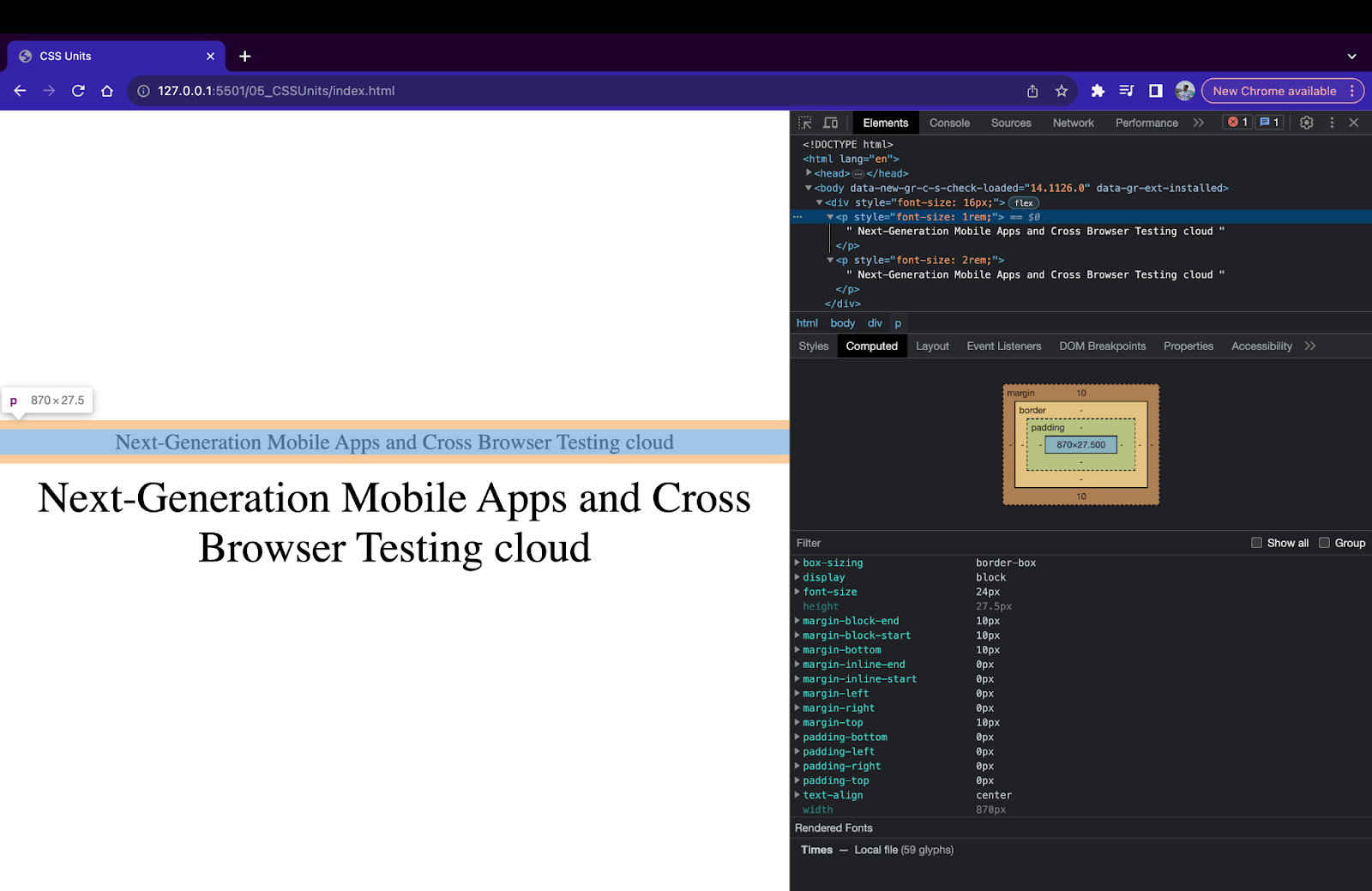

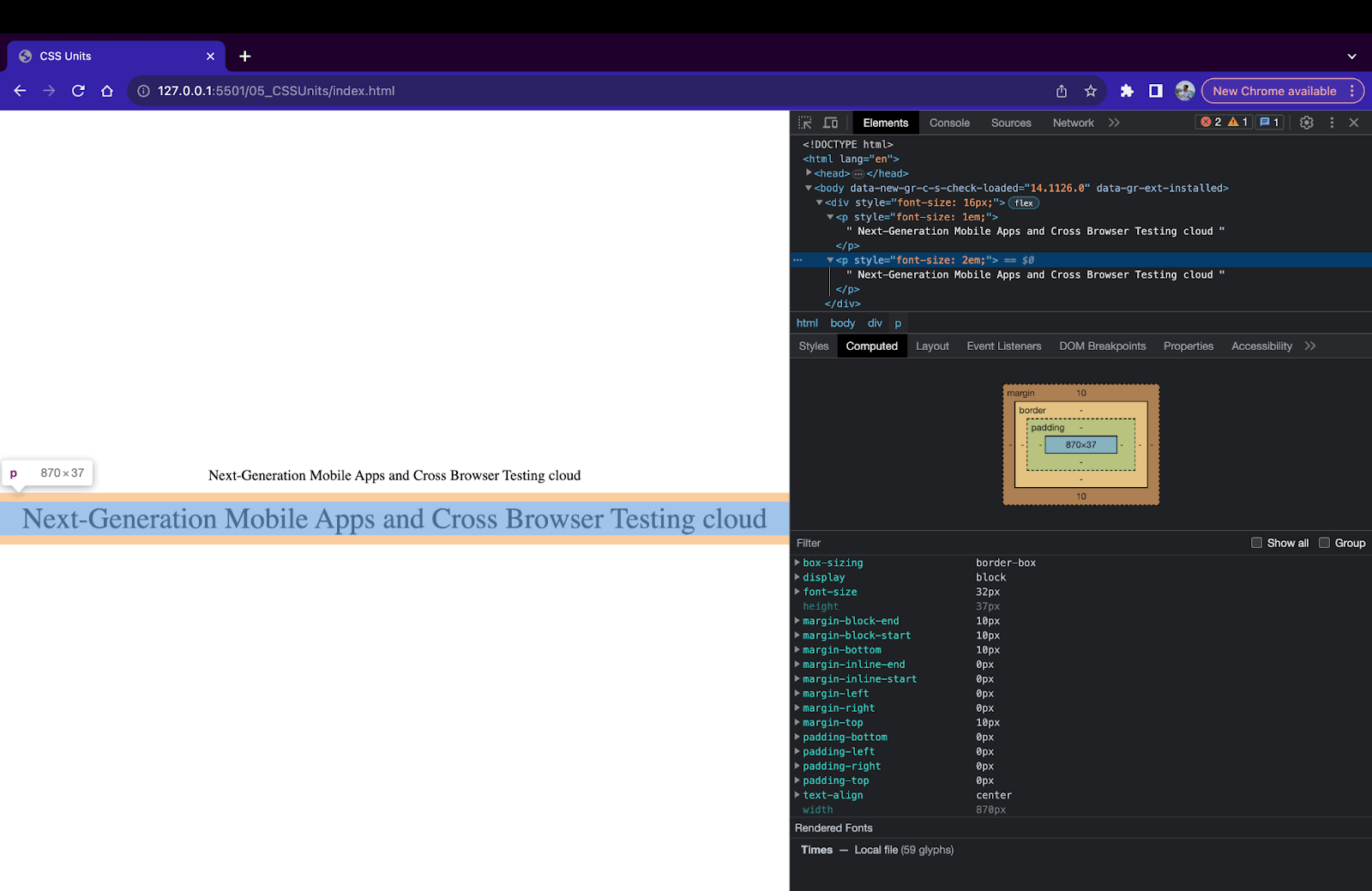

To cross-check if the computed values are working correctly we can open the Chrome DevTools and click on the < p > element. Move to the computed styles tab to open the styles for < p > tag. You can find the style applied to the selected element.

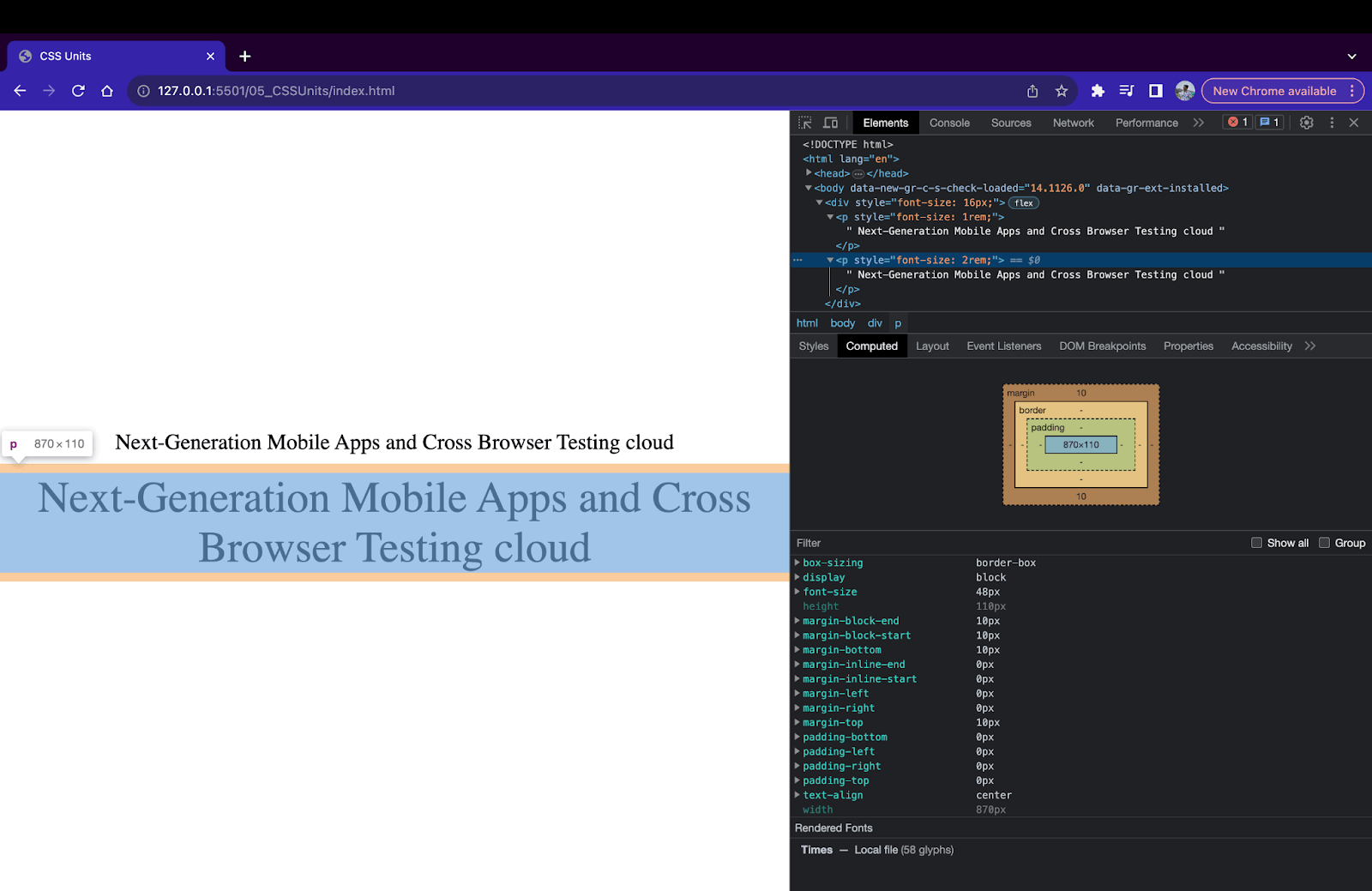

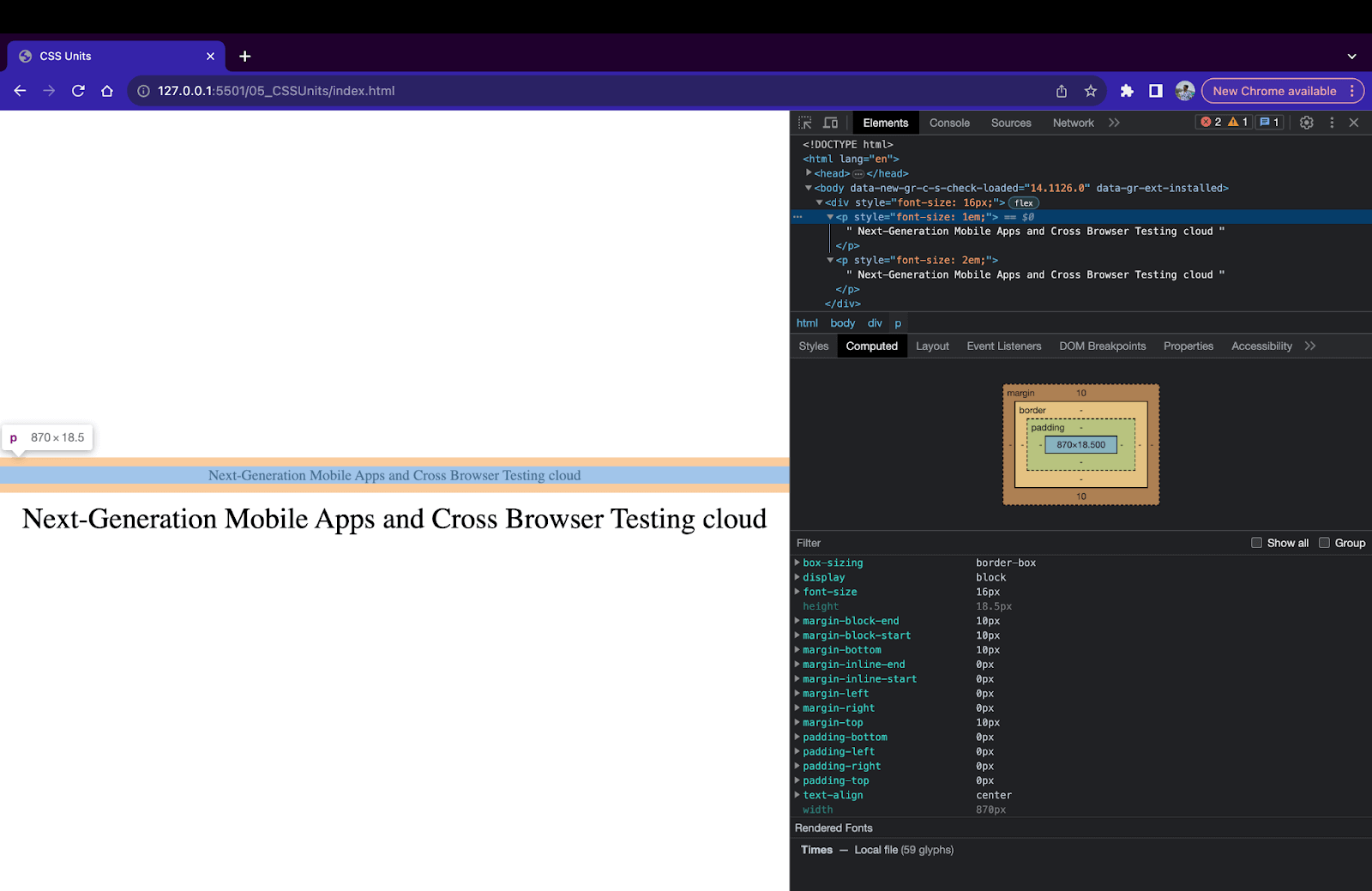

em unit example

em unit example

REM Unit (rem)

The rem unit, also called the root em unit, is an em counterpart. Instead of inheriting the value from the parent, the value is inherited from the root element, i.e., < html > element. Similar to em, the computed value is based on the value set to the root element in CSS. If no value is set to the root element, CSS uses the browser’s default values to calculate the computed values.

html{
 	font-size: 24px;
}

<div style="font-size: 16px;">
<p style="font-size: 1rem;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
<p style="font-size: 2rem;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

In the above example, we have a root element < html > with a font size of 24px and parent < div > with font size of 16px. Inside the parent element, we have 2 child paragraph elements < p > with font sizes of 1rem and 2rem, respectively. Since we use rem instead of em, the final value is calculated based on root element sizing. Hence, the computed value of the font size property of p tags is as follows:

1rem = 1 X font-size of root = 1 X 24 = 24px

2rem = 2 X font-size of root = 2 X 24 = 48px

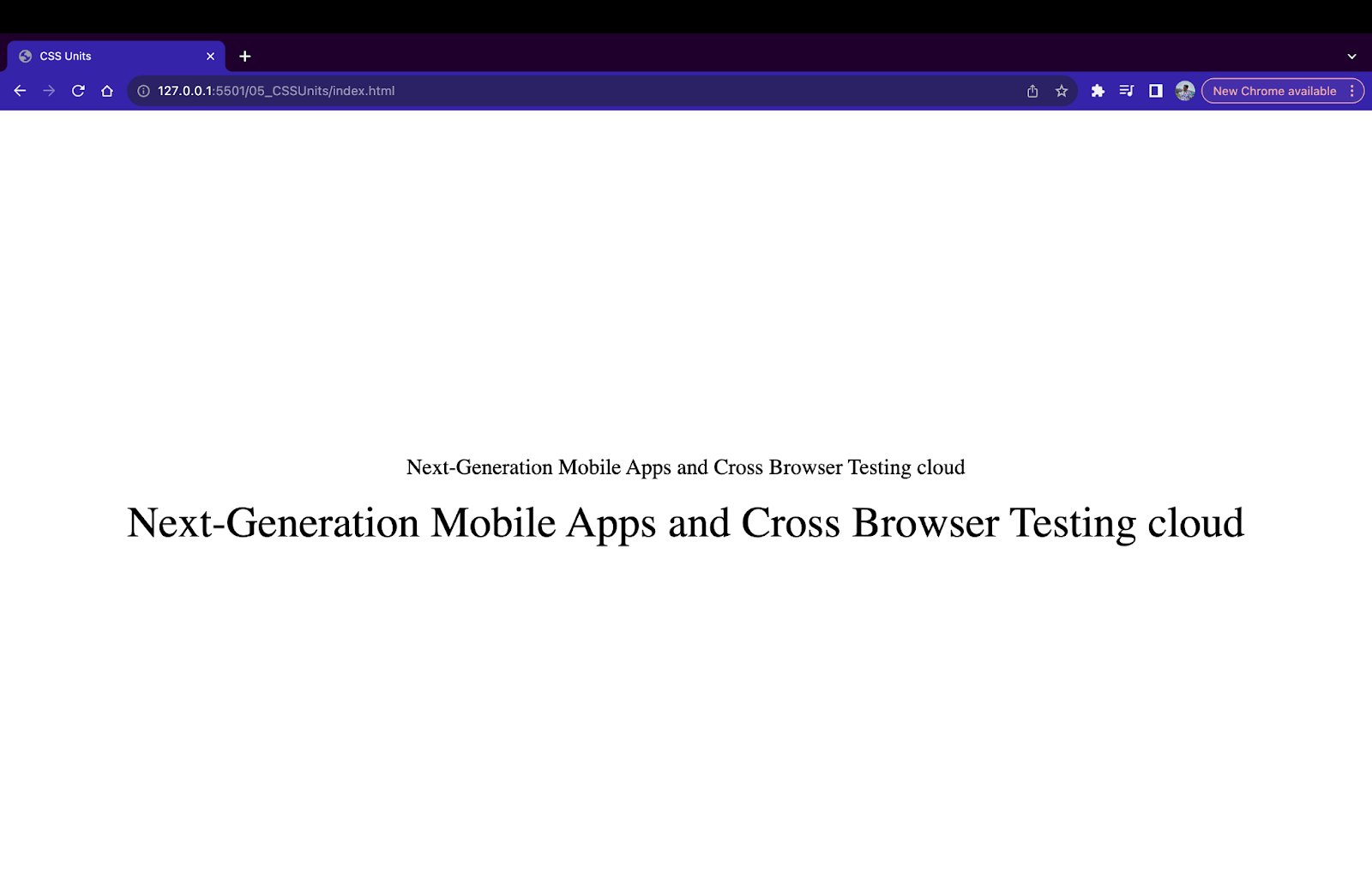

rem unit example

rem unit example

CH Unit (ch)

In CSS, the ch unit stands for character unit. A ch unit in CSS is defined as the width of the character ‘0’ of the font. So, a width of 10ch will be equal to the width of 10 ‘0’ characters of the font used on the website. This unit is useful when the requirement is to size an element based on the width of the characters of the font.

One important point to remember is the ch unit will change if the font of the element is changed since the size of the character ‘0’ does not stay the same in all the fonts.

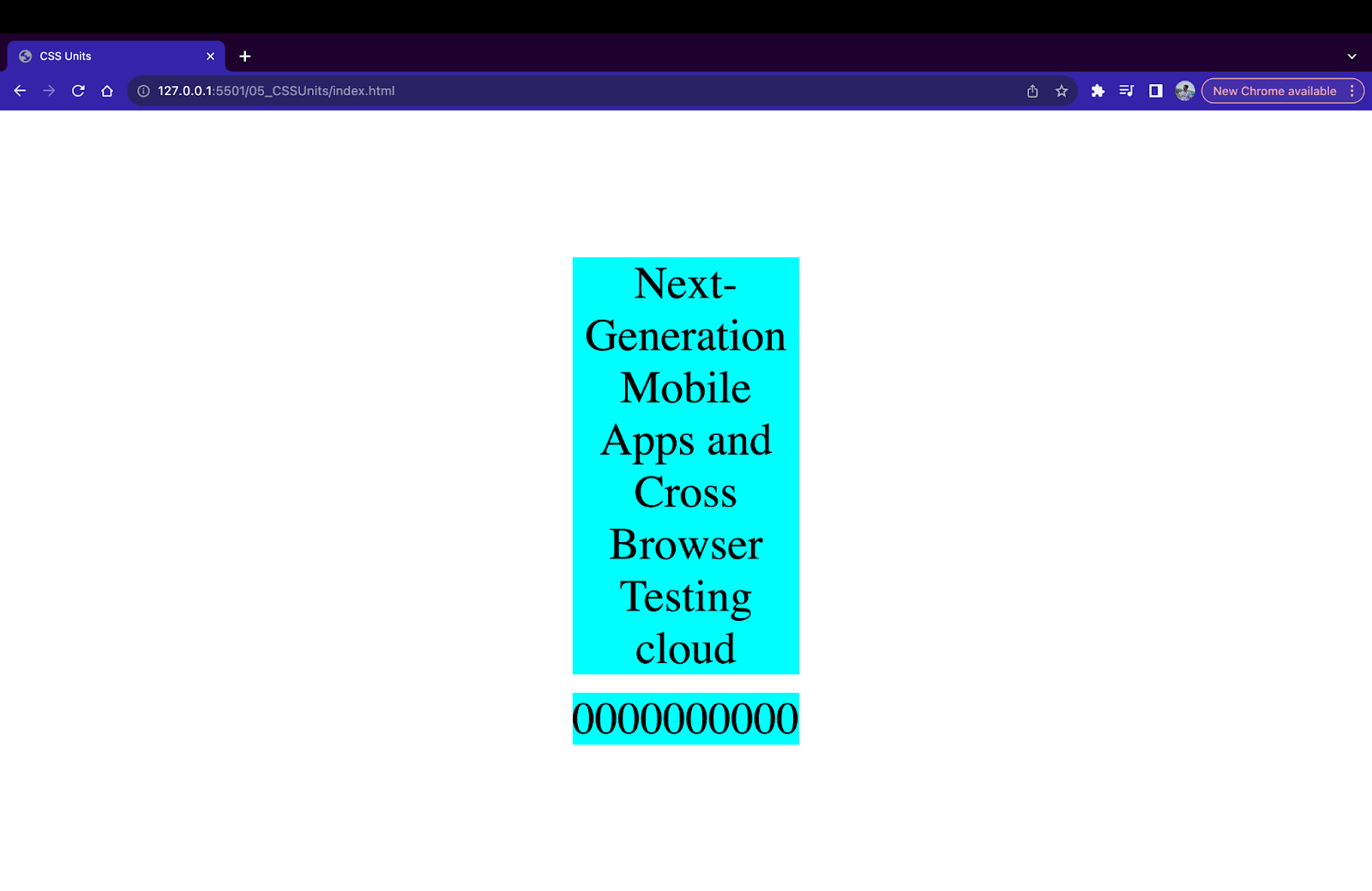

<div>
<p style="font-size: 50px;
width: 10ch;
background-color: aqua;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>


<p style="font-size: 50px;
width: 10ch;
background-color: aqua;">
0000000000
</p>
</div>

ch unit example

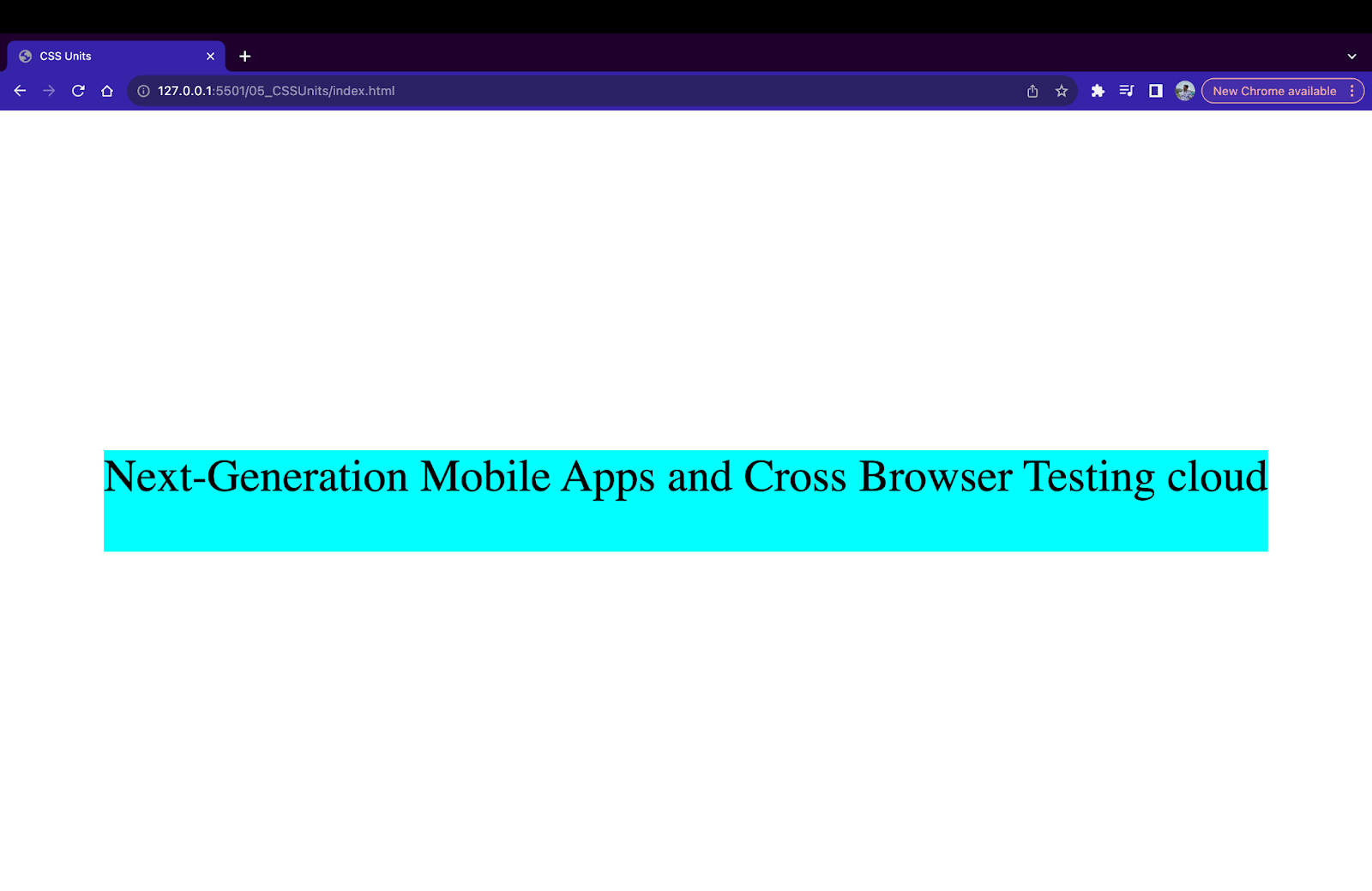

EX Unit (ex)

ex stands for x-height unit in CSS. An ex unit in CSS is defined as the height of the lowercase character ‘x’ measured from the baseline. Similar to ch, ex is also relative since the height of character ‘x’ changes based on the font.

<div>
<p style="font-size: 50px;
height: 5ex;
background-color: aqua;">
Next-Generation Mobile Apps and Cross Browser Testing cloud
</p>
</div>

ex unit example

Device Viewport Unit (vw and vh)

Device viewport units consist of two different units, vw (view width) and vh (view height). 1vw is equal to 1% of the viewport width. Similarly, 1vh is equal to 1% of the viewport height. So if a device has a viewport of 1920 X 1080 pixels (width X height), then 1vh = 108 pixels and 1vw = 192 pixels.

<div style="height: 20vh; width: 100vw; background-color: beige;">
DIV1 width=100vw and height=20vh
</div>


<div style="height: 20vh; width: 50vw; background-color: aqua;">
DIV2 width=50vw and height=20vh
</div>


<div style="height: 20vh; width: 25vw; background-color: burlywood;">
DIV3 width=25vw and height=20vh
</div>

Viewport units on large screen

In the above example of CSS viewport units, we have created three div containers with a width of 100vw, 50vw, and 25vw respectively, and a height of 20vh. These measurements will change when the screen is resized.

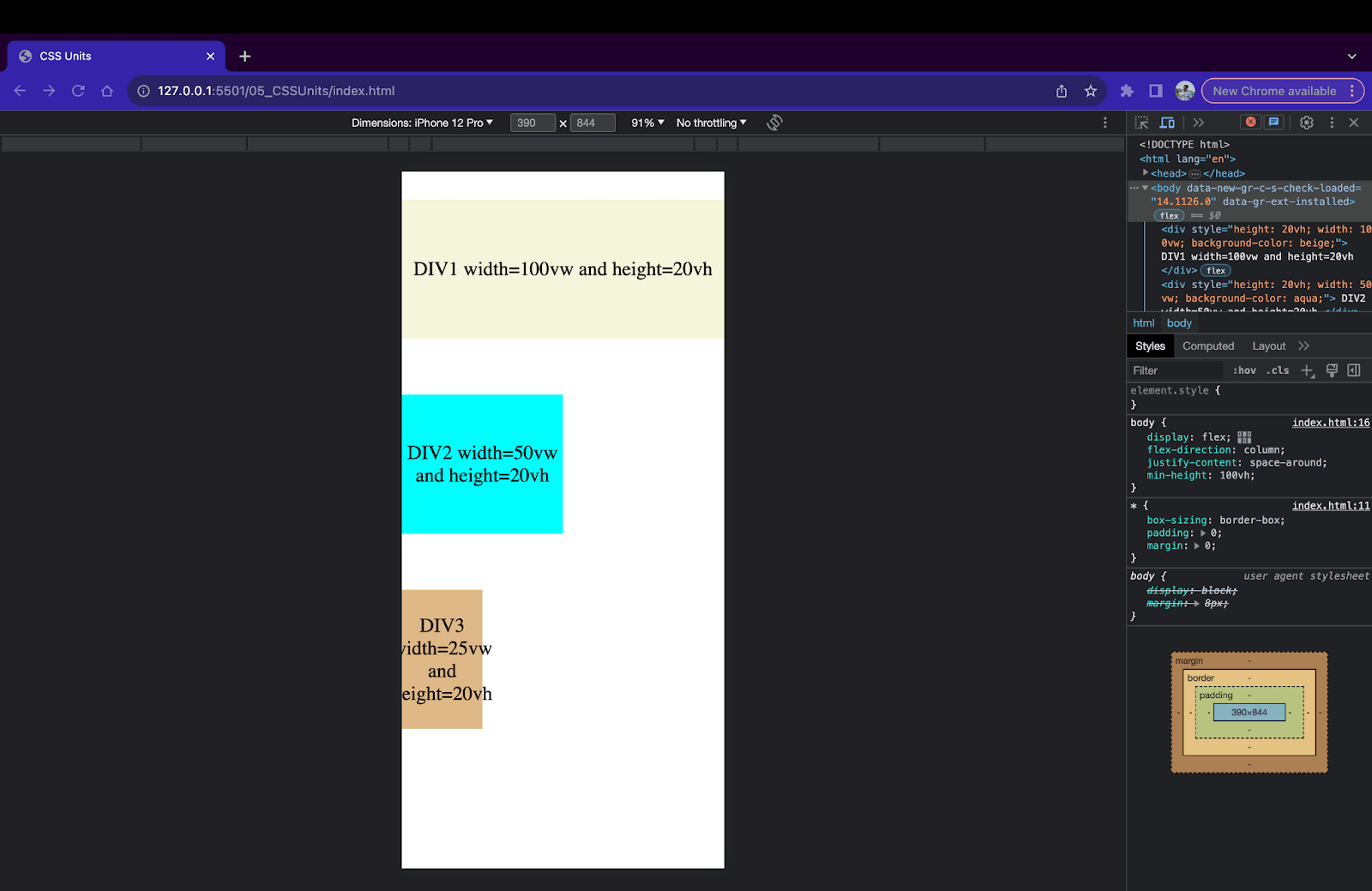

Viewport units on small screen

Device Viewport Maximum and Minimum Units (vmax, vmin)

The vmin and vmax units are based on the values of vw and vh. By definition, in CSS, 1vmin is 1% of the viewport’s smallest dimensions, and 1vmax is 1% of the viewport’s largest dimensions. For example, if a browser is 1000 pixels in width and 600 pixels in height, then 1vmin is equal to 6px since 600 pixels < 1000 pixels. Similarly, 1vmax is equal to 10px since 1000 pixels > 600 pixels.

<div style="height: 10vmax; width: 50vmin; background-color: beige;">
height=10vmax and width=50vmin
</div>

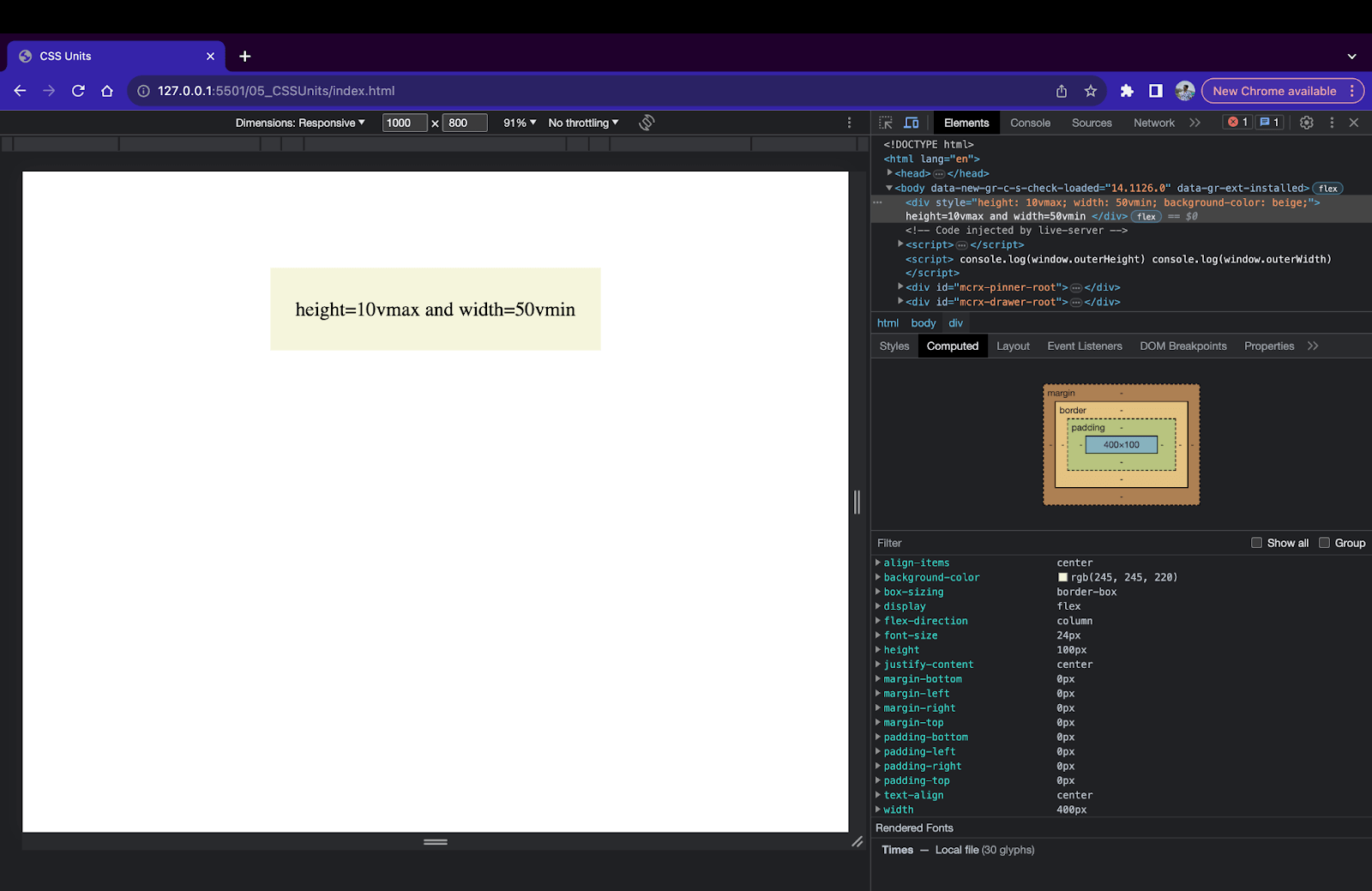

Min/Max viewport units on large screen

The vmin and vmax units are extremely helpful when the device’s orientation is changed. In such cases, the values for vmin and vmax are automatically changed.

Device Percentage Unit (%)

Percentage unit (%) is a relative unit calculated based on the parent element’s size. For example, if the width of a parent < div > element is 400px and the width of a child div inside the parent div is set to 50%. Then, the width of the child < div > will be 200px since 50% of 400 is 200.

<div style="width: 400px; height: 400px; background-color: bisque;">
     <div style="width: 50%; height: 50%; background-color: aqua;">
     </div>
</div>

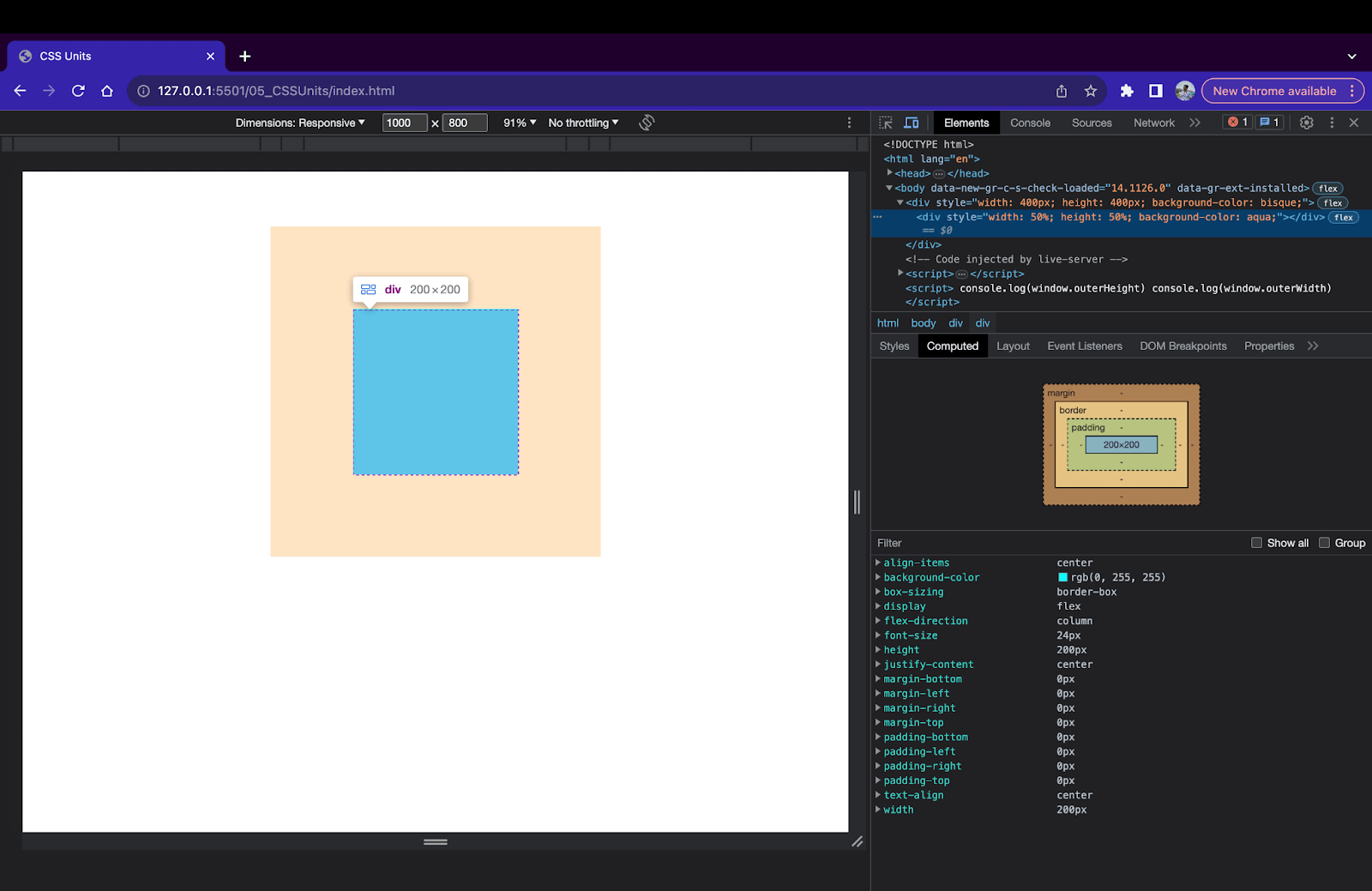

percentage units example

Percentage units work with all kinds of CSS properties like fonts, borders, etc., but are mostly used while creating responsive layouts. Here’s an example of a responsive 3-column layout using percentage units.

<div style="display: flex;
flex-direction: row;
justify-content: start;
width: 100vw;
height: 100vh;
background-color: beige;">
<div style="width: 33.33%;
height: 100%;
background-color: tomato;">
</div>
<div style="width: 33.33%;
height: 100%;
background-color: blue;">
</div>
<div style="width: 33.33%;
height: 100%;
background-color: yellow;">
</div>
</div>

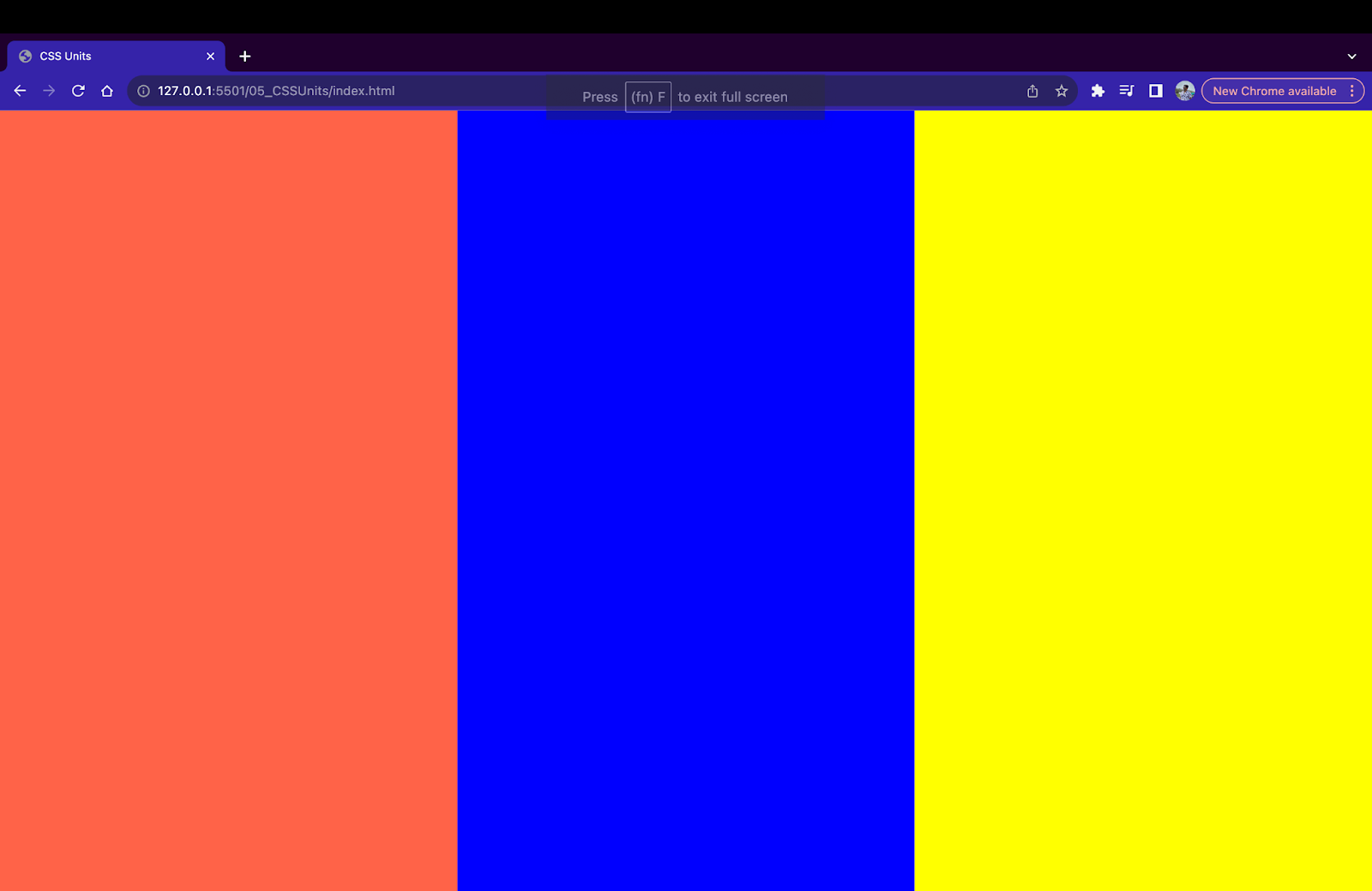

3-column layout using percentage unit

To summarize relative units,

When to Use Relative Over Absolute CSS Units?

Here are a few cases where we can consider using Relative units over Absolute units.

Responsive Web Design

The most important use case of relative units is responsive web design. It is possible to size the HTML elements using relative CSS units based on the parent of device dimensions. This makes it easy to change sizing based on screen size.

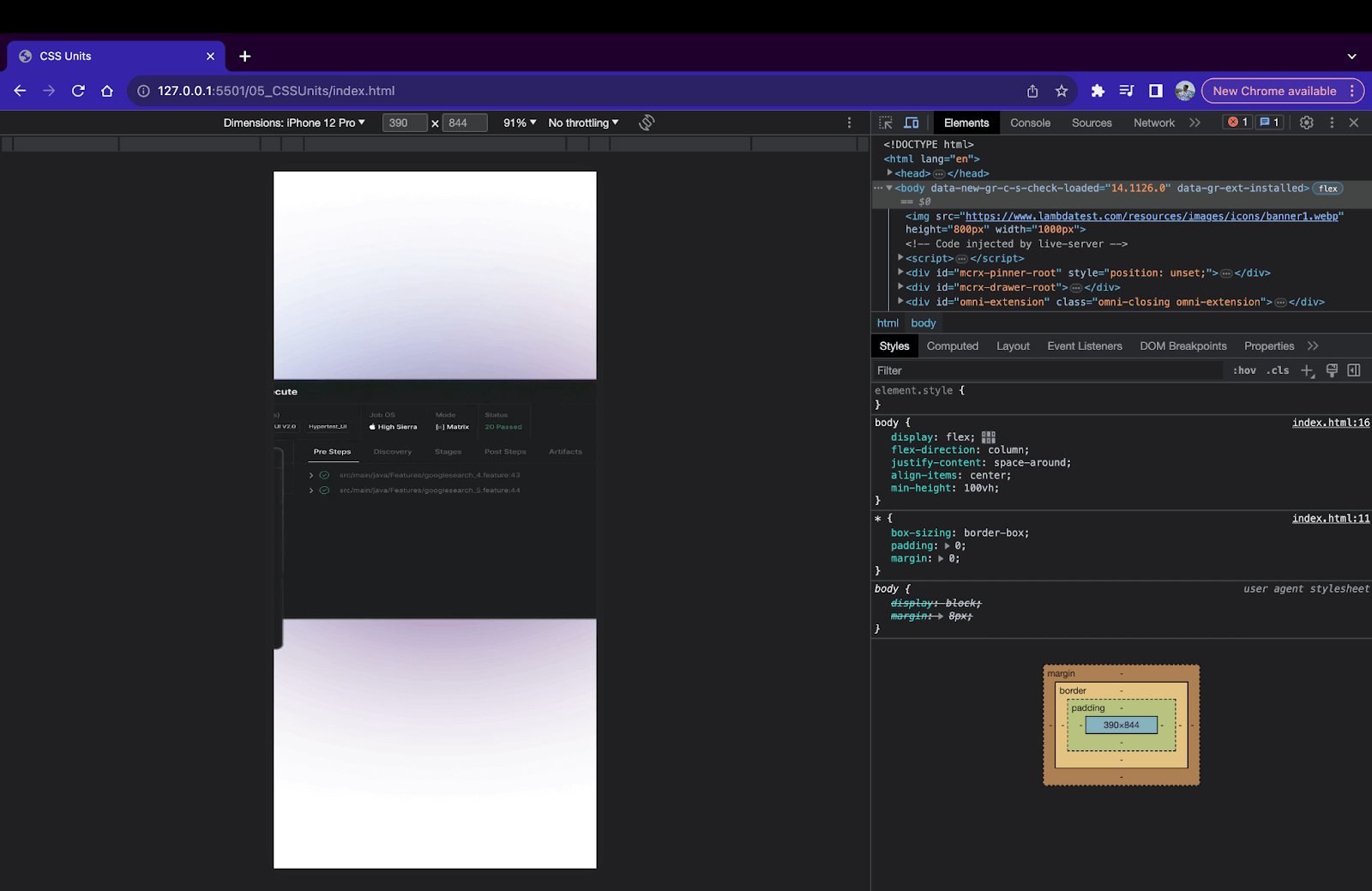

Previously, we discussed how using Absolute units for images causes issues with responsive web design. Let’s fix this problem using Relative units.

<img
src="https://www.lambdatest.com/resources/images/icons/banner1.webp"
style="width: 80%;
height: auto;"
>

Responsive image on large screen

Responsive image on small screen

Relative units like vw, vh, and %, along with CSS media queries, can be used to create responsive and flexible web pages.

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>
CSS Units
</title>
</head>
<style>
*{
box-sizing: border-box;
padding: 0;
margin: 0;
}
body{
display: flex;
flex-direction: column;
justify-content: space-around;
align-items: center;
min-height: 100vh;
}
.parent{
display: flex;
flex-direction: row;
justify-content: start;
width: 100vw;
height: 100vh;
background-color: beige;
}
.child1{
width: 33.33%;
height: 100%;
background-color: tomato;
}
.child2{
width: 33.33%;
height: 100%;
background-color: blue;
}
.child3{
width: 33.33%;
height: 100%;
background-color: yellow;
}
@media only screen and (max-width: 600px) {
.child1,.child2,.child3{
width: 100%;
height: 33.33%;
}
.parent{
flex-direction: column;
}
}


</style>
<body>


<div class="parent">
<div class="child1"></div>
<div class="child2"></div>
<div class="child3"></div>
</div>




</body>
</html>

Responsive 3-column layout using relative units

Font Sizing

Relative units like em and rem are perfect for specifying size for font-related properties. Since these units are related to the parent or root element’s size, they allow the font to scale and adapt if the screen is resized. Since em and rem are directly related to the root or parent element, the text using these values remains readable even when the screen size changes.

<p style="font-size: 100px;">Text with 100px font-size</p>
<p style="font-size: 2rem;">Text with 2rem font-size</p>

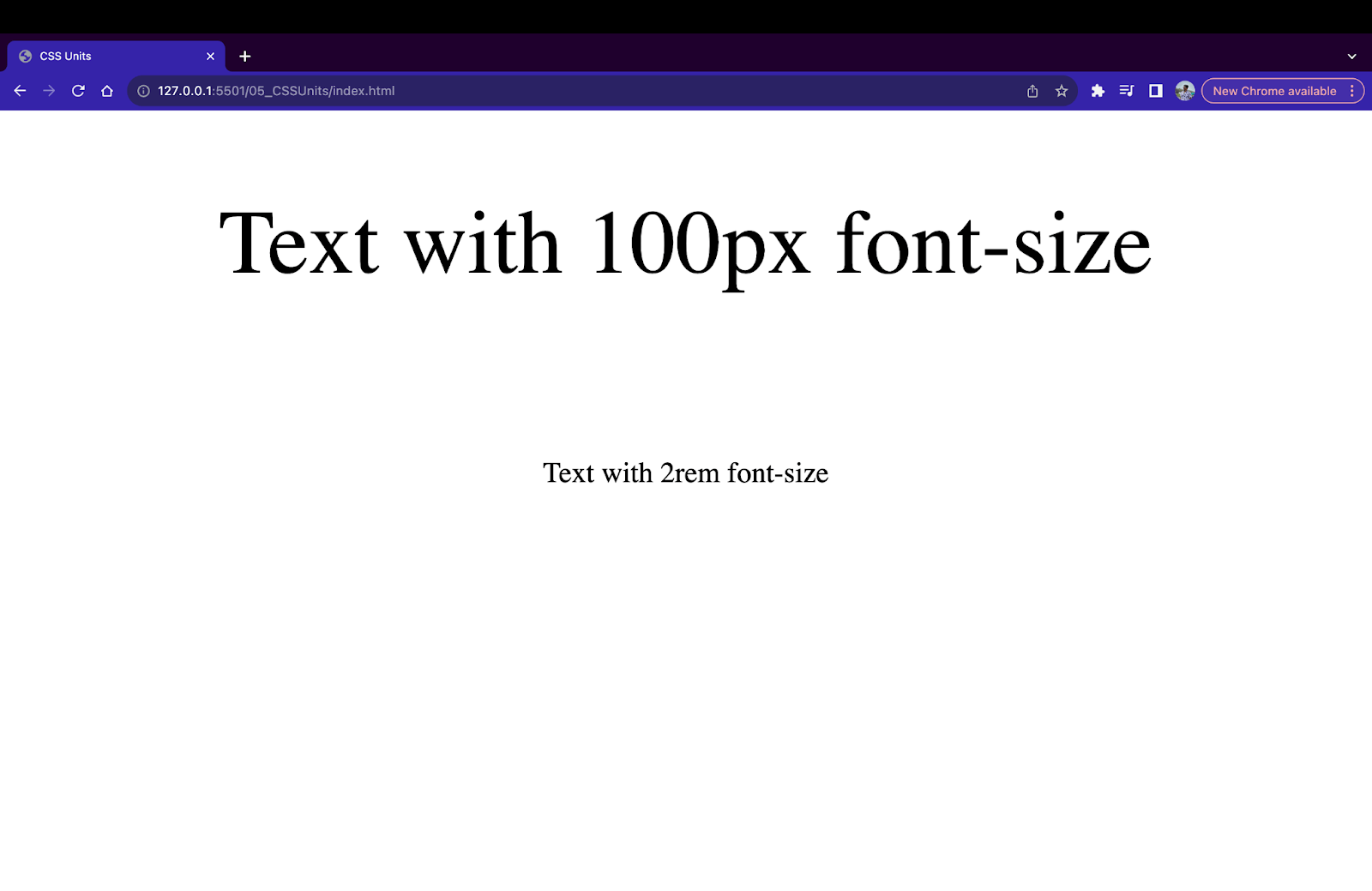

Responsive text on large screen

Responsive text on small screen

Layouts

Using relative CSS units like %, vh, and vw, creating layouts is quick and easy. It is super simple to create fluid designs where the size of the child element is set based on the parent element. These layouts stay responsive and adapt when the screen is resized.

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>
CSS Units
</title>
</head>
<style>
*{
box-sizing: border-box;
padding: 0;
margin: 0;
font-family: 'Lucida Sans', 'Lucida Sans Regular', 'Lucida Grande', 'Lucida Sans Unicode', Geneva, Verdana, sans-serif;
}
body{
min-height: 100vh;
}
div{
display: flex;
flex-direction: row;
justify-content: center;
align-items: center;
font-size: 20px;
}
img{
   width: 50%;
}
.parent{
display: flex;
flex-direction: row;
flex-wrap: wrap;
justify-content: start;
width: 100vw;
height: 100vh;
}
.child1{
padding: 10px;
width: 100%;
height: 20%;
font-size: 30px;
background-color: aqua;
}
.child2{
padding: 10px;
width: 20%;
height: 80%;
background-color: beige;
}
.child3{
padding: 10px;
width: 30%;
height: 80%;
background-color: lightcyan;
}
.child4{
flex-direction: column;
width: 50%;
height: 80%;
}
.grandchild1{
padding: 10px;
width: 100%;
height: 50%;
background-color: tomato;
}
.grandchild2{
padding: 10px;
width: 100%;
height: 50%;
background-color: yellow;
}
@media only screen and (max-width: 600px) {
.parent{
flex-direction: column;
}
.child1{
width: 100%;
height: 10%;
}
.child2{
width: 100%;
height: 60%;
}
.child3{
width: 100%;
height: 20%;
}
.child4{
width: 100%;
height: 10%;
flex-direction: row;
}
.grandchild1,.grandchild2{
height: 100%;
width: 50%;
}


}
</style>
<body>
<div class="parent">
<div class="child1">
LambdaTest
</div>
<div class="child2">
<ul>
   <li>Live Testing</li>
   <li>Automated Testing</li>
   <li>Mobile Testing</li>
   <li>HyperExecute Testing</li>
   <li>Visual Regression Cloud</li>
   <li>AI Powered Test Analytics</li>
   <li>Smart TV Testing</li>
</ul>
</div>
<div class="child3">Next-Generation Mobile Apps and Cross Browser Testing Cloud
</div>
<div class="child4">
<div class="grandchild1">
   <img src="https://www.lambdatest.com/resources/images/selenium-parallel-testing-index.png" alt="">
</div>
<div class="grandchild2">
   <img src="https://www.lambdatest.com/resources/images/selenium-parallel-testing-index.png" alt="">
</div>


</div>
</div>
</body>


</html>

For checking the layout on various screen sizes we will use LT Browser from TestMu AI. LT Browser is a free, Chromium-based desktop application designed specifically for web developers to help them build, test, and debug their websites and web applications, particularly for mobile responsiveness.

It supports 53+ multiple device viewports of varying screen sizes to test the responsiveness of a website. We will use this browser to check how our responsive web page performs on all screen sizes.

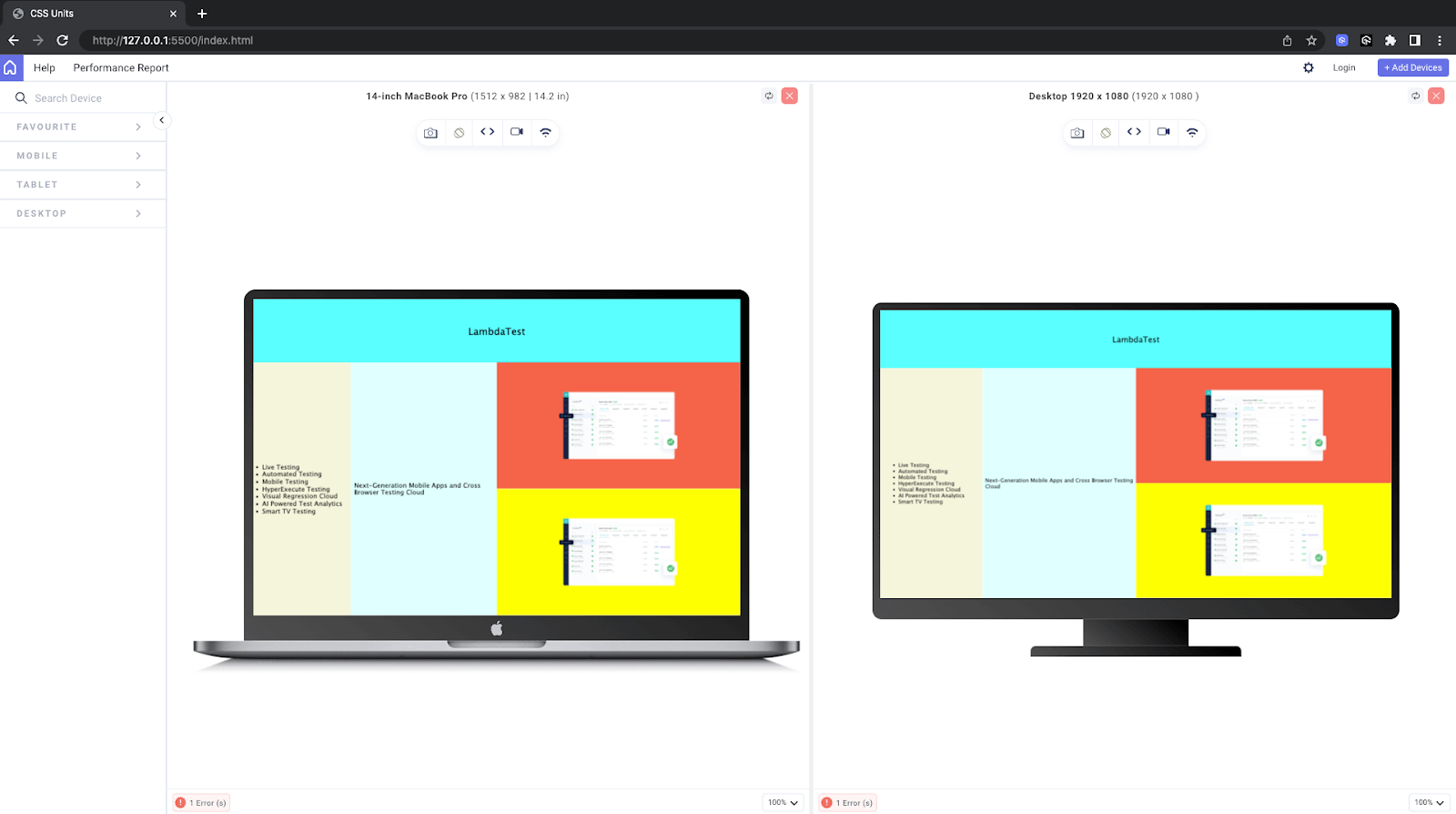

Complex layout on large screens using relative units

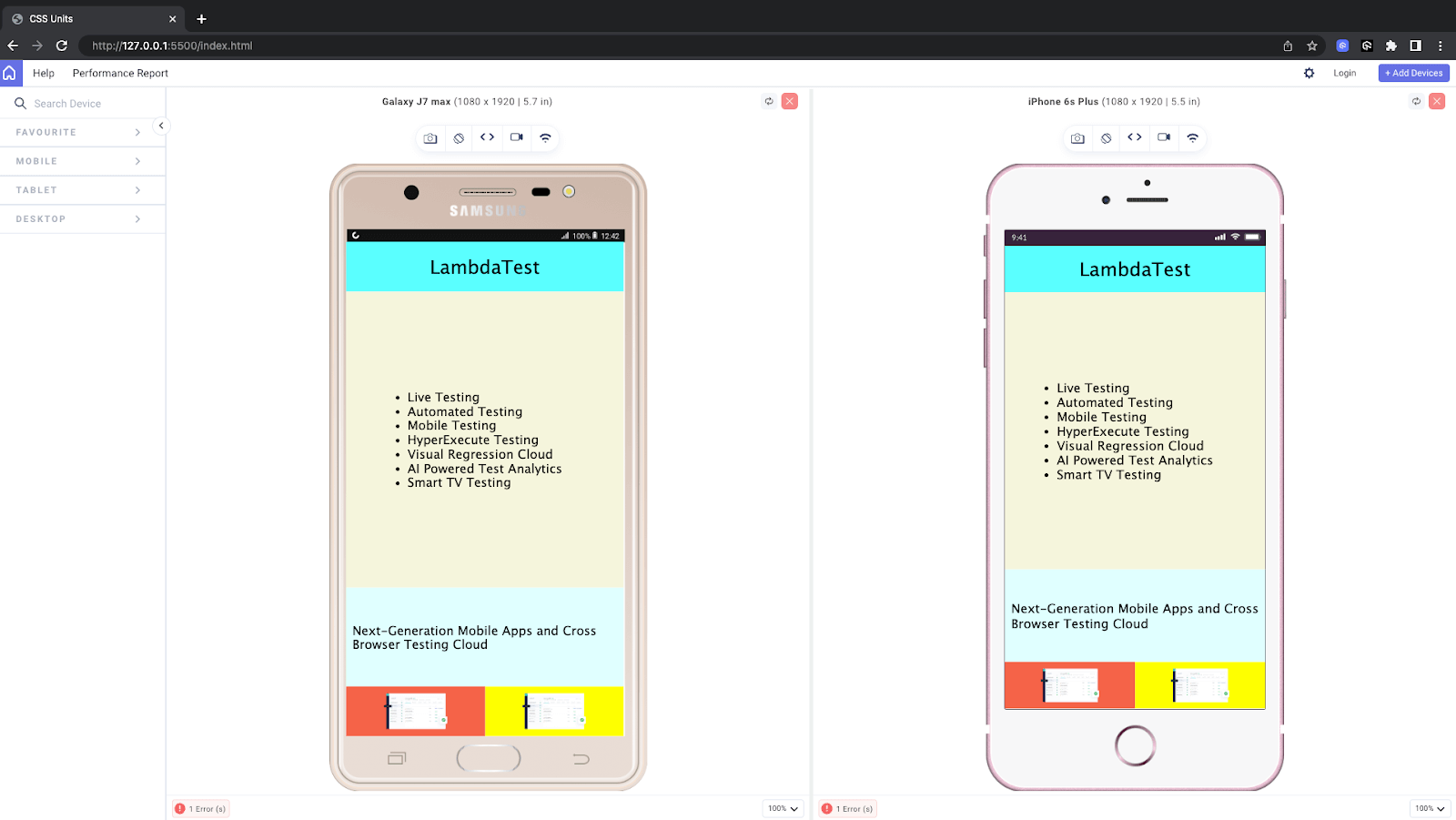

Complex layout on small screens using relative units

Handling responsiveness using relative units

Check out this tutorial to explore different features of LT Browser that you can use to test responsive web designs.

Subscribe to our TestMu AI YouTube Channel for the latest updates on tutorials around mobile app testing, real device cloud, and more.
