How to Use WebDriverWait in Selenium Java?

Having understood the Selenium WebDriverWait, let’s move forward and learn how to use WebDriverWait in Selenium Java in test scripts. We will cover some of the most commonly used explicit wait implementations using the ExpectedConditions.

In this blog on using WebDriverWait in Selenium Java, we will use RemoteWebDriver for test execution. Using RemoteWebDriver allows you to harness the capabilities of the cloud grid, including speedy and parallel test execution in a more organized way.

Let’s use TestMu AI, an AI-powered test execution platform that offers an online Selenium Grid, enabling developers and testers to perform automation testing for websites and web applications on a wide range of real browsers, devices, and operating system combinations.

Note: Run Selenium tests on real browsers and operating systems. Try TestMu AI Today!

Setting Up Project

For demonstration purposes in this blog, let’s use Eclipse IDE. You can use any other of your choice, and do the project setup using the same steps.

• Create a new Maven Project and name it as WebDriverWait.
• Add a new package, Waits, under src/test/java package. This is the package in which we add our test classes to demonstrate the usage of different explicit waits using ExpectedConditions.
• Add Java class files inside this Waits package and name them as:
• TestBase.java: Contains the code to launch the browser by connecting to TestMu AI remote Selenium Grid and closing the browser.
• TestExplicitWait.java: Contains the test class file to demonstrate the implementation of WebDriverWait using different ExpectedConditions.
• TestFluentWait.java: Contains the test class file to demonstrate fluent wait implementation.
• Update the pom.xml file to have Selenium and TestNG dependencies. This is required as we are writing a web automation script using TestNG for test execution. Always use the latest stable versions of these dependencies for best execution results.

<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>
   <groupId>WebDriverWait</groupId>
   <artifactId>WebDriverWait</artifactId>
   <version>0.0.1-SNAPSHOT</version>
   <dependencies>
       <dependency>
           <groupId>org.seleniumhq.selenium</groupId>
           <artifactId>selenium-java</artifactId>
           <version>4.23.1</version>
       </dependency>
       <dependency>
           <groupId>org.testng</groupId>
           <artifactId>testng</artifactId>
           <version>7.10.2</version>
           <scope>test</scope>
       </dependency>
   </dependencies>
</project>

With this, our basic project setup is completed. Let’s move forward and have a look at the TestBase.java file.

To begin, create a RemoteWebDriver object and initialize it to null. You will need to include your TestMu AI Username and Access Key, which can be found in your Account Settings under the Password & Security tab. These credentials are used to connect to the TestMu AI cloud grid for test execution.

For added security, you can configure these values as environment variables instead of hardcoding them in the test script. Additionally, define a String variable called status and initialize it with the value failed. This status is updated to passed if the test case runs without any assertion failures or exceptions, ensuring the test’s final status is accurately reflected on the TestMu AI Web Automation dashboard.

public class TestBase {


   public RemoteWebDriver driver = null;
   String username = System.getenv("LT_USERNAME") == null ? "<lambdatest_username>" : System.getenv("LT_USERNAME");
   String accessKey = System.getenv("LT_ACCESS_KEY") == null ? "<lambdatest_accesskey>" : System.getenv("LT_ACCESS_KEY");
   String status = "failed";


   @BeforeMethod
   public void setUp()
   {
       try
       {
           ChromeOptions chromeOptions = new ChromeOptions();
           chromeOptions.setPlatformName("Windows 10");
           chromeOptions.setBrowserVersion("127.0");


           HashMap<String, Object> ltOptions = new HashMap<String, Object>();
           ltOptions.put("build", "WebDriverWaits in Selenium Java");
           ltOptions.put("name", "WebDriverWaits in Selenium Java");
           chromeOptions.setCapability("LT:Options", ltOptions);


           driver = new RemoteWebDriver(
                   new URL("https://" + username + ":" + accessKey + "@hub.lambdatest.com/wd/hub"), chromeOptions);
       } catch (MalformedURLException e) {
           e.printStackTrace();
       }
   }

Next, create a setup() method, annotated with @BeforeMethod annotation from TestNG, to handle setting up browser properties and TestMu AI configurations before each test case. Use the TestMu AI Automation Capabilities Generator to fetch the required browser capabilities.

Then, connect to TestMu AI using RemoteWebDriver and a ChromeOptions object containing all the specified browser settings. After each test execution, a tearDown() method, annotated with @AfterMethod, will update the test status on TestMu AI and close the WebDriver. The main test class, TestExplicitWait, extends TestBase to inherit properties and methods required for the tests.

Writing Tests

The TestExplicitWait class contains 4 different test methods to demonstrate different ExpectedConditions. Let’s have a look at these one by one.

Test Scenario 1:

• Initialize WebDriverWait with a timeout of 10 seconds.
• Navigate to the TestMu AI eCommerce Playground website.
• Use presenceOfElementLocated to locate a dynamic loading image.
• Use elementToBeClickable to wait for the element to be clickable and click on it.
• Use visibilityOfElementLocated to locate an element on the new page after clicking.
• Use visibilityOfAllElementsLocatedBy to locate all the elements on the newly loaded webpage and assert the size.

Test Implementation:

This test script uses explicit waits with WebDriverWait in Selenium Java. It interacts with a TestMu AI eCommerce website and performs a different set of actions:

@Test(description="WebDriverWait demonstration 1")
   public void testExplicitWait_1()
   {
       // Initialize WebDriverWait with a timeout of 10 seconds
       WebDriverWait wait =new WebDriverWait(driver, Duration.ofSeconds(10));

       // LambdaTest e-commerce website to check for dynamic loading elements
       driver.get("https://ecommerce-playground.lambdatest.io/");

       try {
           // ExpectedCondition to wait for element to be present : presenceOfElementLocated
           WebElement element = wait.until(ExpectedConditions.presenceOfElementLocated(By.id("entry_217966")));

           // ExpectedCondition to check if element is clickable and then click on it: elementToBeClickable
           element = wait.until(ExpectedConditions.elementToBeClickable(By.id("entry_217966")));
           element.click();

           // ExpectedCondition to wait for element to be visible after the click: visibilityOfElementLocated
           element = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//*[@title='iPod Touch']")));

           // ExpectedCondition to wait for all input type elements : visibilityOfAllElementsLocatedBy
           // assert if the expected length of elements located is 15
           List<WebElement> elements = wait.until(ExpectedConditions.visibilityOfAllElementsLocatedBy(By.xpath("//*[@class='carousel-item active']")));
           Assert.assertEquals(elements.size(), 15);

           status = "passed";
       } catch (TimeoutException ex)
       {
           ex.printStackTrace();
       }
   }

Code Walkthrough:

Start by initializing a WebDriverWait object, which will be used in the test case flow to implement ExpectedConditions as required. This will be a common step in all cases.

The maximum wait time for this is 10 seconds, which means the driver waits for a maximum of 10 seconds for the condition to be fulfilled before throwing an exception.

Navigate to the TestMu AI eCommerce Playground website. Start the try block for better exception handling and implement the ExpectedCondition to wait for the dynamic loading image WebElement to be present using the presenceOfElementLocated() method. Then, implement the ExpectedCondition to wait for the same element to be clickable after its presence is confirmed using the elementToBeClickable() method and then click on it.

After clicking the same, wait for an element to be visible on the newly loaded page after redirection. For this, we have used the visibilityOfElementLocated() method to wait for the image to be visible before proceeding. Next, we use the visibilityOfAllElementsLocatedBy() method to check if all the product images are loaded on the page. For this, we assert the size to verify it.

Finally, update the status as passed for better visibility on the TestMu AI Web Automation dashboard and add a catch block for graceful exception handling in case there is any exception.

Test Scenario 2:

• Initialize WebDriverWait with a timeout of 10 seconds.
• Navigate to the Simple iframe page of the TestMu AI Selenium Playground website.
• Use titleContains and verify the page title.
• Use textToBe and check if the iFrame section is present.
• Use frameToBeAvailableAndSwitchToIt to locate the frame and switch to it.
• Use textToBePresentInElementLocated to locate an element in iFrame to verify the switch.

Test Implementation:

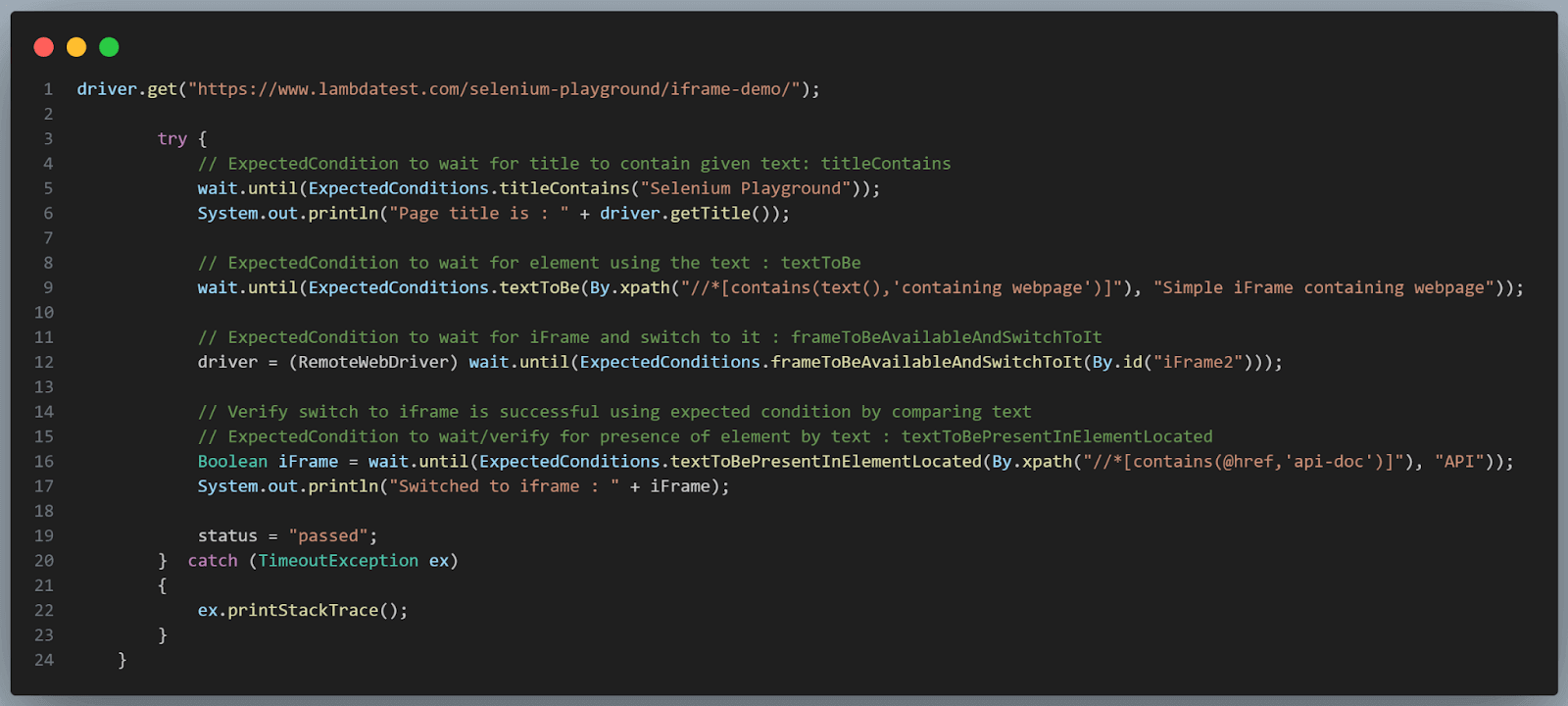

This test script uses explicit waits using WebDriverWait in Selenium Java for handling dynamic content on a Simple iframe page.

@Test(description="WebDriverWait demonstration 2")
   public void testExplicitWait_2()
   {
       // Initialize WebDriverWait with a timeout of 10 seconds
       WebDriverWait wait =new WebDriverWait(driver, Duration.ofSeconds(10));

       // Navigate to iframe demo page
       driver.get("https://www.lambdatest.com/selenium-playground/iframe-demo/");

       try {
           // ExpectedCondition to wait for title to contain given text: titleContains
           wait.until(ExpectedConditions.titleContains("Selenium Playground"));
           System.out.println("Page title is : " + driver.getTitle());

           // ExpectedCondition to wait for element using the text : textToBe
           wait.until(ExpectedConditions.textToBe(By.xpath("//*[contains(text(),'containing webpage')]"), "Simple iFrame containing webpage"));

           // ExpectedCondition to wait for iFrame and switch to it : frameToBeAvailableAndSwitchToIt
           driver = (RemoteWebDriver) wait.until(ExpectedConditions.frameToBeAvailableAndSwitchToIt(By.id("iFrame2")));

           // Verify switch to iframe is successful using expected condition by comparing text
           // ExpectedCondition to wait/verify for presence of element by text : textToBePresentInElementLocated
           Boolean iFrame = wait.until(ExpectedConditions.textToBePresentInElementLocated(By.xpath("//*[contains(@href,'api-doc')]"), "API"));
           System.out.println("Switched to iframe : " + iFrame);

           status = "passed";
       }  catch (TimeoutException ex)
       {
           ex.printStackTrace();
       }
   }

Code Walkthrough:

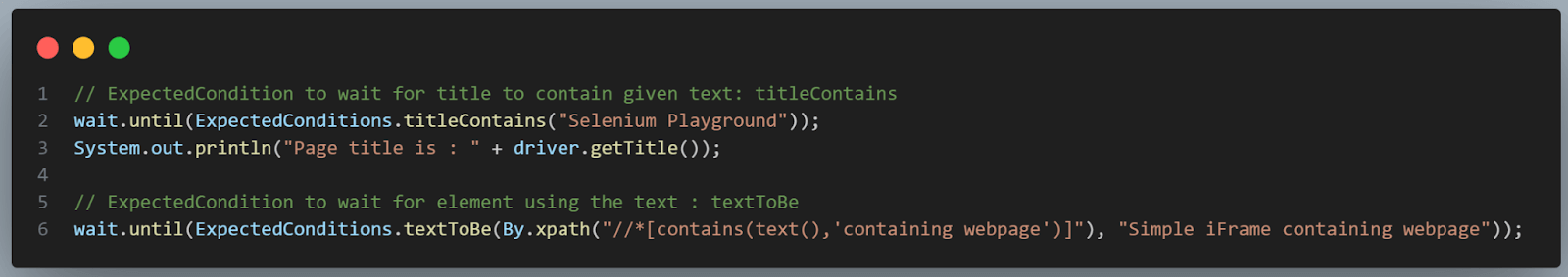

Create and initialize the WebDriverWait object with a max wait time of 10 seconds and then navigate to the Simple iframe demo website. Now, wait for the title of the page to contain Selenium Playground words using the titleContains() method before logging the title.

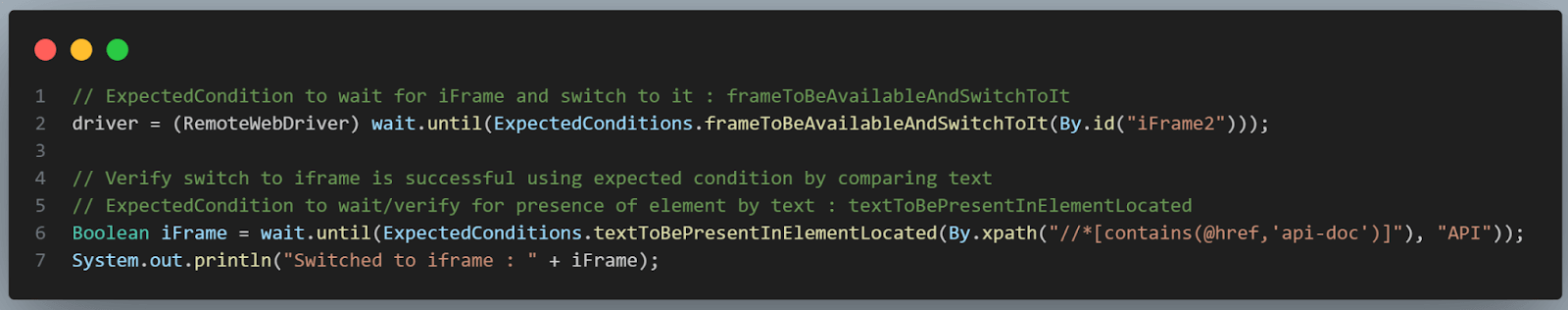

Next, we check if the required iFrame is present or not using the textToBe() method for its header. Switch to the iFrame once it is available using the frameToBeAvailableAndSwitchToIt() method and store its reference in the RemoteWebDriver object by casting the WebDriver object to it. After that, check for an element inside the iFrame using the textToBePresentInElementLocated() method to verify that the switch to iFrame was successful.

Test Scenario 3:

• Initialize WebDriverWait with a timeout of 10 seconds.
• Navigate to the Javascript Alert Box Demo page of the TestMu AI Selenium Playground website.
• Click on the button to get an alert.
• Use alertIsPresent to wait for the alert.
• Switch to alert and get the alert text.

Test Implementation:

This test script uses explicit waits using WebDriverWait in Selenium Java for handling JavaScript alerts on a Javascript Alert Box Demo page.

@Test(description="WebDriverWait demonstration 3")
   public void testExplicitWait_3()
   {
       // Initialize WebDriverWait with a timeout of 10 seconds
       WebDriverWait wait =new WebDriverWait(driver, Duration.ofSeconds(10));

       // Navigate to iframe demo page
       driver.get("https://www.lambdatest.com/selenium-playground/javascript-alert-box-demo");

       try {

           // Click on the button to get alert
           driver.findElement(By.xpath("(//*[@type='button'])[1]")).click();

           // ExpectedCondition to wait for alert : alertIsPresent
           wait.until(ExpectedConditions.alertIsPresent());
           System.out.println("Alert text is : " + driver.switchTo().alert().getText());

           status = "passed";

       }  catch (TimeoutException ex)
       {
           ex.printStackTrace();
       }
   }

Code Walkthrough:

Create and initialize the WebDriverWait object with a max wait time of 10 seconds and then navigate to the Javascript Alert Box Demo page. Now, click on the button to get an alert.

Next, use the alertIsPresent() method to wait for the alert. Once the condition is fulfilled, switch to the alert to get the alert text.

Then, update the test case status and add a catch block to handle the exception in case ExpectedCondition fails to find the alert in the given 10 seconds.

Test Scenario 4:

• Initialize WebDriverWait with a timeout of 10 seconds.
• Navigate to the Checkbox Demo page of the TestMu AI Selenium Playground website.
• Check the checkbox to get a message.
• Use elementToBeSelected to confirm the checkbox is checked.
• Uncheck the checkbox to hide the message.
• Use invisibilityOf to confirm that the message is hidden.

Test Implementation:

This test script uses explicit waits using WebDriverWait in Selenium Java for handling checkbox interactions on a Checkbox Demo page.

@Test(description="WebDriverWait demonstration 4")
   public void testExplicitWait_4()
   {
       // Initialize WebDriverWait with a timeout of 10 seconds
       WebDriverWait wait =new WebDriverWait(driver, Duration.ofSeconds(10));

       // Navigate to iframe demo page
       driver.get("https://www.lambdatest.com/selenium-playground/checkbox-demo");

       try {
           // check the checkbox to display message
           driver.findElement(By.id("isAgeSelected")).click();

           // ExpectedCondition to wait for checkbox to be selected: elementToBeSelected
           wait.until(ExpectedConditions.elementToBeSelected(By.id("isAgeSelected")));

           // uncheck the checkbox to hide the message
           driver.findElement(By.id("isAgeSelected")).click();

           // ExpectedCondition to wait for element to be invisible : invisibilityOf
           // Verify that the message is invisible now.
           Boolean isInvisible = wait.until(ExpectedConditions.invisibilityOf(driver.findElement(By.id("txtAge"))));
           System.out.println("Message is invisible : " + isInvisible);

           status = "passed";
       }  catch (TimeoutException ex)
       {
           ex.printStackTrace();
       }
   }

Code Walkthrough:

Create and initialize the WebDriverWait object with a max wait time of 10 seconds, and then navigate to the Checkbox Demo page. Now, check the checkbox and then use the elementToBeSelected() method to ensure that the checkbox is selected.

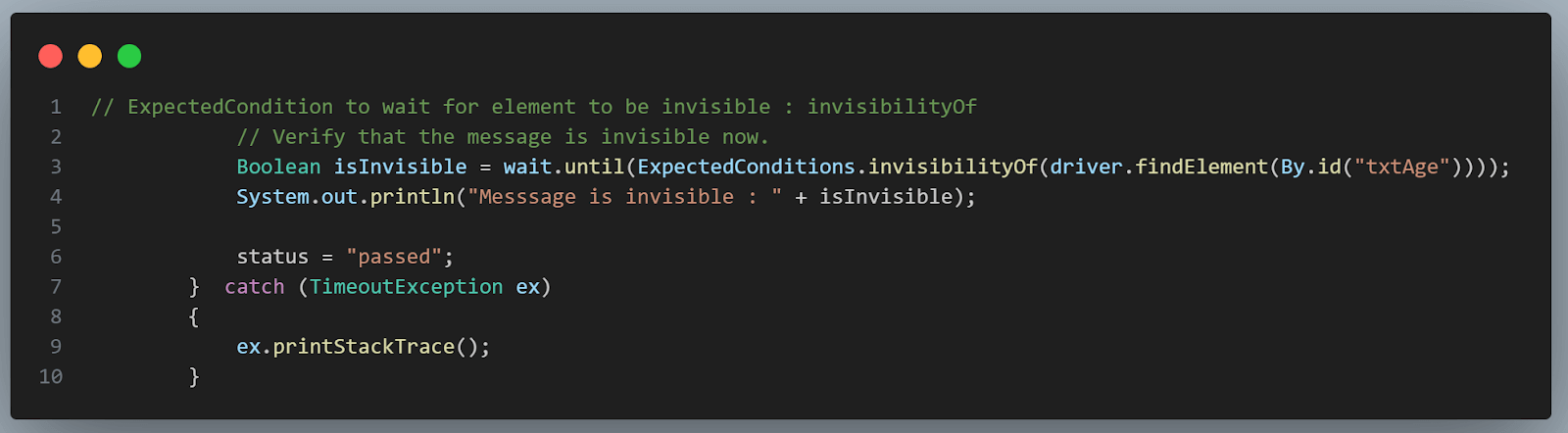

Then, uncheck the checkbox and use the invisibilityOf() method to wait and verify that the message displayed earlier is no longer visible after the checkbox is unchecked.

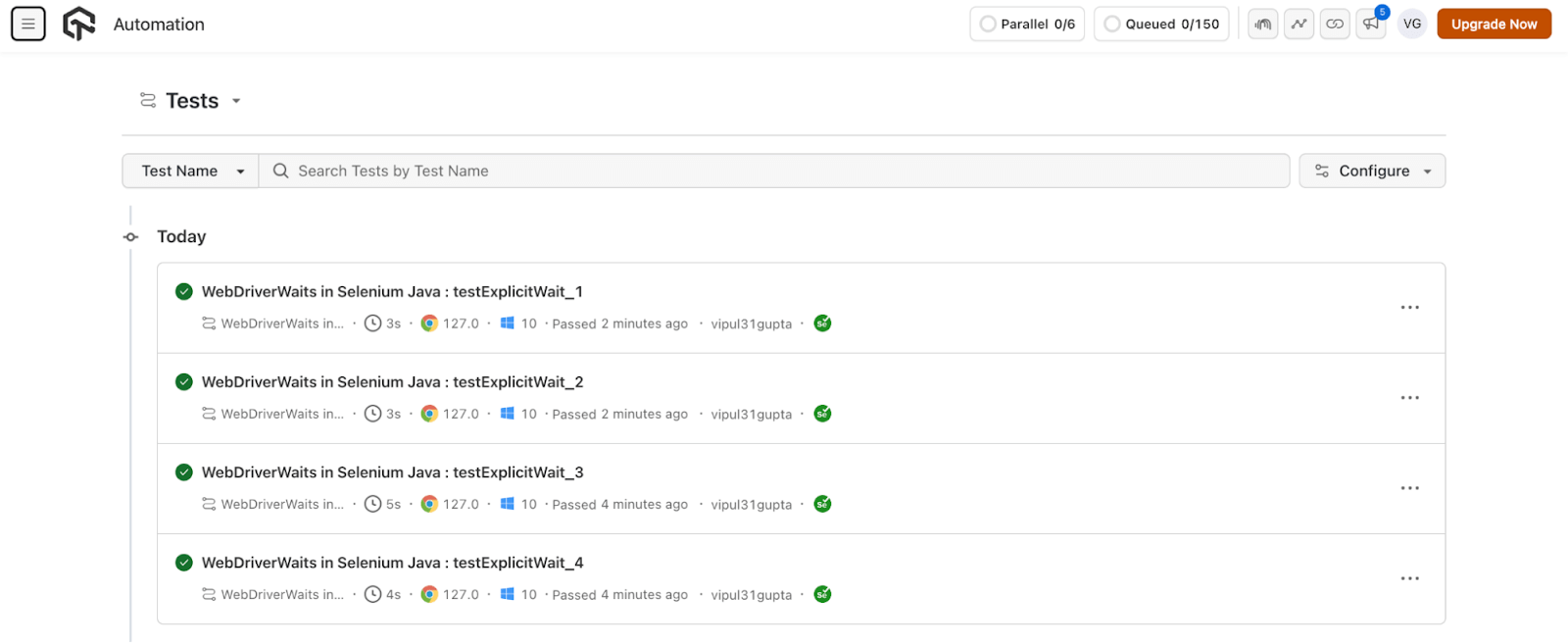

Running Tests

To view the execution results, navigate to the TestMu AI Web Automation dashboard.
