WebdriverIO Tutorial For Handling Dropdown In Selenium

What Are The Different Types Of Dropdown In WebDriverIO?

There are majorly two kinds of dropdowns you would often find on a website.

• Normal dropdown
• Custom dropdown

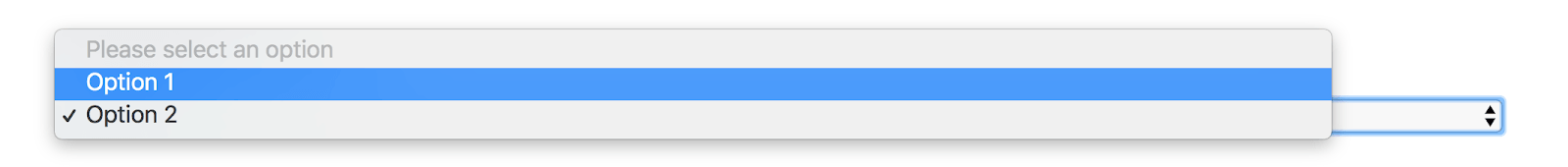

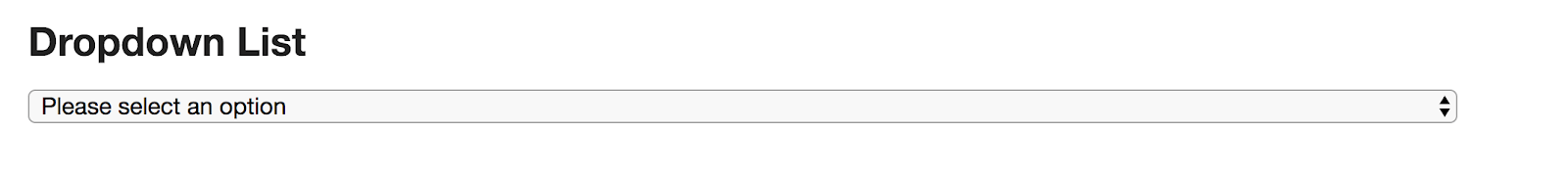

Normal Dropdown

Normal dropdowns are the ones we usually encounter while handling access forms in Selenium. It’s easy to identify a normal dropdown, you just have to open the element tab in the browser and see that dropdown HTML tag. HTML tag should be < select > and the ‘id’ should be ‘dropdown’.

Here is an example of a normal dropdown:

<select id="dropdown">
    <option value="" disabled="disabled" selected="selected">Please select an option</option>
    <option value="1">Option 1</option>
    <option value="2">Option 2</option>
  </select>

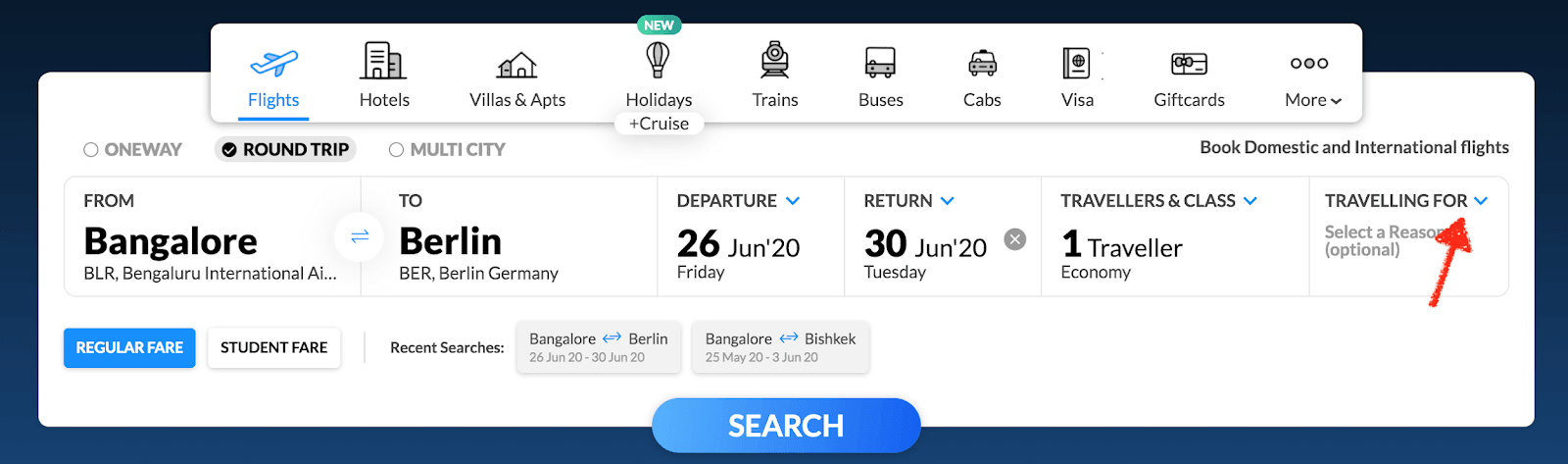

Custom Dropdown

Since with < Select > there aren’t many styling options, developers use custom dropdowns. As we discussed, custom dropdowns are not developed using the < Select > tag but with < div > tag or some other custom tag-based on the frontend framework.

Here is an example for custom dropdown:

<div class="fsw_inputBox travelFor inactiveWidget ">
   <label data-cy="travellingFor" for="travelFor">
      <span class="lbl_input latoBold appendBottom10">Travelling For</span><input data-cy="travelFor" id="travelFor" type="text" class="hsw_inputField font20" readonly="" value="">
      <div class="code latoBold font14 blackText makeRelative">
         <p></p>
         <p class="font14 greyText">Select a Reason (optional)</p>
      </div>
   </label>
</div>

Now, you know the difference between these two dropdowns. In Test automation, custom dropdowns are handled based on the event defined by the developer while normal dropdowns are handled by a special Selenium class object called ‘Select’ class.

Austin Siewert

CEO, Vercel

Discovered @TestMu AI yesterday. Best browser testing tool I've found for my use case. Great pricing model for the limited testing I do 👏

2M+ Devs and QAs rely on TestMu AI

Deliver immersive digital experiences with Next-Generation Mobile Apps and Cross Browser Testing Cloud

Sign up with googleSign up with Email

How To Handle Dropdown With WebDriverIO?

It’s pretty straight forward to handle dropdown in WebDriverIO! There isn’t a separate class object like Java or any other programming language. Here, WebDriverIO dropdown is also accessed by the simple selector.

Read More: What are Selenium Locators In WebDriverIO?

With the given HTML example on the normal dropdown, you can find dropdown objects using below syntax using ID selector.

Const drp = $("#dropdown");

There are two options for dropdowns.

• Single value dropdown
• Multiple value dropdown

There is no difference to access single or multiple value dropdowns except multiple value dropdowns allow the user to select multiple values from dropdown options.

WebDriverIO provides the following operation on the dropdown.

• selectByIndex
• selectByVisibleText
• selectByAttribute

selectByIndex

You can select the dropdown in value by providing the index of the value. The index is nothing but the position of the dropdown value. The index always starts at 0. So, the first value is considered as the 0th Index.

Here, Option 1 is considered as index 0 and Option 2 is index 1

Syntax:

$("selector").selectByIndex(index)

If you want to select Option 1 then you can use below code.

$("#dropdown").selectByIndex(0)

Note: Avoid using selectByIndex when the dropdown value changes dynamically as the value index gets changed frequently.

selectByVisibleText

Another option is selectByVisibleText. This option is very safe to use as we need to use dropdown visible text displayed in the dropdown value.

We can use Option 1 or Option 2 as a selection

Syntax:

$("Selector").selectByVisibleText(text)

If you want to select option 2 using selectByVisibleText() then use below code;

$("#dropdown").selectByVisibleText("Option 2")

Note: When you use selectByVisibleText() keep the visible text as it is or else the element will not identify.

selectByAttribute

selectByAttribute() is something new compared to other frameworks for Selenium test automation. Usually, in other Selenium test automation framework, you’d be using selectByValue option which allows the user to select dropdown using value attribute only. However, WebDriverIO provides a feature to use any attribute and its value exists in the dropdown.

Syntax:

$("Selector").selectByAttribute(attribute, value)

Here, the attribute parameter could be any attribute from < option > tag, and value parameter is the value of the provided attribute.

If you consider normal HTML dropdown code, you can see only one attribute that is “value”. In case, any other attribute provided then you can use that as well.

$("#dropdown").selectByAttribute("value", "1")

Multiple Value Dropdown

If you see the < select > tag has multiple="true" attribute then this dropdown has the capability to select multiple options. When you automate multiple value dropdowns, you have to call the above-explained methods multiple times.

WebDriverIO as of now does not provide a selectAll() or deSelectAll() method option for multiple value dropdown. You need to write custom code for the same as shown below.
