Best Practices for React Native Development to Improve Appium Test Automation

Element Identification Hierarchy

A well-structured Element Identification Hierarchy is crucial in React Native apps, as it directly impacts the reliability and precision of your Appium test suite.

Core Problem: Platform-Sensitive Property Collision

On Android, both testID and accessibilityLabel map to different native properties, but developers often misuse them interchangeably. This leads to:

• Appium Element Detection Failures: If accessibilityLabel ⁣overrides testID-related properties on Android.
• Accessibility Conflicts: Screen readers might read testing identifiers instead of user-friendly labels.
• Fragile Selectors: Tests break when accessibility needs change.

Technical Breakdown

Platform-Specific Mappings

Key Conflicts

• Android:
• testID sets a view tag or resource-id.
• accessibilityLabel sets contentDescription, which Appium can see.
• Risk: Developers use accessibilityLabel as a testID workaround, polluting accessibility metadata.
• iOS:
• No collision – testID and accessibilityLabel map to separate properties.

Robust Solution

Separation of Concerns

• testID: Exclusively for Appium element identification.
• accessibilityLabel: Exclusively for screen reader announcements.

<Button
  testID="login-submit-btn" // For Appium
  accessibilityLabel="Submit login form" // For screen readers
  accessibilityRole="button"
/>

Platform-Specific Appium Strategies

Configure Appium to use the correct property for each platform:

• Android: Use custom locators to target viewTag(maps totestID)

// Custom "test-id" locator strategy for Android - For Espresso
driver.findElement(AppiumBy.androidViewTag("login-submit-btn"));
// UIAutomator2
driver.findElement(AppiumBy.androidUIAutomator("new UIAutomator().description('login-submit-btn')"));

• iOS: Locate elements by accessibilityIdentifier (maps to testID).

driver.findElement(AppiumBy.accessibilityId("login-submit-btn"))

Validation Workflow

• Android:

adb shell uiautomator dump



    adb shell cat /sdcard/window_dump.xml | grep 'login-submit-btn'

• iOS: Use Xcode’s Accessibility Inspector to check Identifier and Label.

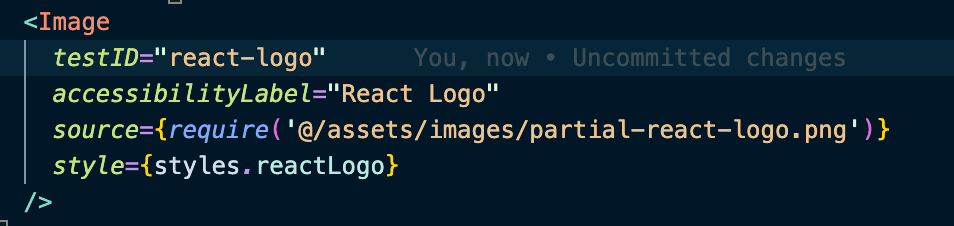

Here is another real-world example: below is a React component called Image with the testID set as react-logo and the accessibility label set as React Logo.

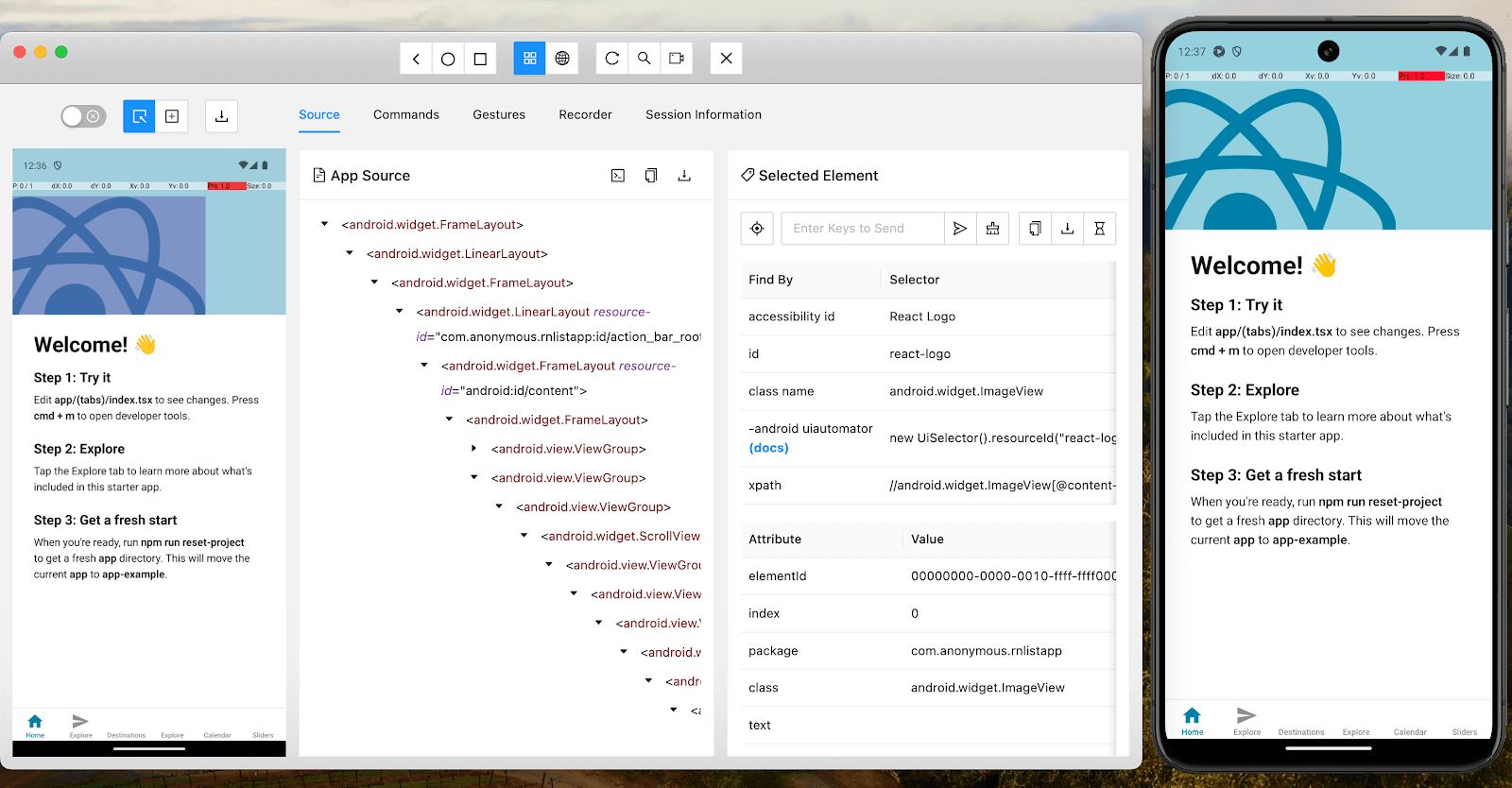

Let’s see how these attributes are being mapped in the Android app using Appium Inspector:

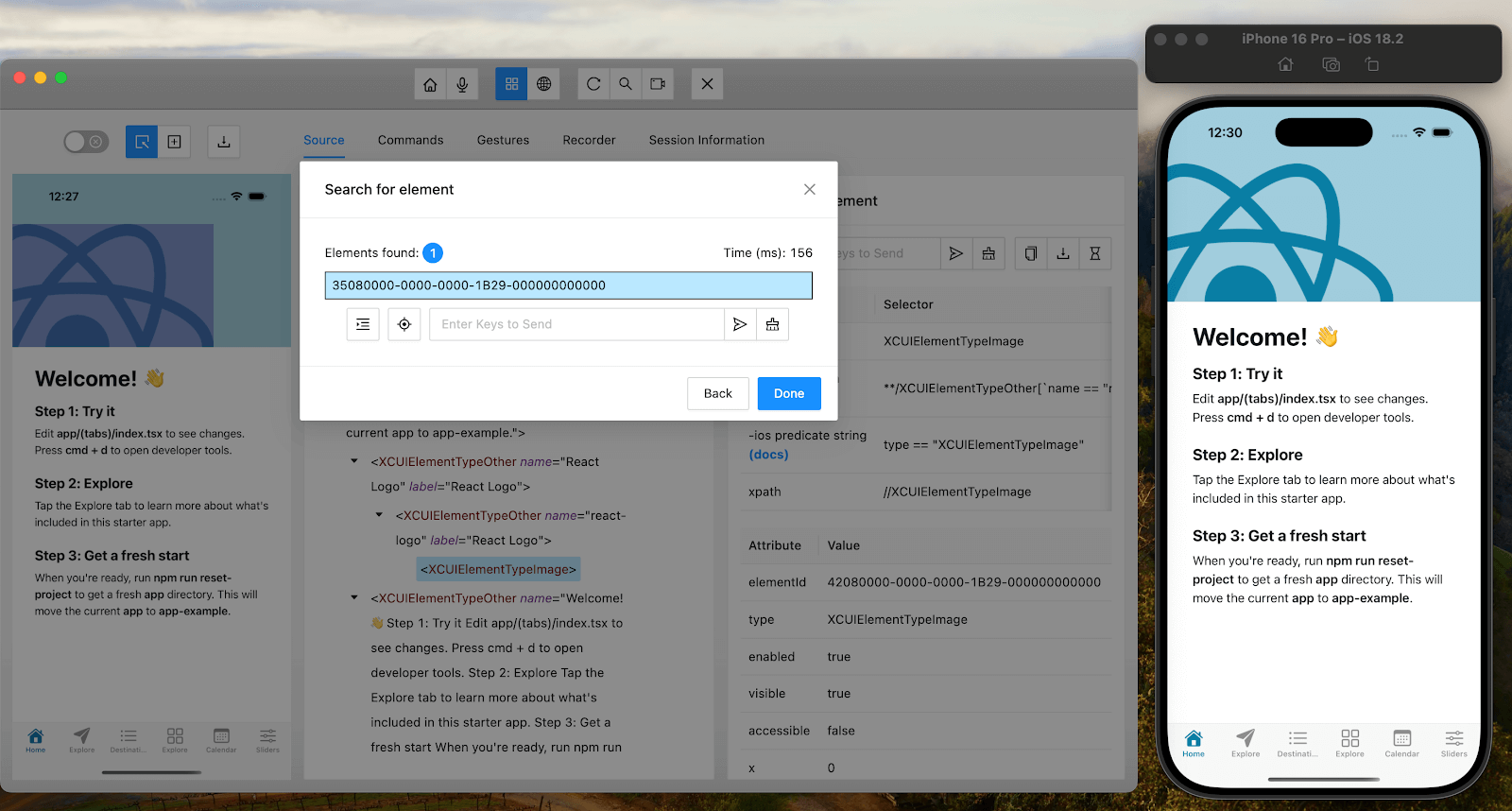

Let’s see how these attributes are being mapped in the iOS app using Appium Inspector:

Result

Outcome:

• Appium Reliability: 99%+ element detection rate across platforms.
• Clean DOM: No redundant properties or hidden elements.
• True Accessibility: Screen readers get human-friendly labels, not test IDs.

Note: Test React Native apps with Appium on real Android and iOS devices. Try TestMu AI Now!

When to Deviate

Only combine testID and accessibilityLabel on the same element if:

• The element has no visual text (e.g., an icon button).
• You explicitly want screen readers to announce the test ID (rare). Recommendation in this case is to not clutter the accessibilityLabel and testID to have some very meaningful names.

<Button
  testID="Submit login form" // For Appium
  accessibilityLabel="Submit login form" // For screen readers
  accessibilityRole="button"
/>

DOM Reduction Techniques

DOM Reduction Techniques help streamline the app’s UI structure, minimizing unnecessary nodes and making your Appium test suite faster, more stable, and easier to maintain.

Core Problems and Solutions

Non-Essential Elements Clutter DOM

Decorative elements (e.g., background images, separators) remain in the accessibility tree, causing:

• False Appium Element Detection: Tests may accidentally interact with hidden/decorative elements.
• Performance Issues: Large DOM trees slow down Appium’s XPath/CSS selector queries.
• Screen Reader Noise: Non-interactive elements pollute accessibility focus.

Solution:

<Image
  source={bg}
  importantForAccessibility="no-hide-descendants" // Android
  accessibilityElementsHidden={true} // iOS
/>

• Android: importantForAccessibility=”no-hide-descendants” removes the element and its children from TalkBack’s focus.
• iOS: accessibilityElementsHidden={true} hides the element from VoiceOver.
• Result: ~40-60% reduction in “ghost nodes” per screen.

List Rendering Overhead

ScrollView with 1000 items creates 1000 DOM nodes immediately:

• Memory Bloat: ~5KB per node → 5MB overhead for 1000 items.
• Appium Timeouts: driver.findElements() takes O(n) time to traverse nodes.
• Flaky Tests: Virtualised lists may not render off-screen items, causing element-not-found errors.

Solution:

Replacing ScrollView with FlatList reduces DOM nodes and improves Appium performance.

<FlatList
  data={data}
  renderItem={({item}) => (
    <Item
      testID={`item-${item.id}`}  // Unique selector
      accessibilityLabel={item.name}  // Screen reader context
    />
  )}
  keyExtractor={item => item.id}
  initialNumToRender={10}  // Only 10 nodes mounted initially
  windowSize={21} // 10 above + 10 below + 1 current
/>

• DOM Node Reduction: From 1000 → ~21 nodes (for 1000-item list).
• Appium Optimization: initialNumToRender controls how many items are available for immediate testing.

Retained Screen State

React Navigation’s default behaviour keeps previous screens mounted:

• DOM Bloat: 5 screens × 200 nodes each = 1000 nodes in memory.
• Stale Element Risks: Appium may find elements from hidden screens.
• Memory Leaks: Unreleased event listeners/network requests.

Solution:

<Stack.Screen
 name="Details"
 component={DetailsScreen}
 options={{
    unmountOnBlur: true,  // Full cleanup
    detachPreviousScreen: true  // Android-specific optimization
  }}
/>

• DOM Node Reduction: From 1000 → ~200 nodes (single-screen DOM).
• State Cleanup: useEffect cleanup runs when the screen unmounts:

useEffect(() => {
    const subscription = NetInfo.addEventListener(...);
    return () => subscription.remove(); // Cleanup on unmount
  }, []);

Implementation Checklist

• Audit Elements with React DevTools → Identify decorative nodes.
• Replace All ScrollView Lists with FlatList/SectionList.
• Add unmountOnBlur: true to React Navigation screens.
• Verify with Appium Inspector:

# Check Android DOM size
     adb shell uiautomator dump && adb shell cat /sdcard/window_dump.xml | wc -l

# Check iOS DOM via WDA
     appium:showIOSLog: true

The result: A 500-node screen, with these optimizations, achieves the following:

• Smaller DOM (500 → 85 nodes)
• Faster Appium Tests

Adjust Appium’s DOM Traversal Settings

Deeply nested elements or large DOMs may cause Appium to truncate the element hierarchy during inspection.

Increase DOM Depth

driver.setSetting("snapshotMaxDepth", 60);
driver.setSetting("customSnapshotTimeout", 30000);

As per Appium, snapshotMaxDepth changes the value of maximum depth for traversing the elements in the source tree. It may help to prevent out-of-memory or timeout errors while getting the element’s source tree, but it might restrict its depth.

Please consider restricting this value if you observed an error like Timed out snapshotting com.apple.testmanagerd… message or The current application’s XML source cannot be retrieved from your Appium log, possibly due to a timeout. A part of the elements’ source tree might be lost if the value is too small. Defaults to 50

According to Appium, the customSnapshotTimeout parameter determines the maximum time in float seconds for resolving a single accessibility snapshot with custom attributes. Page source generation, XML lookup, and the retrieval of custom attributes (both visibility and accessibility) primarily use snapshots.

It might be necessary to increase this value if the actual page source is enormous and contains hundreds of UI elements. The default value is set to 15 seconds.

Since Appium 1.19.1, if this timeout expires and no custom snapshot can be made, then WDA tries to calculate the missing attributes using its own algorithms, so setting this value to zero might speed up, for example, page source retrieval, but at the cost of the precision of some element attributes.

Optimize the DOM Payload

Reduce XML size using Appium settings as below:

driver.setSetting("pageSourceExcludedAttributes", "type,index,visible"); // Exclude non-critical attributes
driver.setSetting("useJSONSource", true); // Use lightweight JSON instead of XML

Strategic Use of accessible Property

The strategic use of the accessible property in React Native enhances both accessibility and test automation by enabling Appium to accurately identify and interact with UI elements.

Core Problem: Accessibility Grouping vs. Testability Conflict

When a parent container uses accessible={true}, React Native flattens its children into a single accessibility node. While this feature improves screen reader UX by grouping related elements, it hides individual child elements from Appium, making them untestable.

Technical Breakdown

• iOS: Combines children into one UIAccessibilityElement via isAccessibilityElement=true
• Android: Sets focusable=true on the parent, hiding child contentDescription/testID values.

Demonstration of Failure

Shopping Cart List (Problematic Approach)

// BAD FOR TESTING: List items become untestable
function ShoppingCartScreen() {
  const cartItems = [
    { id: 1, name: "Headphones", price: "$99" },
    { id: 2, name: "Phone Case", price: "$29" },
    { id: 3, name: "Charger", price: "$19" }
  ];

  return (
    <View accessible={true} accessibilityLabel="Shopping cart items">
      {cartItems.map(item => (
        <View key={item.id} testID={`cart-item-${item.id}`}>
          <Text>{item.name}</Text>
          <Text>{item.price}</Text>
          <Button
            testID={`remove-item-${item.id}`}
            title="Remove"
            onPress={() => removeItem(item.id)}
          />
        </View>
      ))}
    </View>
  );
}

What happens:

• For screen readers: The entire list is announced as “Shopping cart items.”
• For Appium: Appium can ONLY see one element (the parent View), NOT individual cart items.
• DOM Impact: 100 list items → 1 visible node for Appium.

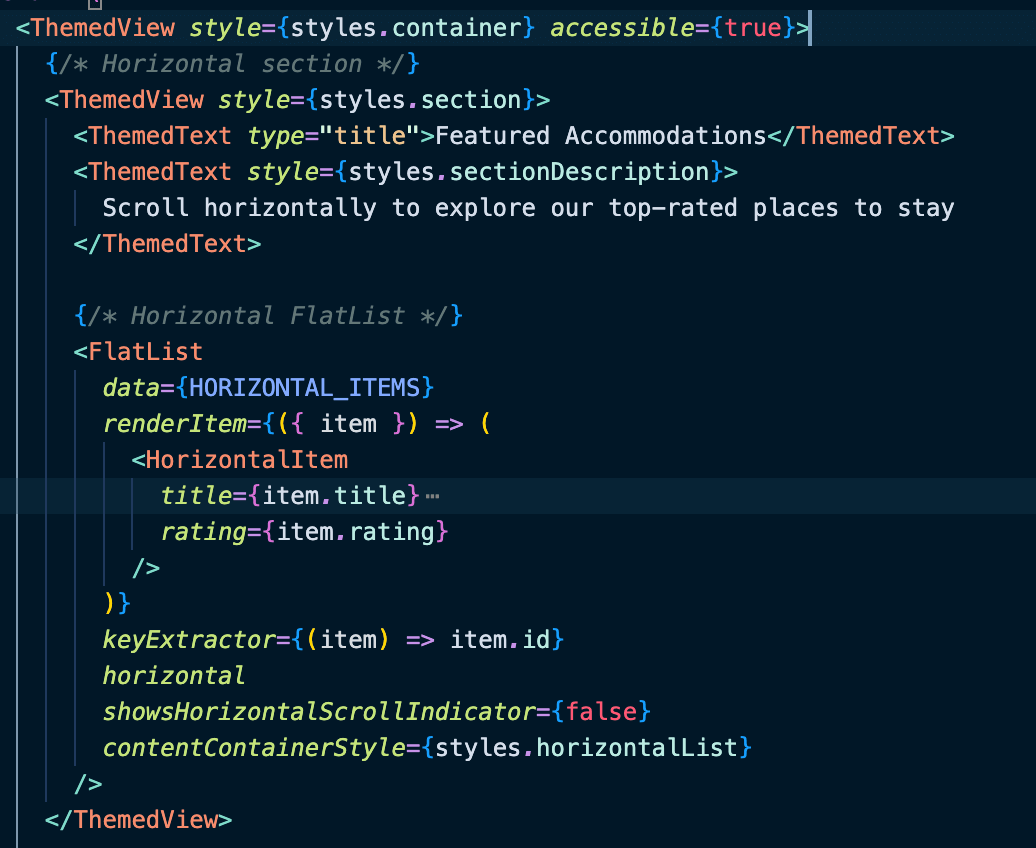

Here’s an example of a React component named ThemedView with numerous components inside, set to accessible true.

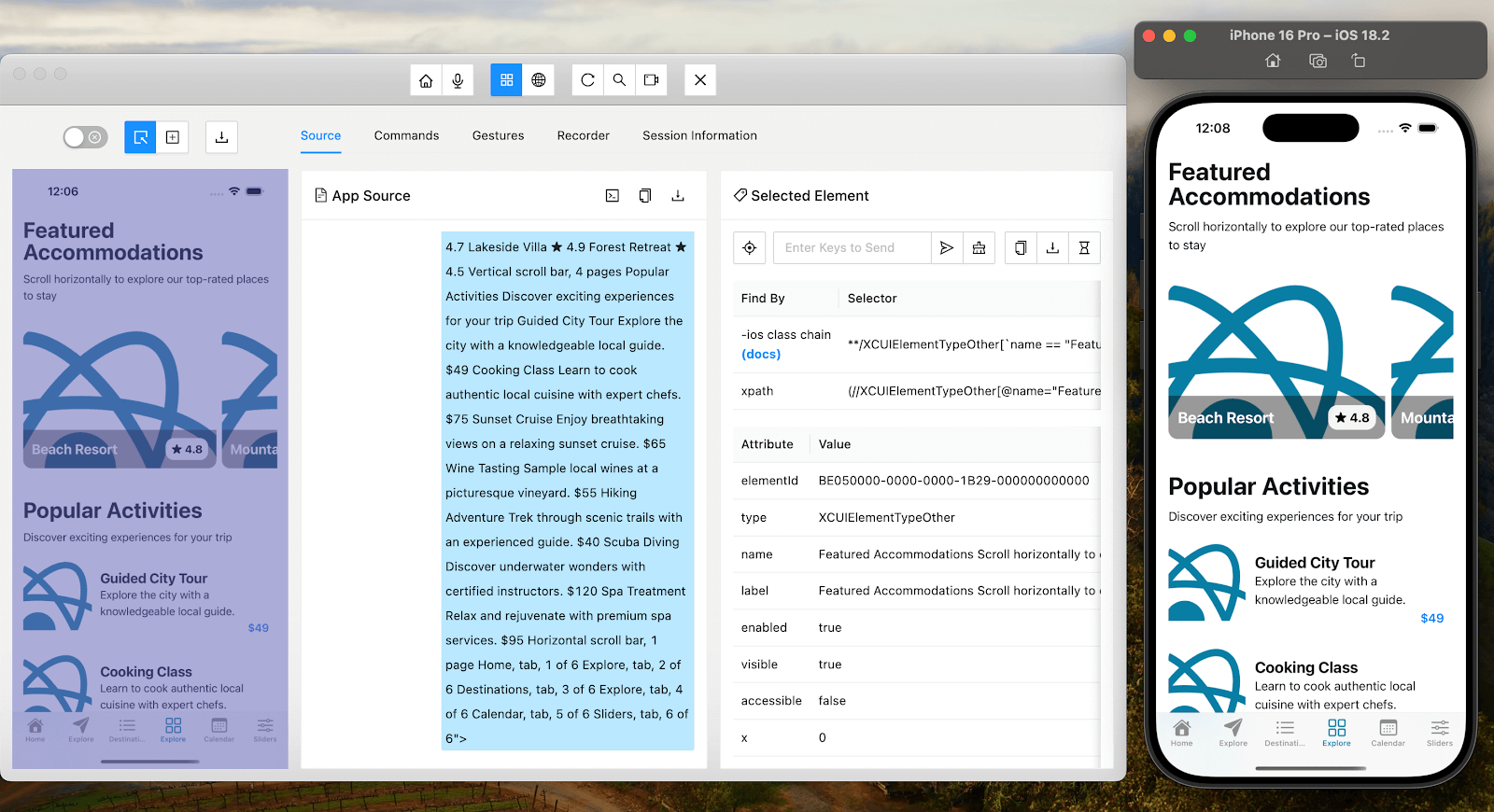

Let’s see how the parent element blocks child elements in the DOM using Appium Inspector:

None of the child elements are accessible, and React Native flattens them into a single node.

Robust Solution

Never Use accessible on Scrollables/Lists

For Lists:

// GOOD FOR TESTING: Each list item remains testable
function ShoppingCartScreen() {
  const cartItems = [
    { id: 1, name: "Headphones", price: "$99" },
    { id: 2, name: "Phone Case", price: "$29" },
    { id: 3, name: "Charger", price: "$19" }
  ];

  return (
    <FlatList
      data={cartItems}
      renderItem={({item}) => (
        <View
          key={item.id}
          testID={`cart-item-${item.id}`}
          accessibilityLabel={`${item.name}, ${item.price}`}
        >
          <Text>{item.name}</Text>
          <Text>{item.price}</Text>
          <Button
            testID={`remove-item-${item.id}`}
            accessibilityLabel={`Remove ${item.name}`}
            title="Remove"
            onPress={() => removeItem(item.id)}
          />
        </View>
      )}
    />
  );
}

FlatList, by default, exposes accessible elements within it.

What happens:

• For screen readers: Each item is announced individually with its details.
• For Appium: Appium can find each cart item by its testID.

Key Behaviours:

• iOS: Each list item becomes its own .accessibilityElement.
• Android: Children retain individual contentDescription (from testID).

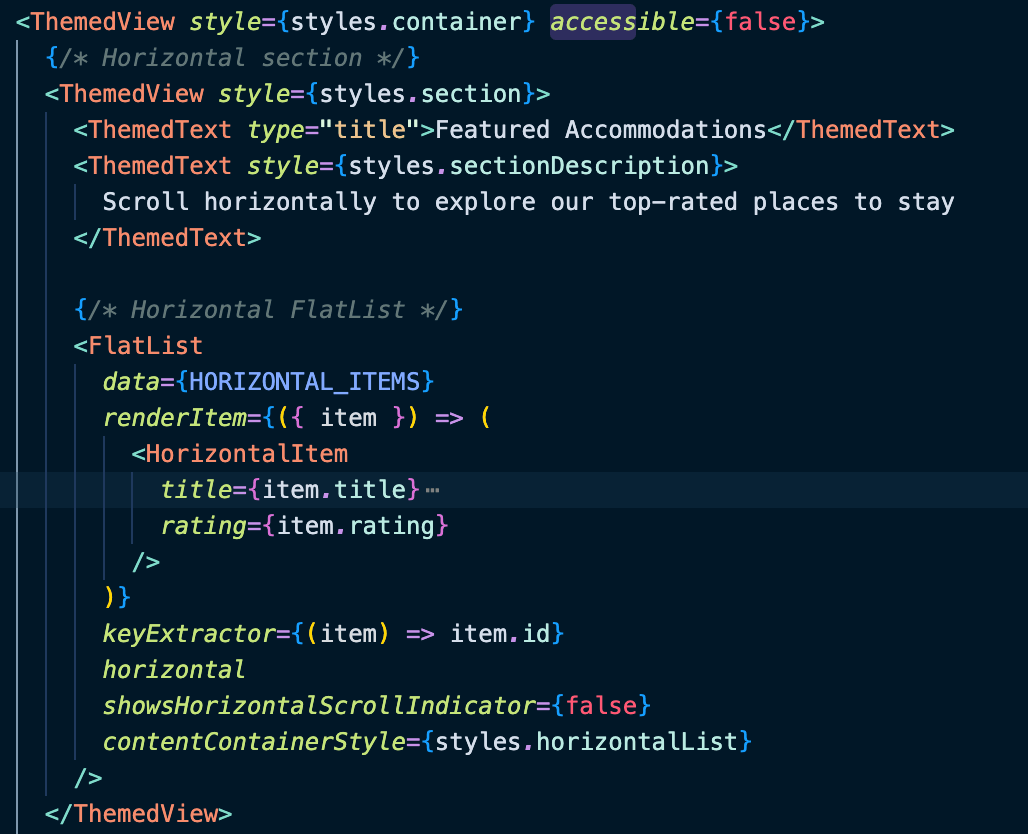

Here is a real-world example again, with accessible property set to false for the themed view containing many child elements:

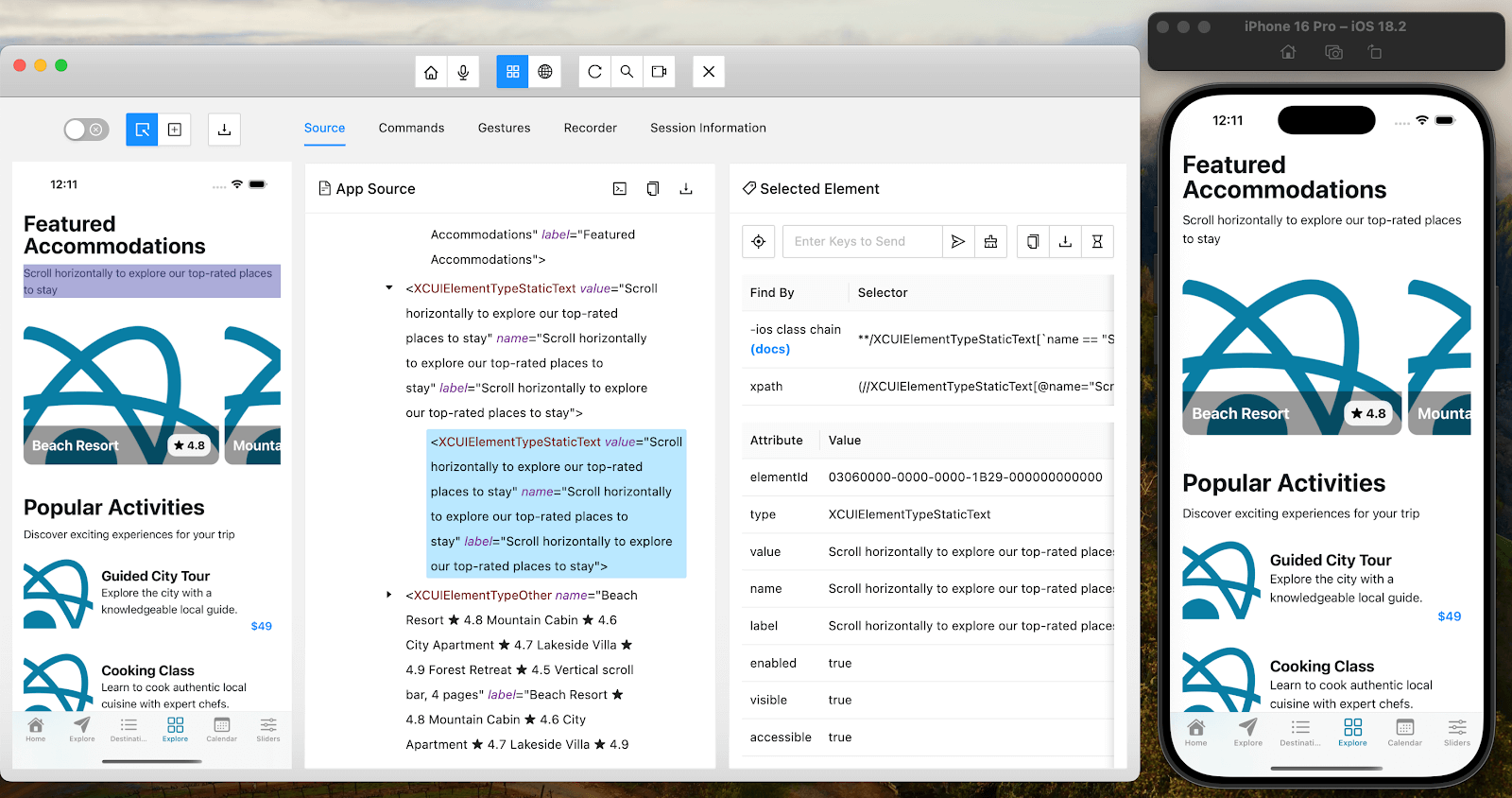

Let’s examine how Appium Inspector presents the parent element and child elements in the DOM.

Setting the accessible property of the parent view to false (default) clearly presents both the parent and child elements in the DOM.

Key Takeaways

• Accessibility ≠ Testability: What’s good for screen readers (grouping) can break Appium tests.
• For lists and collections: Never use accessible={true} on the container
• For form inputs: Group only if the fields truly form a single logical unit
• For buttons with icons: Use accessible={true} to merge the icon and label together
• Test early: Use Appium Inspector to verify your elements are visible before writing tests

By strategically limiting accessible=true usage, you maintain both accessibility compliance and test automation reliability.
