Diff Highlighter & Navigation

When reviewing SmartUI visual comparisons, small differences can be easy to miss on dense or zoomed-out screens. The Diff Highlighter feature helps you discover every change quickly using in-view navigation and an optional highlight animation—so you spend less time scanning and more time deciding what to accept or reject.

What You Get

Feature	Description
Previous / Next	Move focus to the previous or next diff region in order (top to bottom).
Highlight	Run an animation that traverses each diff from top to bottom with popping circles, making every change location obvious at a glance.
Actions menu	All controls live in the comparison view’s actions menu (e.g. 3-dot or actions dropdown).

No extra setup is required: if your screenshot uses Smart Ignore comparison, diff navigation and highlight are available as soon as you open the comparison.

How to Use Diff Navigation

Step 1: Open the comparison view

1. In your SmartUI dashboard, open the build that contains the screenshot you want to review.
2. Open the screenshot/comparison view (e.g. by clicking the screenshot or “View issues”).

Step 2: Open the actions menu

On the comparison view, open the actions menu (e.g. the 3-dot or actions dropdown).

Step 3: Use Previous, Highlight, and Next

In the actions menu you’ll see:

• Previous — moves focus to the previous diff (above the current one).
• Highlight — runs the highlight animation: popping circles traverse each diff from top to bottom, so you can see every change location in sequence.
• Next — moves focus to the next diff (below the current one).

Use Highlight when you want to quickly see all diffs without clicking through. Use Previous and Next when you want to step through differences one by one.

Step 4: Review each difference

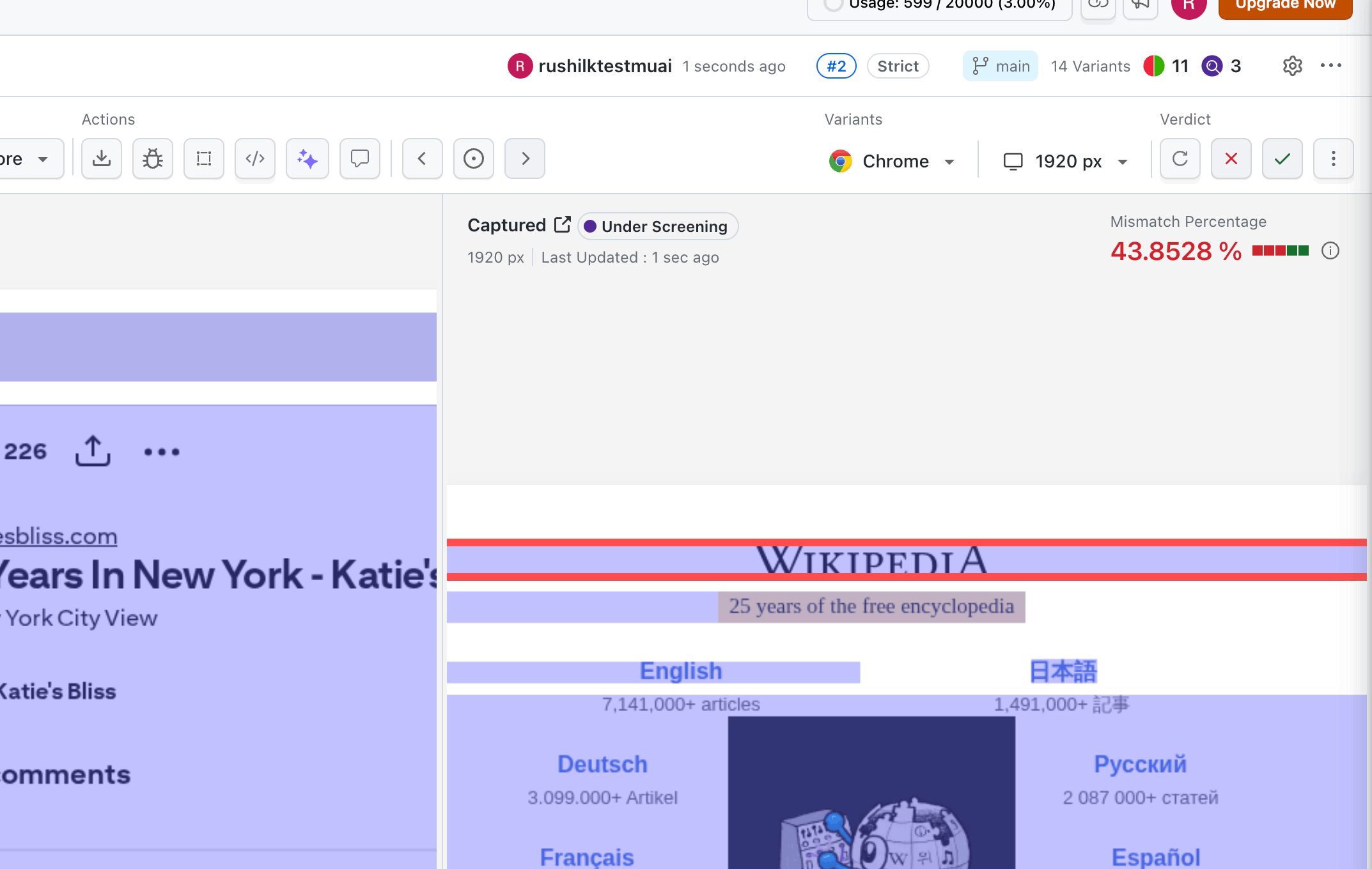

• On clicking the Previous or Next buttons, the view will zoom into that specific diff and highlight it with a bounded box.

• You can continue to use overlay toggles, zoom, slider/side-by-side, and Mark as bug or approval actions as usual.
• Diff navigation and highlight do not replace existing comparison tools—they only make it easier to find where the changes are.

Highlight animation

When you click Highlight:

• It will show circles around the areas where the differences are present.
• They traverse each diff region from top to bottom in sequence.
• This makes it easy to see how many changes there are and where they sit, without manually scanning the whole screenshot.

Comparison mode support

Comparison mode	Diff navigation & highlight
Smart Ignore	Supported
Strict	Not yet supported
Layout	Not yet supported

Diff navigation and highlight use precomputed diff regions from the comparison. Today these are available for Smart Ignore only. Support for Strict and Layout modes is planned for a future release.

tip

To use diff navigation and highlight, ensure the screenshot is compared with Smart Ignore. You can enable Smart Ignore in Project Settings or choose it per screenshot from the Diff options dropdown on the comparison page.

Tips

• Use Highlight first on a new comparison to see how many diffs there are and where they are, then use Previous/Next to inspect each one.
• Zoom and overlays still work as before; combine them with diff navigation for a faster review.
• Commenting and Mark as bug are unchanged; use them as usual while stepping through diffs.

Troubleshooting

Issue	What to check
No Previous/Next/Highlight in the menu	Confirm the screenshot is using Smart Ignore comparison. These controls are not shown for Strict or Layout mode yet.
Highlight doesn’t show anything	Ensure there is at least one diff; if the comparison is identical, there’s nothing to highlight.
Order of diffs	Diffs are always traversed top to bottom; Previous goes up, Next goes down.
