Execute XCUI Framework Tests on HyperExecute

This page outlines how to execute your XCUI tests on HyperExecute with YAML 0.2

Prerequisites

To run the Tests on HyperExecute from your Local System, you are required:

• Your TestMu AI Username and Access key
• HyperExecute CLI in order to initiate a test execution Job .
• Setup the Environmental Variable
• HyperExecute YAML file which contains all the necessary instructions.

Step 1: Setup Your Test Suite

You can use your own project to configure and test it. For demo purposes, we are using the sample repository.

Sample repo

Download or Clone the code sample for the XCUI framework from the TestMu AI GitHub repository to run the tests on the HyperExecute.

View on GitHub

Step 2: Setup the CLI in your Test Suite

After cloning / downloading the sample repo, you need to setup the CLI and the environment variables.

Download the HyperExecute CLI

The CLI is used for triggering the tests on HyperExecute. It is recommend to download the CLI binary on the host system and keep it in the root directory of the suite to perform the tests on HyperExecute.

You can download the CLI for your desired platform from the below mentioned links:

Platform	HyperExecute CLI
Windows	https://downloads.lambdatest.com/hyperexecute/windows/hyperexecute.exe
MacOS	https://downloads.lambdatest.com/hyperexecute/darwin/hyperexecute
Linux	https://downloads.lambdatest.com/hyperexecute/linux/hyperexecute

Setup Environment Variable

Now, you need to export your environment variables LT_USERNAME and LT_ACCESS_KEY that are available in the TestMu AI Profile page.

Run the below mentioned commands in your terminal to setup the CLI and the environment variables.

Linux / MacOS

Verified

export LT_USERNAME="undefined"
export LT_ACCESS_KEY="undefined"

Windows

Verified

set LT_USERNAME="undefined"
set LT_ACCESS_KEY="undefined"

Step 3: Upload your Application and Test Suite

Upload your App

Upload your iOS application (.ipa file) to the TestMu AI servers using our REST API. You need to provide your Username and AccessKey in the format Username:AccessKey in the cURL command for authentication. Make sure to add the path of the appFile in the cURL request.

Here is an example cURL request to upload your app using our REST API:

Linux / MacOS

Verified

curl -u "undefined:undefined" \
--location --request POST 'https://manual-api.lambdatest.com/app/uploadFramework' \
--form 'appFile=@"/Users/macuser/Downloads/proverbial.ipa"' \
--form 'type="xcuit-ios"'

Windows

Verified

curl -u "undefined:undefined" -X POST "https://manual-api.lambdatest.com/app/uploadFramework" -F "appFile=@"/Users/macuser/Downloads/proverbial.ipa"" -F "type="xcuit-ios""

note

Response of above cURL will be a JSON object containing the App URL of the format - APP123456789123456789 and will be used in the last step as appId.

Upload your Test Suite

Upload your test suite (.ipa file) to the TestMu AI servers using our REST API. You need to provide your Username and AccessKey in the format Username:AccessKey in the cURL command for authentication. Make sure to add the path of the appFile in the cURL request. Here is an example cURL request to upload your app using our REST API:

Linux / MacOS

Verified

curl -u "undefined:undefined" \
--location --request POST 'https://manual-api.lambdatest.com/app/uploadFramework' --form 'appFile=@"/Users/macuser/Downloads/proverbial_ios_xcuitest.ipa"' --form 'type="xcuit-ios"'

Windows

Verified

curl -u "undefined:undefined" --location --request POST "https://manual-api.lambdatest.com/app/uploadFramework" --form "appFile=@"C:/Users/varunkumarb/Downloads/proverbial_ios_xcuitest.ipa"" --form "type="xcuit-ios""

note

Response of above cURL will be a JSON object containing the App URL of the format - APP123456789123456789 and will be used in the next step as testSuiteAppId

Step 4: Configure YAML in your Test Suite

Enter your <RELATIVE_APP_PATH> and <RELATIVE_TEST_SUITE_PATH> in the YAML file

Verified

---
version: "0.2"

runson: ios

autosplit: true

concurrency: 1

retryOnFailure: true
maxRetries: 2

framework:
  name: "ios/xcui"
  args:
    appPath: <RELATIVE_APP_PATH>
    testSuitePath: <RELATIVE_TEST_SUITE_PATH>
    video: true
    filters:
      attributes:
      - type: className
        values: ["LambdaUiKitIOSUITestsLaunchTests"]
      - type: testName
        values: ["LambdaUiKitIOSUITests/testverifyAppLaunch"]
    deviceSelectionStrategy: any
    devices: [".*"]
    artifacts: true

    shards:
      mappings:
      - name: shard1
        strategy: "only-testing/skip-testing"
        values: ["<className>/<className/testName>"]
     - name: shard2
       strategy: "only-testing/skip-testing"
       values: ["<className>/<className/testName>", "<className>/<className/testName>"]

jobLabel: ['HyperExecute', 'XCUI', 'Real Device']

When shards are added

If you are using the deviceSelectionStrategy: all, then in that case all the mentioned shards will be executed on all the devices.
For example: There are 2 shards and 2 devices mentioned, then the 2 shards will be executed on 2 devices (2 Shards * 2 Devices).

If you are using the deviceSelectionStrategy: any, then in that case all the mentioned shards will be executed on any one device from the list provided.
For example: There are 2 shards and 2 devices mentioned, then the 2 shards will be executed on any device (2 shards * any device mentioned).

Step 5: Generate Reports and Artifacts

To generate artifacts for your XCUI tests, add the artifacts: true and report: true flag in your YAML file:

Verified

report: true

framework:
  name: "ios/xcui"
  args:
    artifacts: true
    ...//

To download these artifacts in your local machine, you can pass the --download-artifacts and --download-report flag with the CLI command to execute the tests as shown in the next step.

Step 6: Execute your Test Suite

NOTE : In case of macOS, if you get a permission denied warning while executing CLI, simply run chmod u+x ./hyperexecute to allow permission. In case you get a security popup, allow it from your System Preferences → Security & Privacy → General tab.

Run the below command in your terminal at the root folder of the project:

Verified

./hyperexecute --config RELATIVE_PATH_OF_YOUR_YAML_FILE --download-artifacts --download-report

OR use this command if you have not exported your username and access key in the step 2.

Verified

./hyperexecute --user undefined --key undefined --config RELATIVE_PATH_OF_YOUR_YAML_FILE --download-artifacts --download-report

Step 7: Monitor the Test Execution

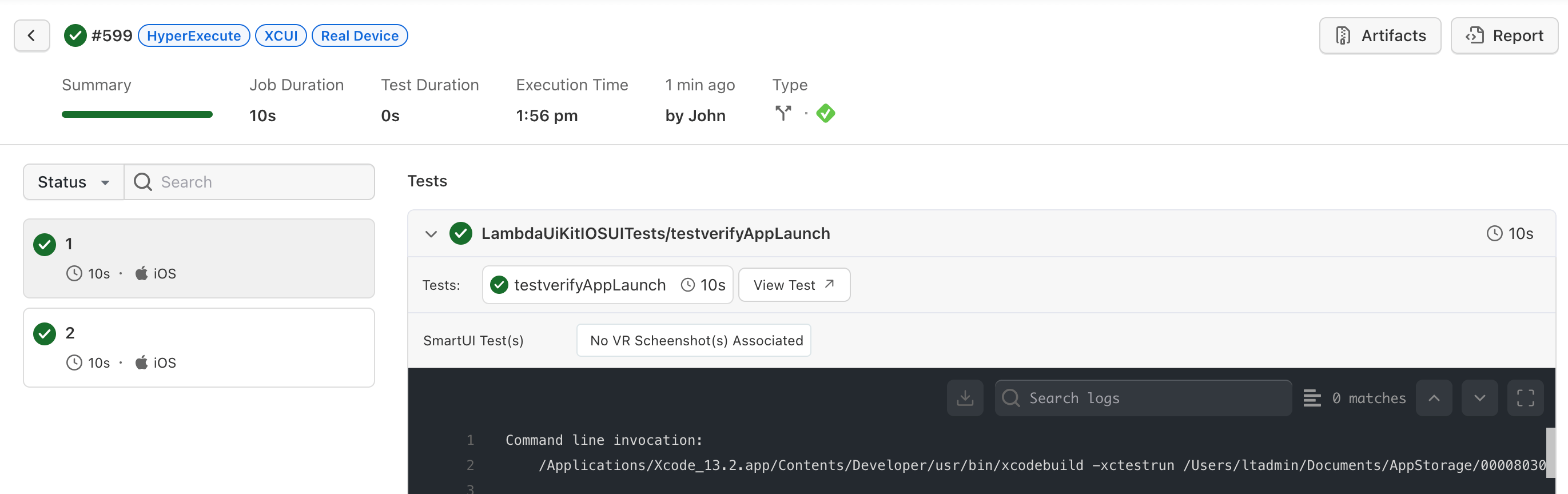

Visit the HyperExecute Dashboard and check your Job status.
