What Is System Testing? Definition, Types, Process [2026]

It is the last stage at which defects can be found cheaply. Once the build passes system testing, the next people to exercise the software are your users.

This guide covers what system testing verifies, its types, the process step by step, how it differs from integration, end-to-end, and acceptance testing, and the tools teams use to run it.

Note: System testing is the last point where a requirement gap is still cheap to close. TestMu AI KaneAI turns those requirements into web, mobile, and API tests written in plain English. Try TestMu AI free.

System testing evaluates the complete, integrated software system to verify it meets its specified requirements. It checks functionality, reliability, and performance as a whole, not per component.

The ISTQB glossary defines it as a test level that focuses on verifying that a system as a whole meets its specified requirements. The same test level is formalised in ISO/IEC/IEEE 29119-1:2022, the international standard for software testing concepts.

Two things define it. It is performed by a team independent of the developers, so quality is measured objectively. And it runs in an environment that mirrors production, so the results predict real user experience.

The independence is the part teams quietly drop when a release slips, and it is the one I would protect hardest.

The flowchart below shows where System testing sits in the software development life cycle.

• Unit testing - During development, each module or block of code is subjected to unit testing. Most of the time, the programmer who writes the code is responsible for unit testing.
• Integration testing - It occurs before, during, and after integrating a new module into the main software package. This includes testing each code module. A single piece of software may comprise various modules, which are frequently built by multiple developers.
• System testing - A high-skilled software tester performs System testing on the entire software application before it is released to the general public.
• Acceptance testing - User acceptance testing and beta testing of a software application are performed by real end users.

System testing is effectively a superset of other testing types, because the assembled system must satisfy every requirement at once. Which types you run depends on the product and its risk profile.

Testing runs in a fixed order, and each level assumes the one before it has already passed.

• Unit testing: each module is checked during development, usually by the developer who wrote it.
• Integration testing: confirms modules built by different developers exchange data correctly once combined.
• System testing: a tester exercises the whole assembled application before it reaches users.
• Acceptance testing: real end users confirm the build is fit for purpose, through user acceptance testing.

System testing is effectively a superset of other testing types, because the assembled system must satisfy every requirement at once. Which types you run depends on the product and its risk profile.

These are the types that appear in most system test plans.

• Functional testing: confirms each feature behaves as specified, using boundary value analysis and decision tables.
• Performance testing: measures throughput and response time as concurrent load testing ramps up.
• Security testing: checks authentication, authorisation, session handling, and data protection across wired-together components.
• Usability testing: puts real tasks in front of participants to see whether the system can be operated unaided.
• Recovery testing: verifies the system returns cleanly after a crash or lost connection, without corrupting data.
• Regression testing: confirms recent changes have not broken behaviour that previously worked.
• Hardware/software (HW/SW) testing: exercises wiring, power supply, and I/O alongside the software driving them.

System testing goes better when the requirement document is current and unambiguous, because every test case is measured against it. Vague requirements are why tests pass and products still fail.

The flowchart below shows the phases of a typical system test cycle, each scoped by an agreed test plan.

• Analyse requirements: identify the frameworks, languages, tools, dependencies, and configuration the test environment needs.
• Create test cases: document what to test, how to run it, and what counts as pass or fail.
• Build test data: prepare positive and negative inputs, covering every required field.
• Execute test cases: run them and record the output that determines pass or fail.
• Report defects: capture how the system responded, with steps a developer can reproduce.
• Regression testing: re-run the suite so a late fix does not break working functionality.
• Fix defects: triage and resolve, accepting that not every fault can be closed before release.
• Retest: confirm each fix behaves as intended before the cycle closes.

These four levels are routinely confused because they overlap in time and all exercise more than one component. The difference is what each one is measured against, and who signs it off.

The shortest way to keep them apart: integration testing asks whether the parts talk to each other. System testing asks whether the assembled product matches the specification.

End to end testing asks whether a real journey completes. Acceptance testing asks whether the customer will take it.

System testing comes under the classification of the black-box test method. Although the white box technique requires internal code knowledge, the black box testing technique does not.

Components that passed integration testing become the input here, and are exercised through the black-box methodology. Functional, security, and performance cases all run at this level.

What gates the level in practice is its entry and exit criteria.

Entry requirements: integration testing must have exited cleanly, with no open critical or priority bugs. Five conditions gate the start.

• The test plan should be authorized and signed off.
• Execution of the scenarios and test cases should be as per the preparation.
• A proper framework of designed test scripts must abide by the implementation strategy.
• There should be test cases for each non-functional requirement, and they should all be available.
• The testing set ought to be ready to execute.

Exit standards: four conditions close the level. Of these, the exit report is the one I have seen skipped most often, and the one auditors ask for first.

• Execute each test case.
• There shouldn't be any open critical, priority, or security-related problems.
• If any medium or low-priority issues are still outstanding, the developer should fix them with the customer's consent.
• The tester must turn in the exit report to keep a performance record.

Note: Covering every browser and OS combination is where in-house labs stall. TestMu AI runs system tests on 10,000+ real devices and 3,000+ browser and OS combinations on demand. Start testing for free.

No single tool covers system testing end to end, so most teams combine a driver for functional flows, a load generator for performance work, and a cloud grid for browser and OS coverage.

The tools below cover those three jobs between them.

• Robot Framework: keyword-driven and application-independent. Version 7 runs on Python 3.8 or newer.
• Galen Framework: open-source layout and responsive-design testing, built on Selenium WebDriver.
• Selenium: open-source automation for web tests across browsers, and one of the best test automation frameworks.
• JMeter: simulates load against a server to measure durability and performance under different traffic patterns.
• TestMu AI: runs cross browser testing across 10,000+ real devices and 3,000+ browser and OS combinations.

Setup steps are in the getting started with TestMu automation documentation.

A system test case reads as a user-facing scenario rather than a code assertion. The example below walks through an e-commerce build, from login and checkout to its policy documents.

• Check the site loads, all pages and functions are present, and a user can register and log in.
• Confirm a user can browse products, add to cart, complete checkout, and receive confirmation.
• Verify the site handles the specified concurrent user load without degrading.
• Test that search, filter, sort, and wishlist all behave as intended.
• Check rendering across Windows, Linux, and mobile, in current versions of every major browser.
• Confirm the session timeout behaves as designed.
• Verify the user guide, return policy, privacy policy, and terms are present and downloadable.

System testing can be run manually or through automation. Cloud platforms remove the cost of an in-house device lab, and let a single test run in parallel across many configurations.

TestMu AI provides an online browser farm and an online device farm for mobile and web testing.

Below are the steps to perform live-interactive System testing on the TestMu AI platform.

• Sign in to your TestMu AI account. Register for free if you don't already have an account.

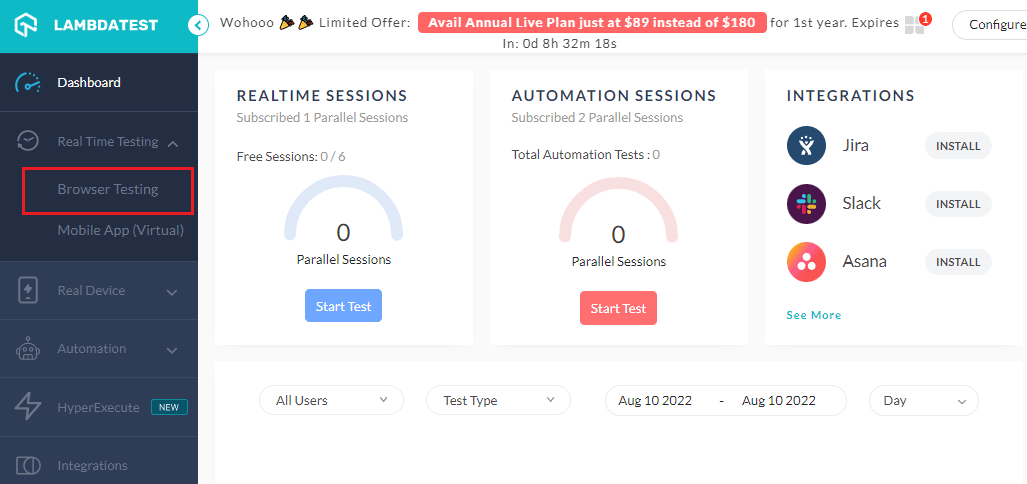

• Navigate to Real Time Testing > Browser Testing from the left sidebar.

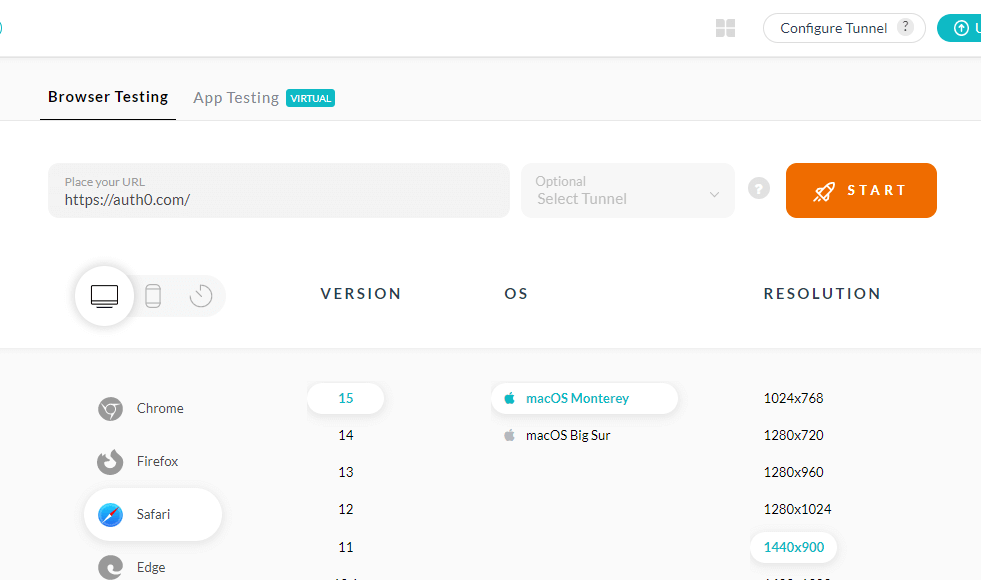

• Enter the URL, and select the browser VERSION, OS, and RESOLUTION. Then, click START.

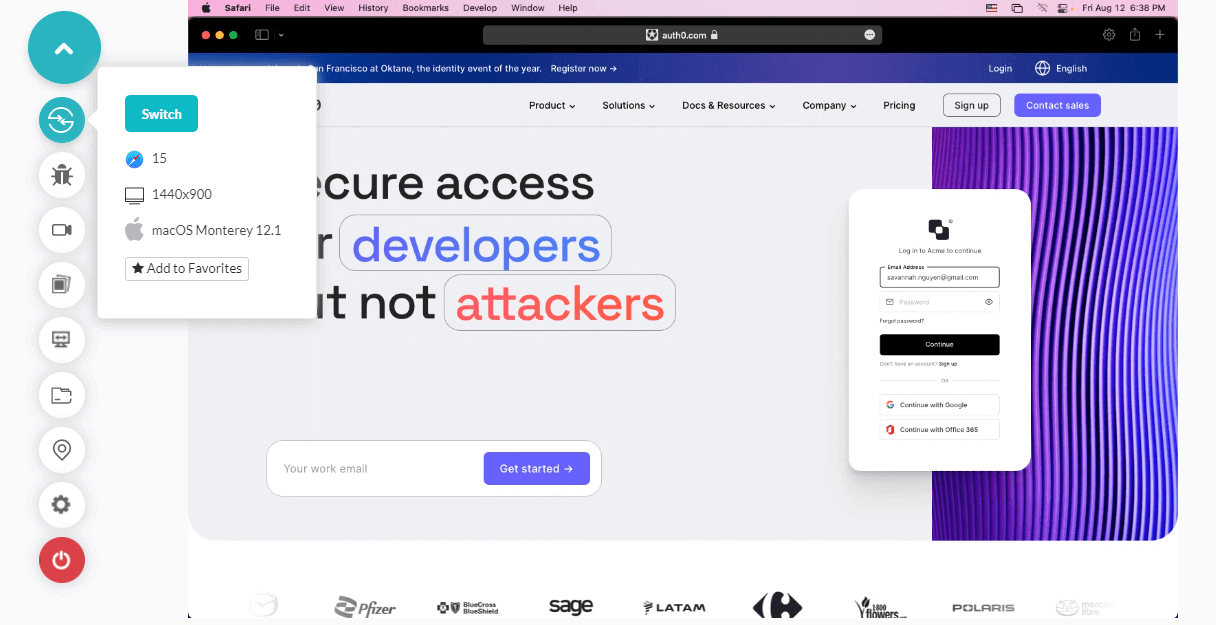

A cloud-based virtual machine will launch running a real operating system. Here you can perform live-interactive System testing of your web applications.

The full walkthrough lives in the getting started with desktop browser real time testing documentation.

TestMu AI platform is also equipped with a real device cloud to test web and mobile apps in real-world conditions and gives you accurate results.

Check out the video tutorial on performing real device testing on the TestMu AI platform.

Subscribe to TestMu AI YouTube Channel, and check out the latest tutorials around Selenium automation testing, real-time testing, and more.

System testing carries real costs, and pricing them in upfront is what keeps a release schedule honest. These four limitations come up on almost every project I have worked on so far.

• Cost: skilled testers, debugging tools, and a production-like environment are all chargeable line items.
• Duration: exercising the whole system takes longer than any narrower level, and it sits on the critical path.
• No completeness guarantee: full path coverage still misses defects that only appear under real usage patterns.
• Late feedback: defects surface after integration, when a fix is more disruptive than it would have been earlier.

Most system test failures trace back to the QA process rather than the tooling itself. These five practices address the failures that recur across projects, whatever the stack in use.

• Simulate real conditions: install and configure the build exactly as the documentation instructs, then use it as a customer would.
• Hold the environment constant: identical conditions across runs keep outside interference from being mistaken for a defect.
• Involve multiple disciplines: analysts, developers, testers, and customers each catch a different class of problem.
• Re-run after every fix: a one-line bug fix can introduce a worse defect, so regression coverage belongs inside the cycle.
• Log defects usefully: record the steps, the expected result, and the actual result, then track through to a verified retest.

System testing is the point where the product is judged as a whole rather than in pieces, and it is the last review that happens before users become the testers.

Start from the requirement specification, build test cases against it, and run them in an environment that mirrors production. That sequence is what makes the results trustworthy.

If you are deciding where to spend limited time, read non functional testing next. It is where most escaped system defects originate.
